Test F: Charging Indicator Flickers Or Is Intermittent
Test F: Charging Indicator Flickers Or Is Intermittent
PINPOINT TEST F: THE
CHARGING SYSTEM
WARNING INDICATOR LAMP FLICKERS OR IS INTERMITTENT

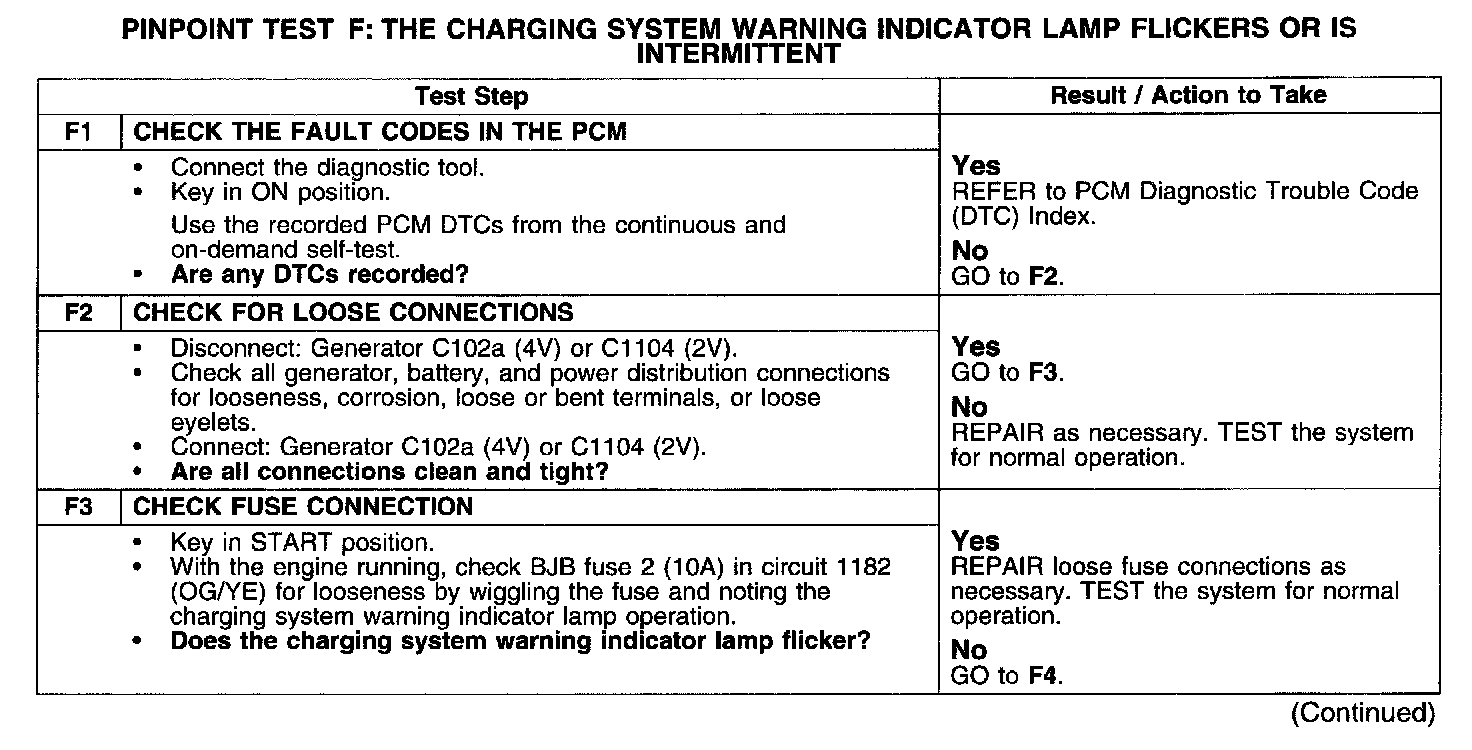

Test F1-F3:

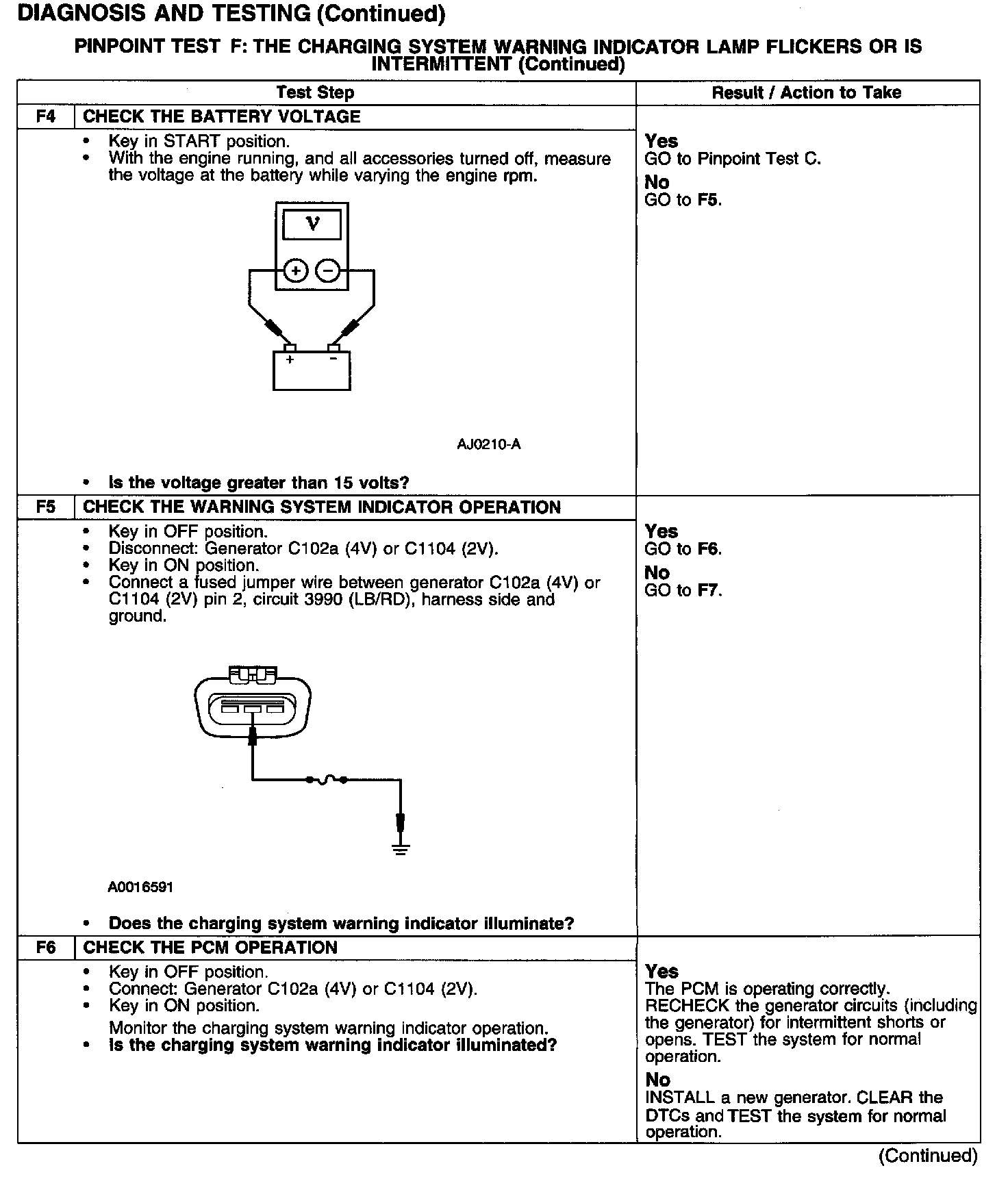

Test F4-F6:

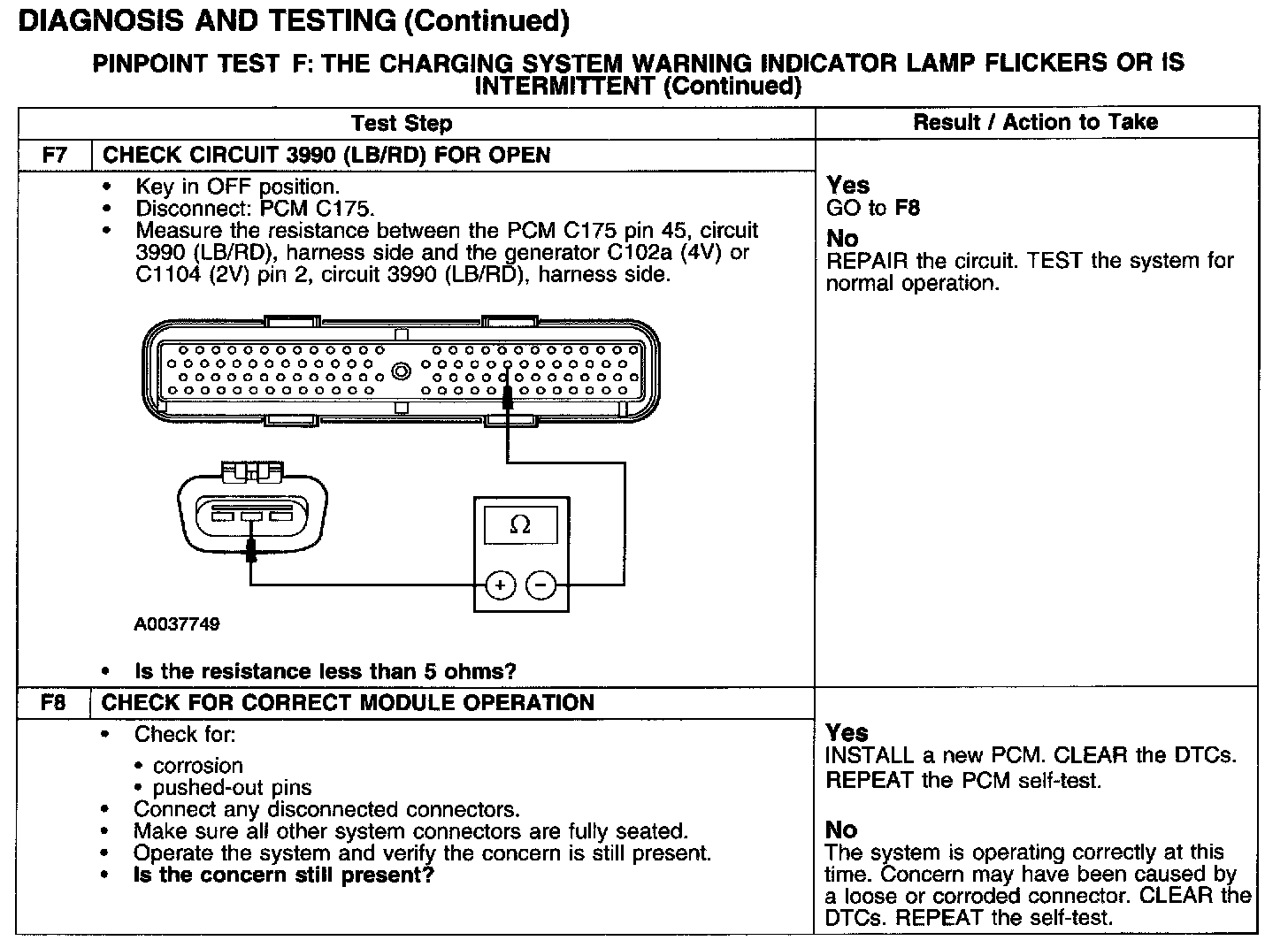

Test F7-F8:
