Band and Clutch Application Charts

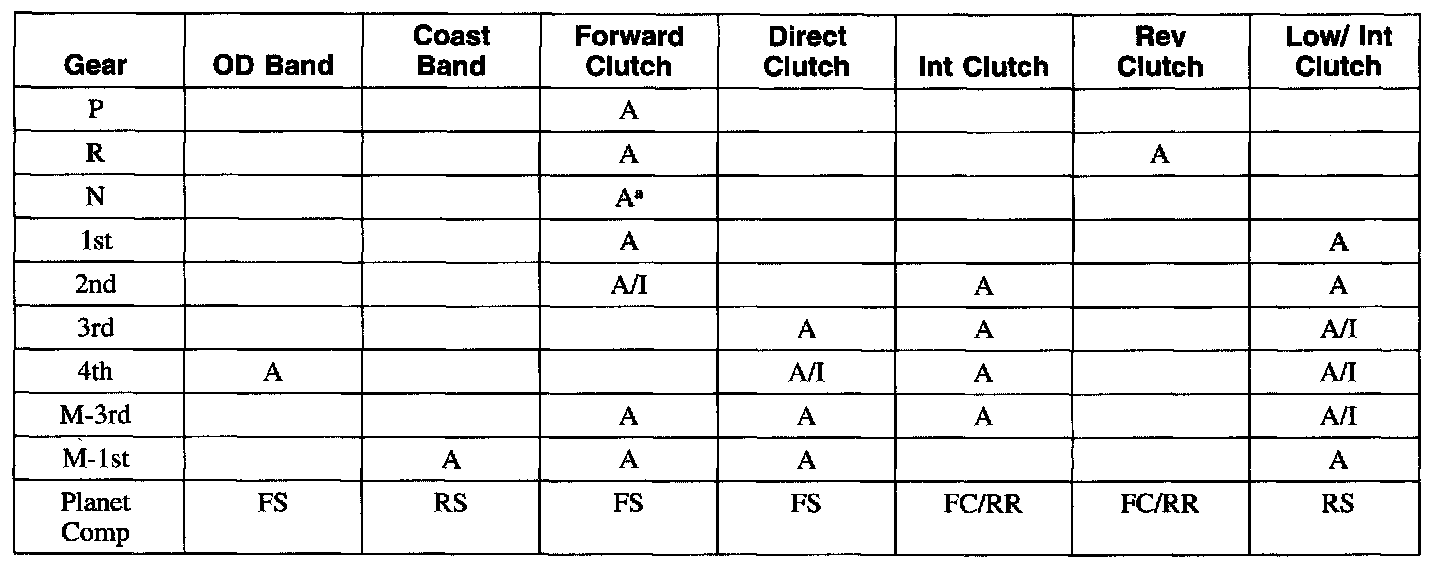

Band And Clutch Application Chart A

Part 1 Of 2:

a. Above 100°F TFT (Transmission Fluid Temperature)
A = Applied
A/I = Applied/Ineffective
FS = Front Sun Gear
RS = Rear Sun Gear
FC/RR = Front Carrier/Rear Ring Gear

Band And Clutch Application Chart B

Part 2 Of 2:
