EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







2. Disconnect the Exhaust Gas Recirculation (EGR) vacuum regulator solenoid.
^ Disconnect the electrical connector.
^ Disconnect the vacuum hoses.

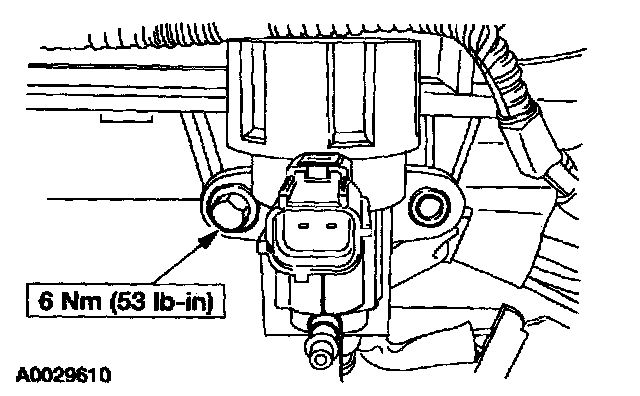

3. Remove the nut and remove the EGR vacuum regulator solenoid.

INSTALLATION
1. To install, reverse the removal procedure.
