Tests TA: Park/Neutral Position/Clutch Pedal Position Switches
Tests TA: Park/Neutral Position/Clutch Pedal Position Switches

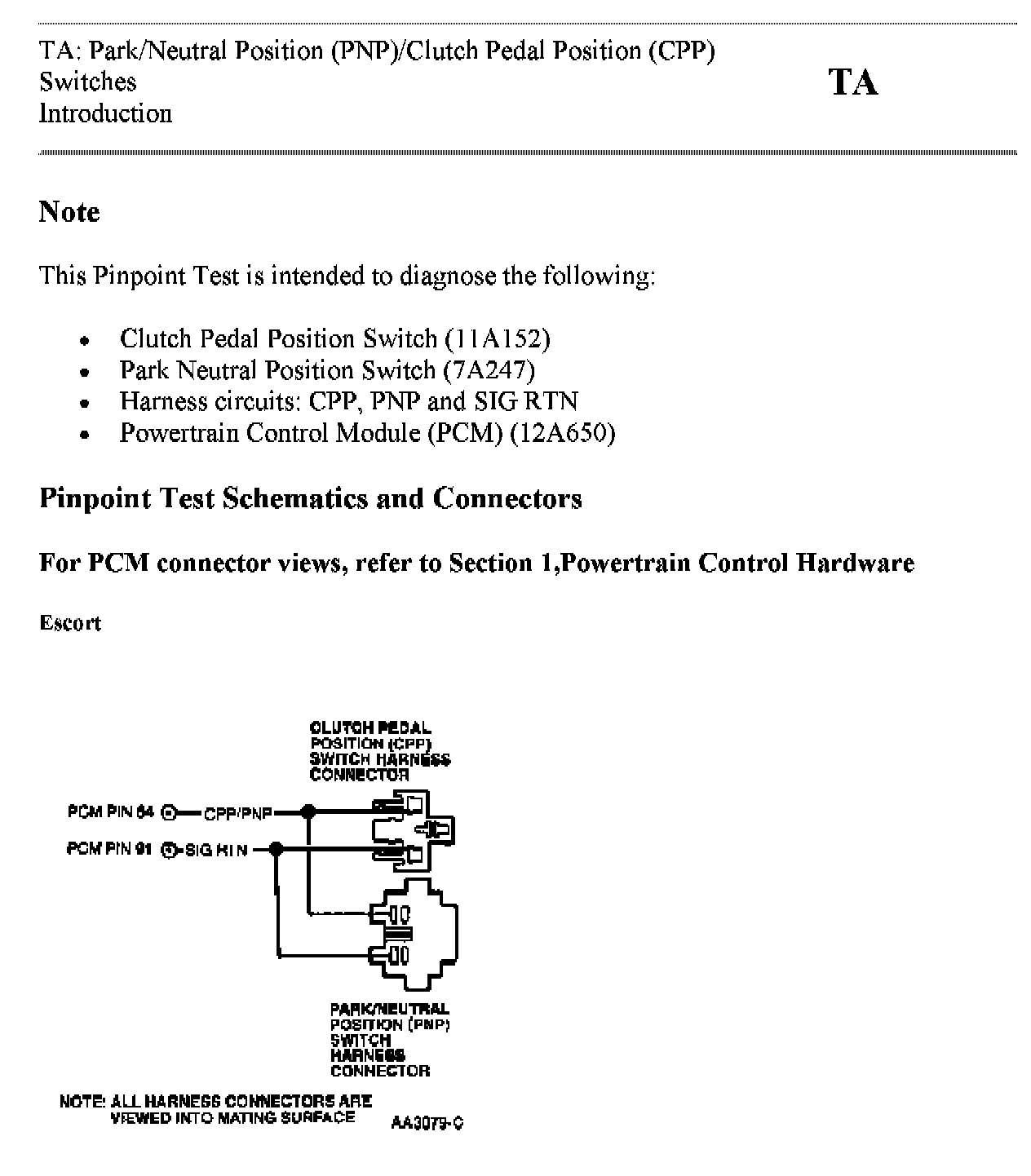

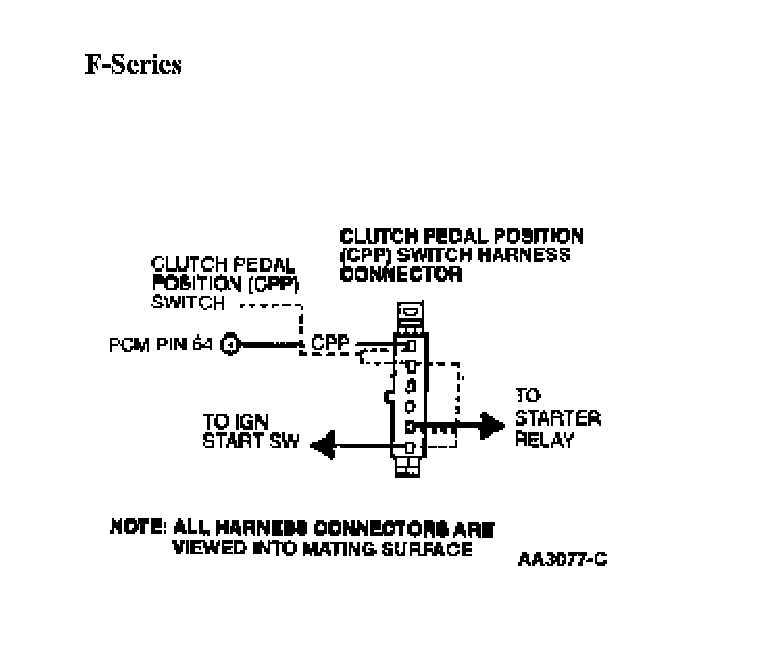

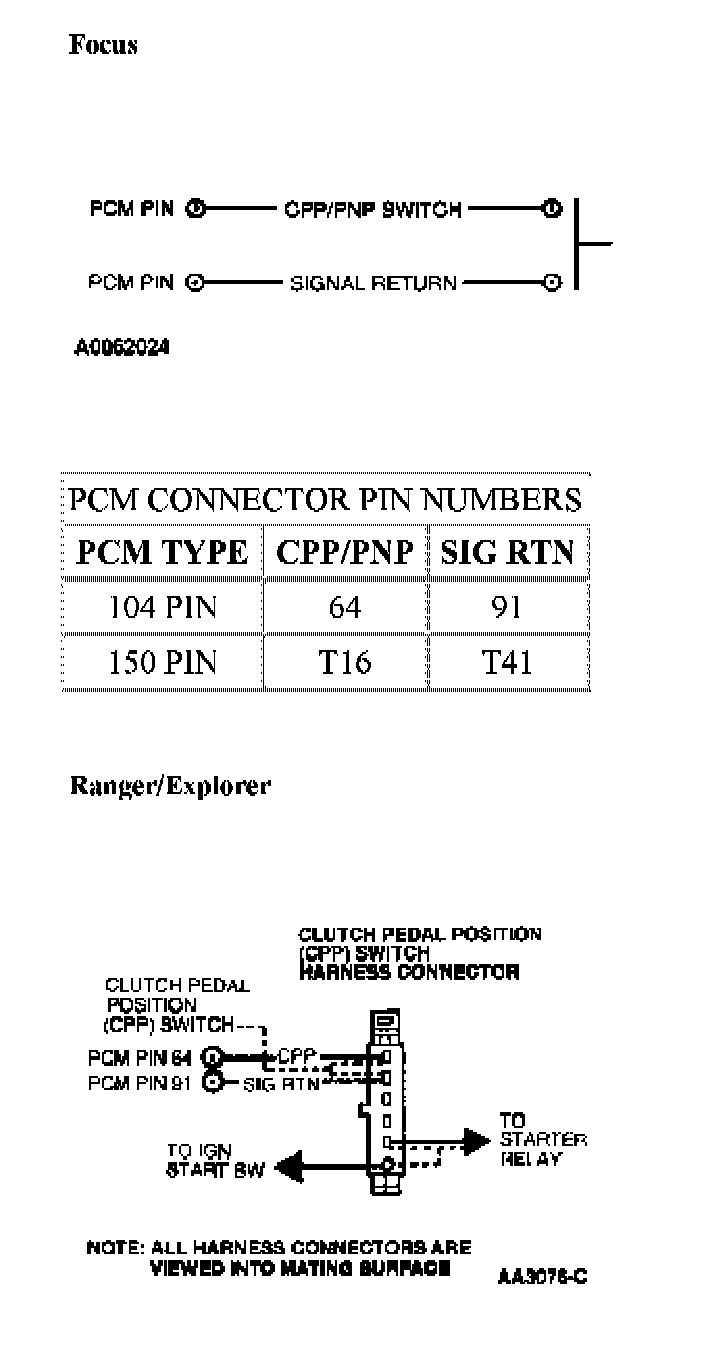

TA INTRODUCTION 1 OF 3:
TA INTRODUCTION 2 OF 3:
TA INTRODUCTION 3 OF 3:

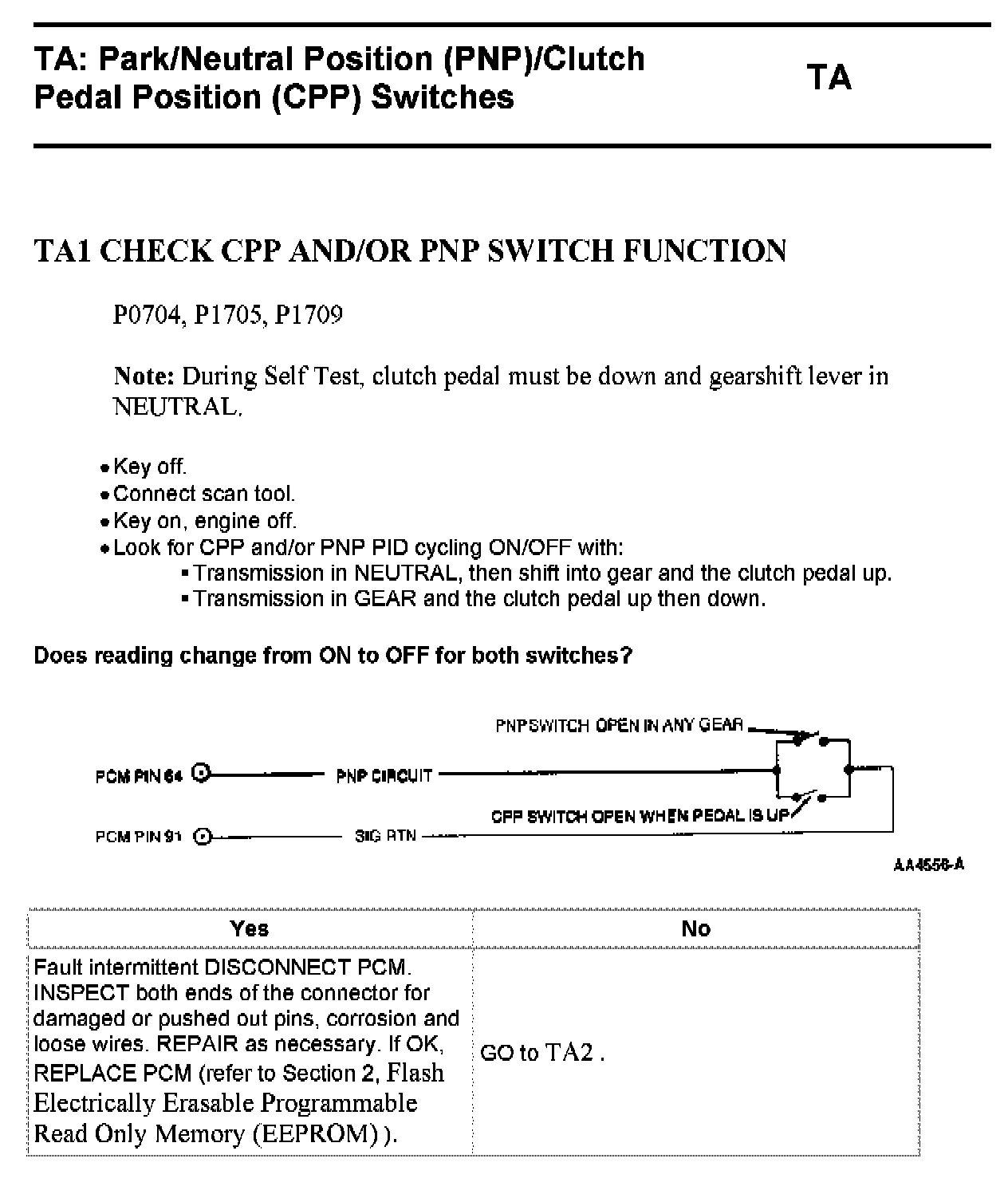

TA1:

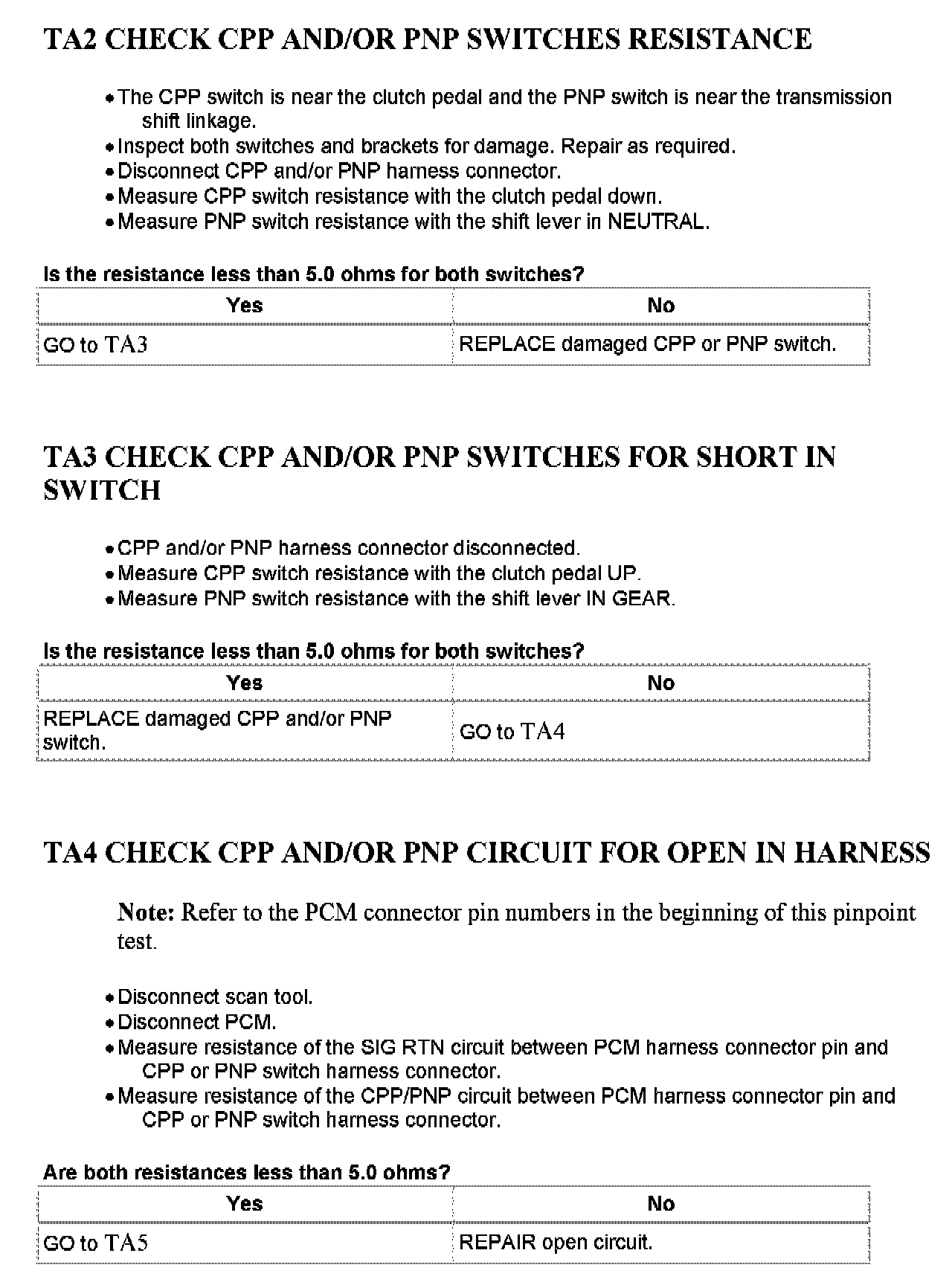

TA2 - TA4:
TA5:
