Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests KQ: Thermostat Heater Control (THTRC)

Tests KQ: Thermostat Heater Control (THTRC)

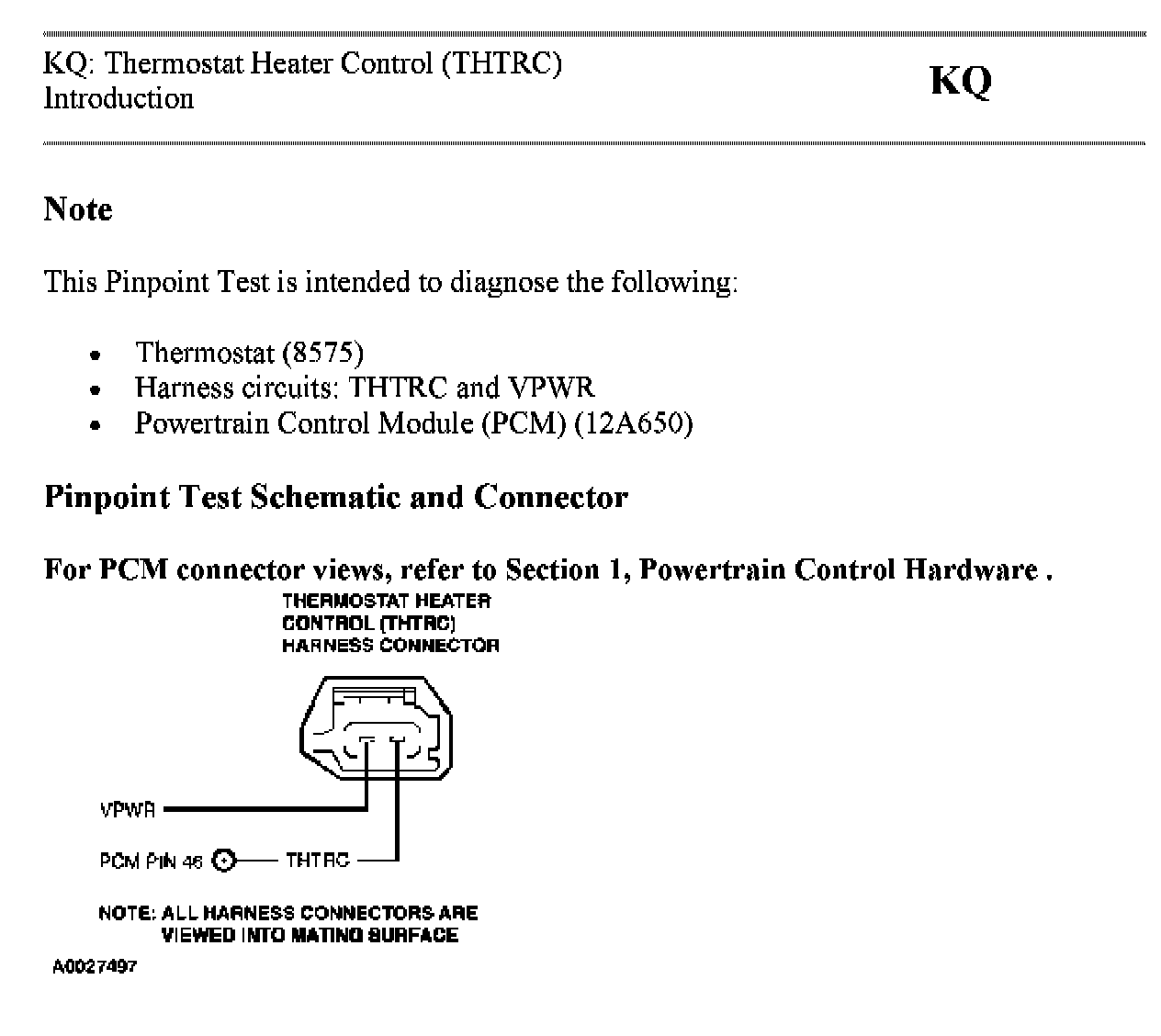

KQ INTRODUCTION:

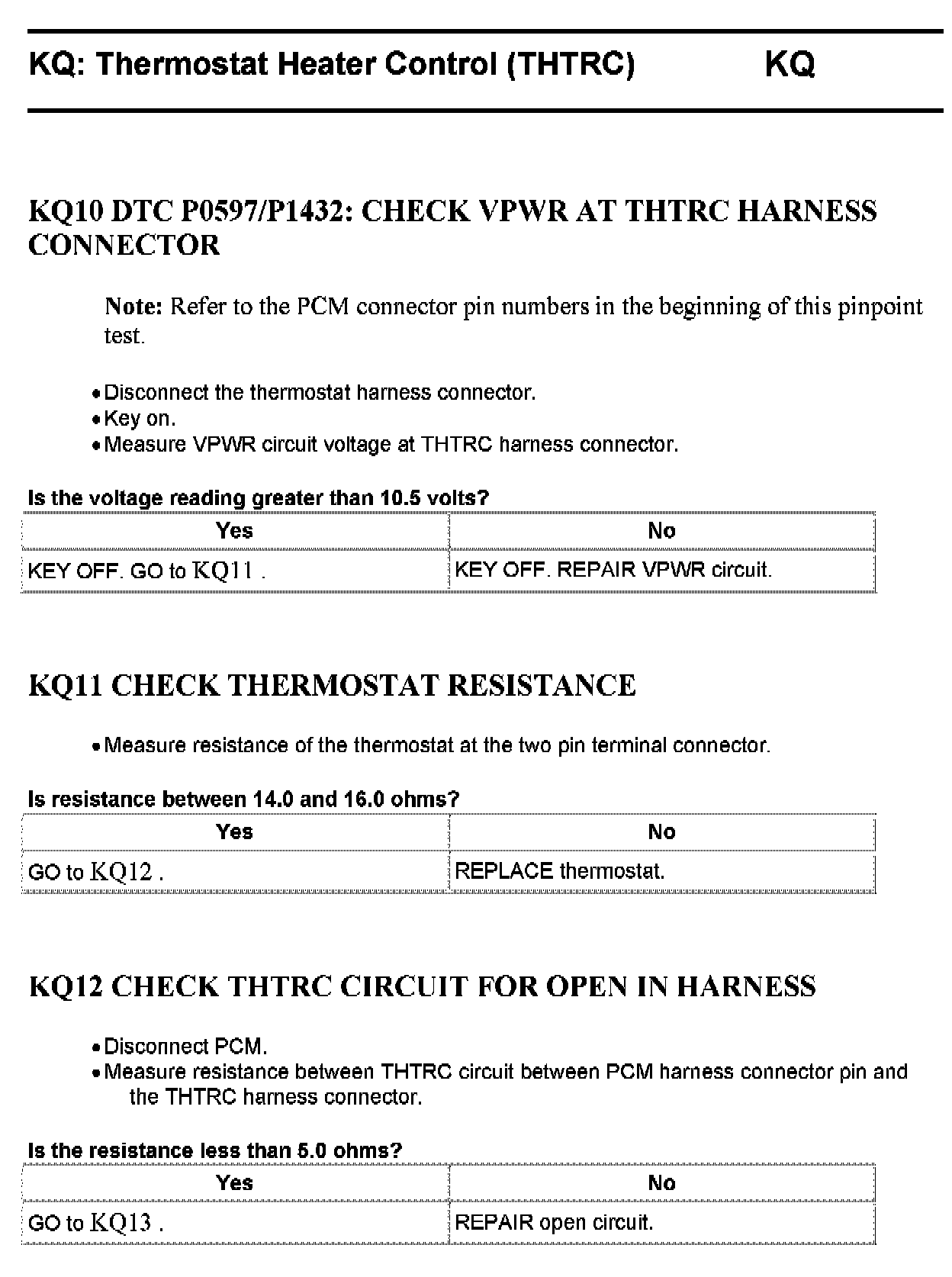

KQ10 - KQ12:

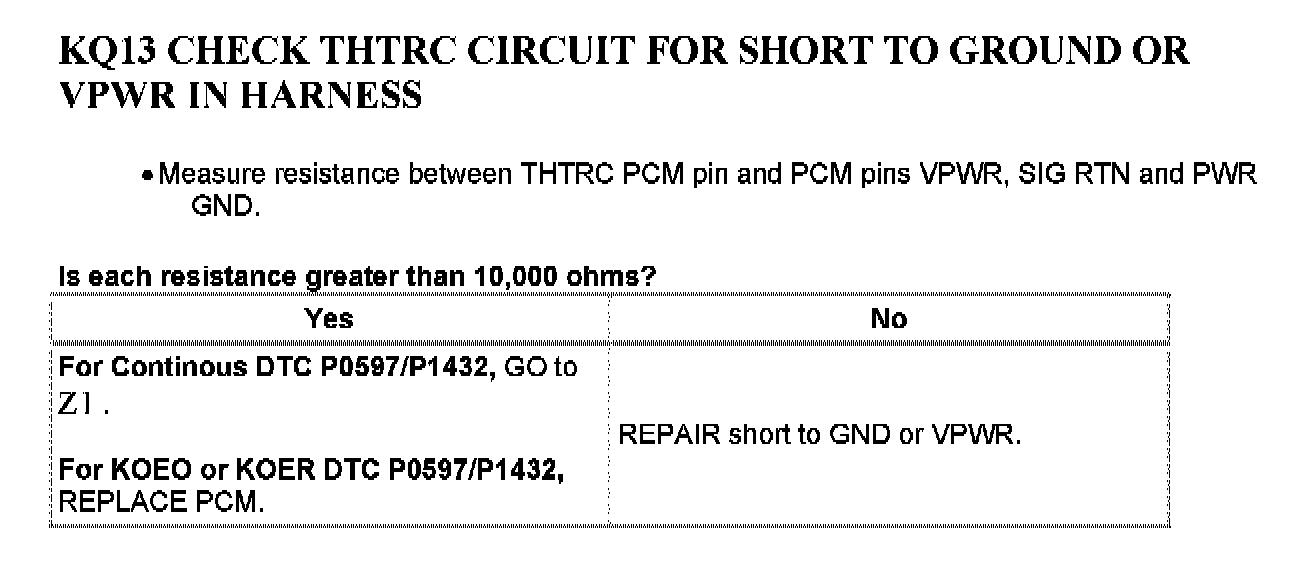

KQ13:
