Tests KG: Visctronic Drive Fan (VDF) Clutch

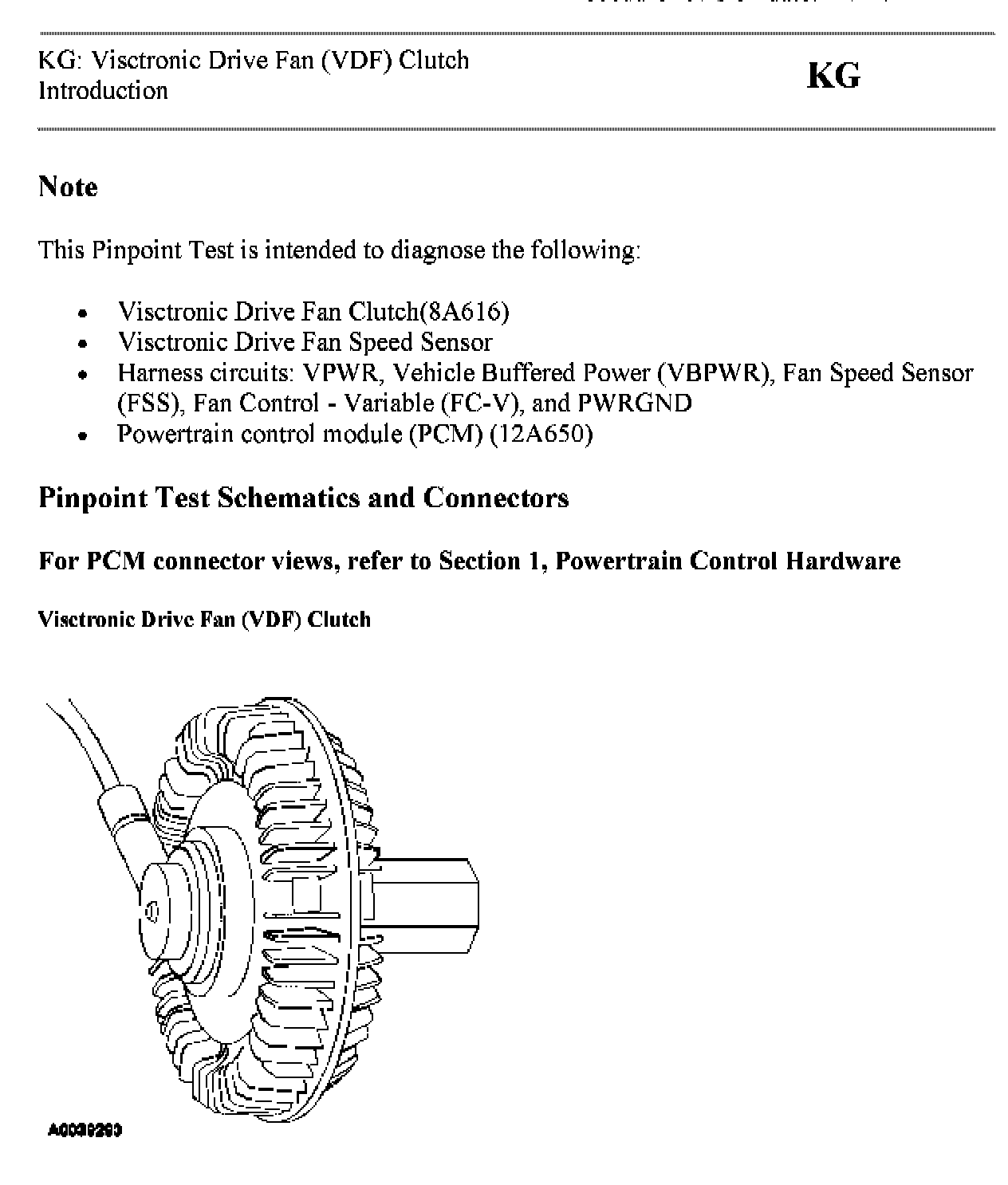

KG INTRODUCTION 1 OF 2:

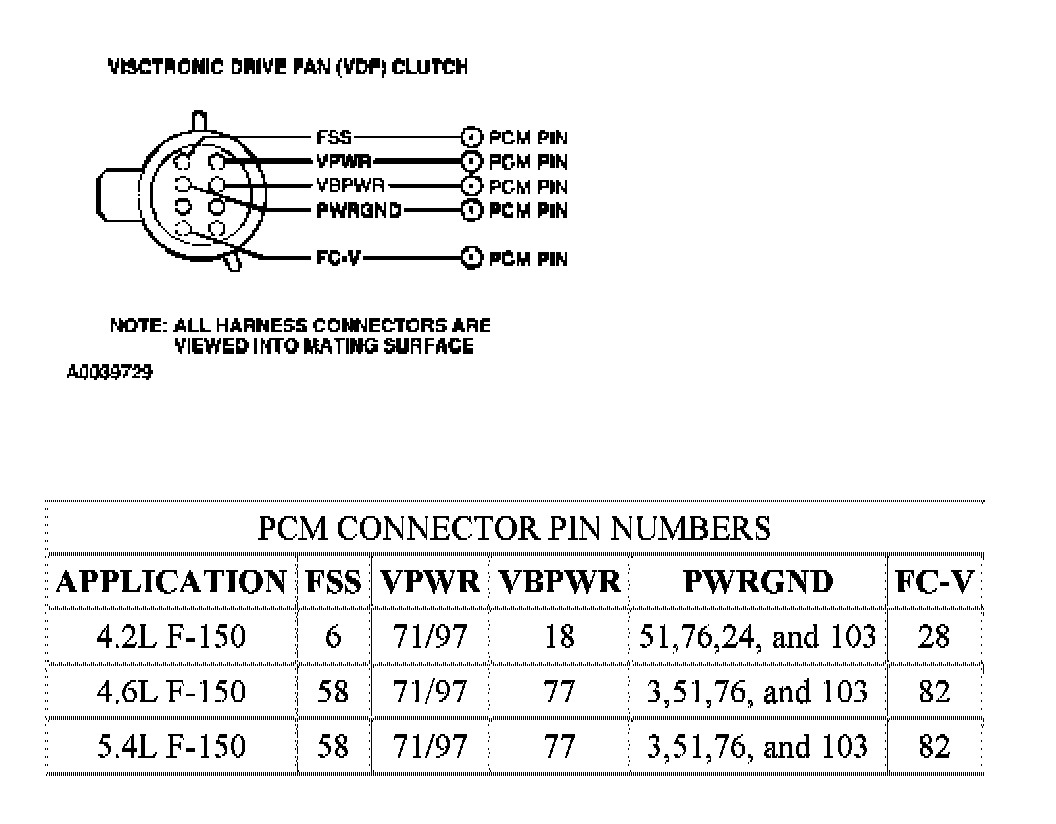

KG INTRODUCTION 2 OF 2:

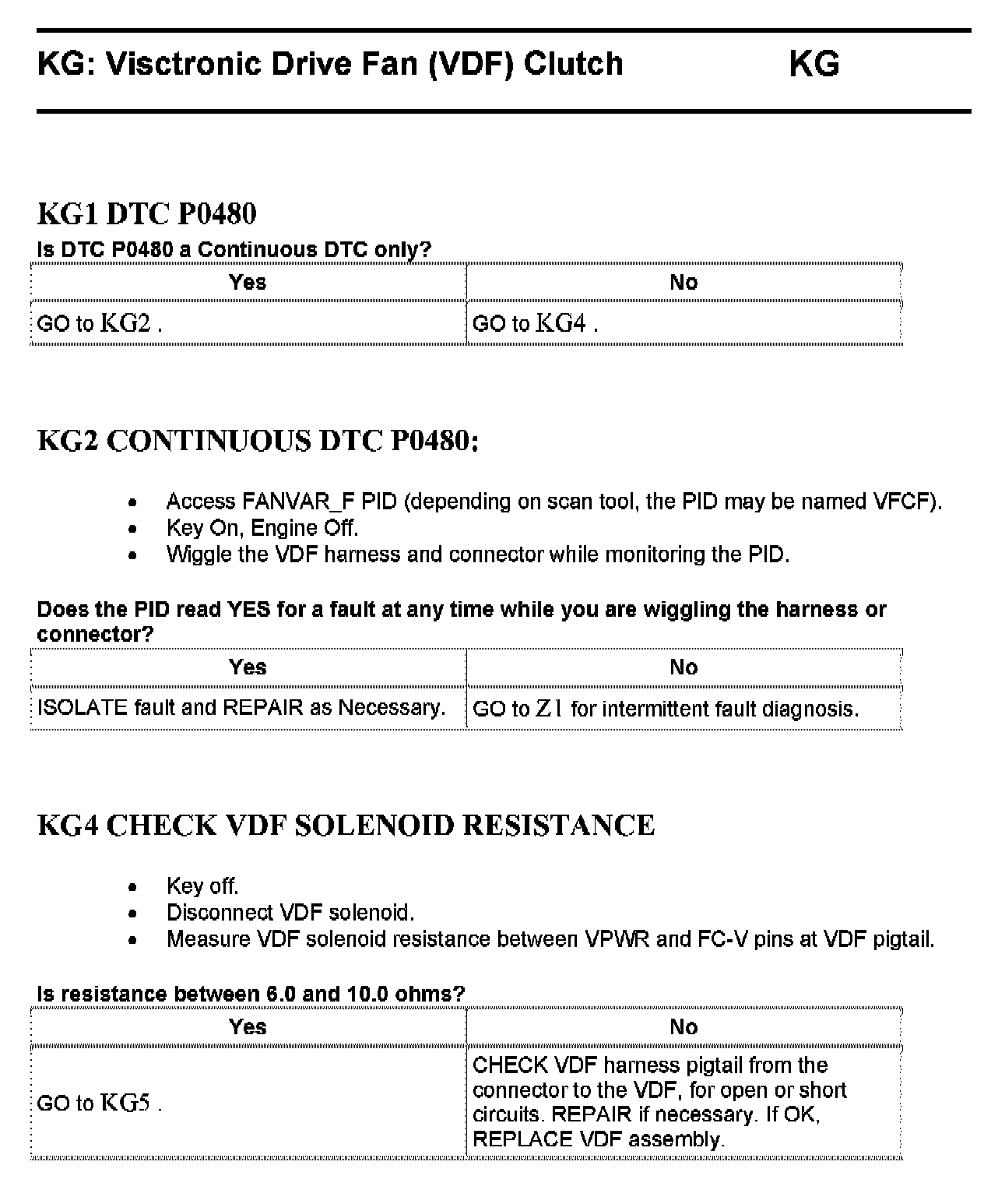

KG1 - KG4:

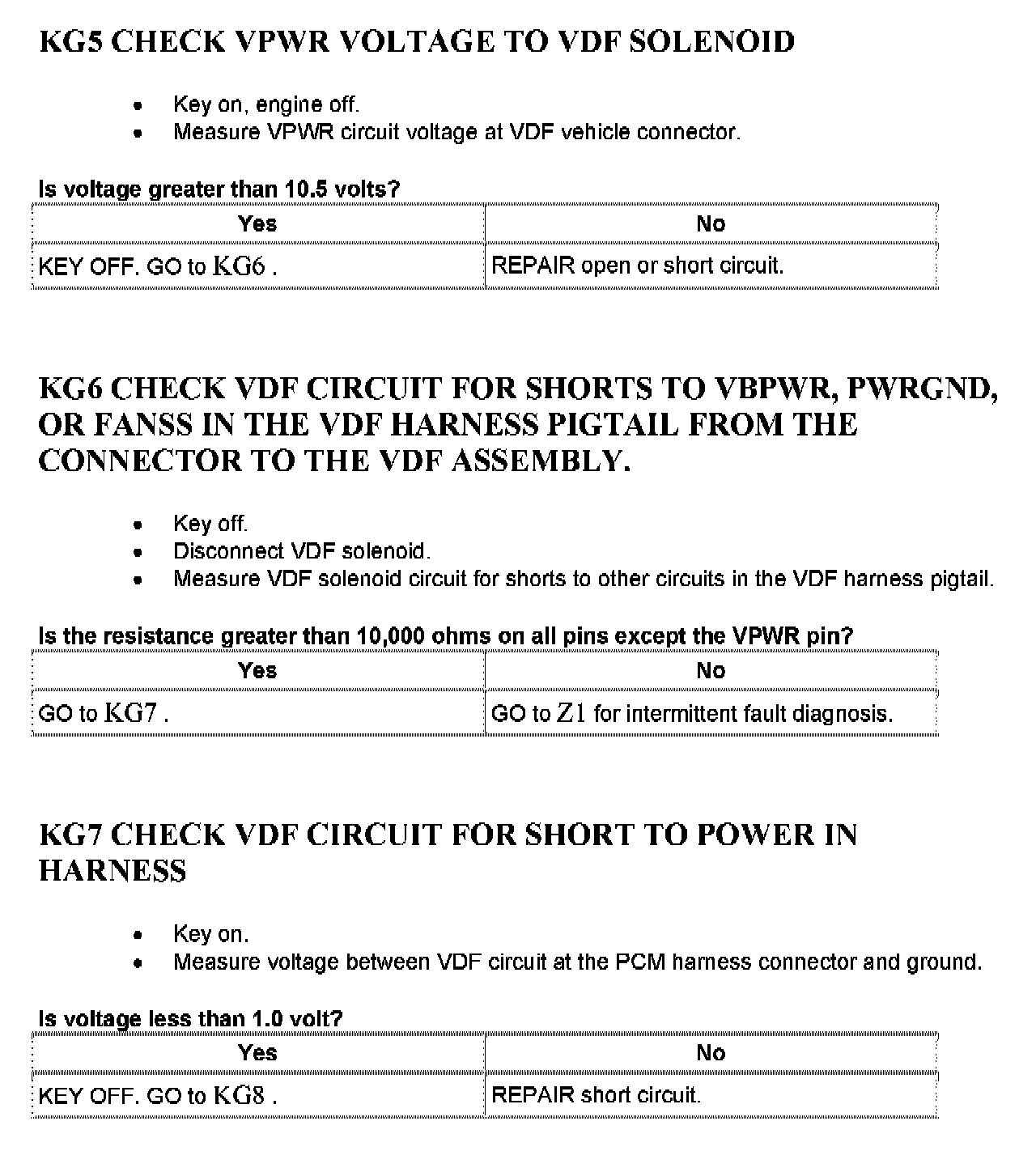

KG5 - KG7:

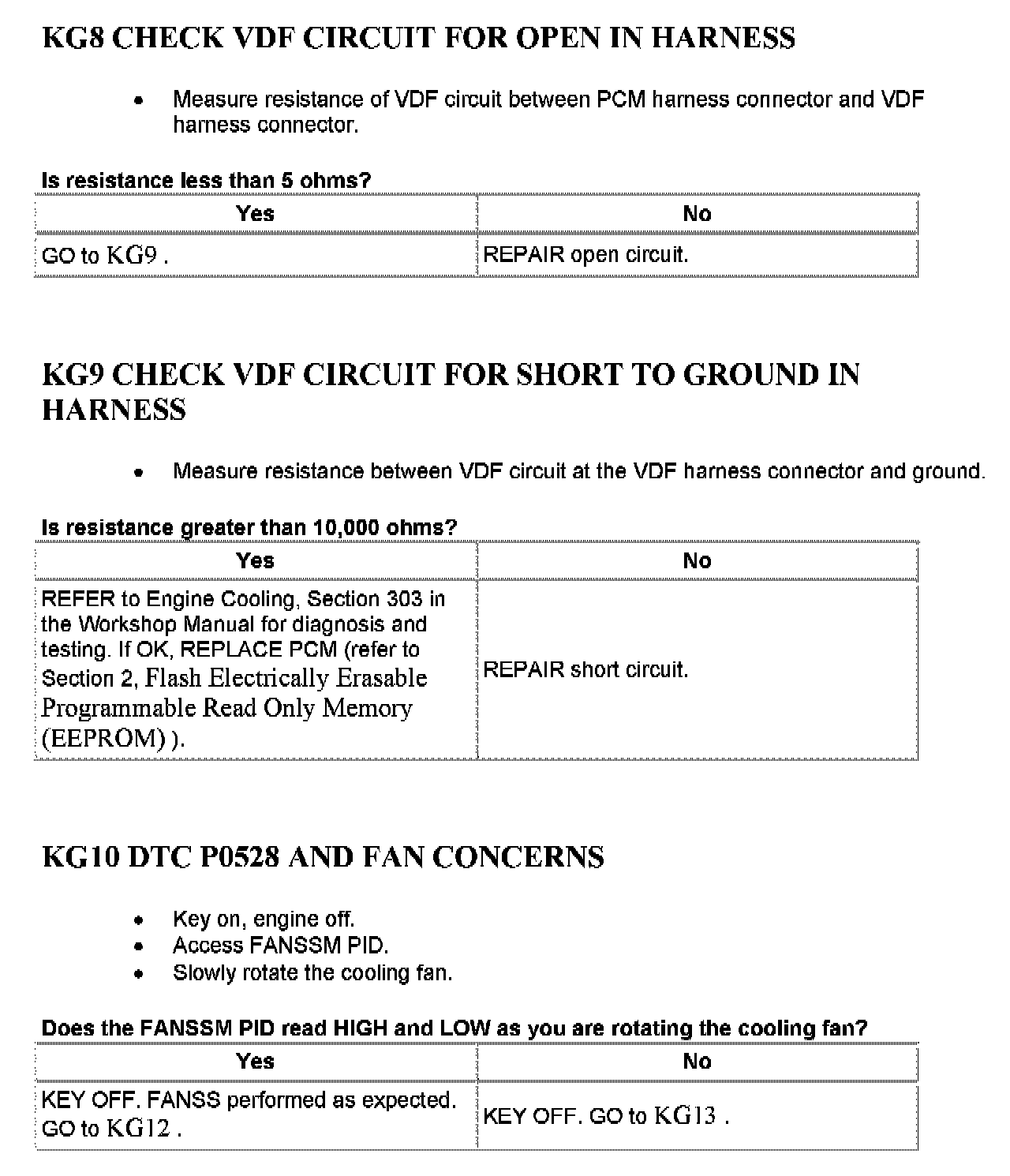

KG8 - KG10:

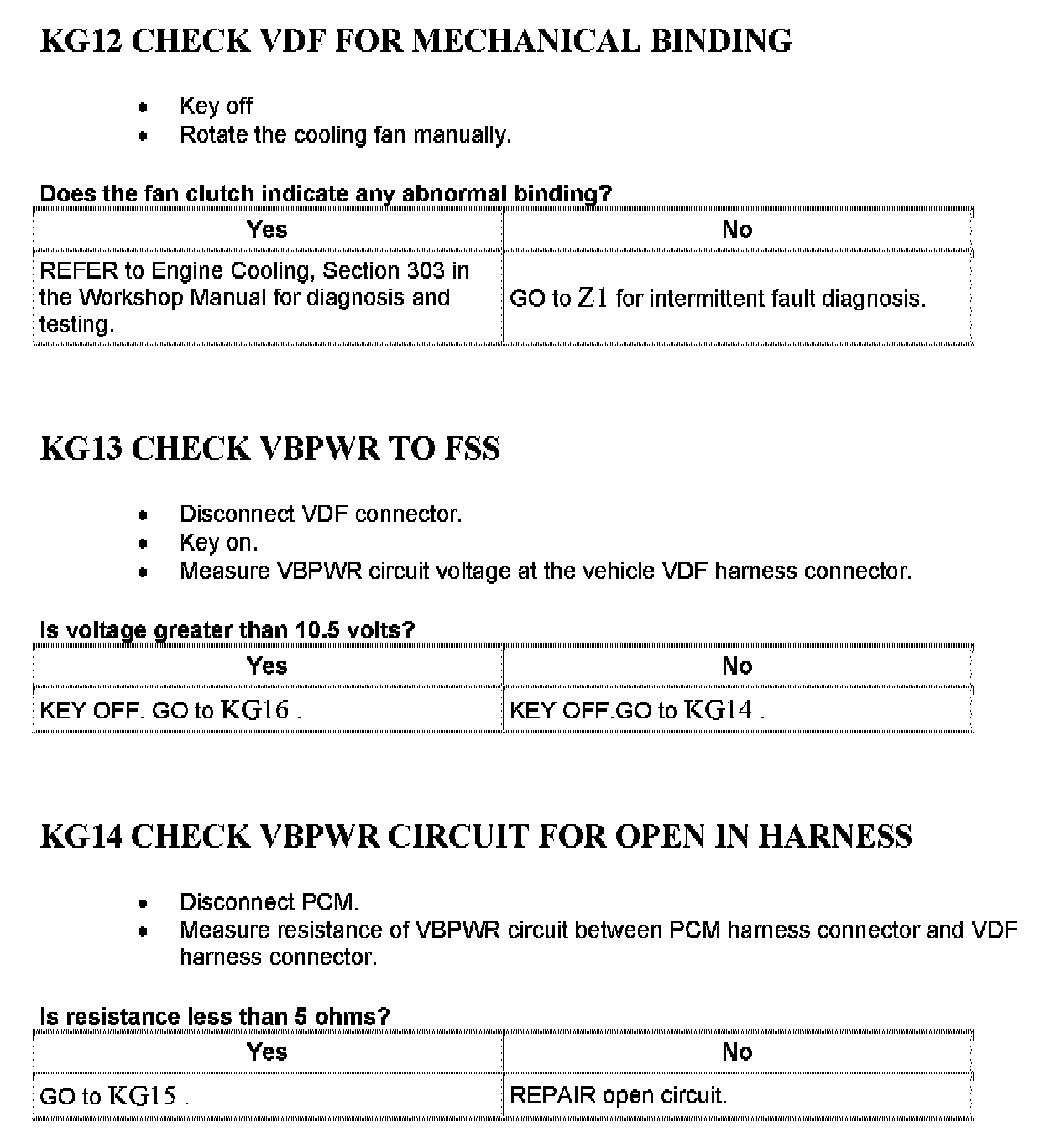

KG12 - KG14:





KG15 - KG17:

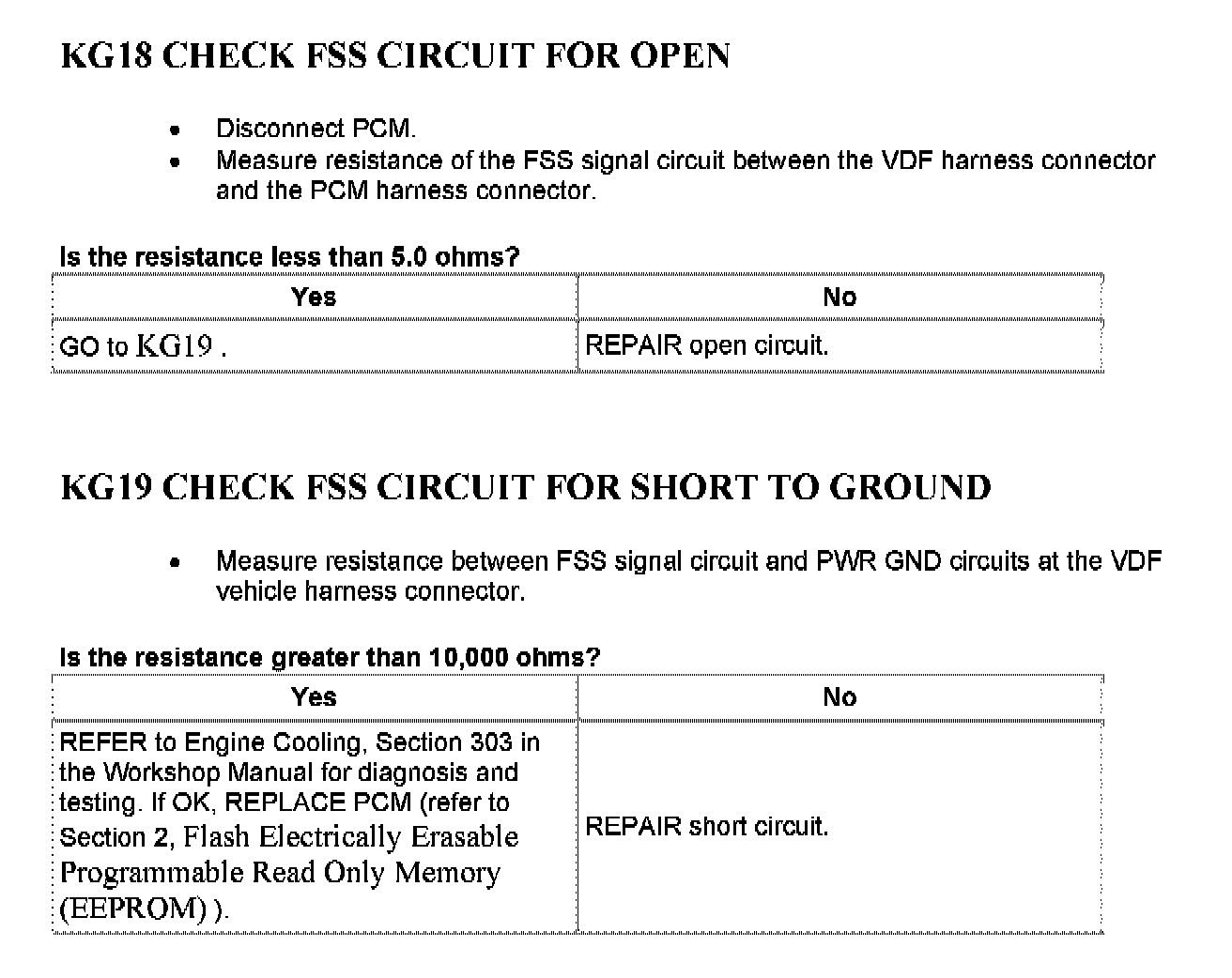

KG18 - KG19:
