Tests HK: Variable Cam Timing (VCT)

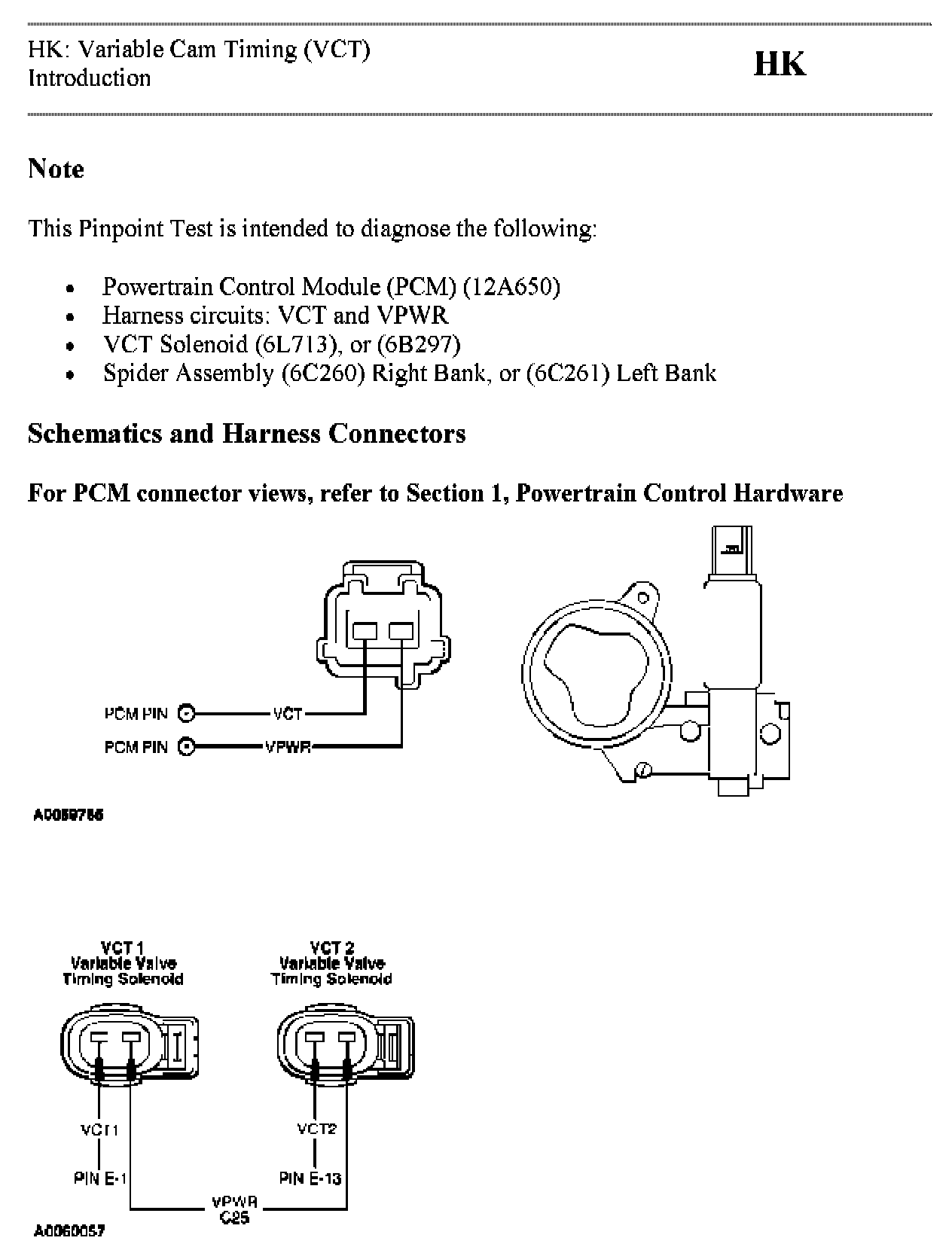

HK INTRODUCTION 1 OF 2:

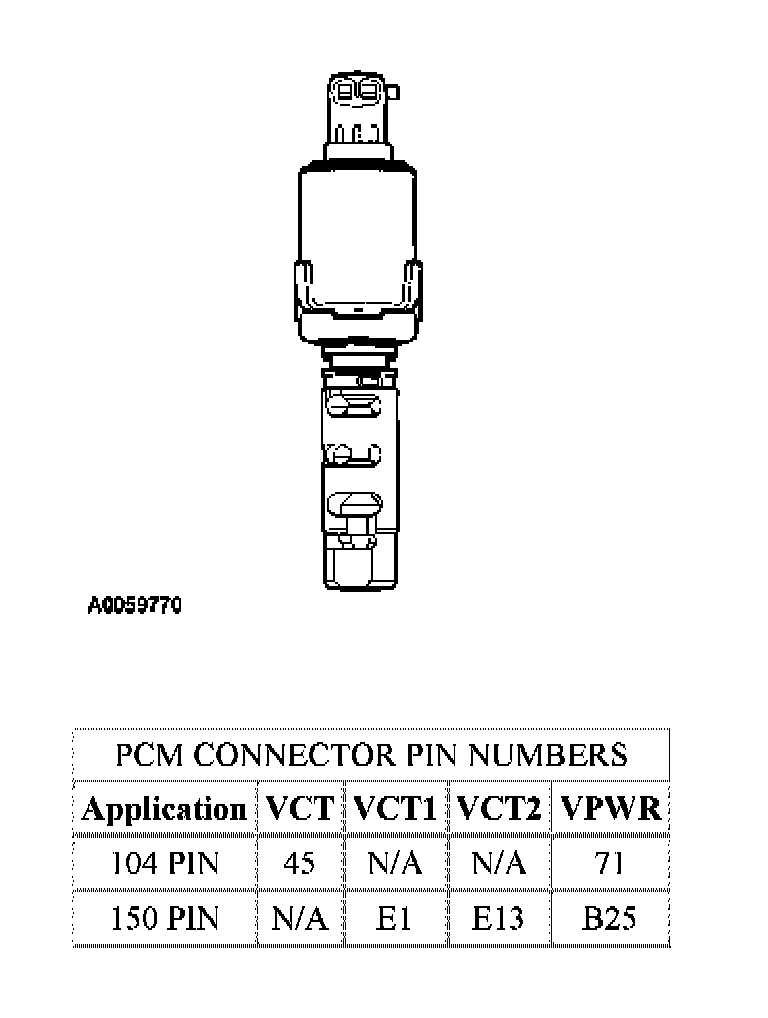

HK INTRODUCTION 2 OF 2:

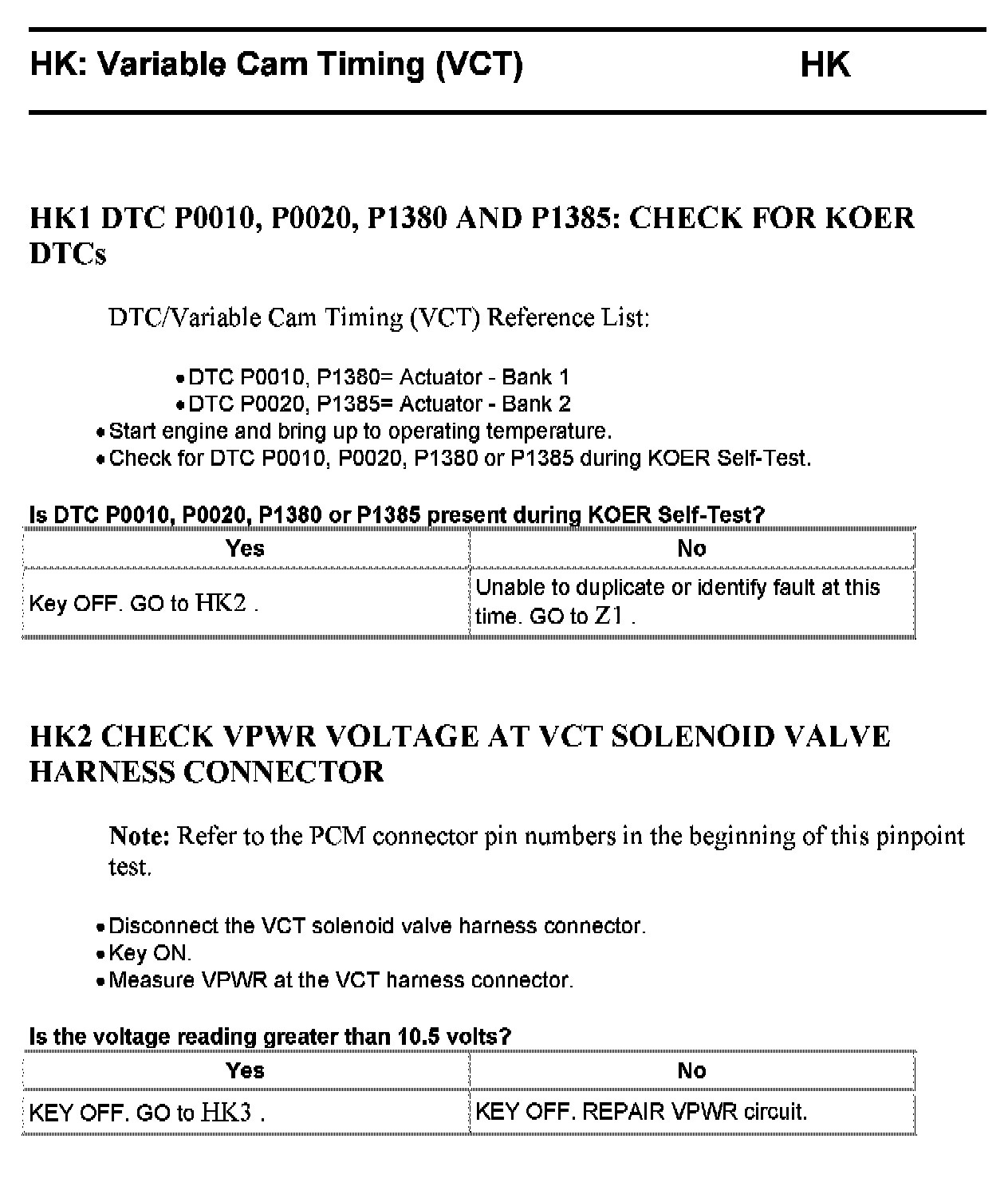

HK1 - HK2:

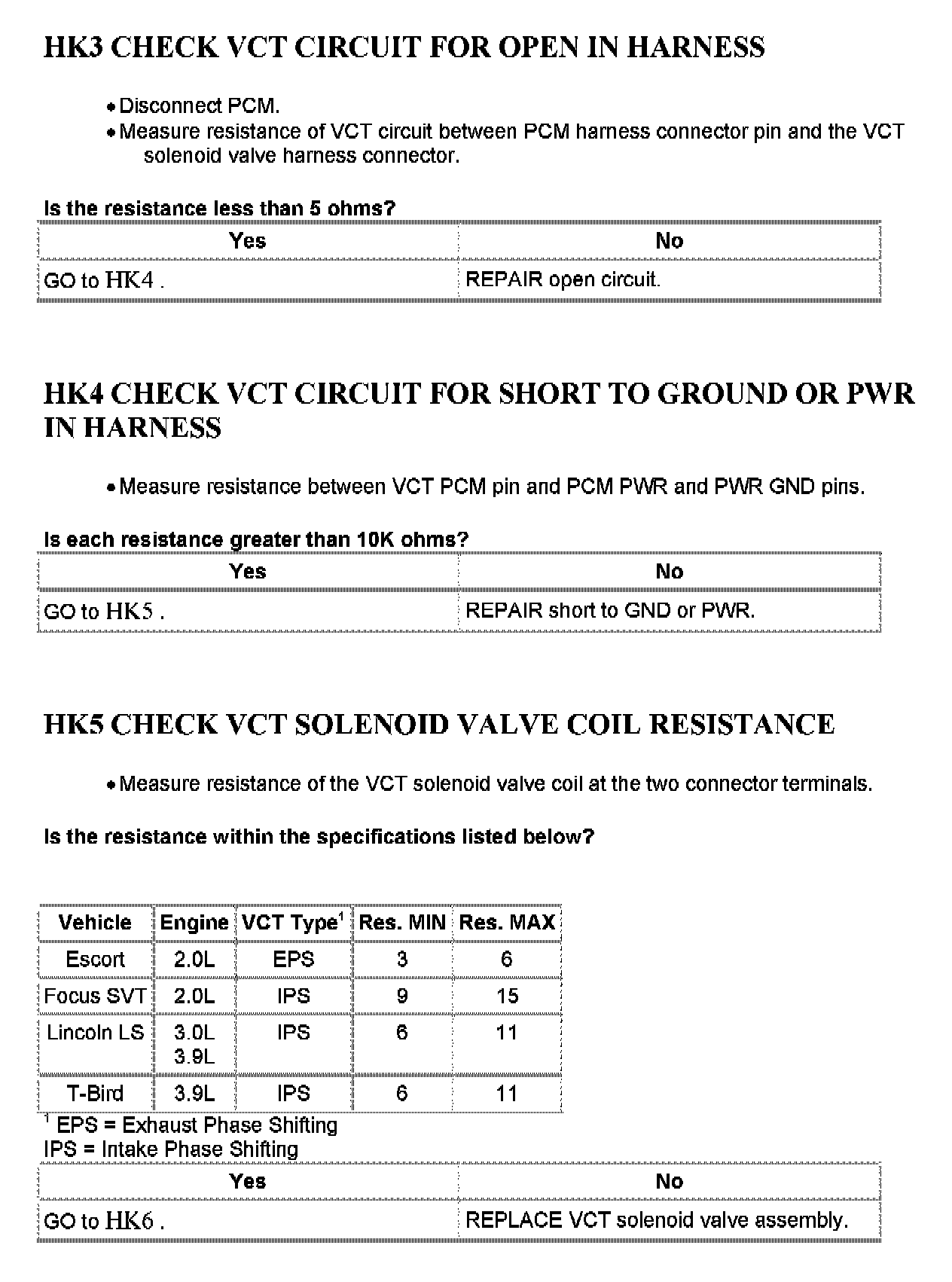

HK3 - HK5:

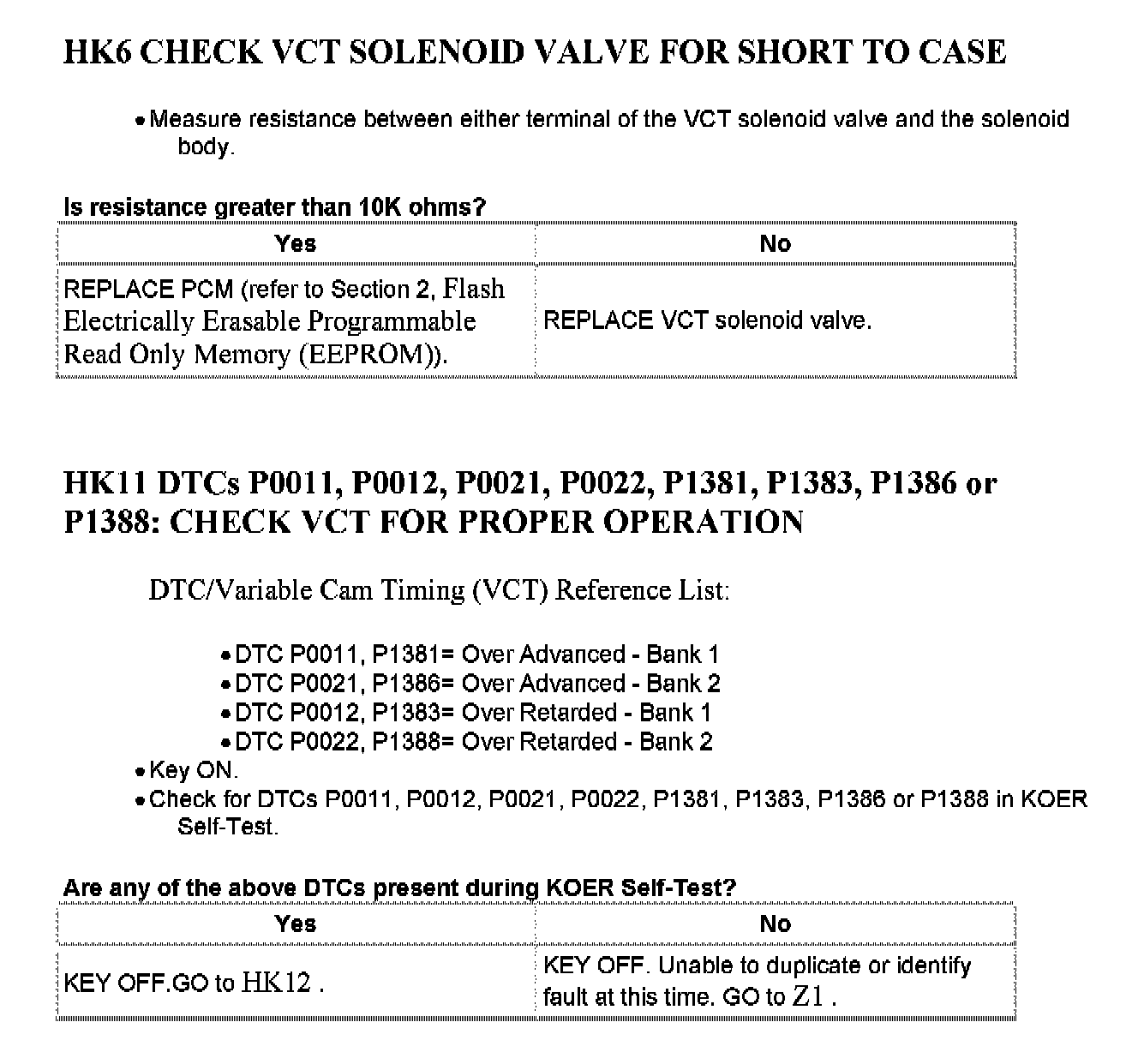

HK6 - HK11:

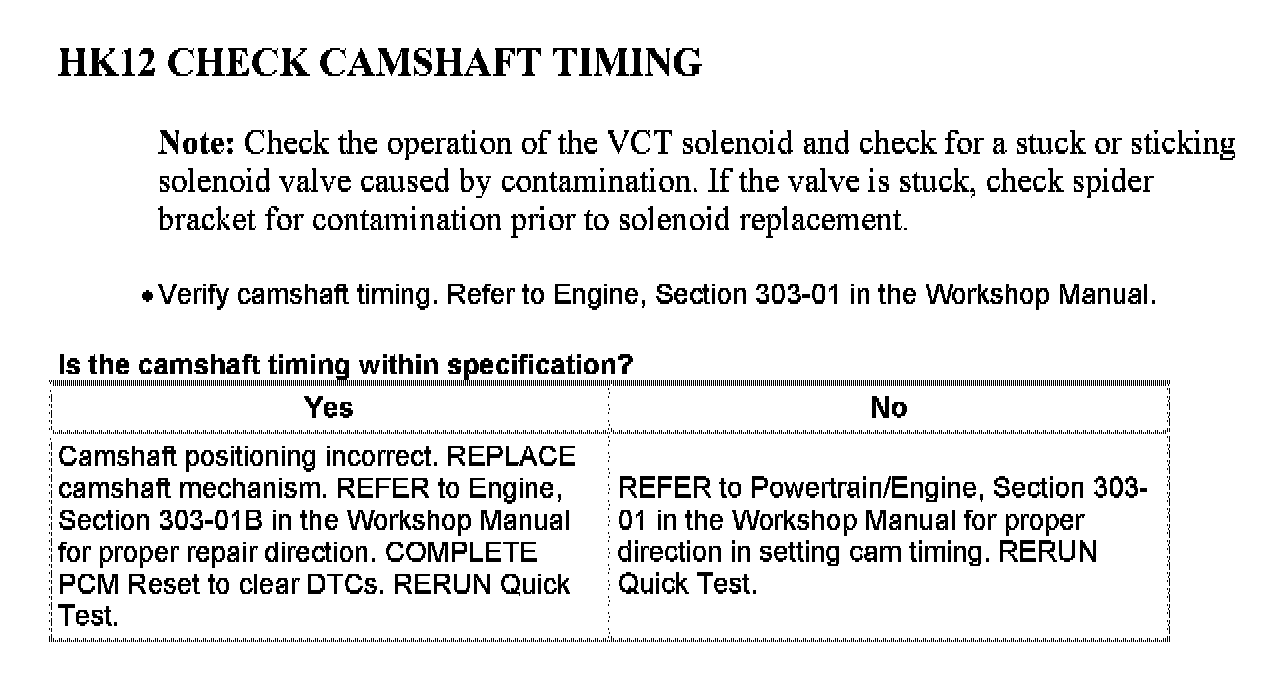

HK12:
