Tests DU: Intake Air Temperature 2 (IAT2)

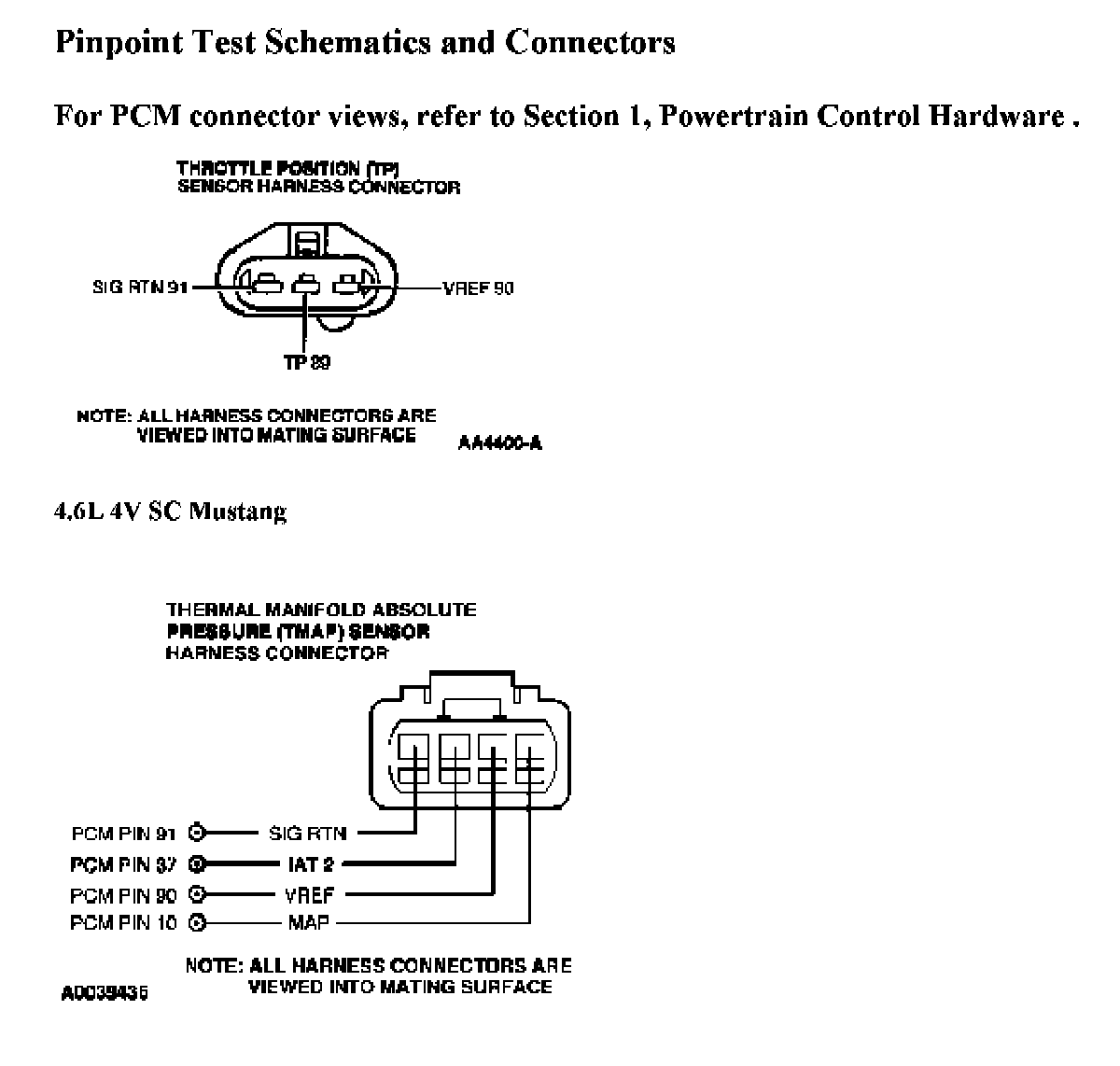

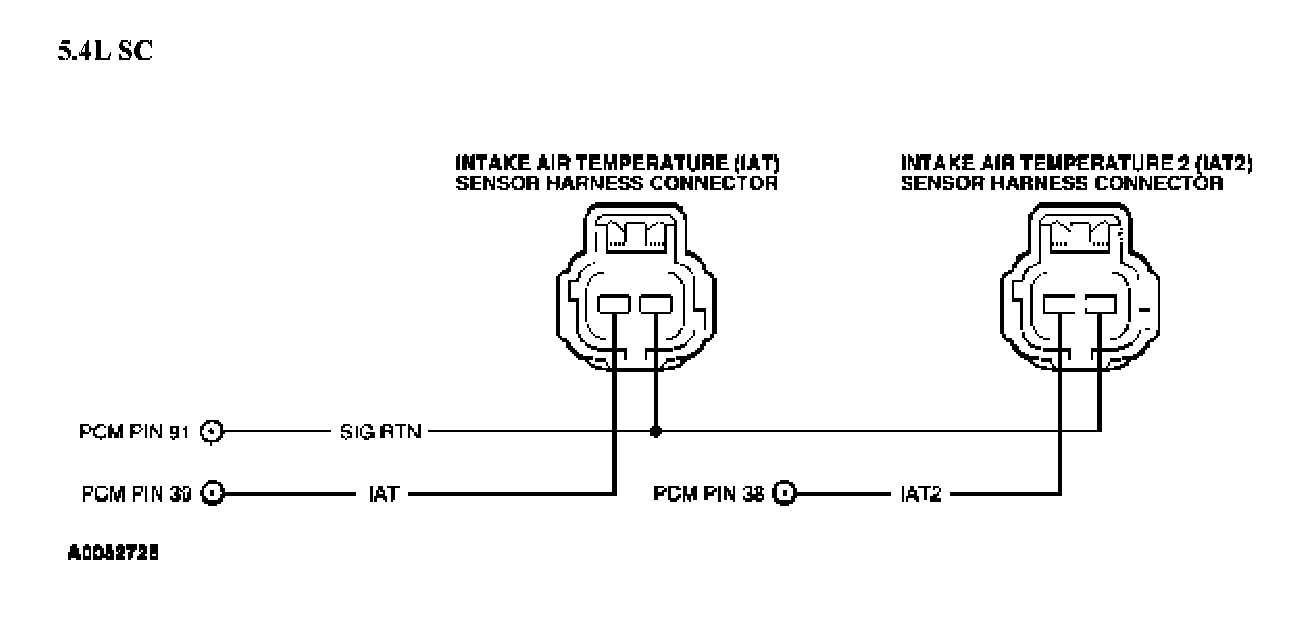

DU INTRODUCTION 1 OF 4:





DU INTRODUCTION 2 OF 4:





DU INTRODUCTION 3 OF 4:





DU INTRODUCTION 4 OF 4:

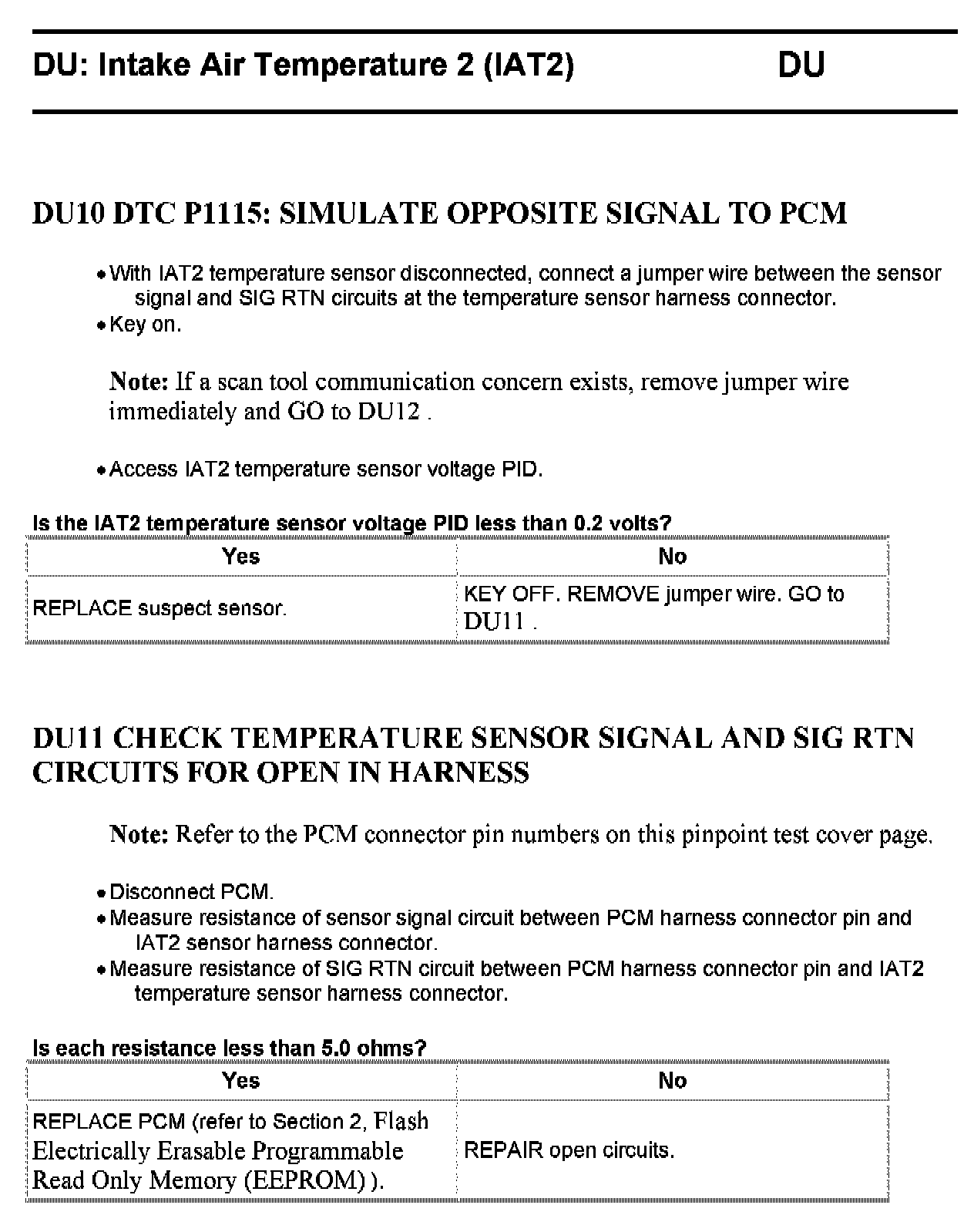

DU10 - DU11:

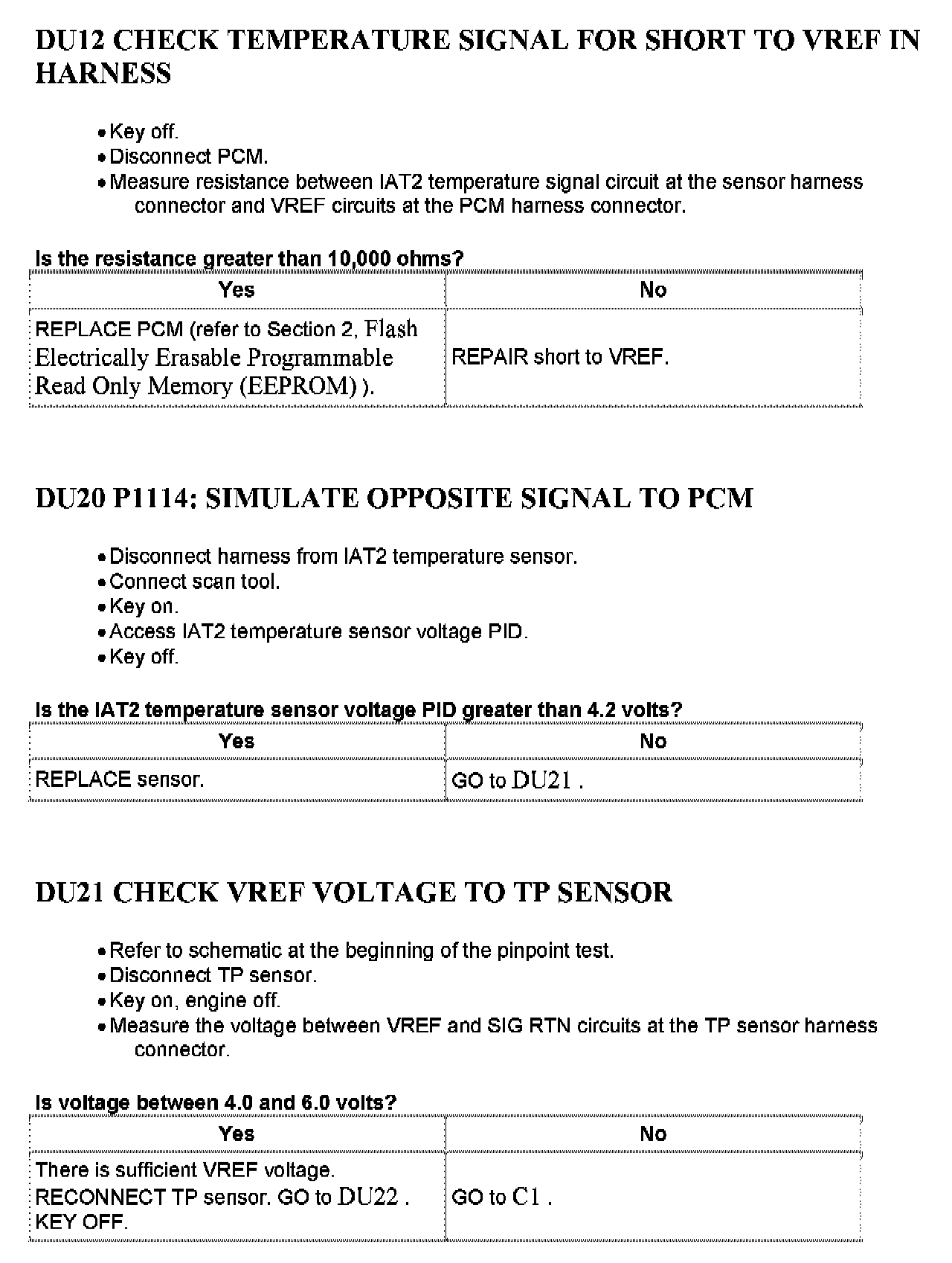

DU12 - DU21:

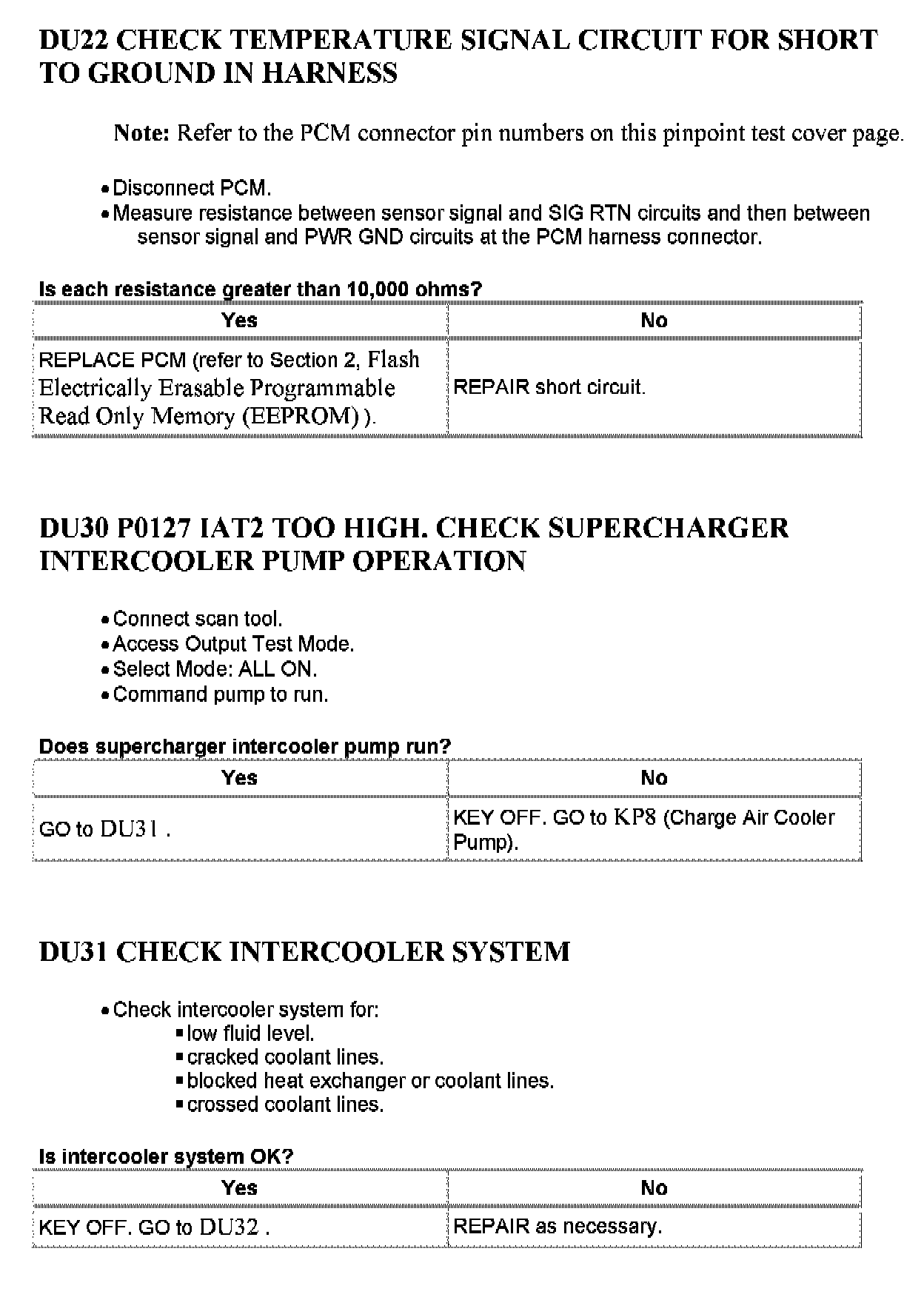

DU22 - DU31:

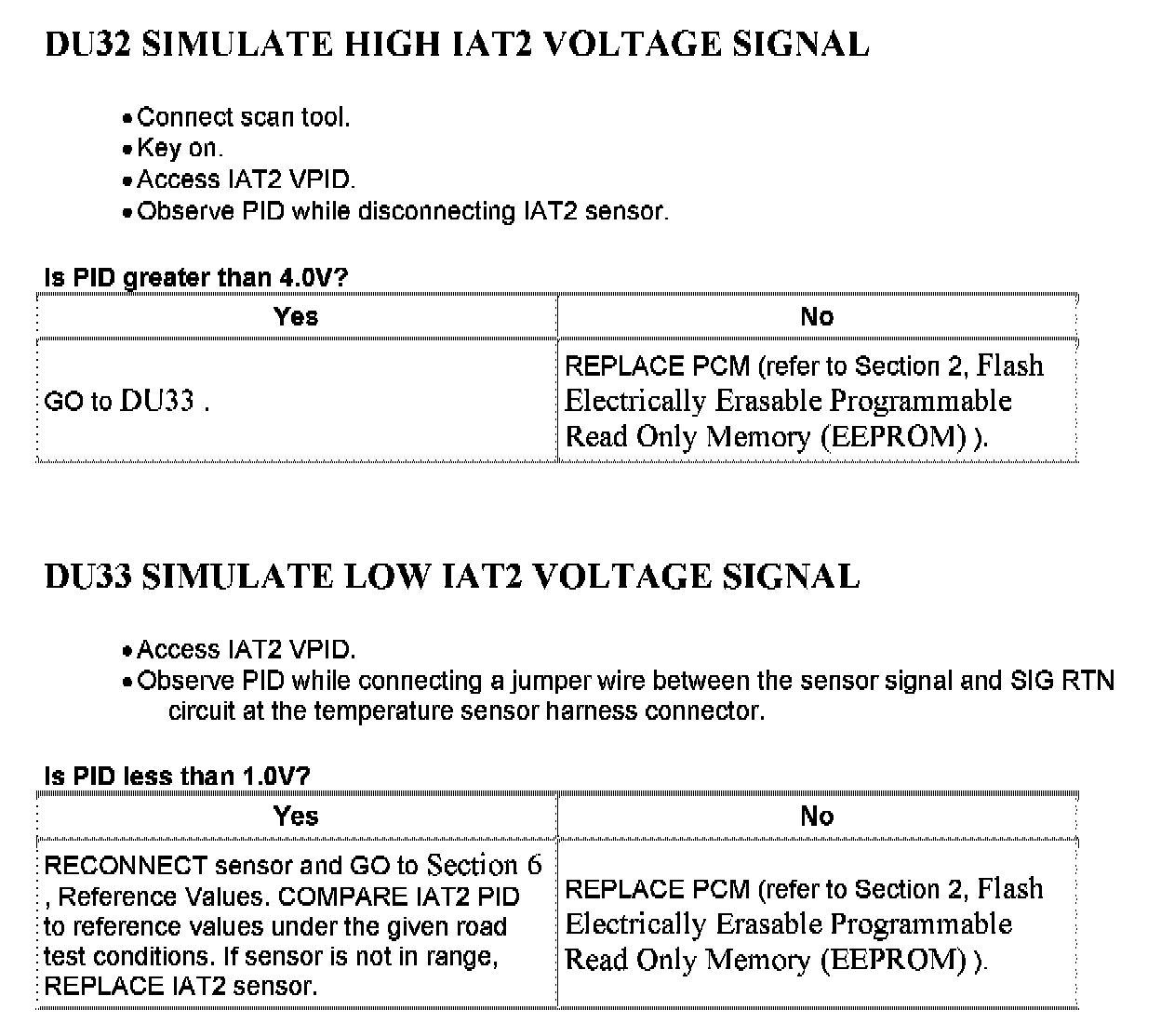

DU32 - DU33:
