Tests DS: Air Conditioning Pressure (ACP) Sensor

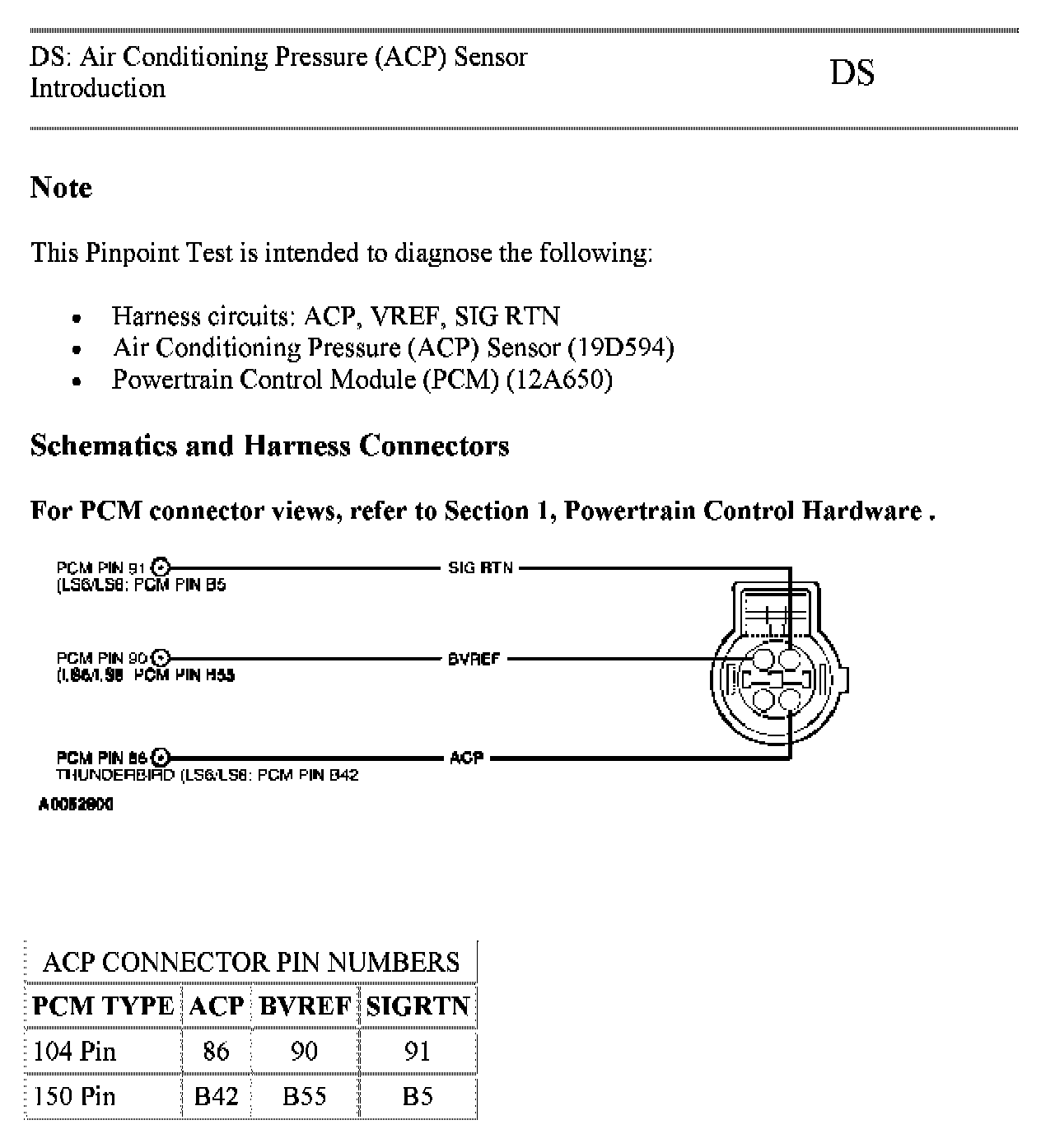

DS INTRODUCTION:

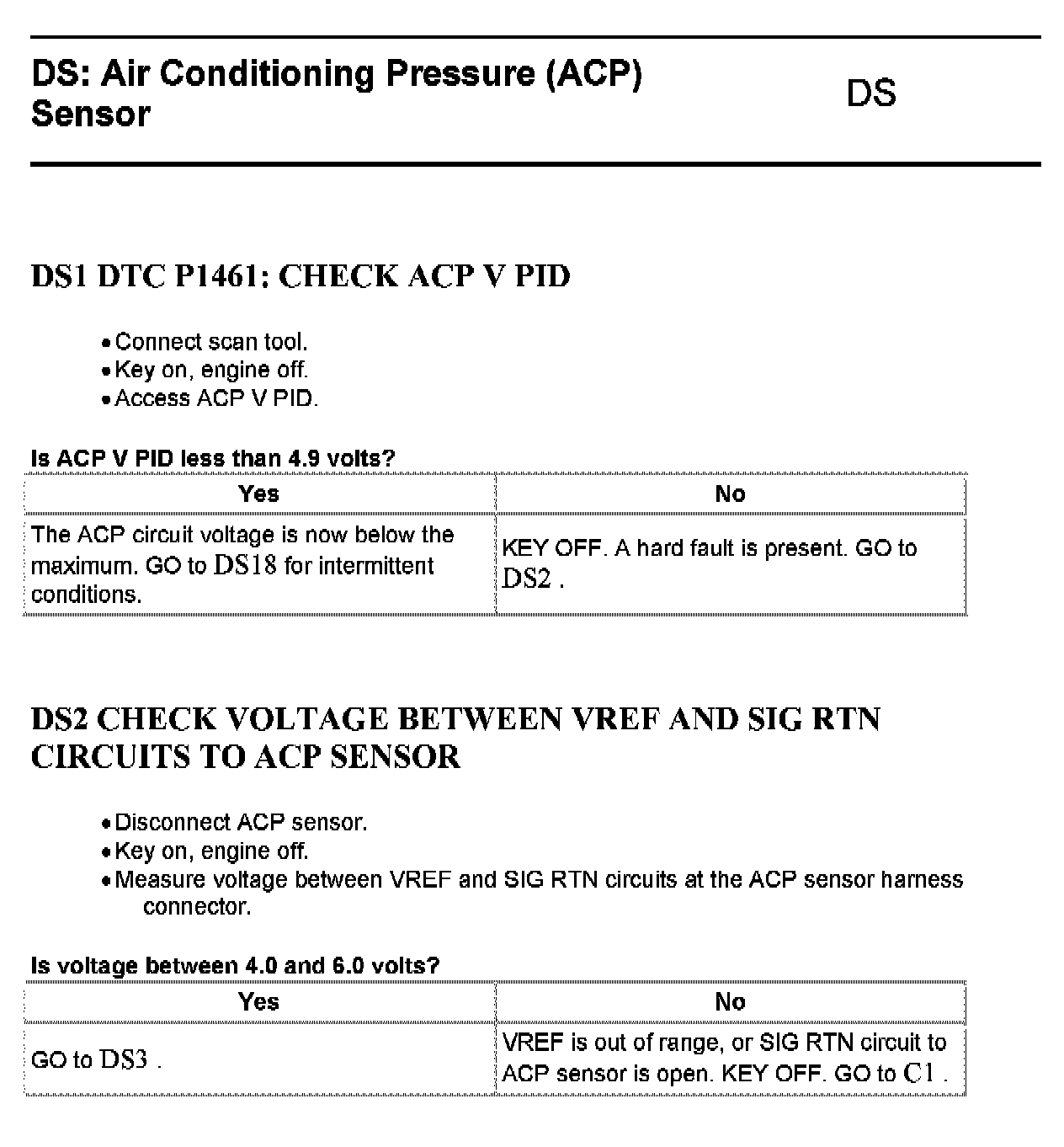

DS1 - DS2:

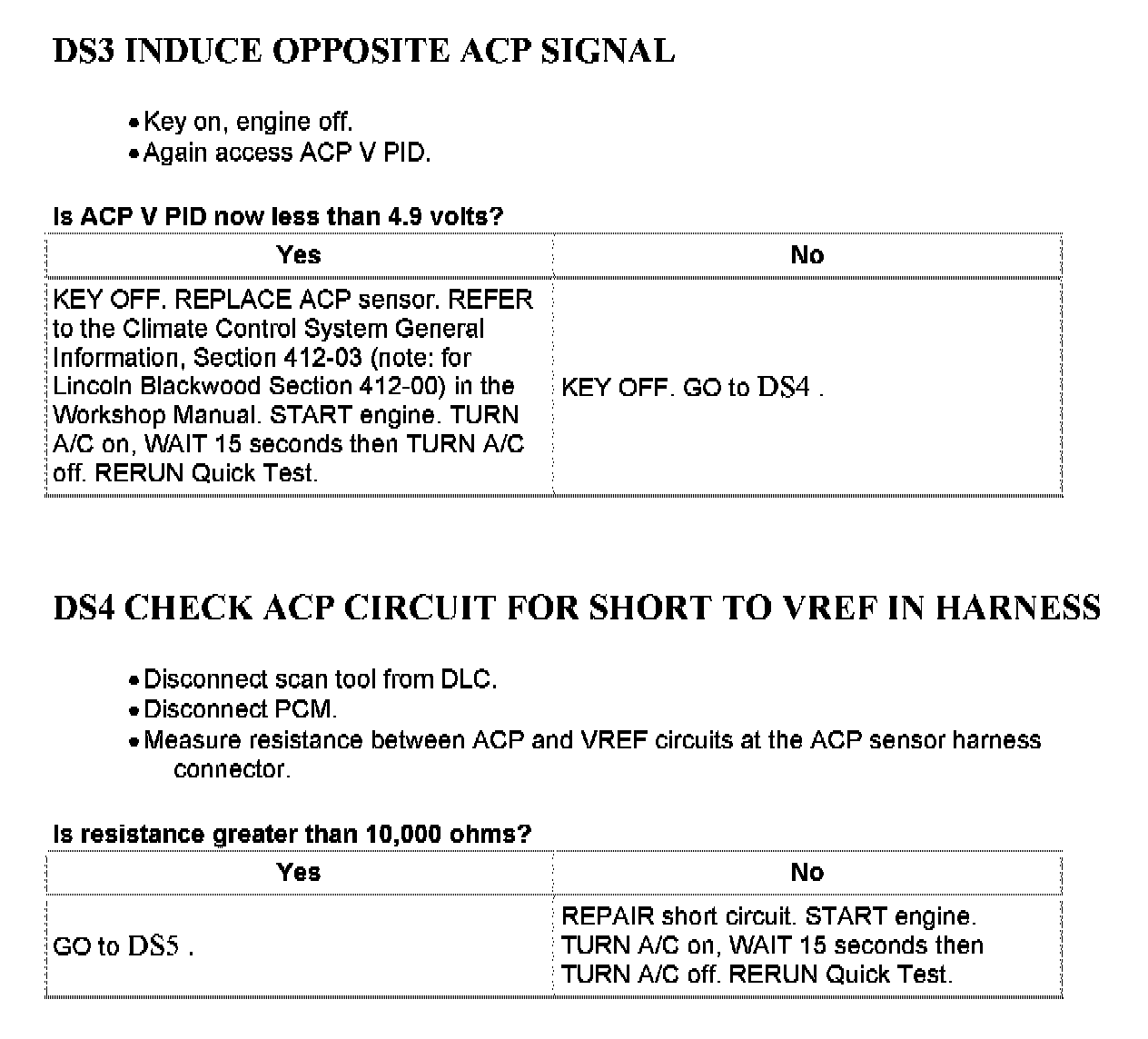

DS3 - DS4:

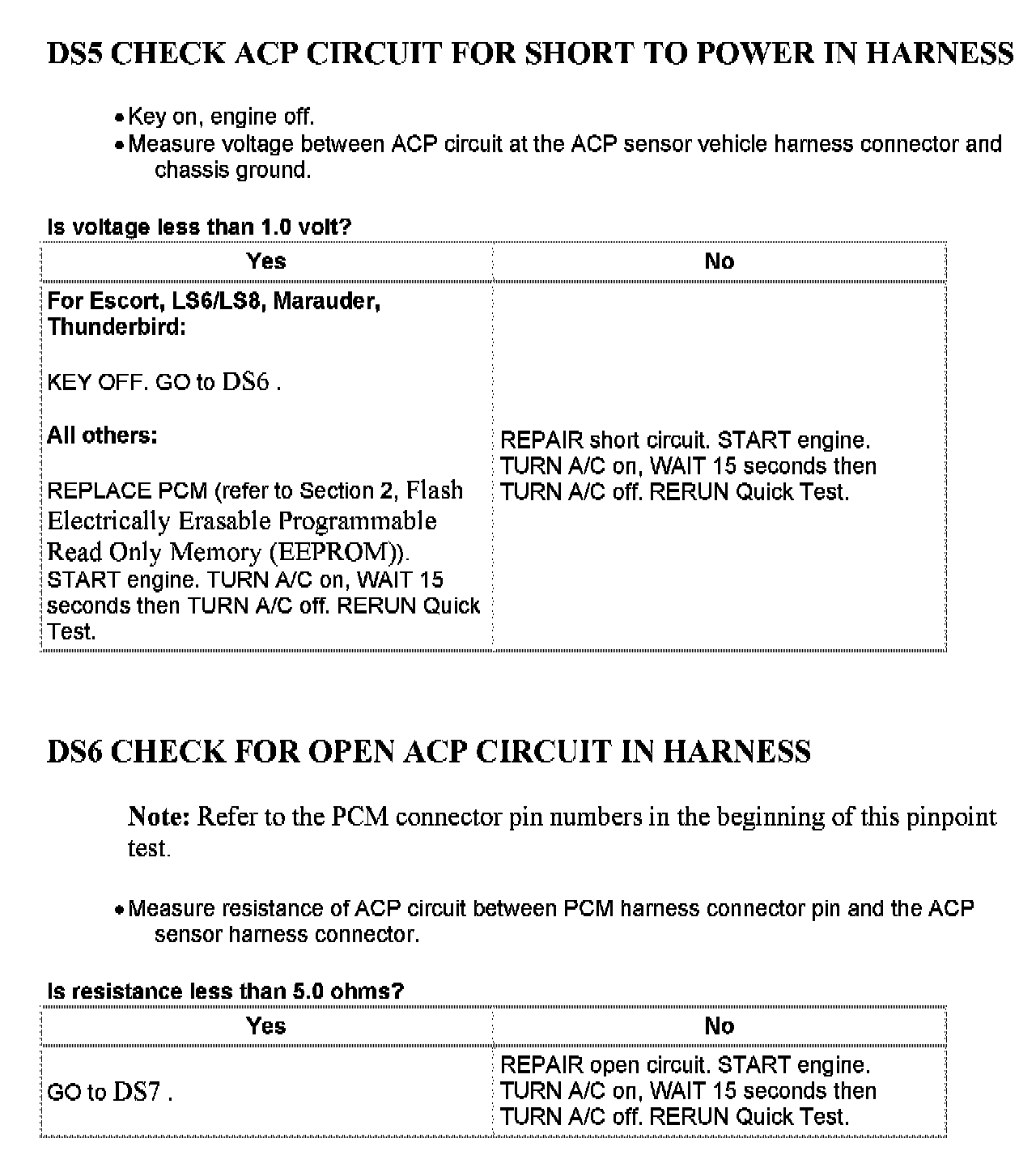

DS5 - DS6:

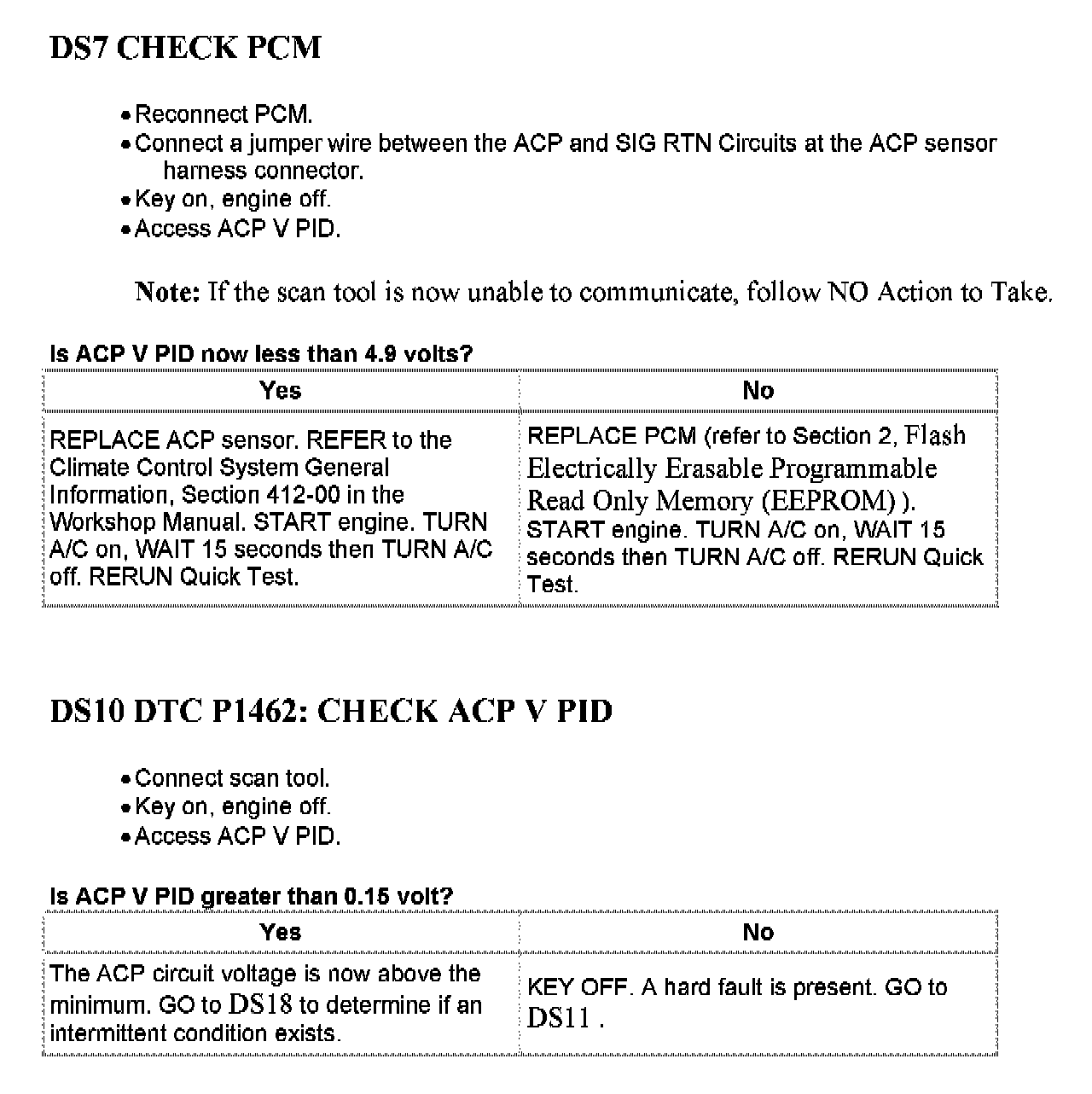

DS7 - DS10:

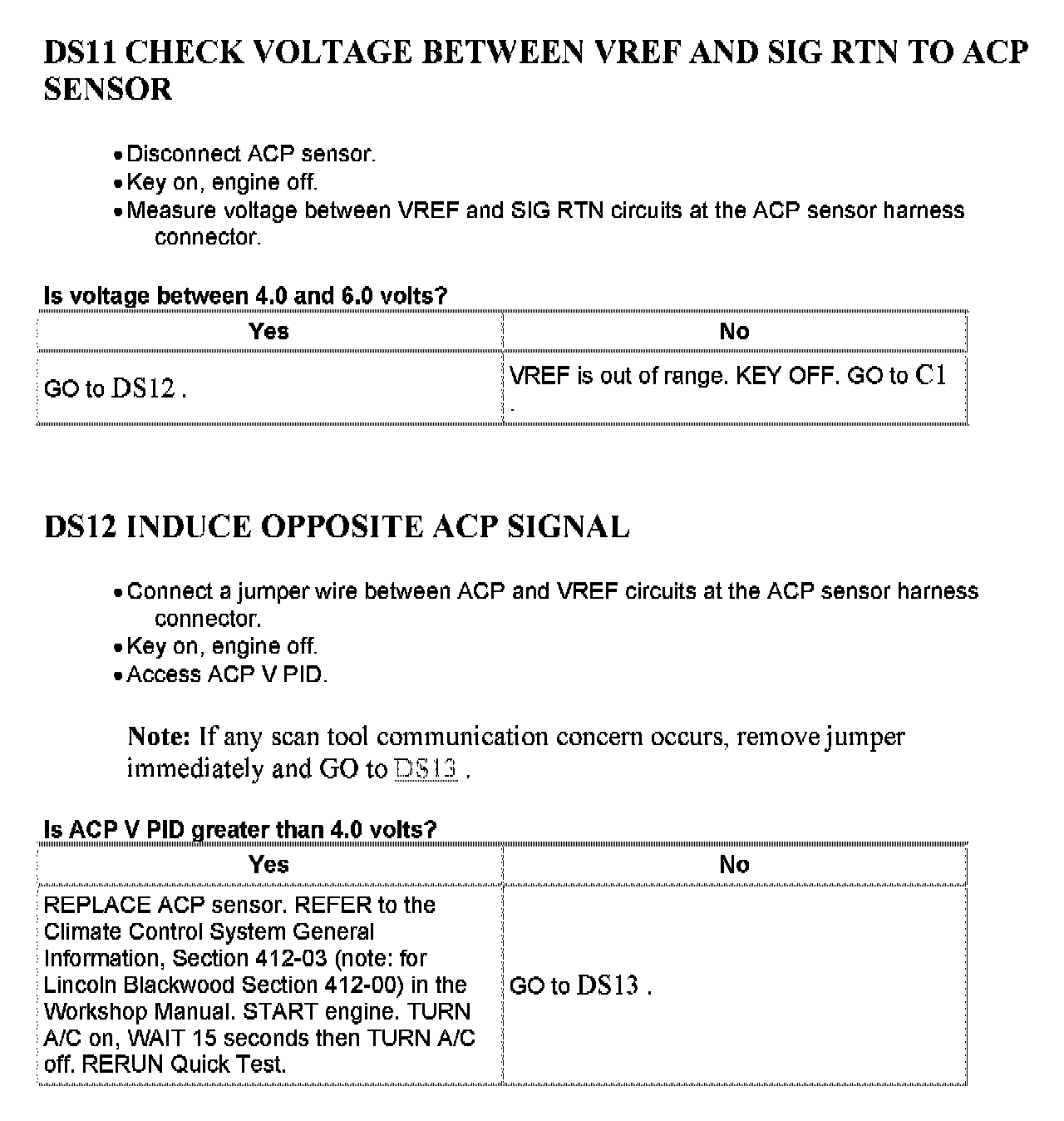

DS11 - DS12:

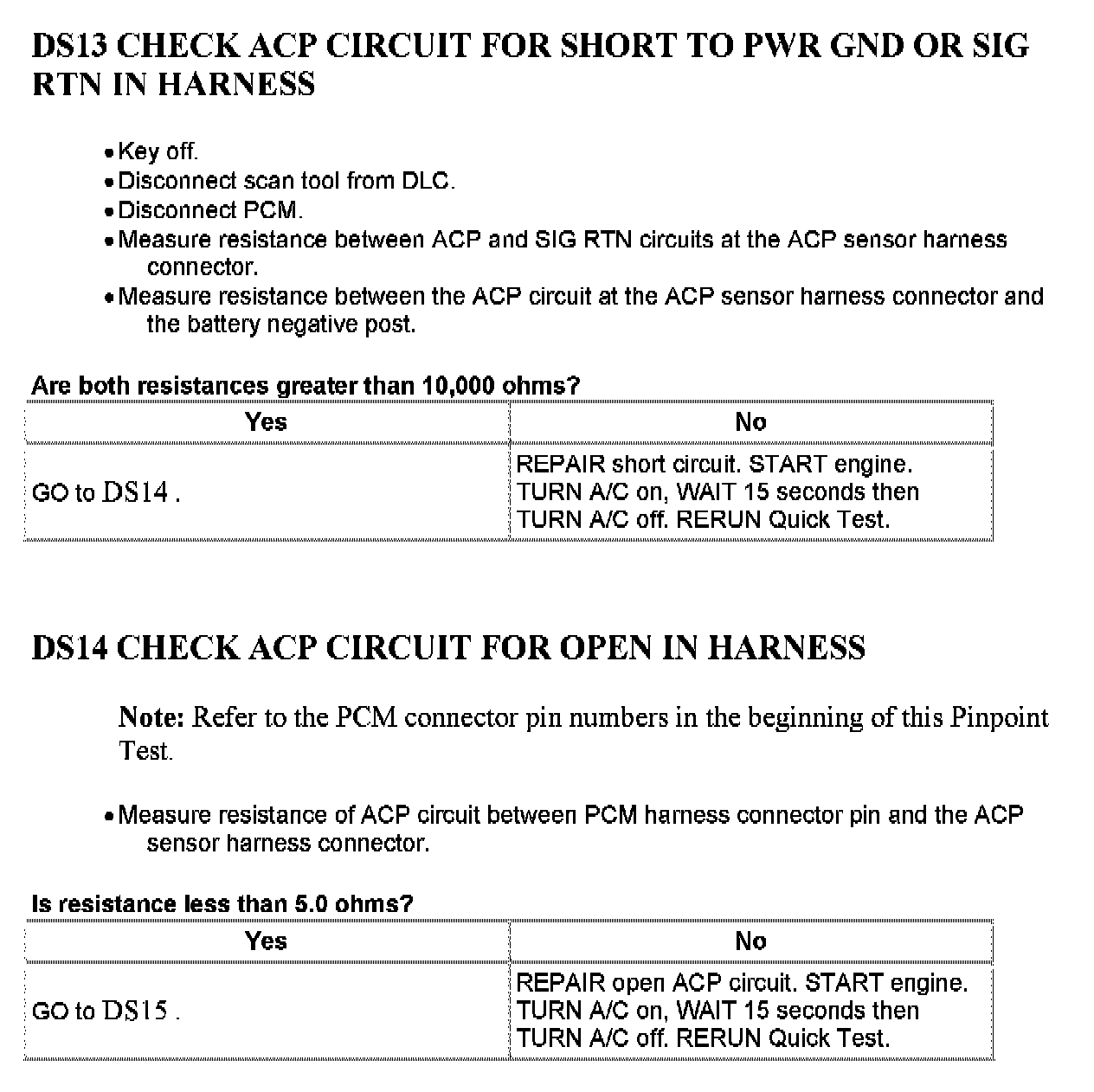

DS13 - DS14:

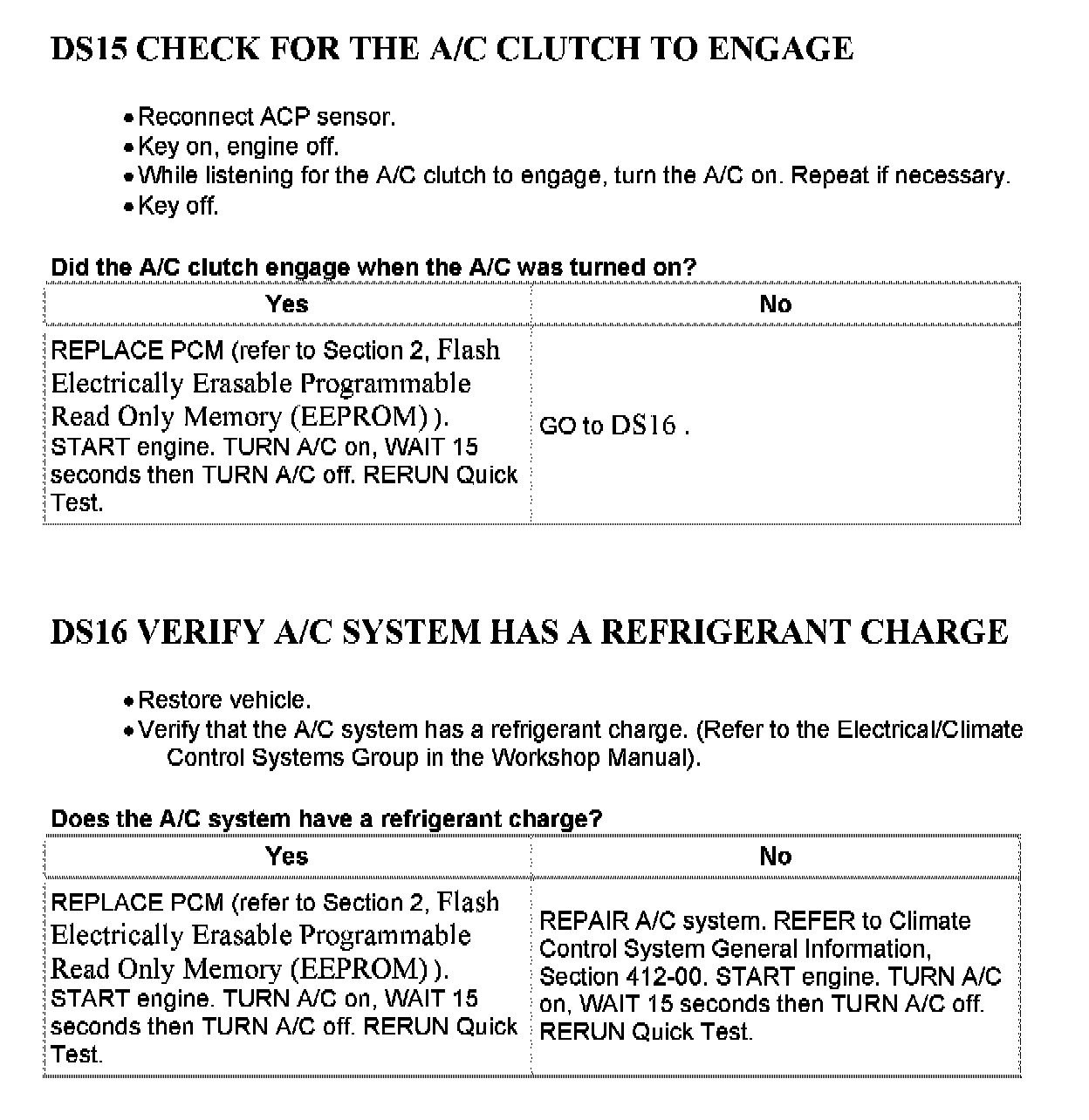

DS15 - DS16:

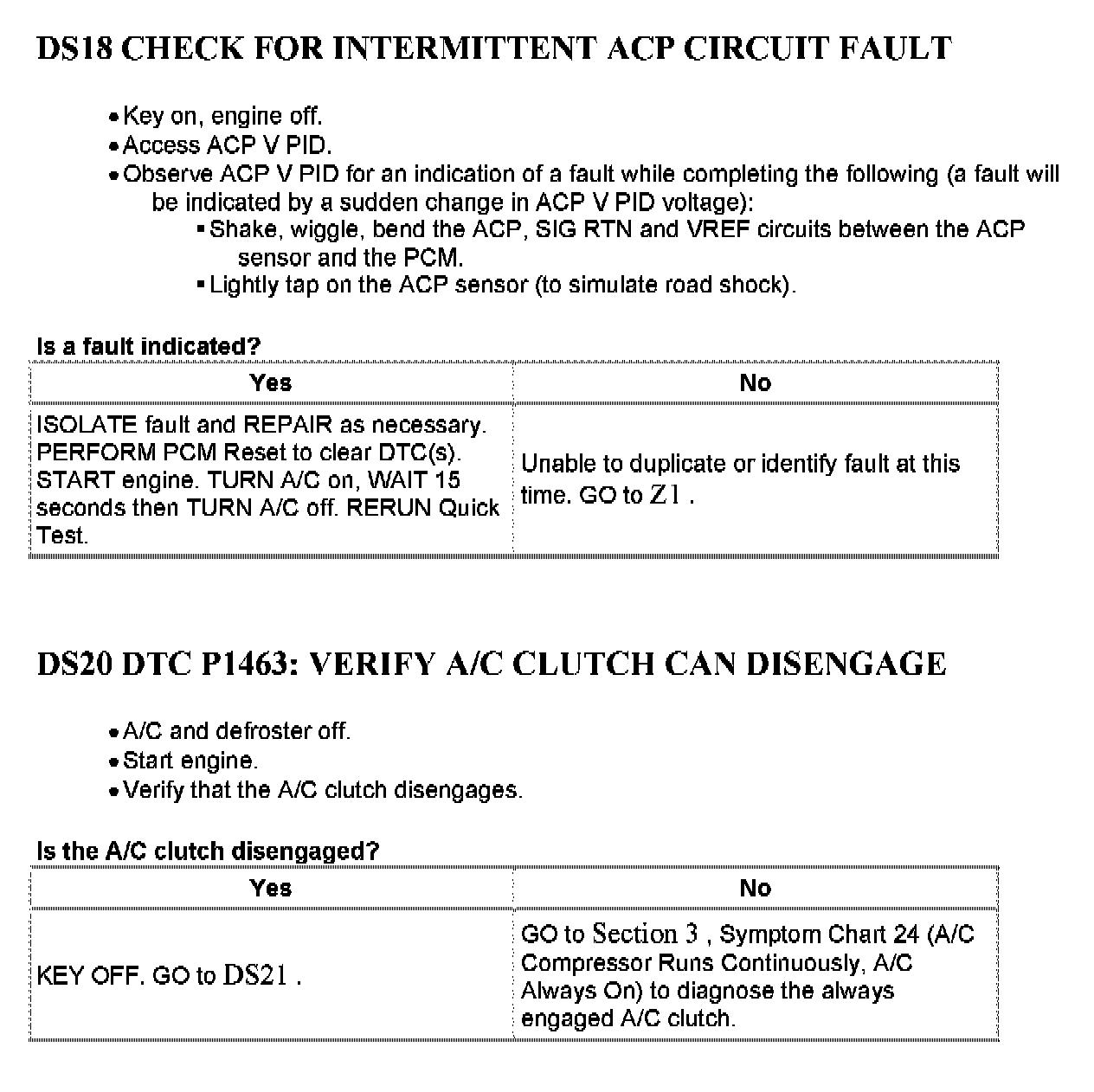

DS18 - DS20:

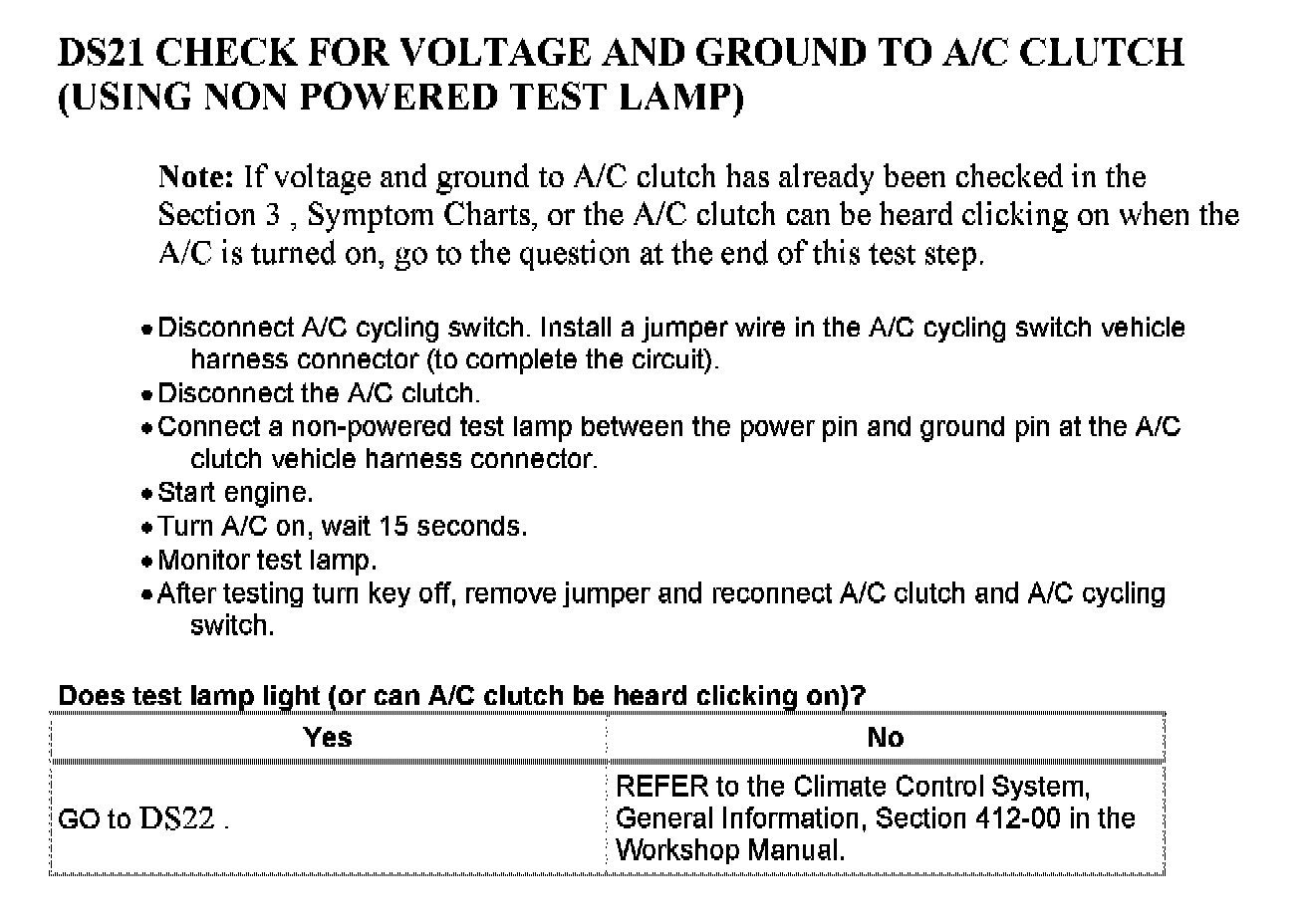

DS21:

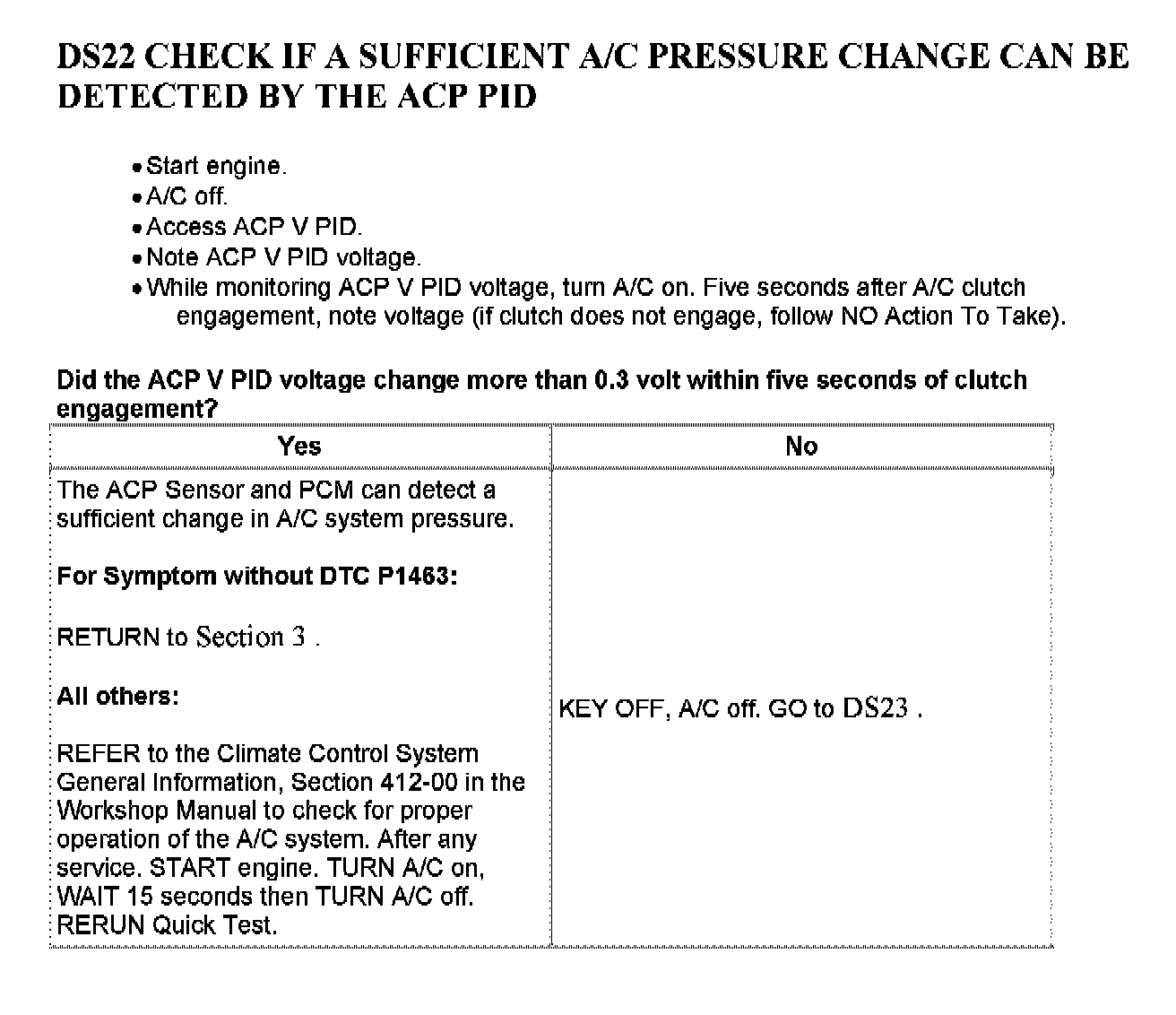

DS22:

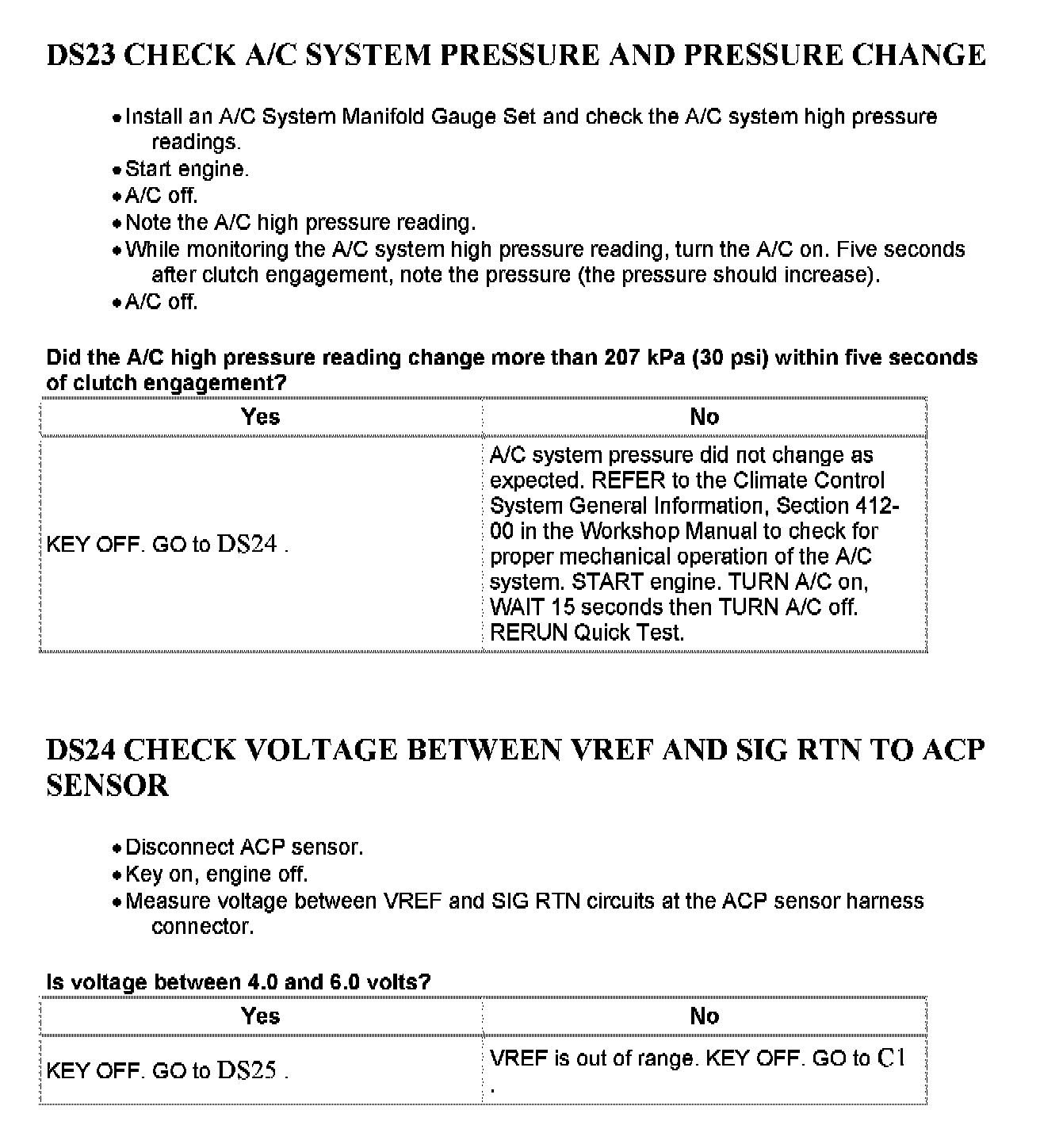

DS23 - DS24:

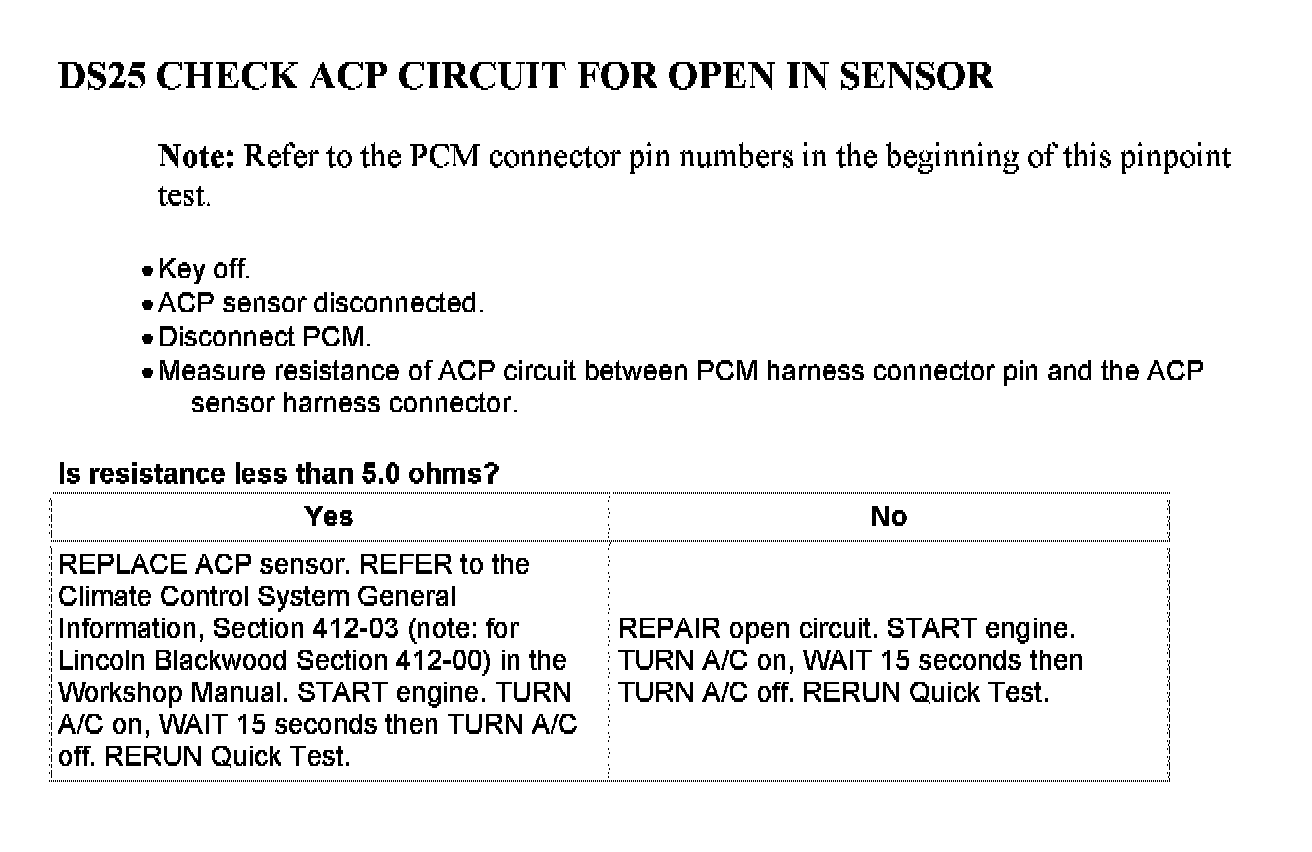

DS25:
