Tests DK: Electronic Throttle Accelerator Position Sensor

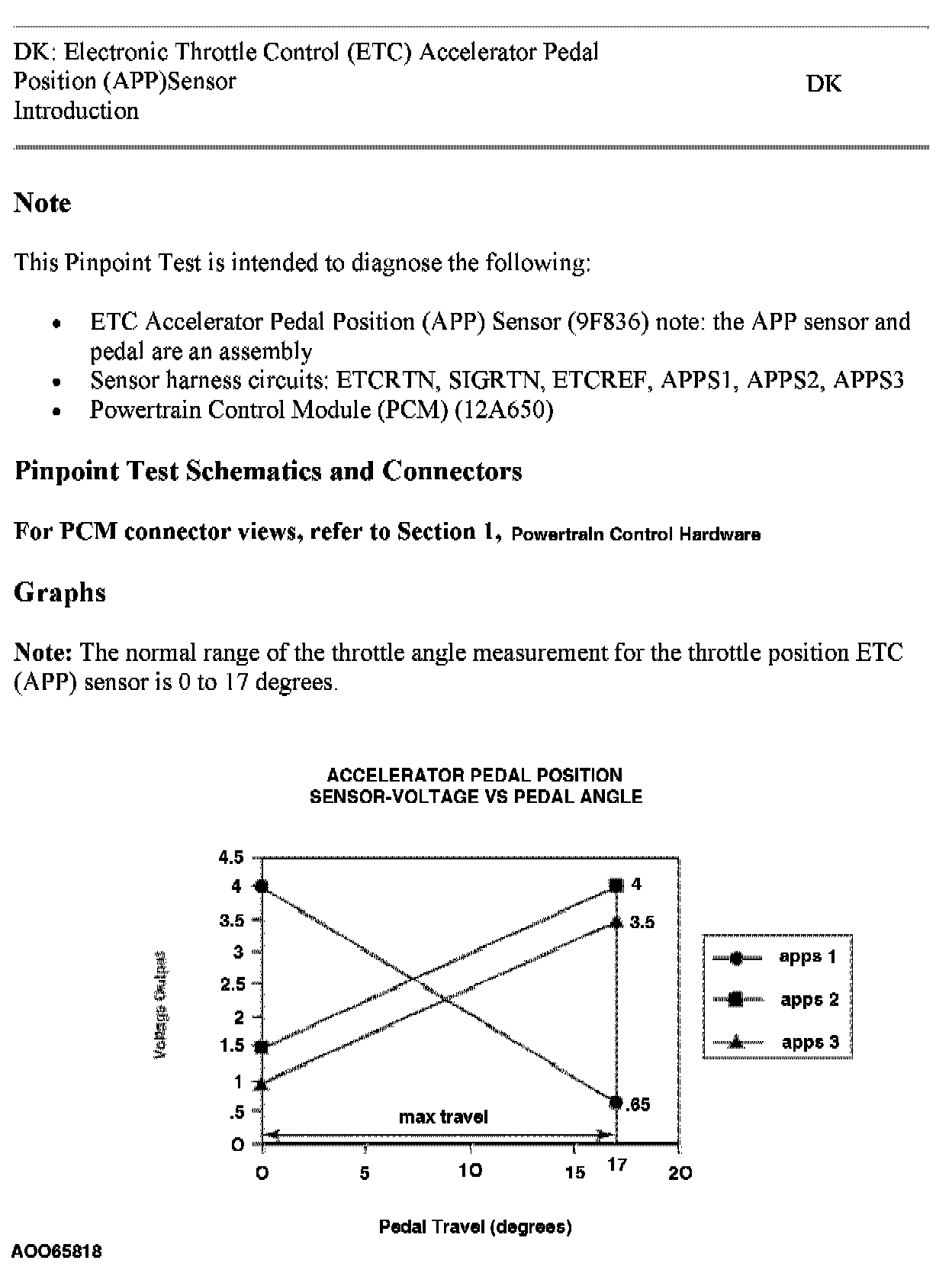

DK Introduction 1 Of 2:

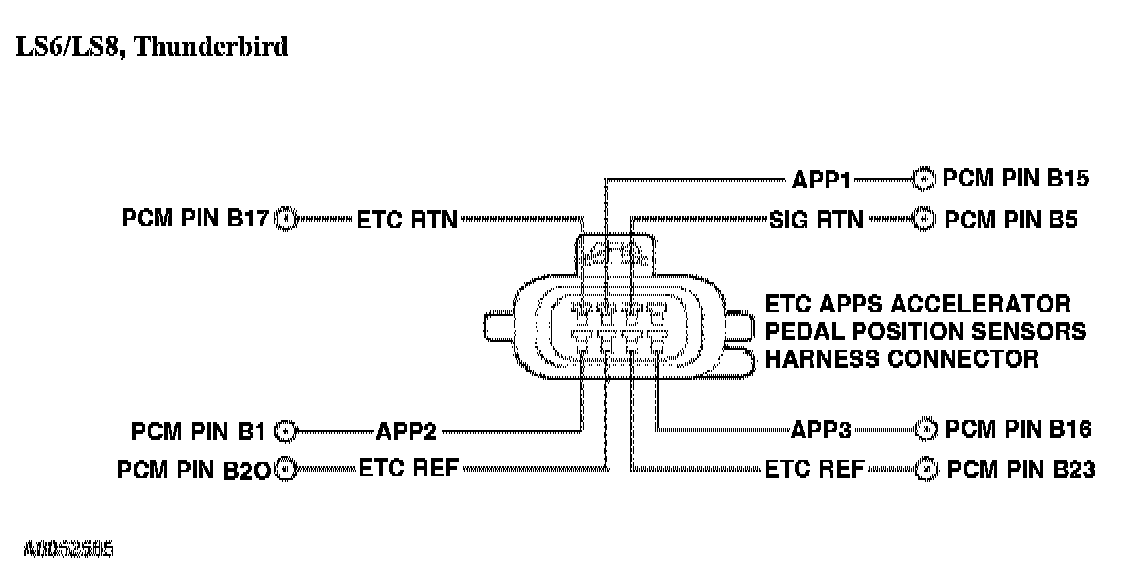

DK Introduction 2 Of 2:

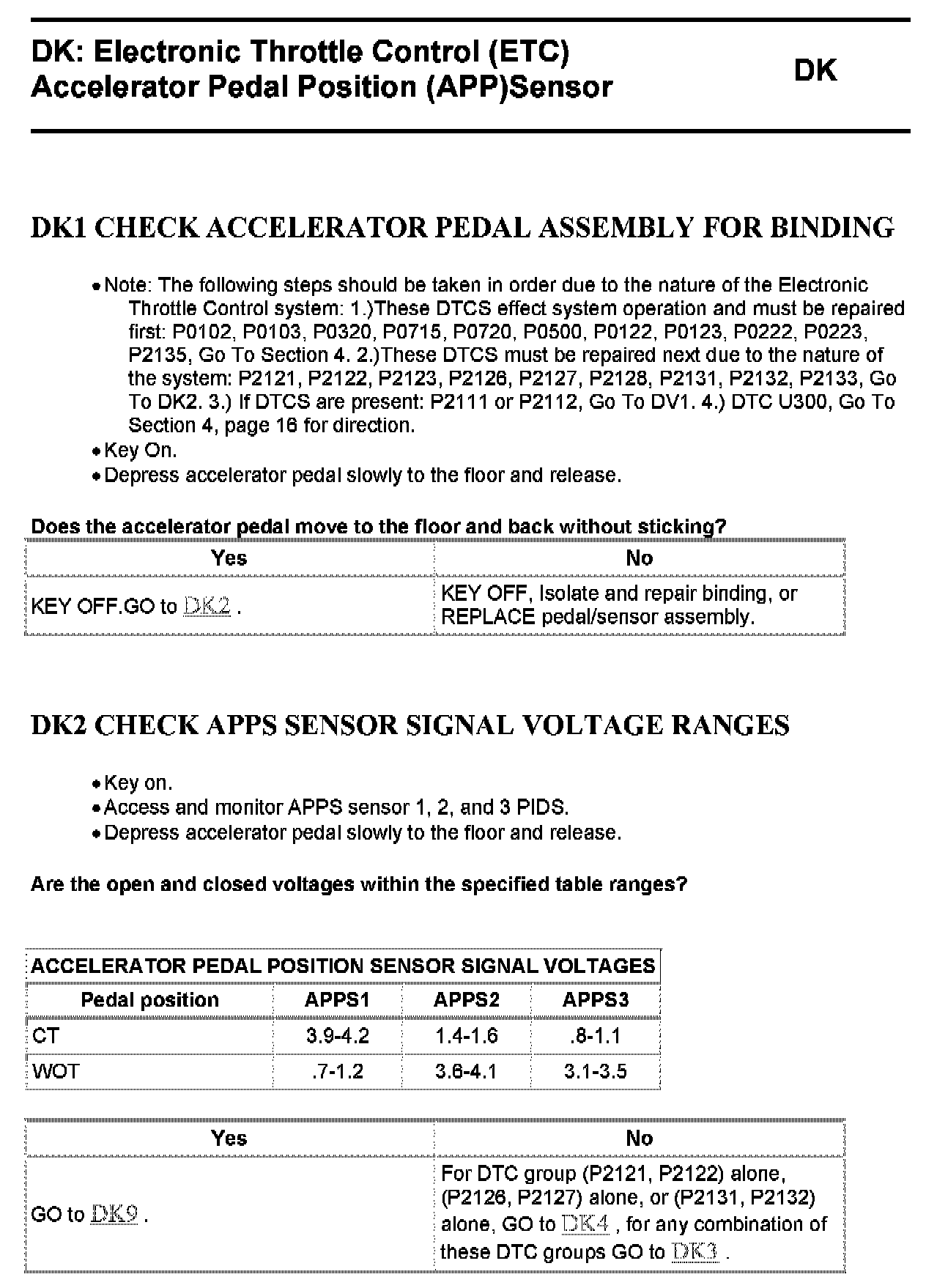

DK1 - DK2:

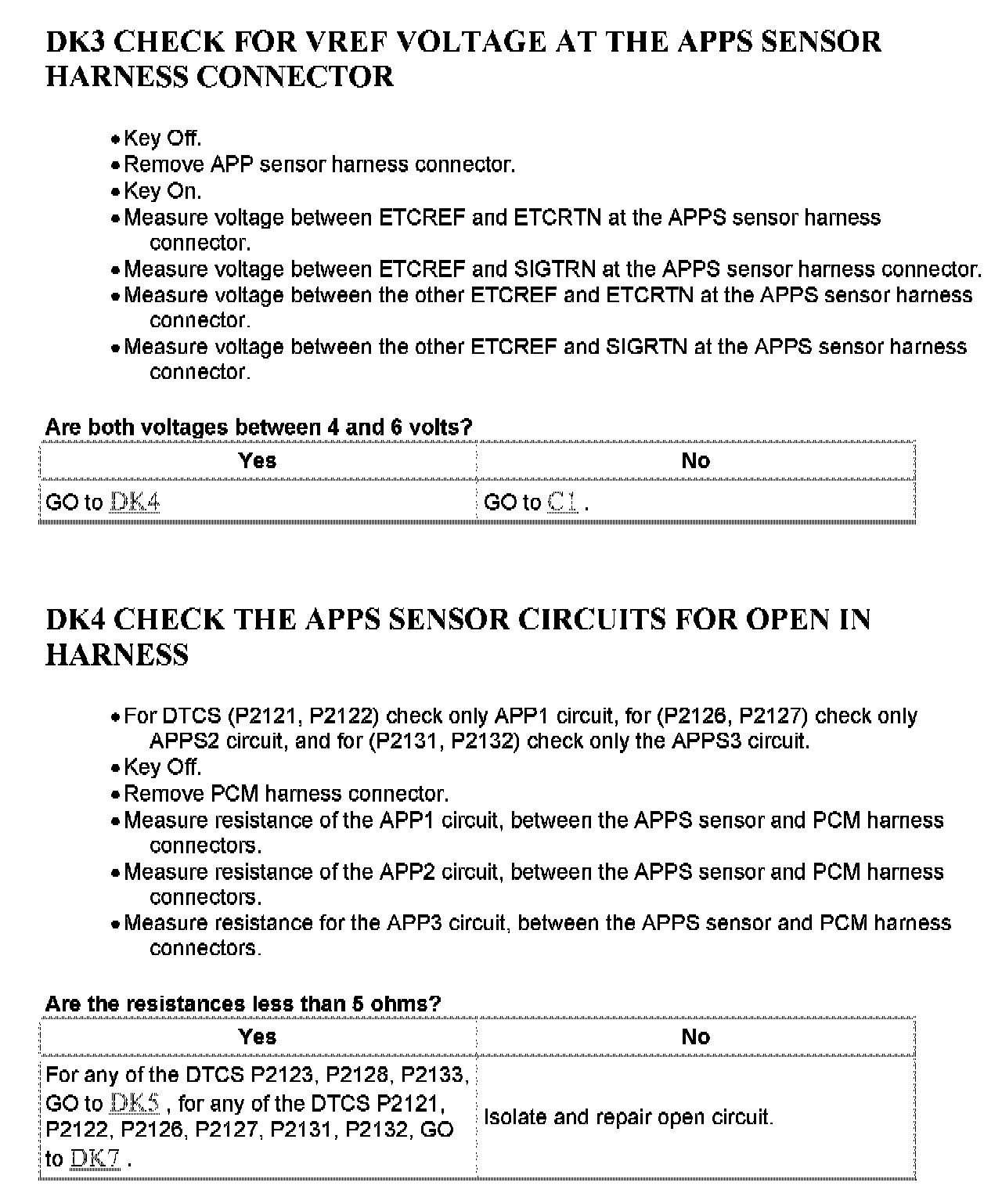

DK3 - DK4:

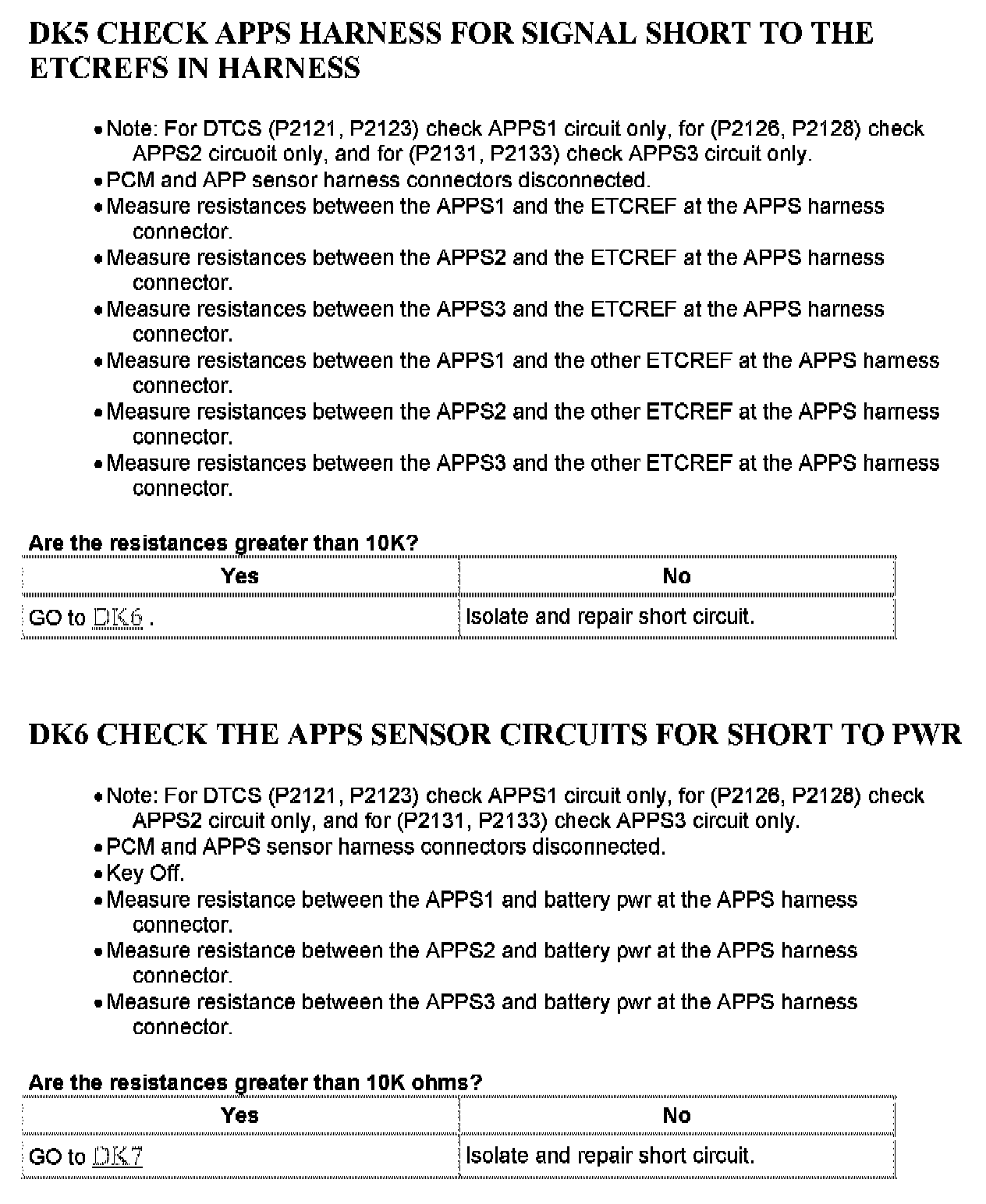

DK5 - DK6:

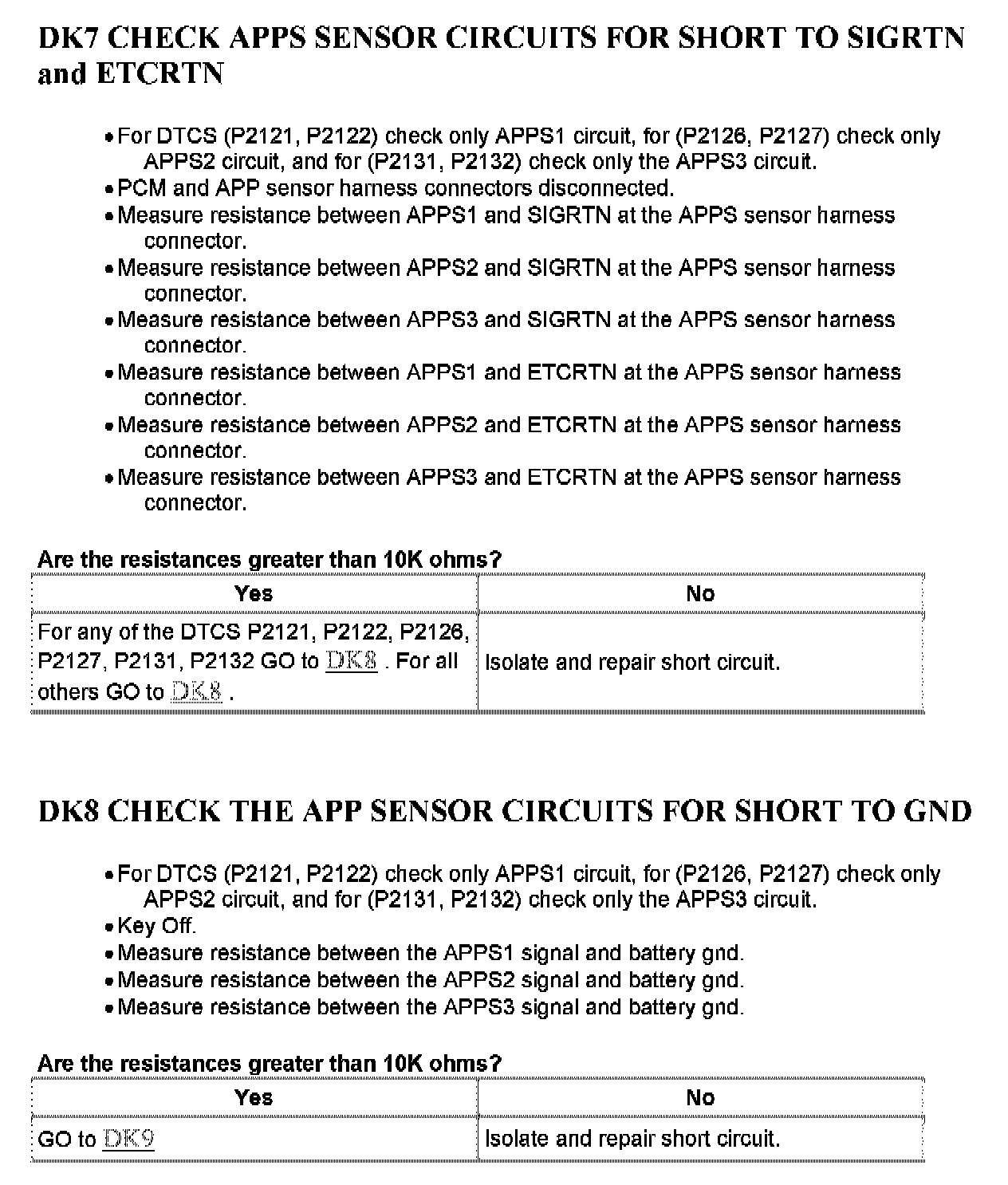

DK7 - DK8:

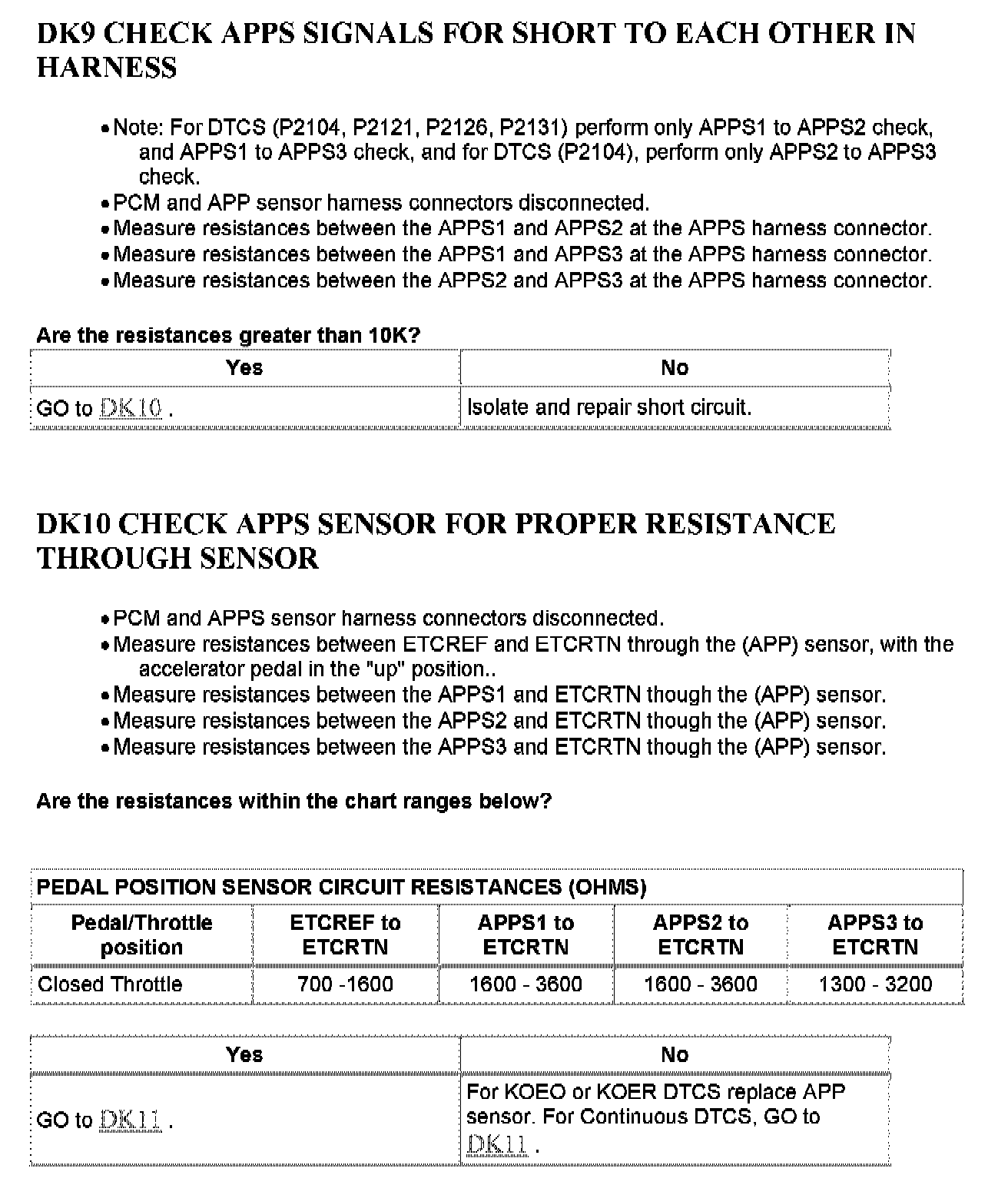

DK9 - DK10:

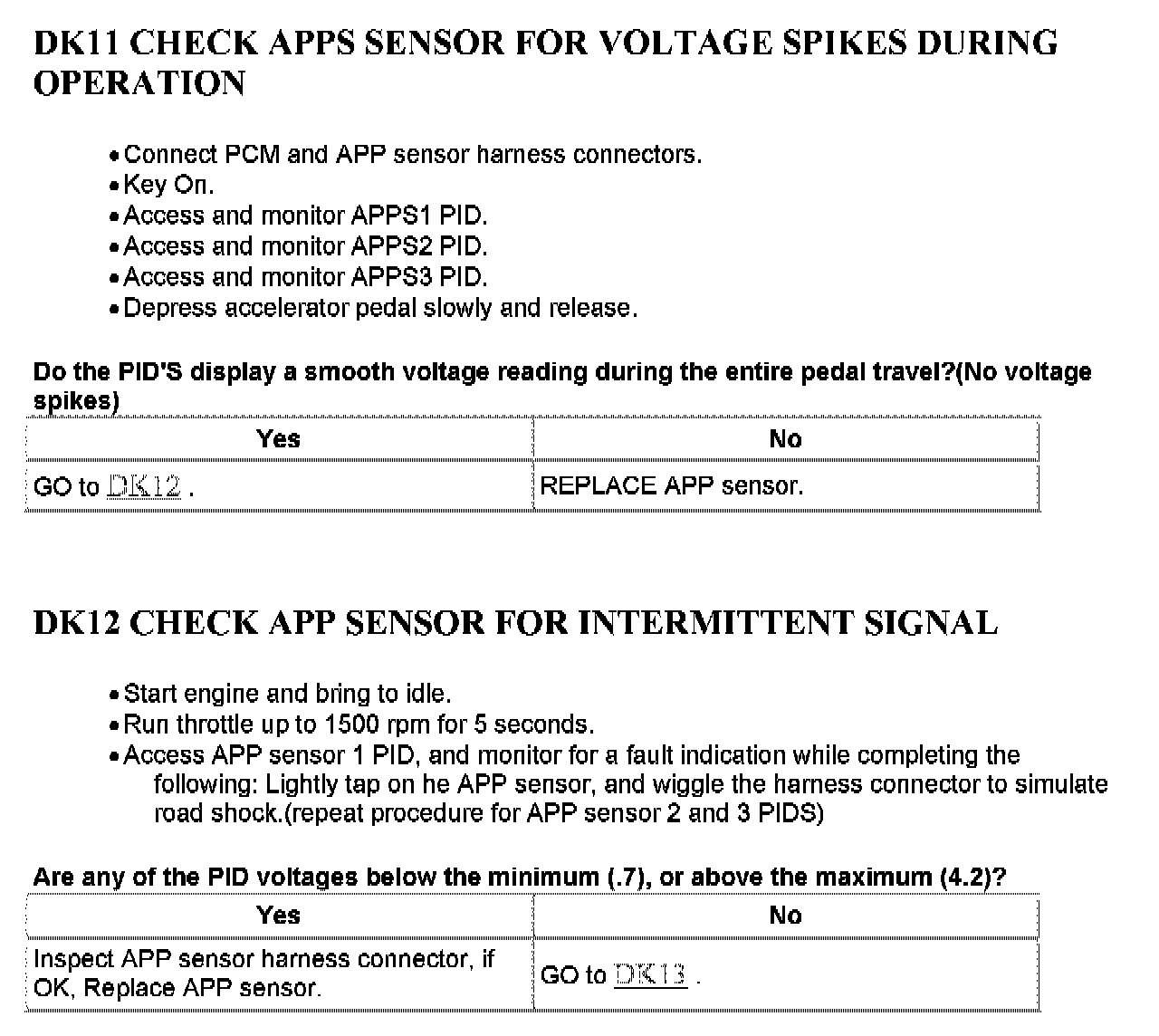

DK11 - DK12:

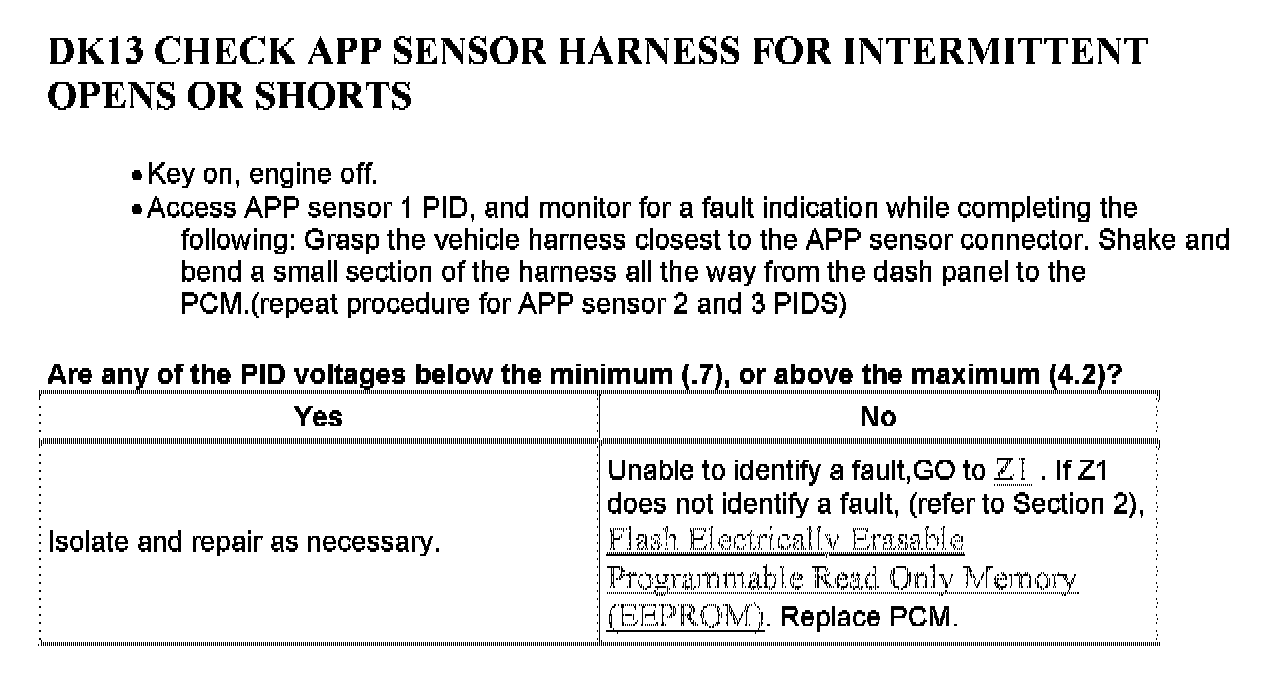

DK13:
