Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DJ: Air Conditioning Evaporator Temperature (ACET) Sensor

Tests DJ: Air Conditioning Evaporator Temperature (ACET) Sensor

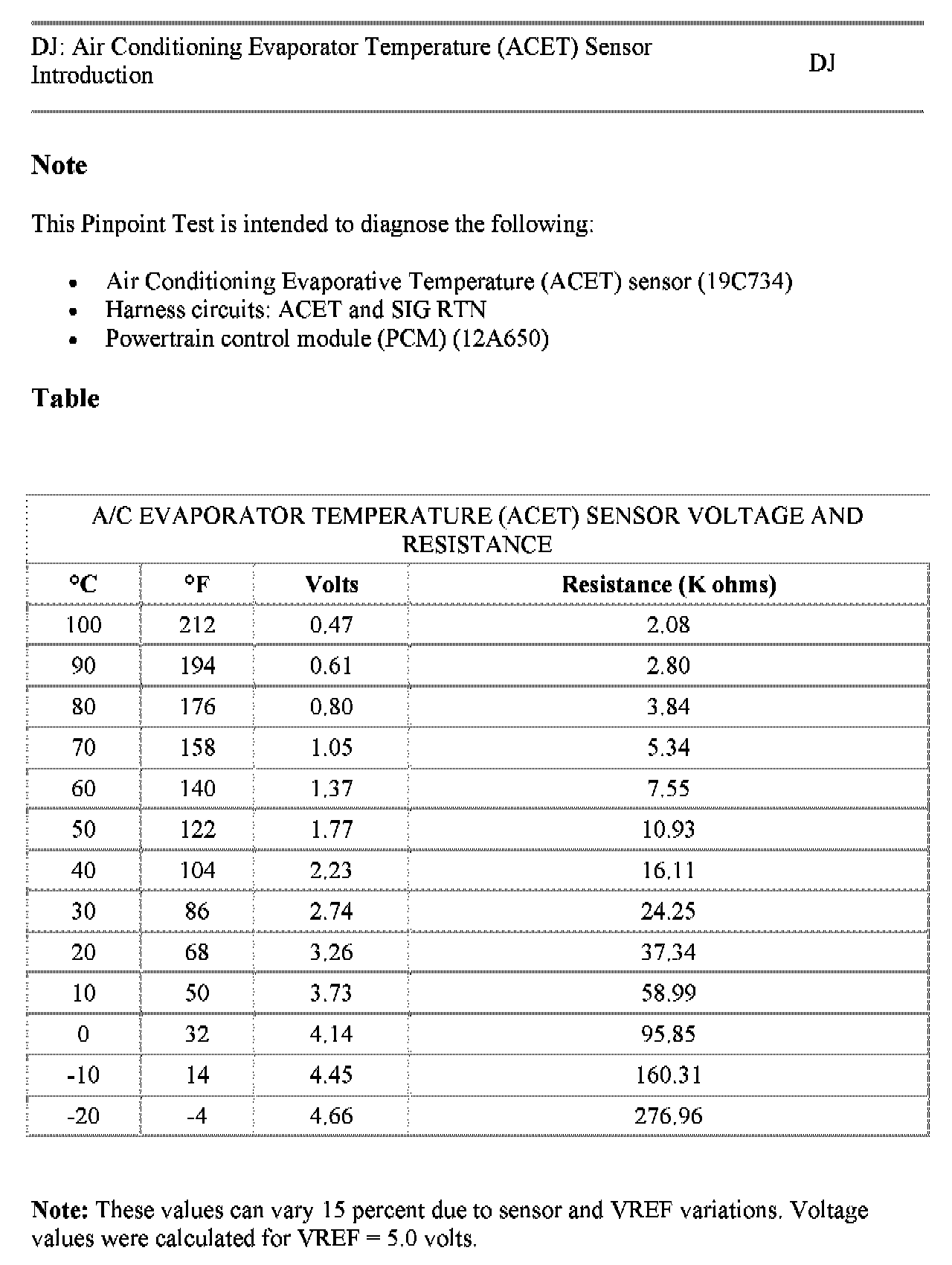

DJ Introduction 1 Of 2:

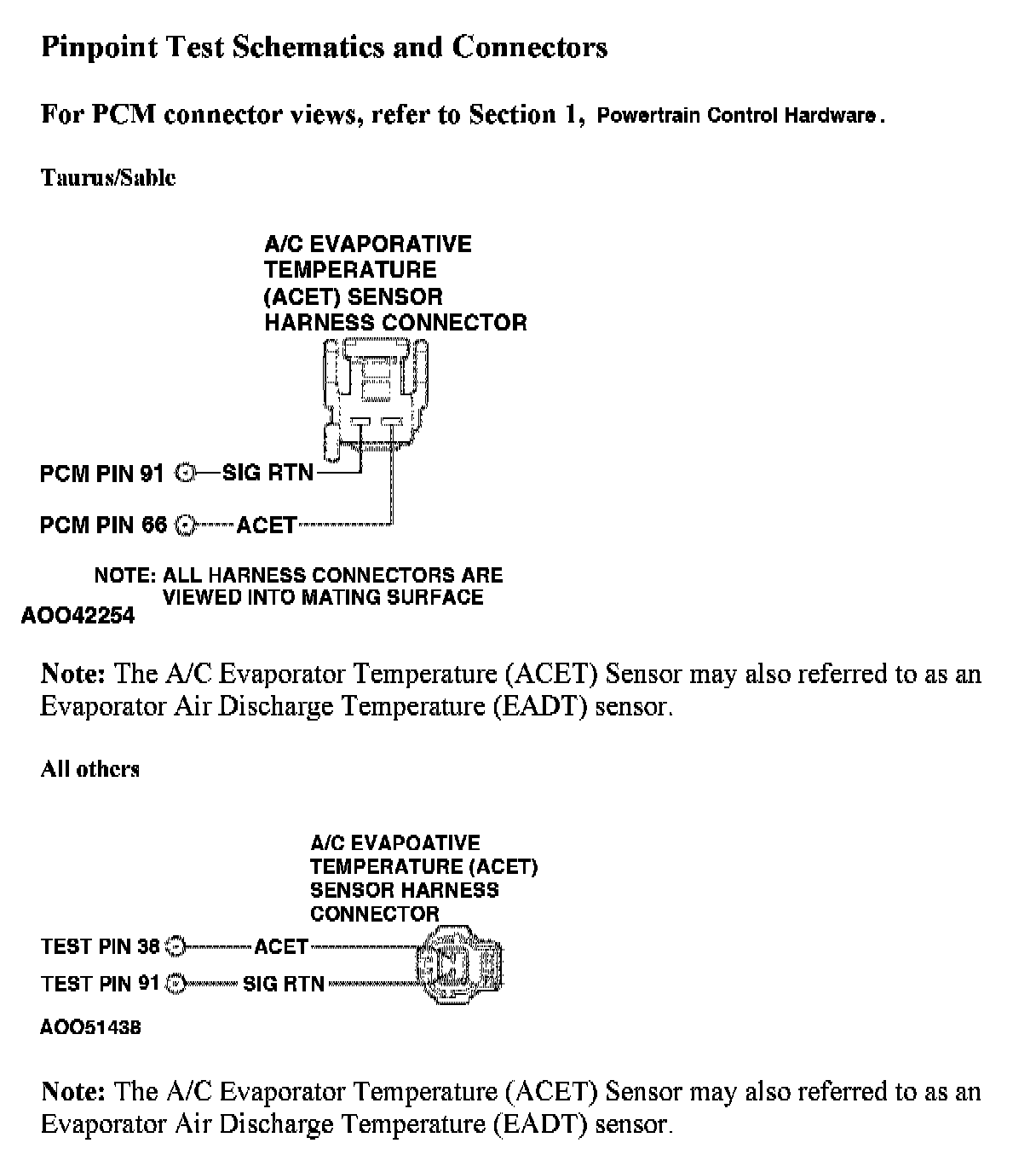

DJ Introduction 2 Of 2:

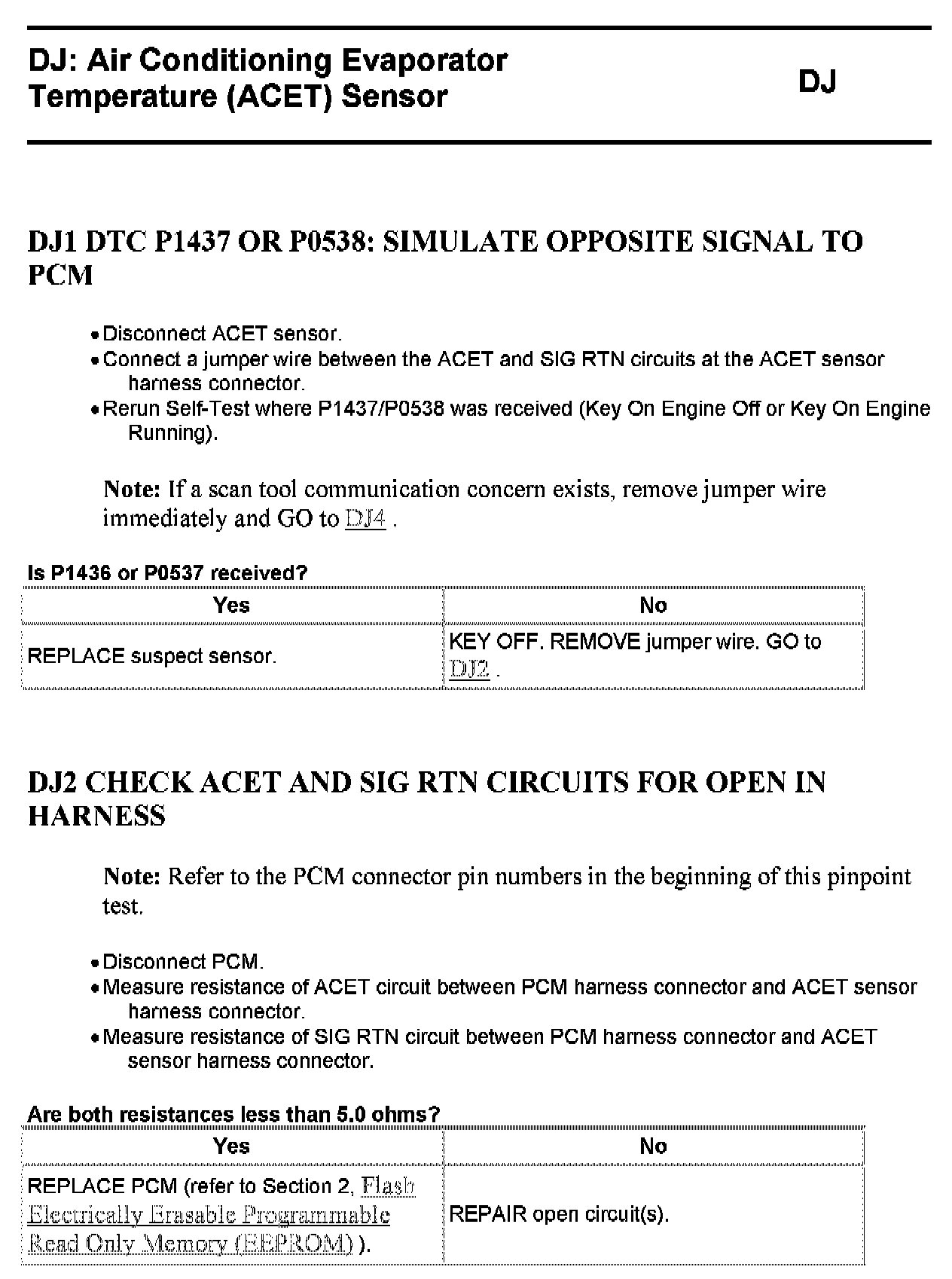

DJ1 - DJ2:





DJ4 - DJ6:

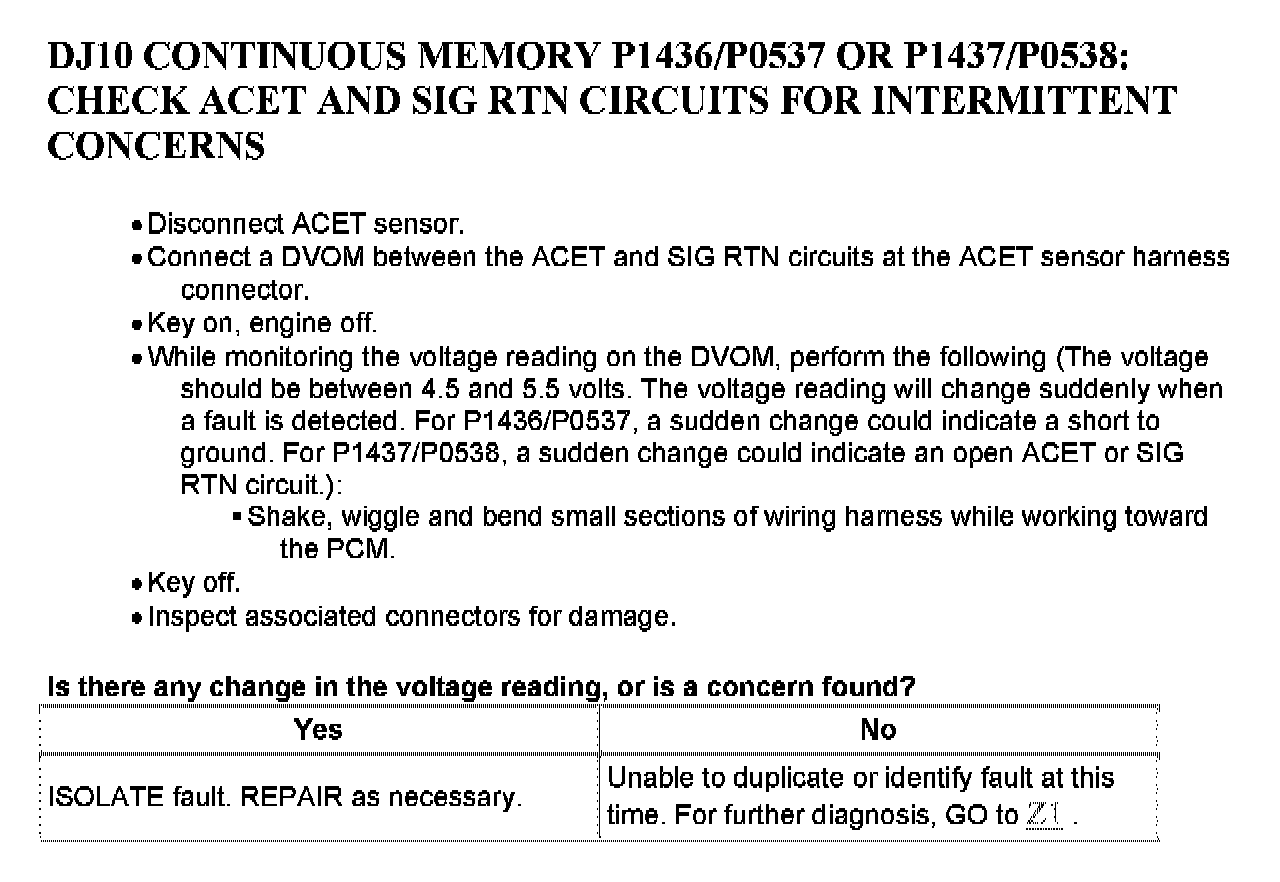

DJ10:
