Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Tests DF: Vehicle Speed Circuit Check

Tests DF: Vehicle Speed Circuit Check



DF Introduction:

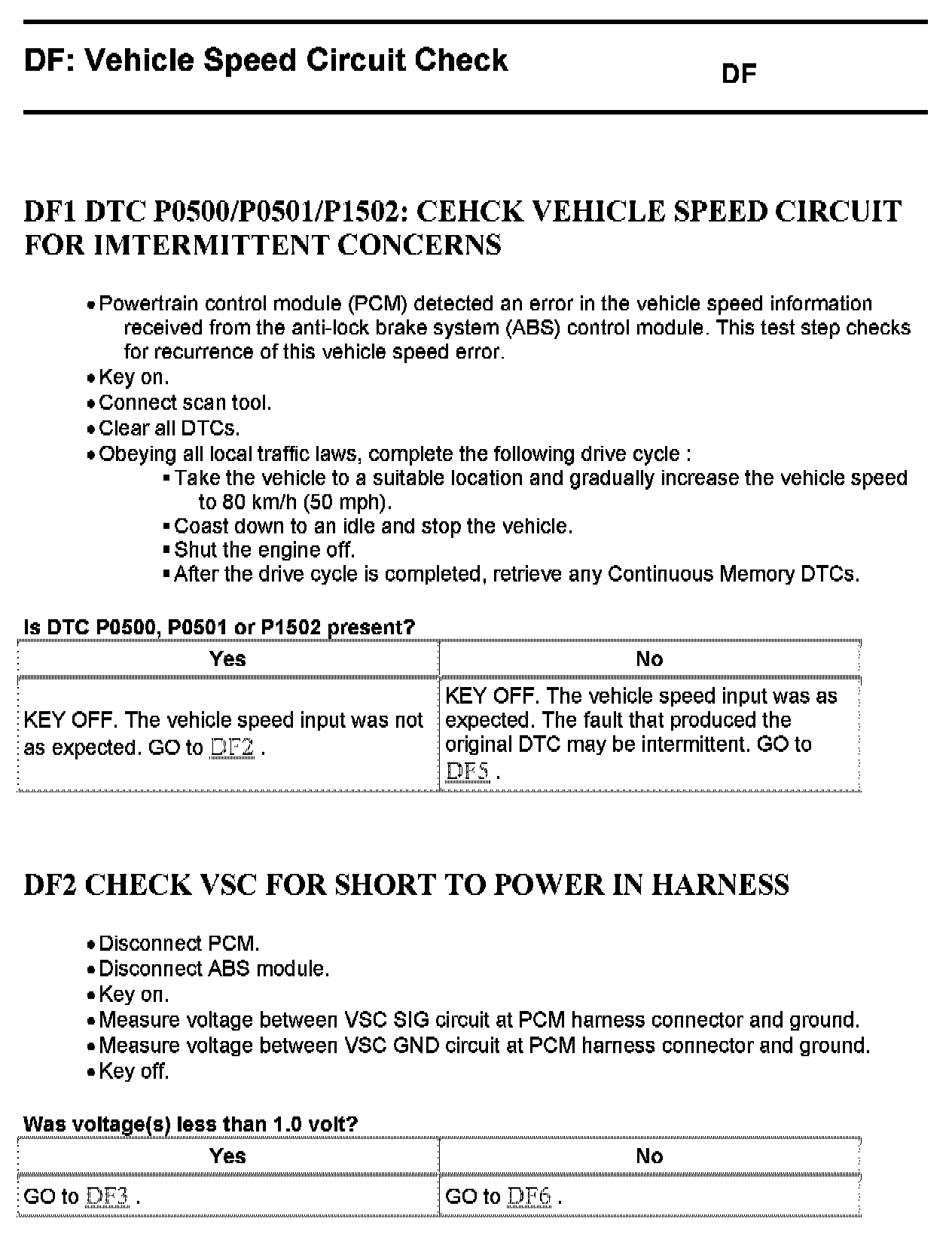

DF1 - DF2:

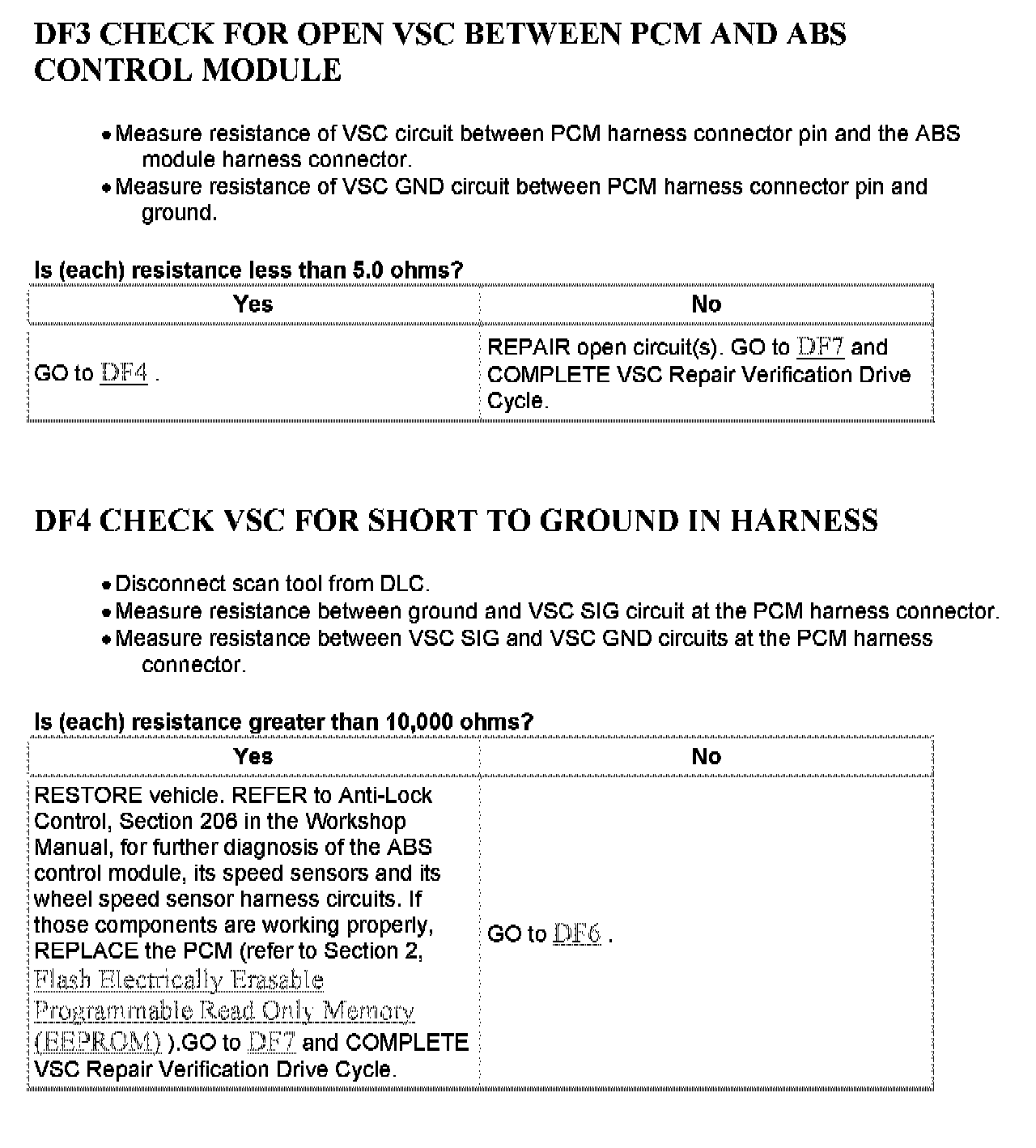

DF3 - DF4:

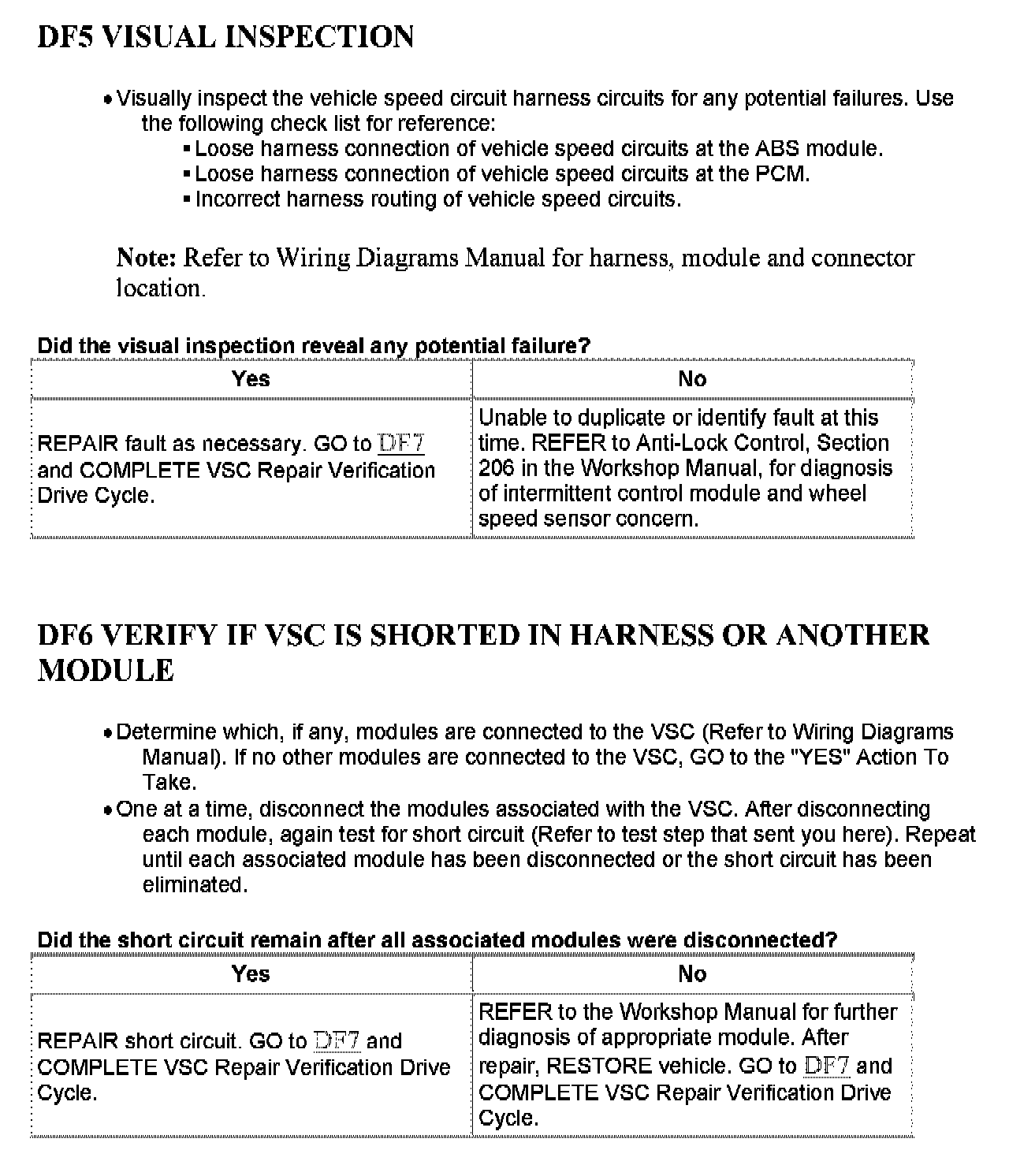

DF5 - DF6:





DF7:
