PINPOINT TEST E: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL
Test E1:

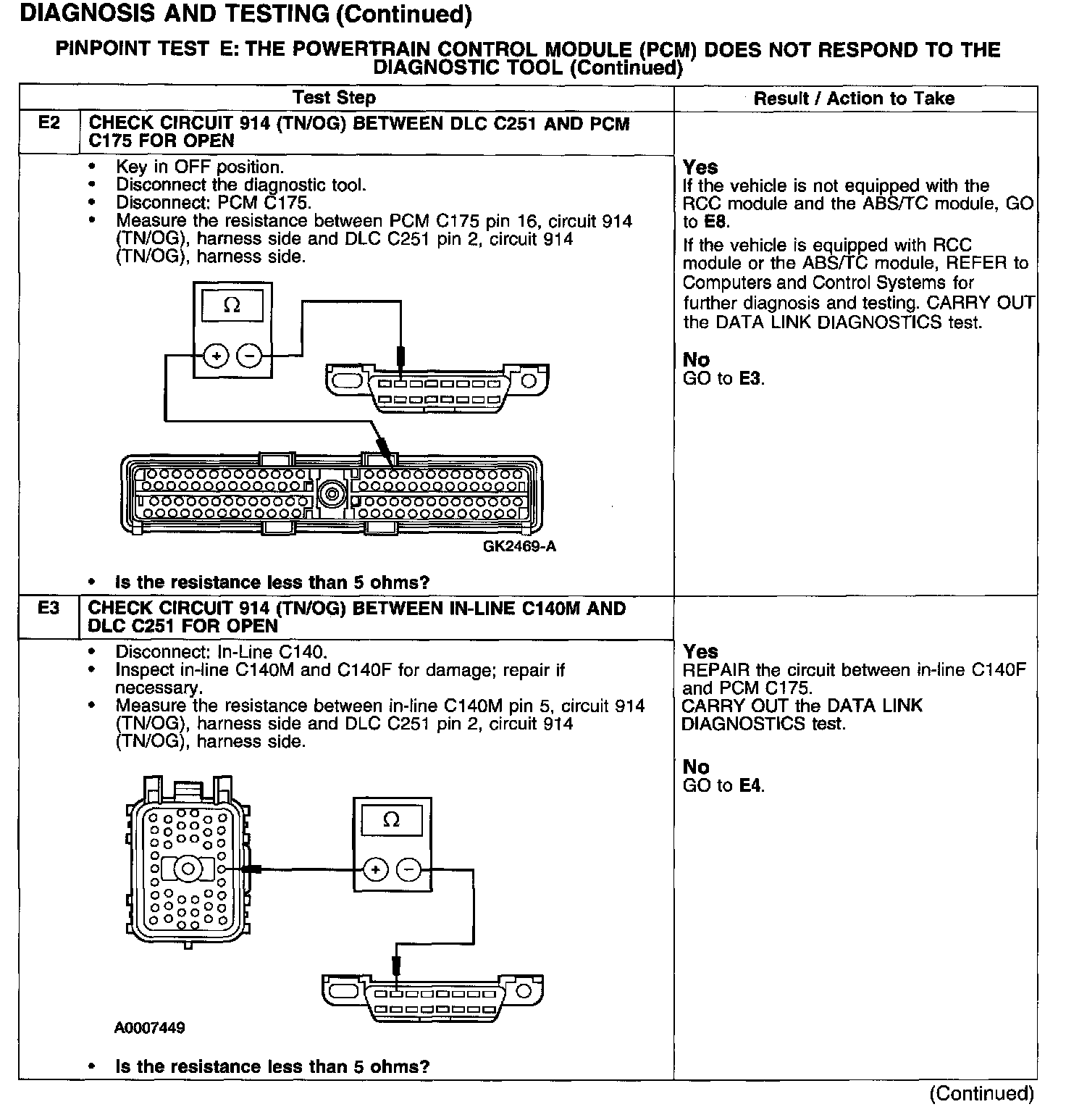

Test E2-E3:

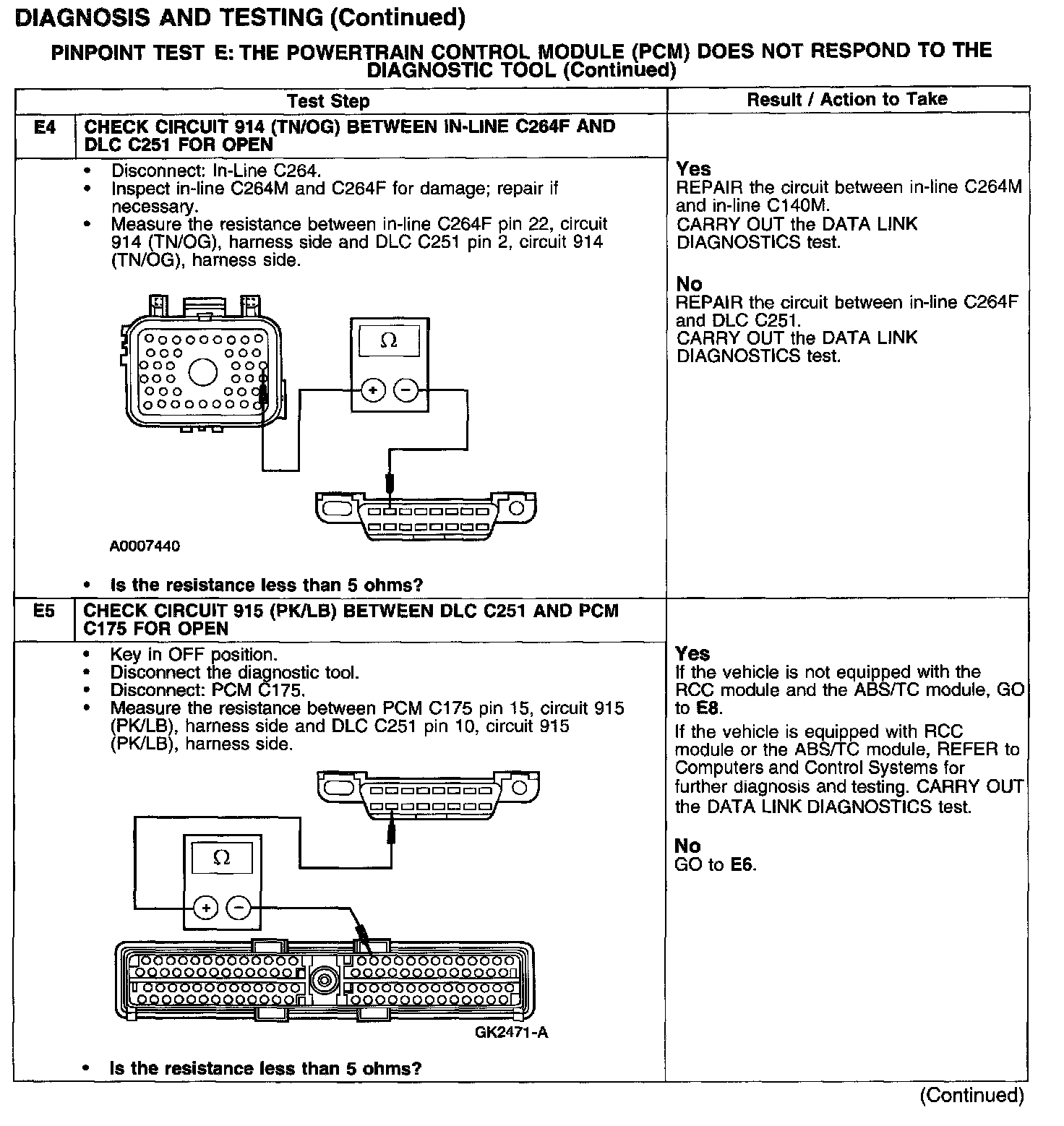

Test E4-E5:

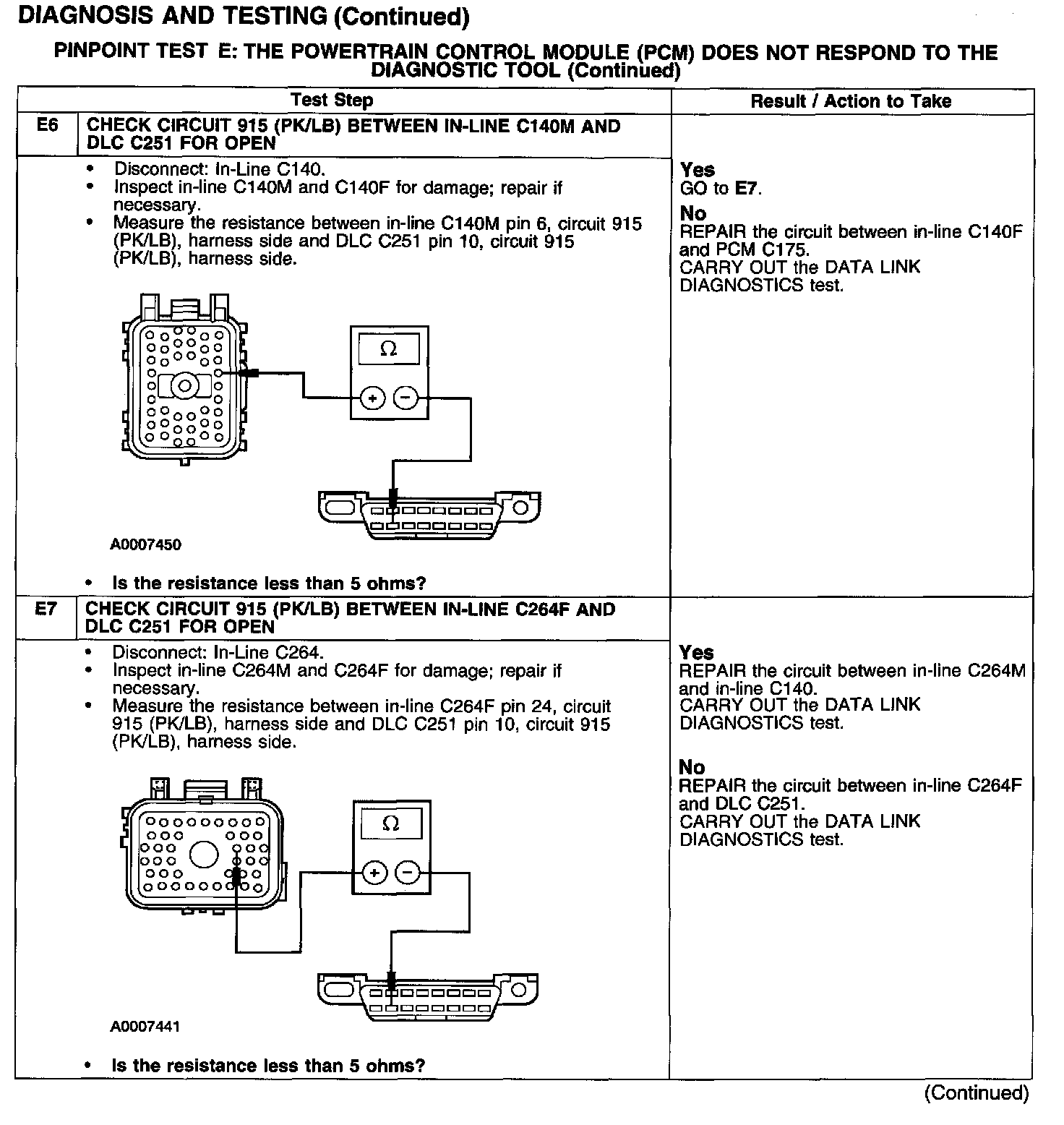

Test E6-E7:

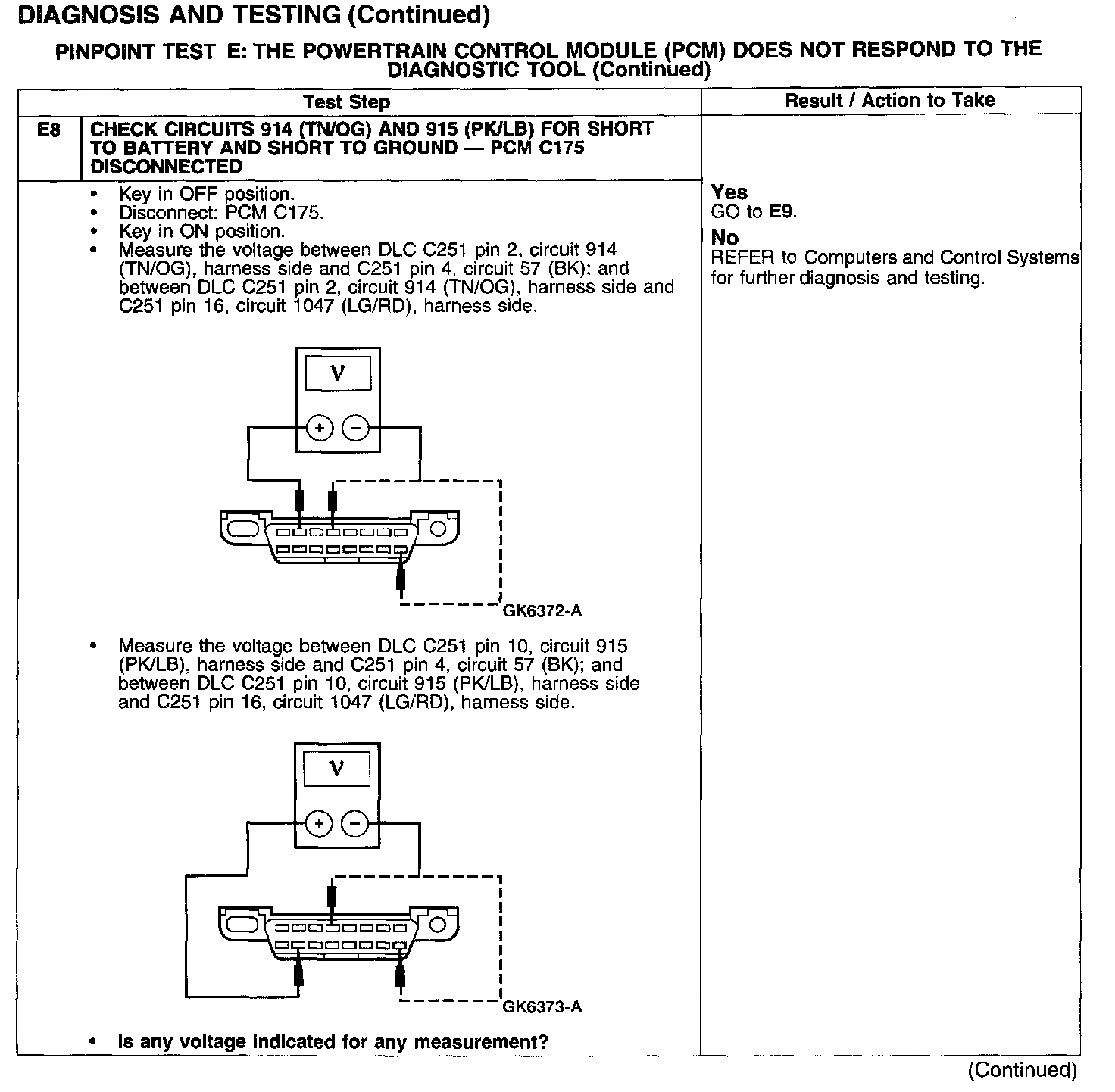

Test E8:

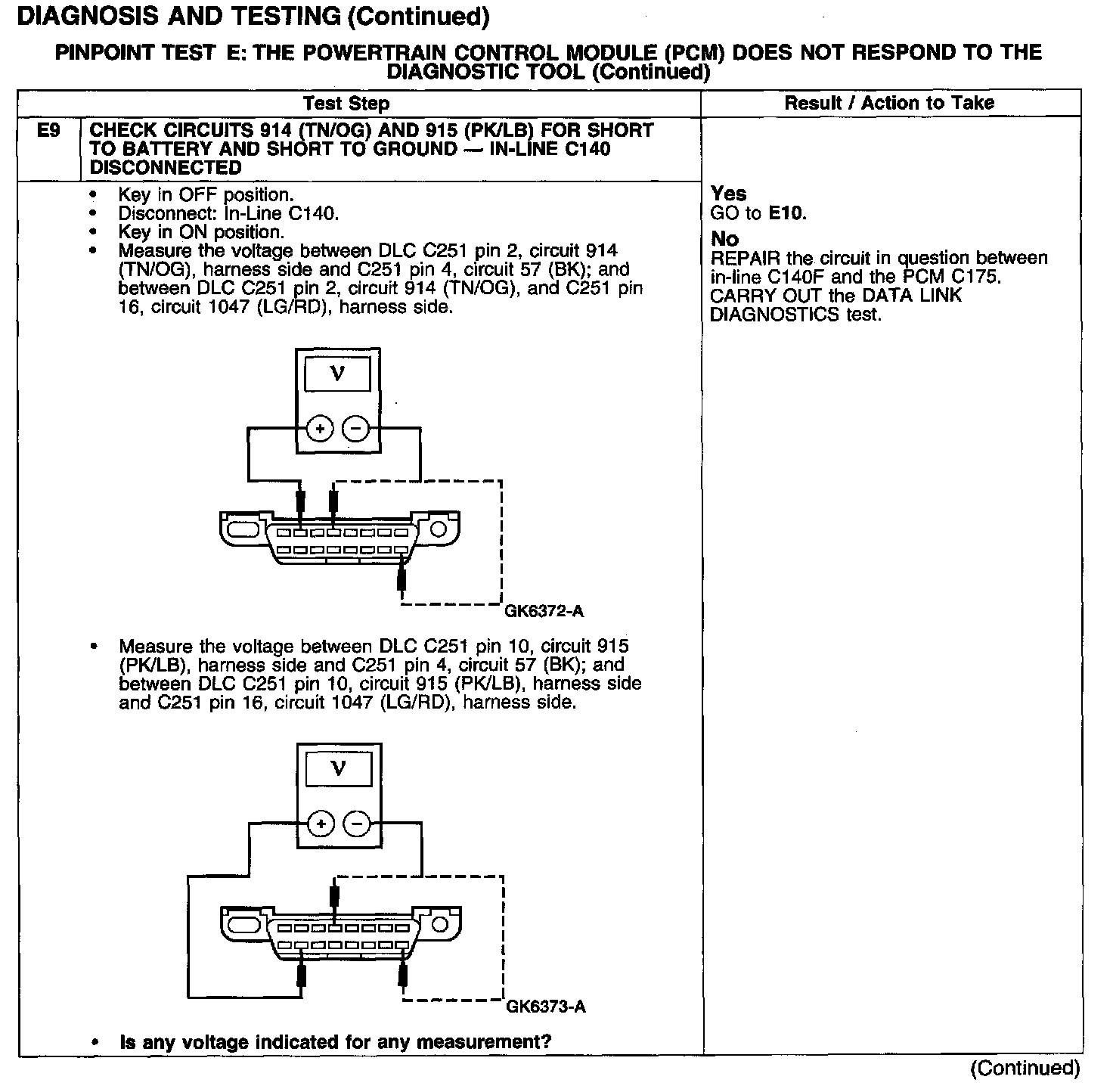

Test E9:

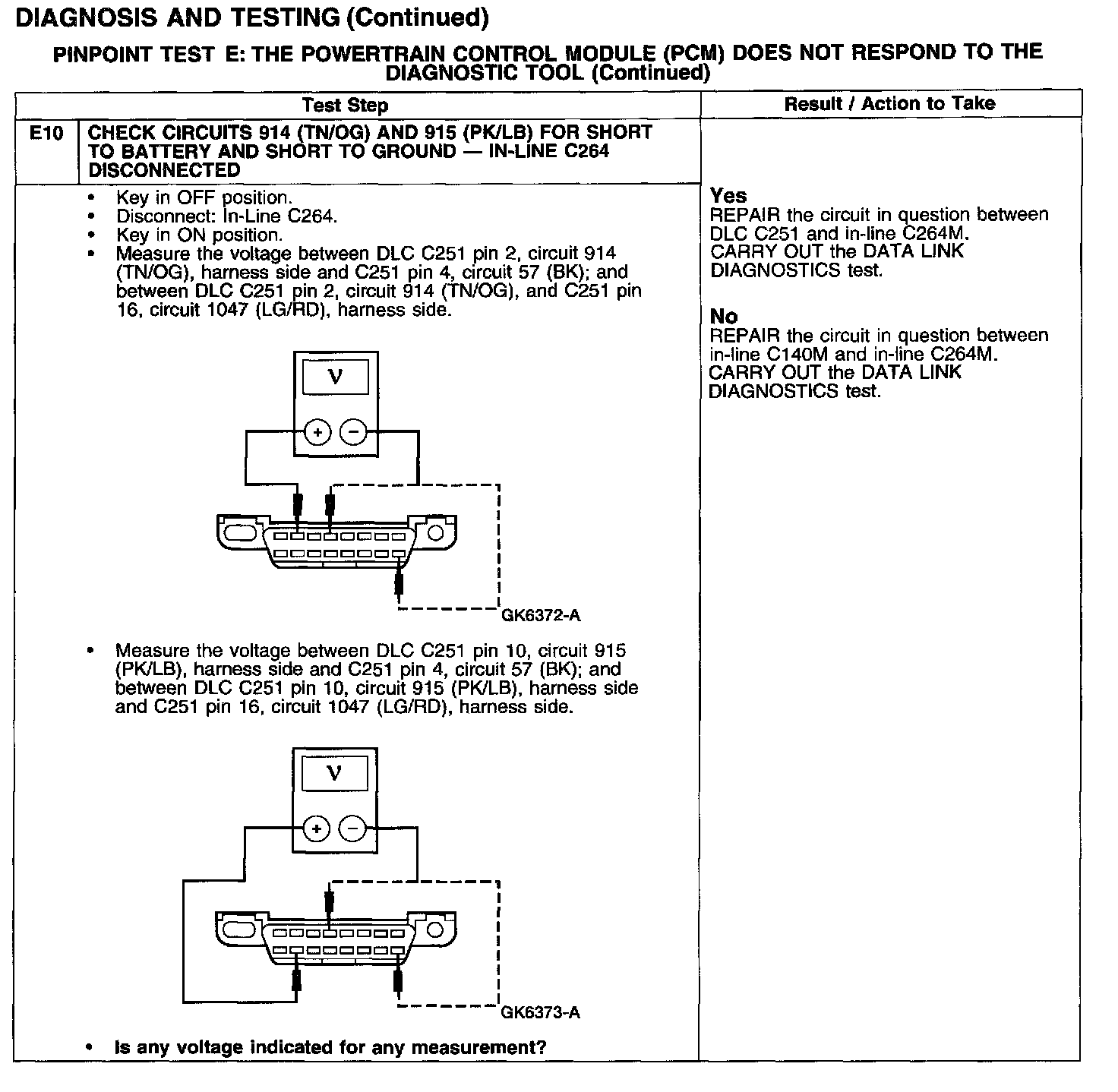

Test E10:
