Test D
Test D
PINPOINT TEST D: THE RESTRAINT CONTROL MODULE (RCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

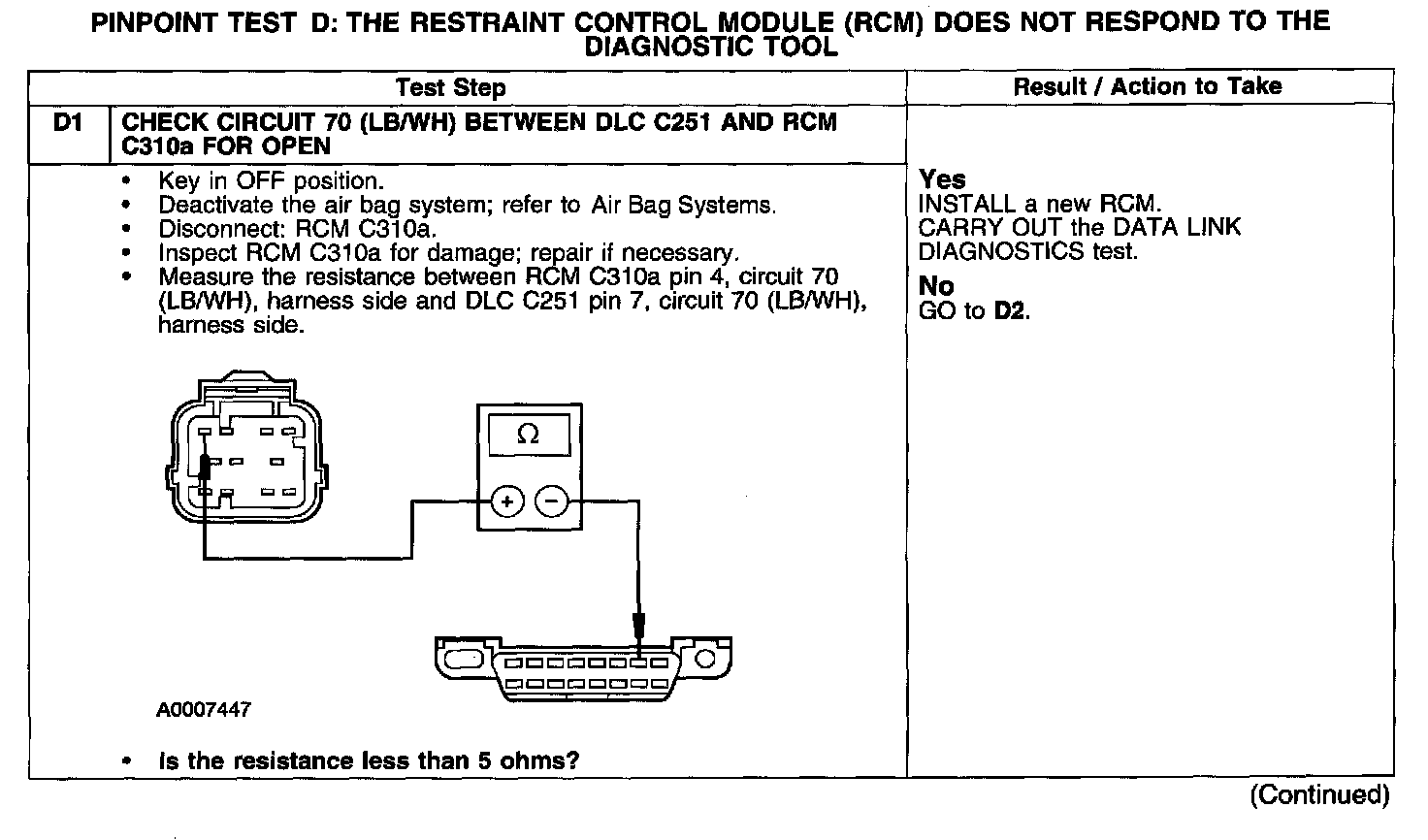

Test D1:

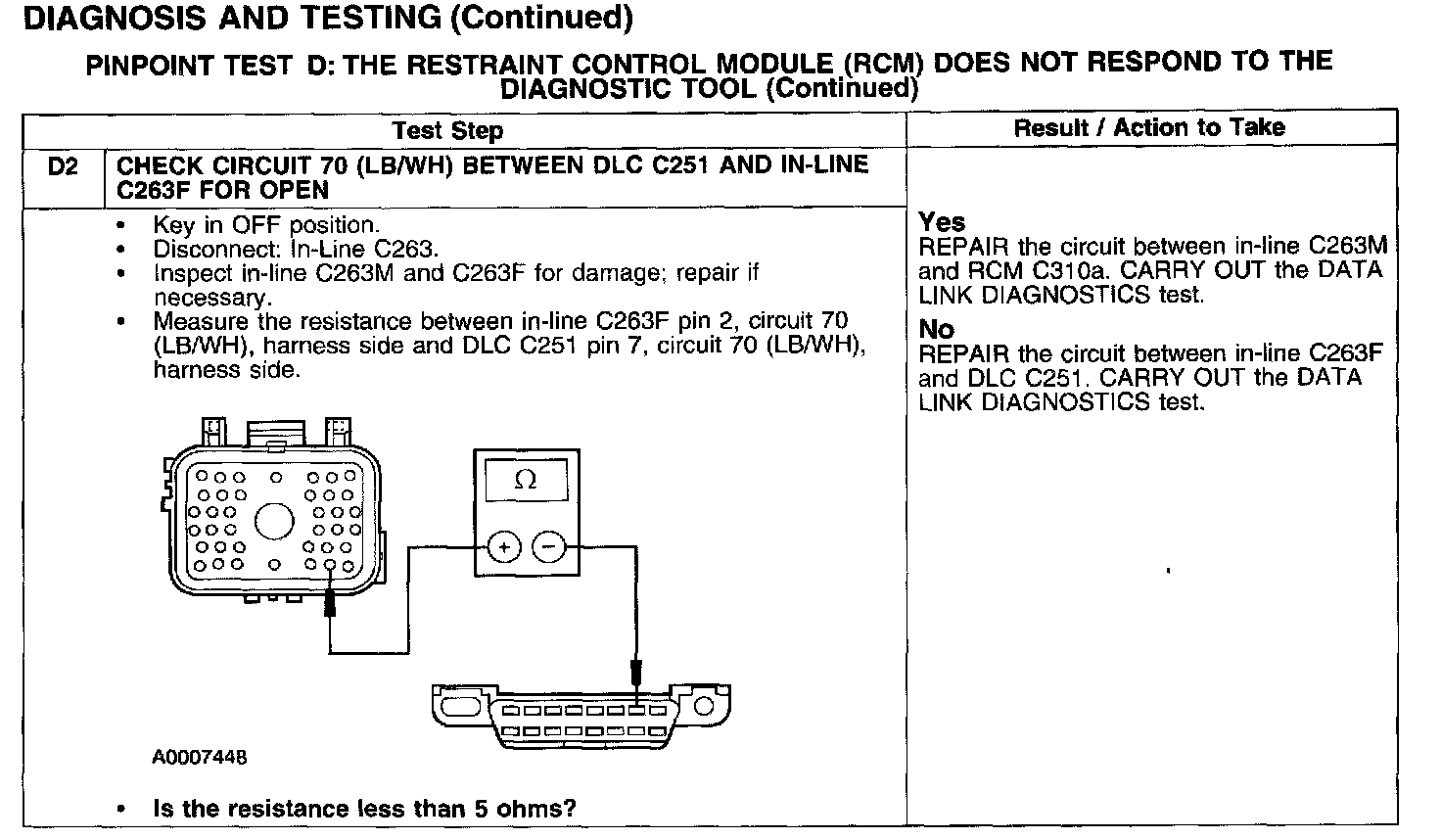

Test D2:
