Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Autolamps >> Test J

Test J

PINPOINT TEST J: THE PARKLAMPS ARE INOPERATIVE WITH AUTOLAMPS ON

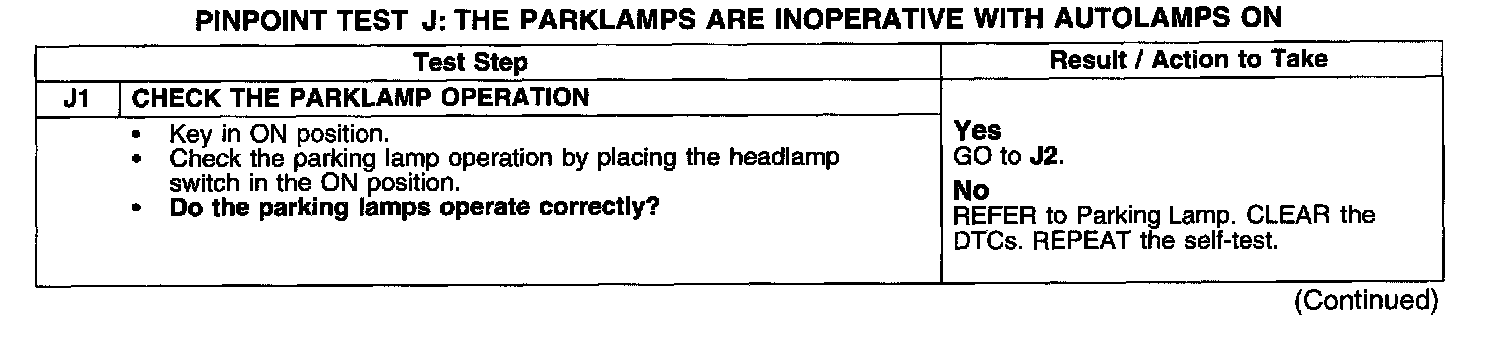

Test J1:

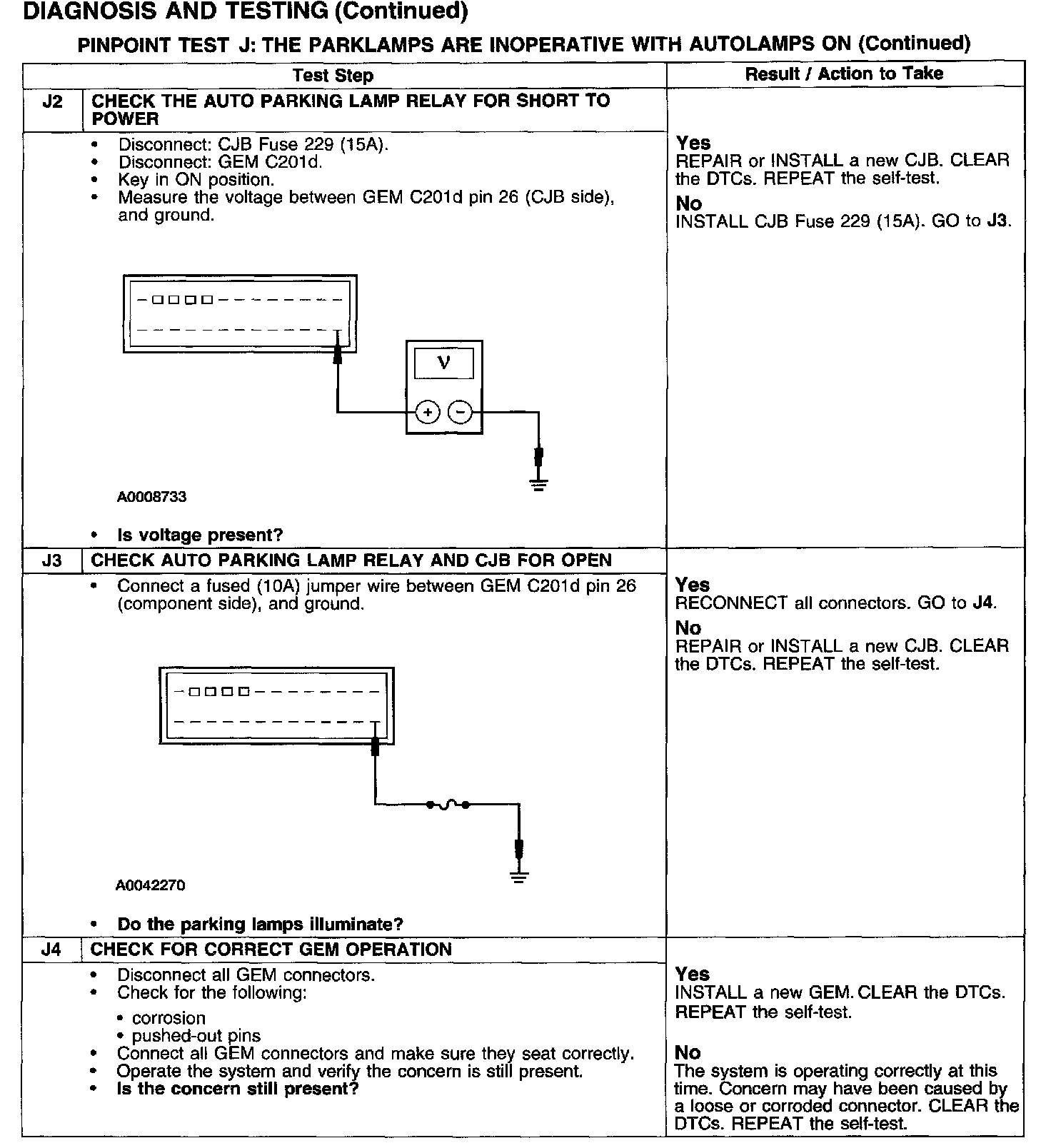

Test J2-J4:
