FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2003
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Autolamps
>>
Test I
Test I
PINPOINT TEST I: THE HEADLAMPS ARE INOPERATIVE WITH AUTOLAMPS ON

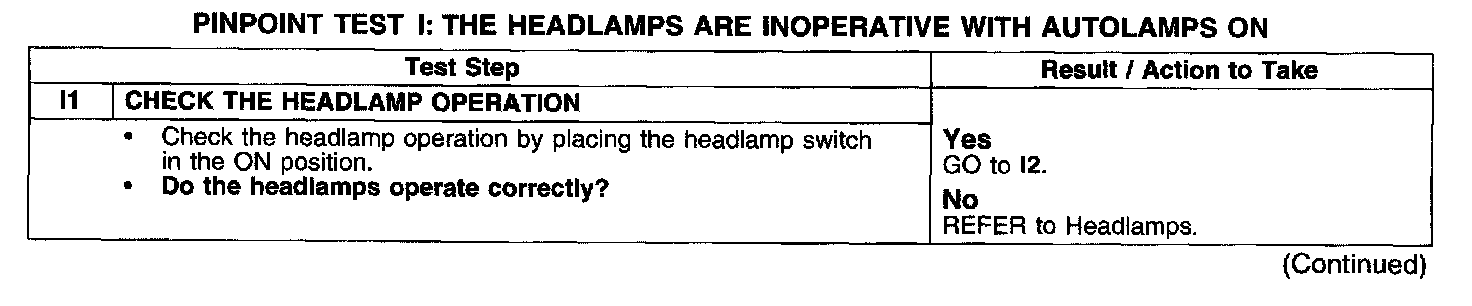

Test I1:

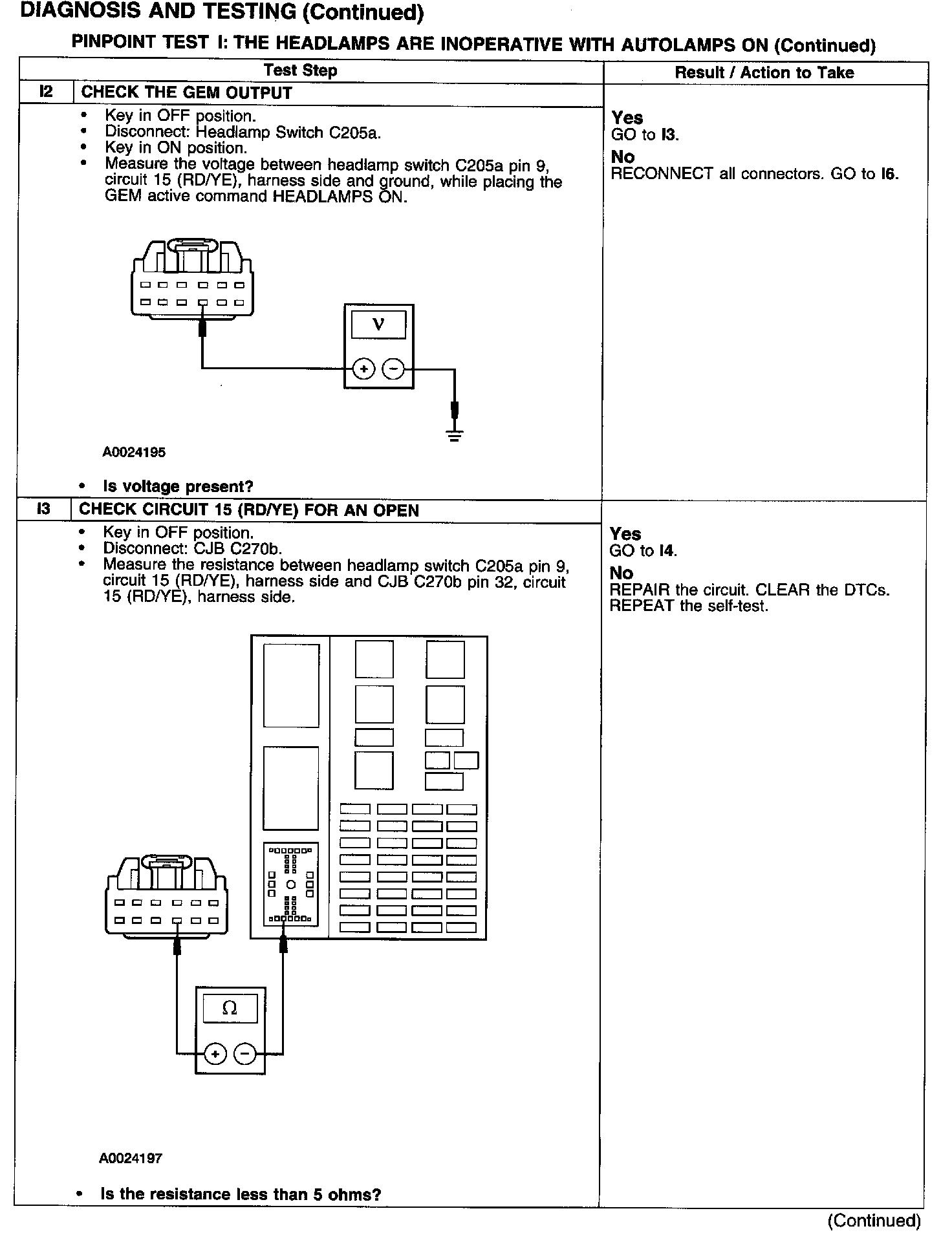

Test I2-I3:

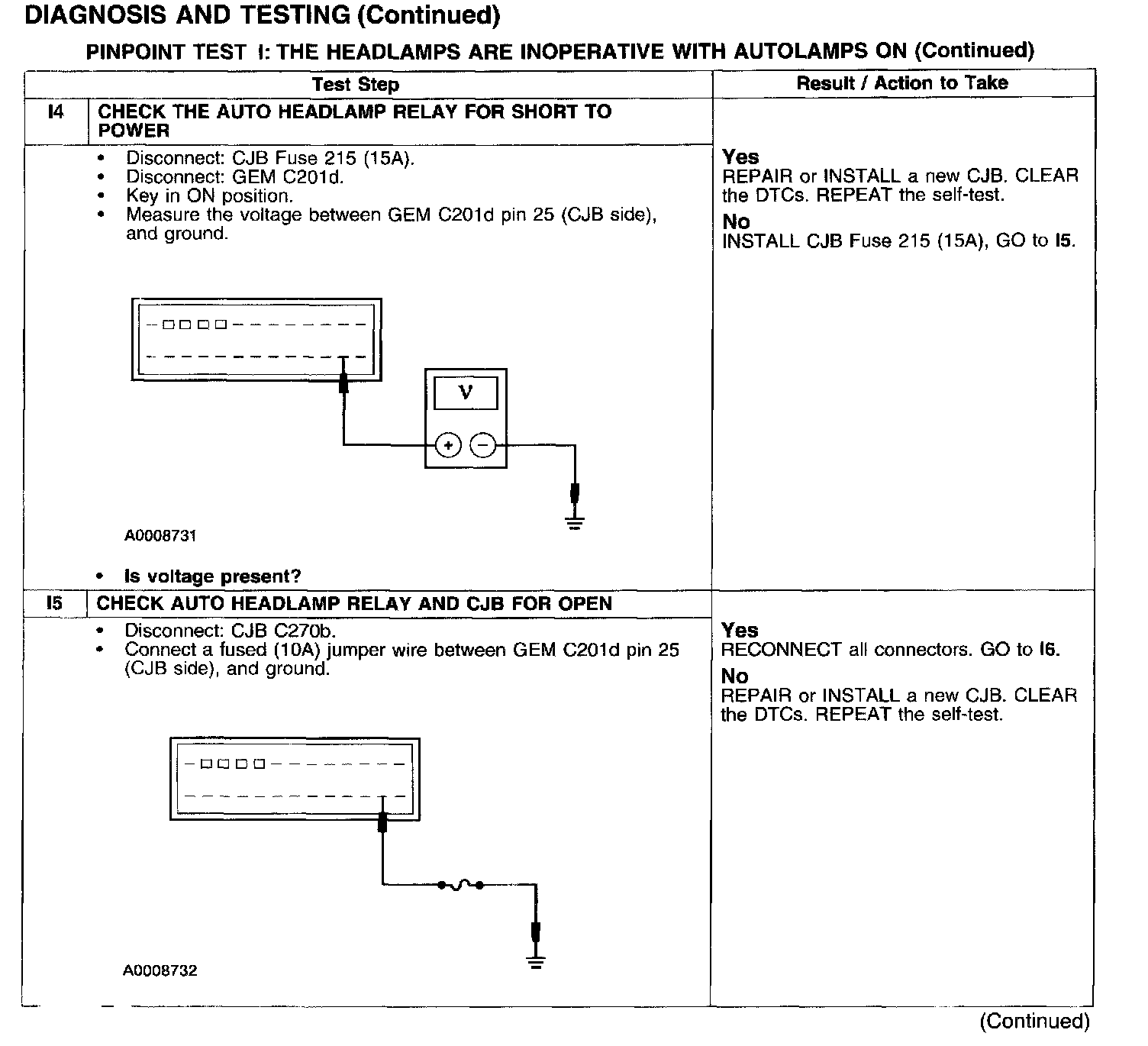

Test I4-I5:

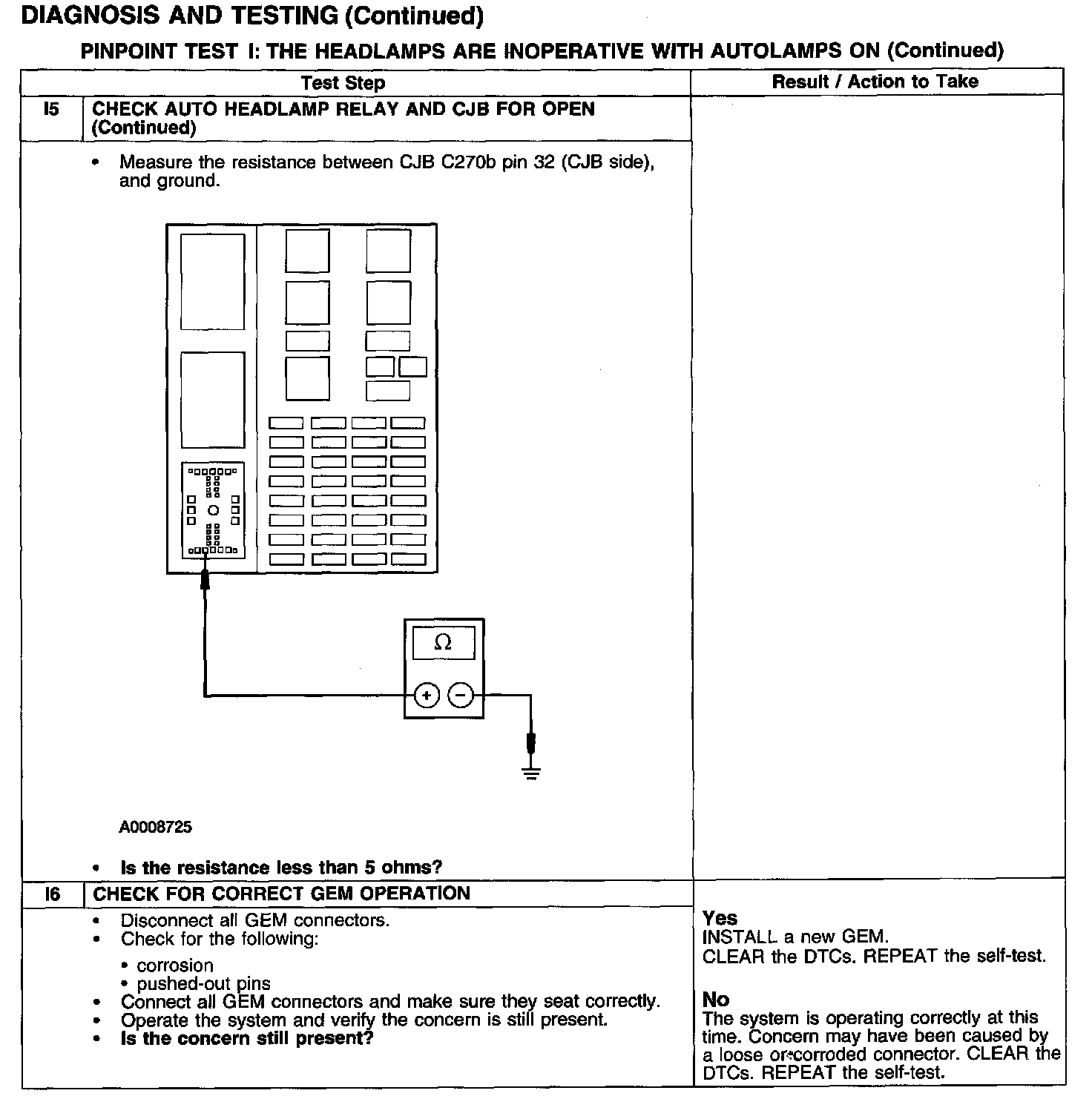

Test I5-I6:
