PINPOINT TEST H: THE AUTOLAMPS ARE INOPERATIVE - ALL AUTO HEAD/PARK LAMPS INOPERATIVE

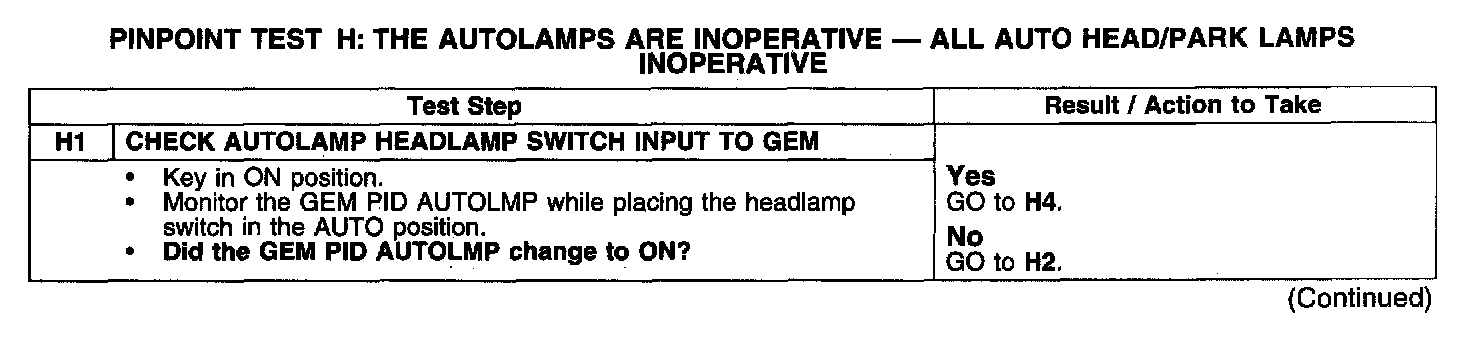

Test H1:

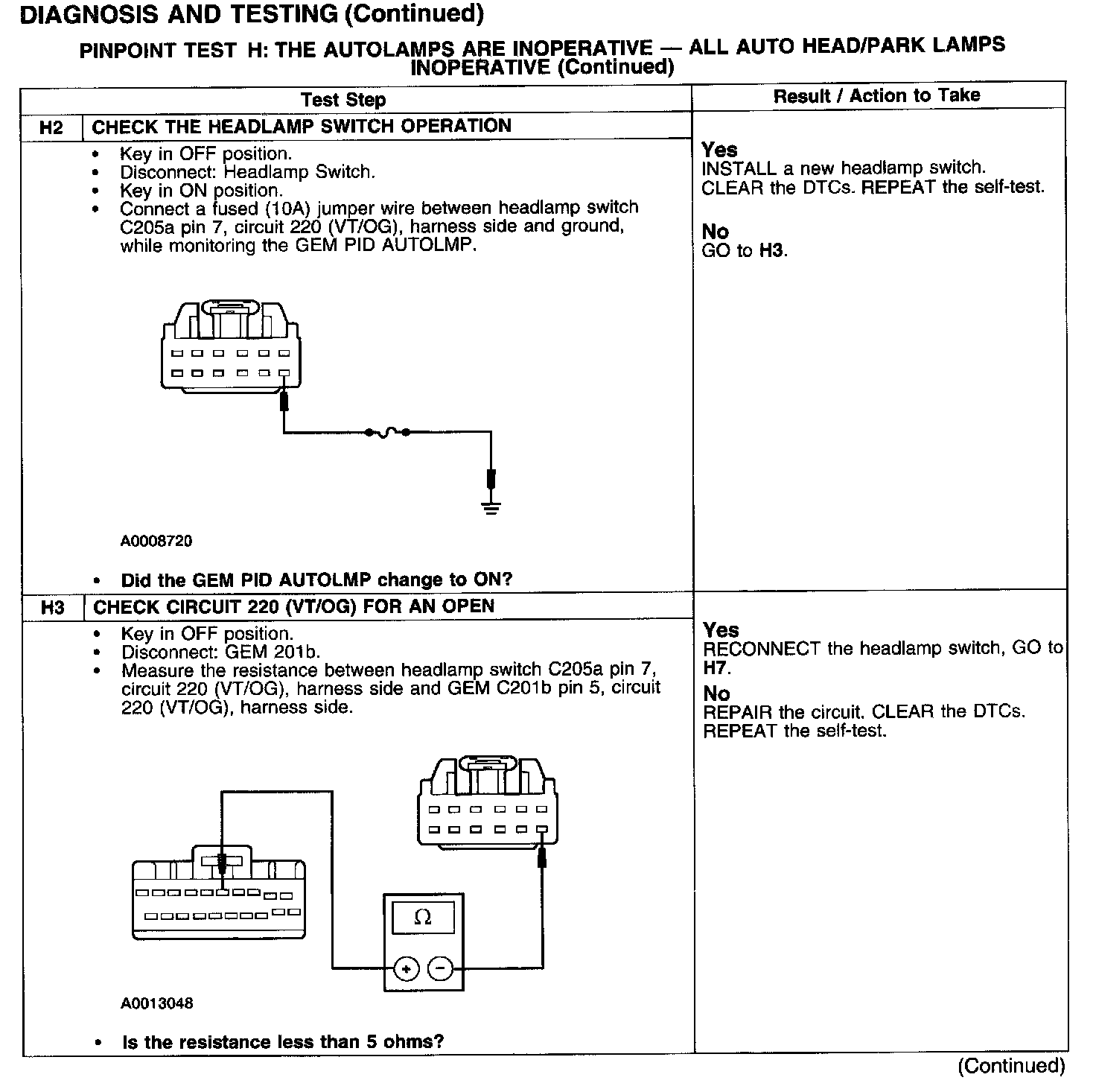

Test H2-H3:

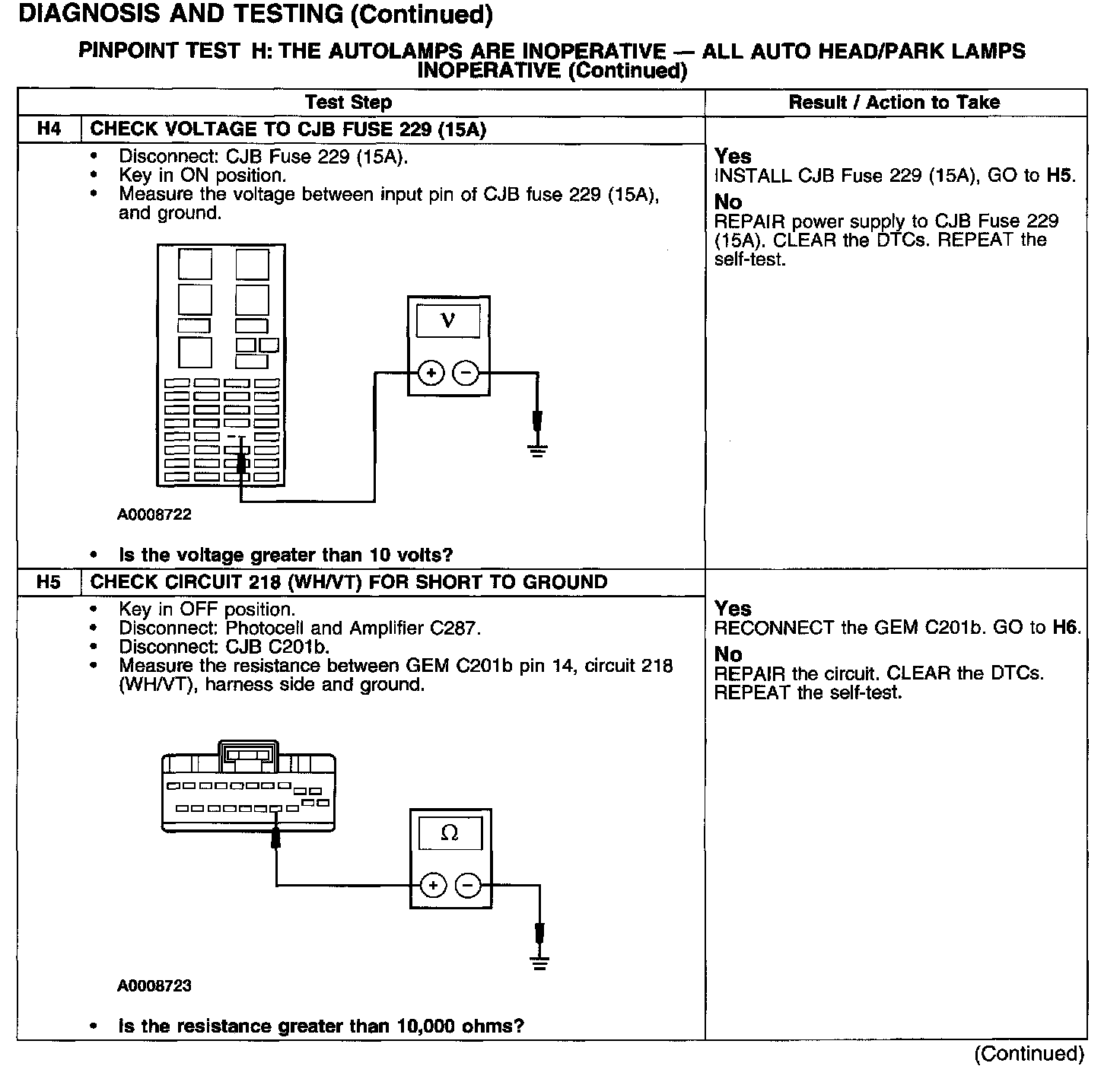

Test H4-H5:

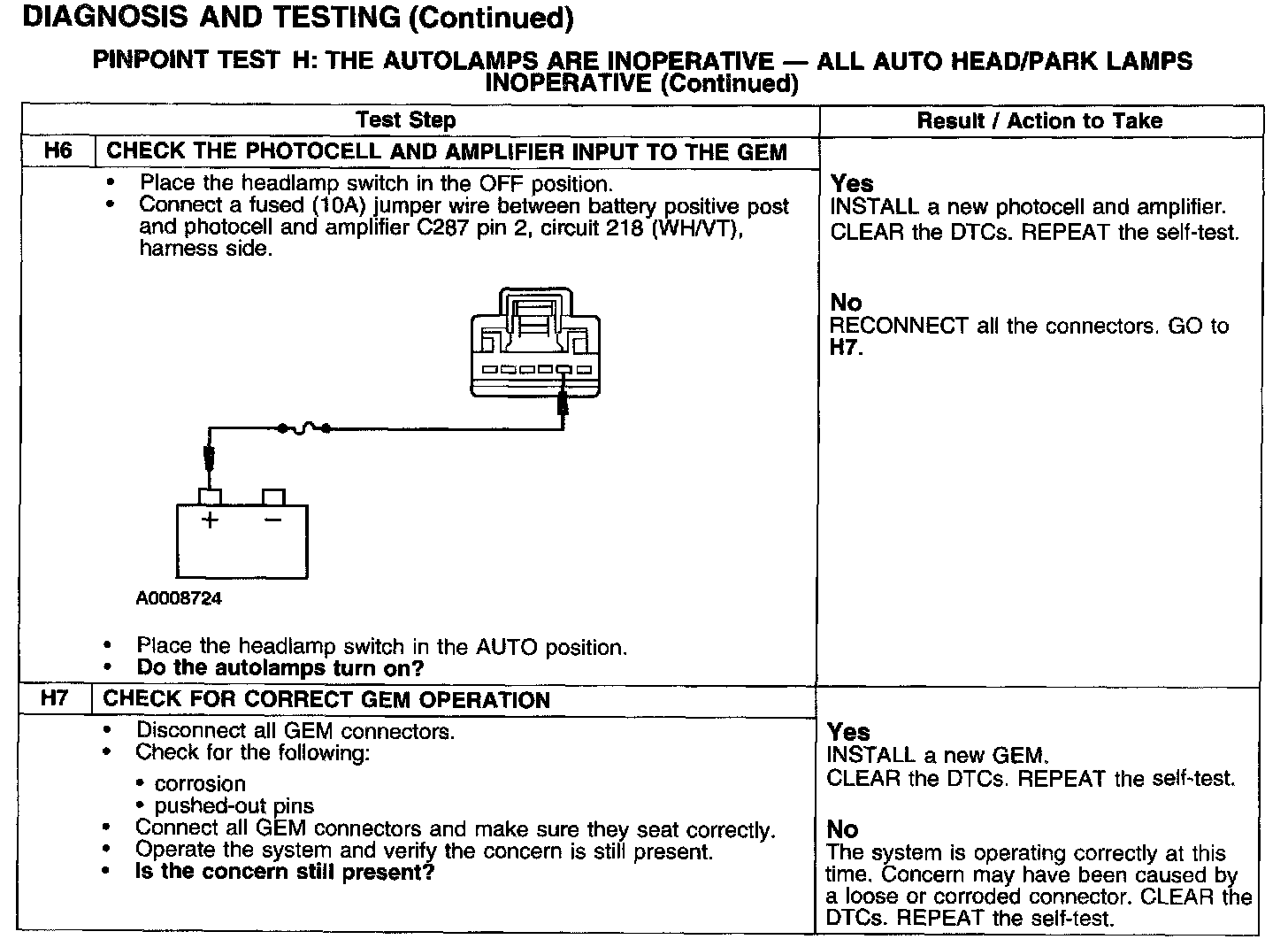

Test H6-H7:
