Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Test U

Test U

PINPOINT TEST U: THE FOG LAMPS ARE INOPERATIVE

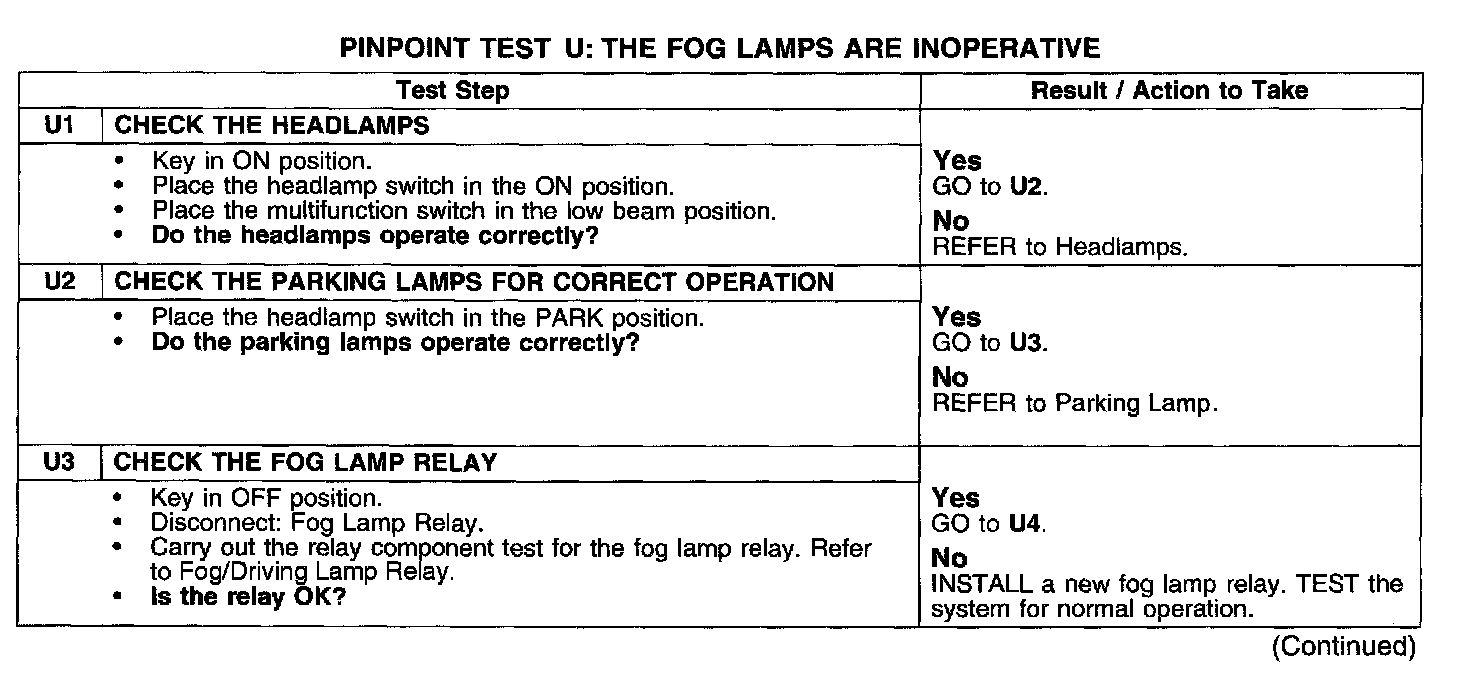

Test U1-U3:

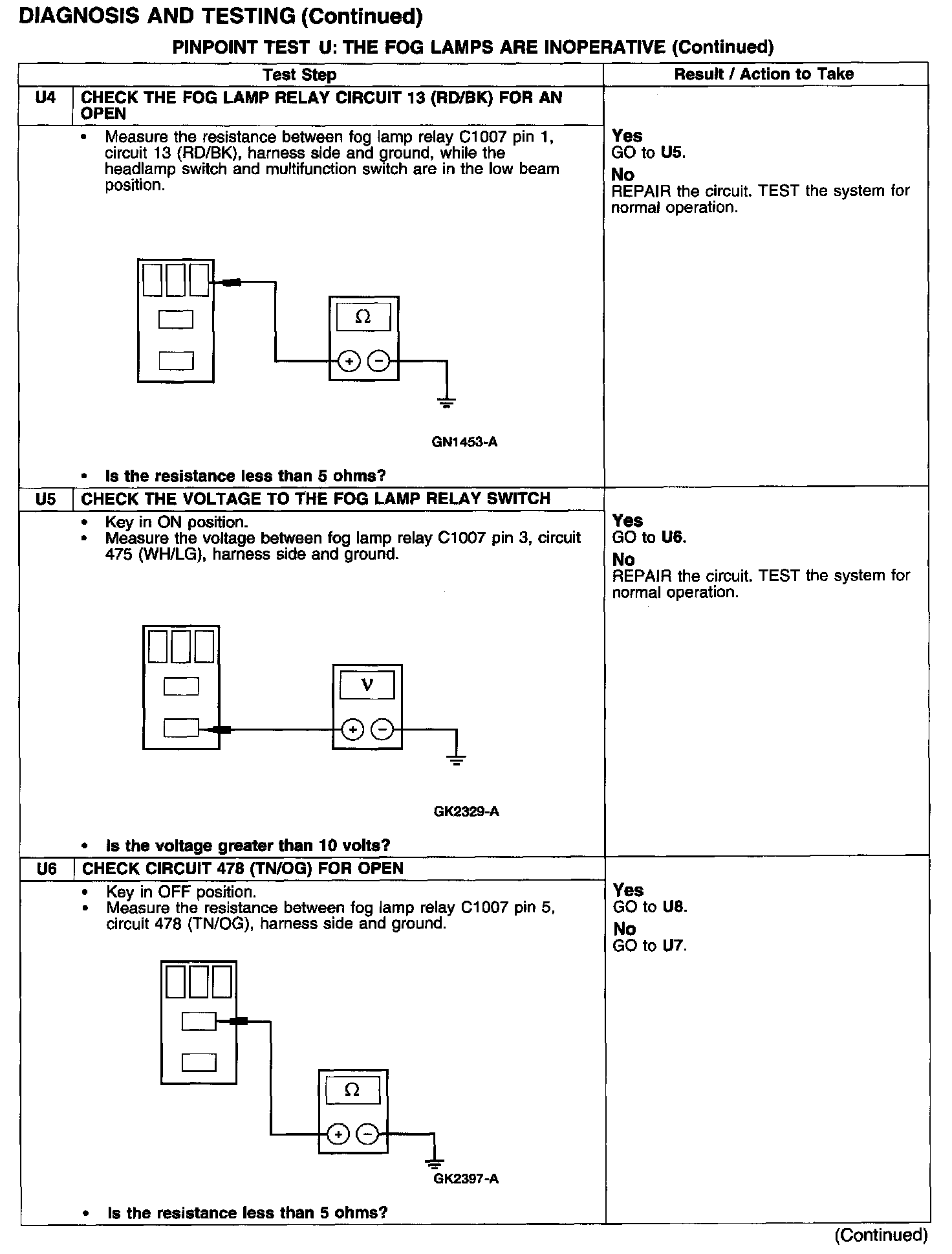

Test U4-U6:

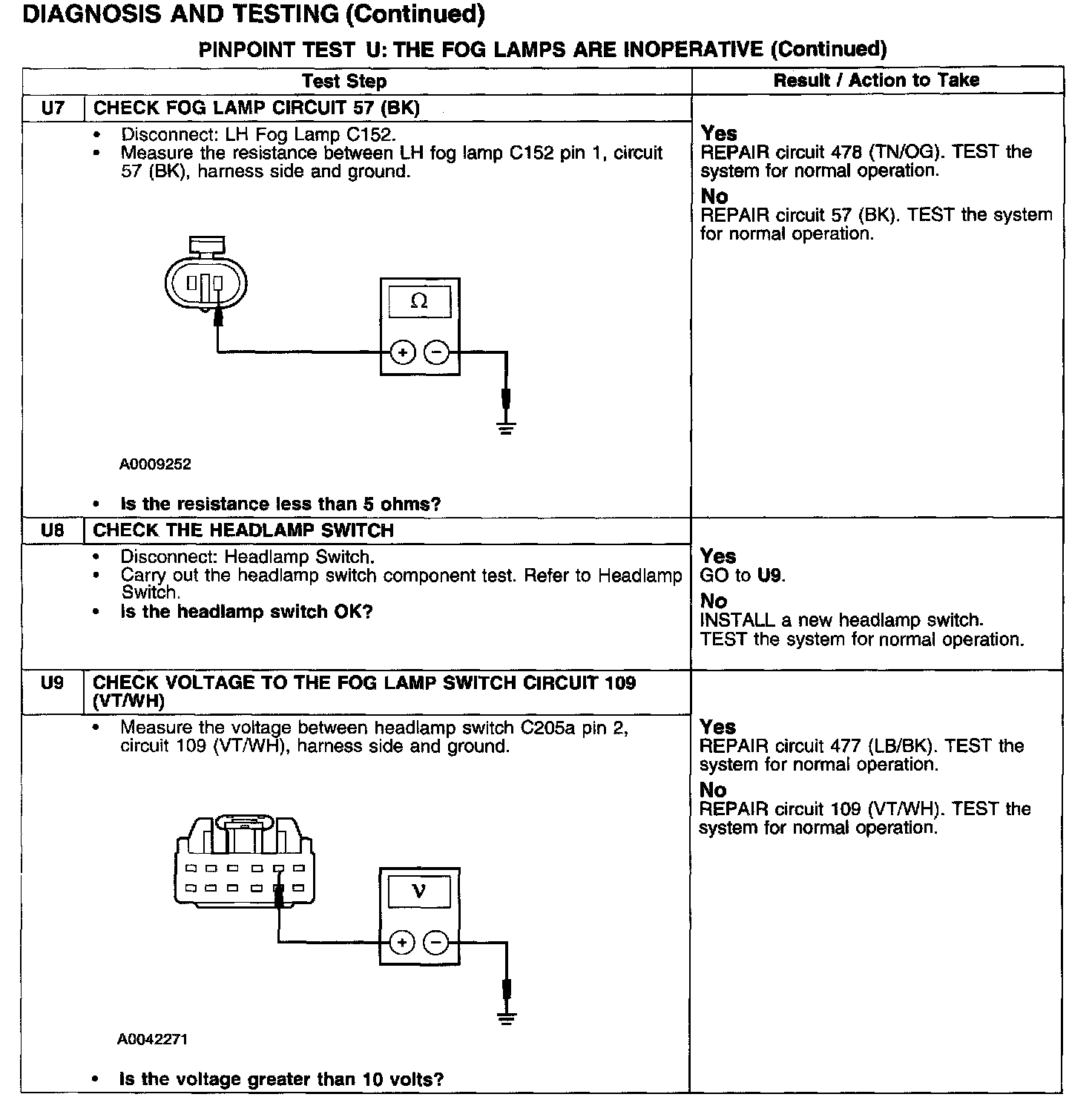

Test U7-U9:
