PINPOINT TEST I: THE ILLUMINATED ENTRY IS INOPERATIVE WHEN USING THE REMOTE TRANSMITTER

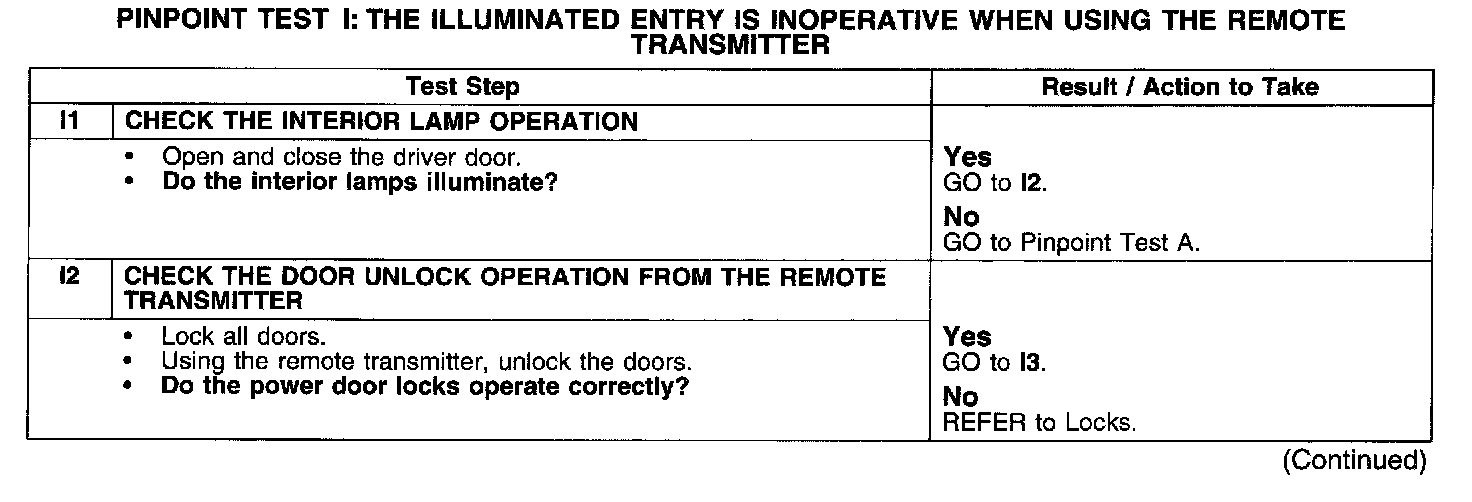

Test I1-I2:

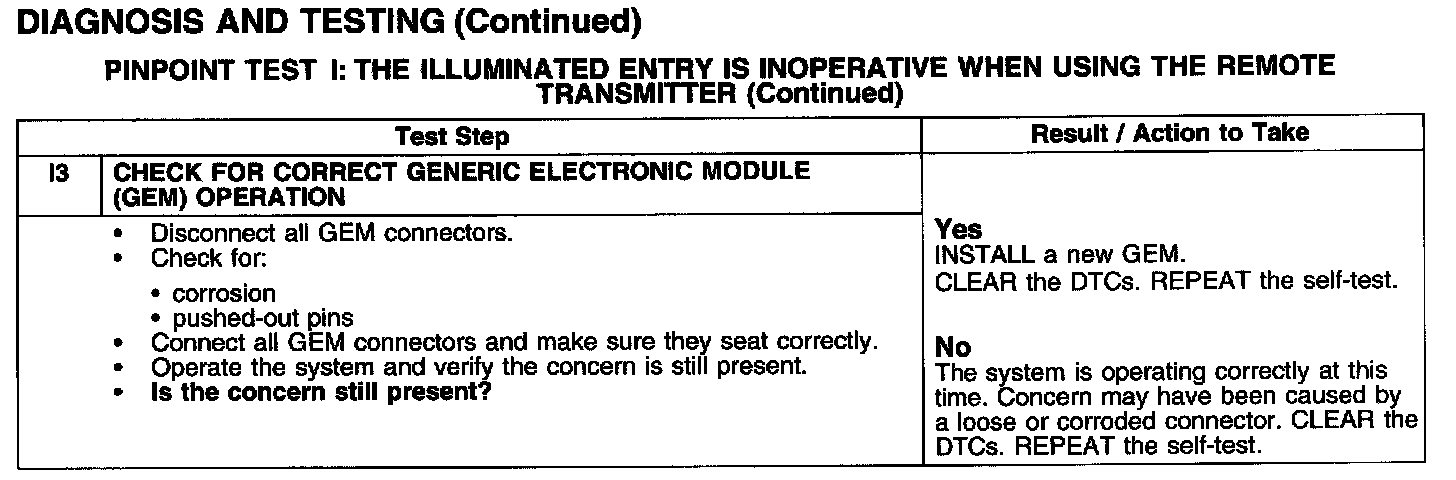

Test I3:
