Test D
Test D
PINPOINT TEST D: A CHIME DOES NOT OPERATE CORRECTLY - THE CHIME OPERATES CONTINUOUSLY

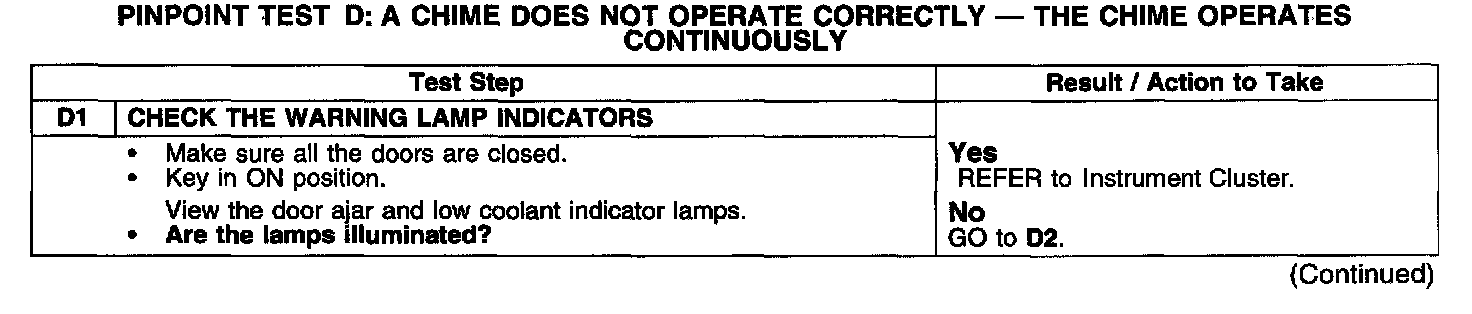

Test D1:

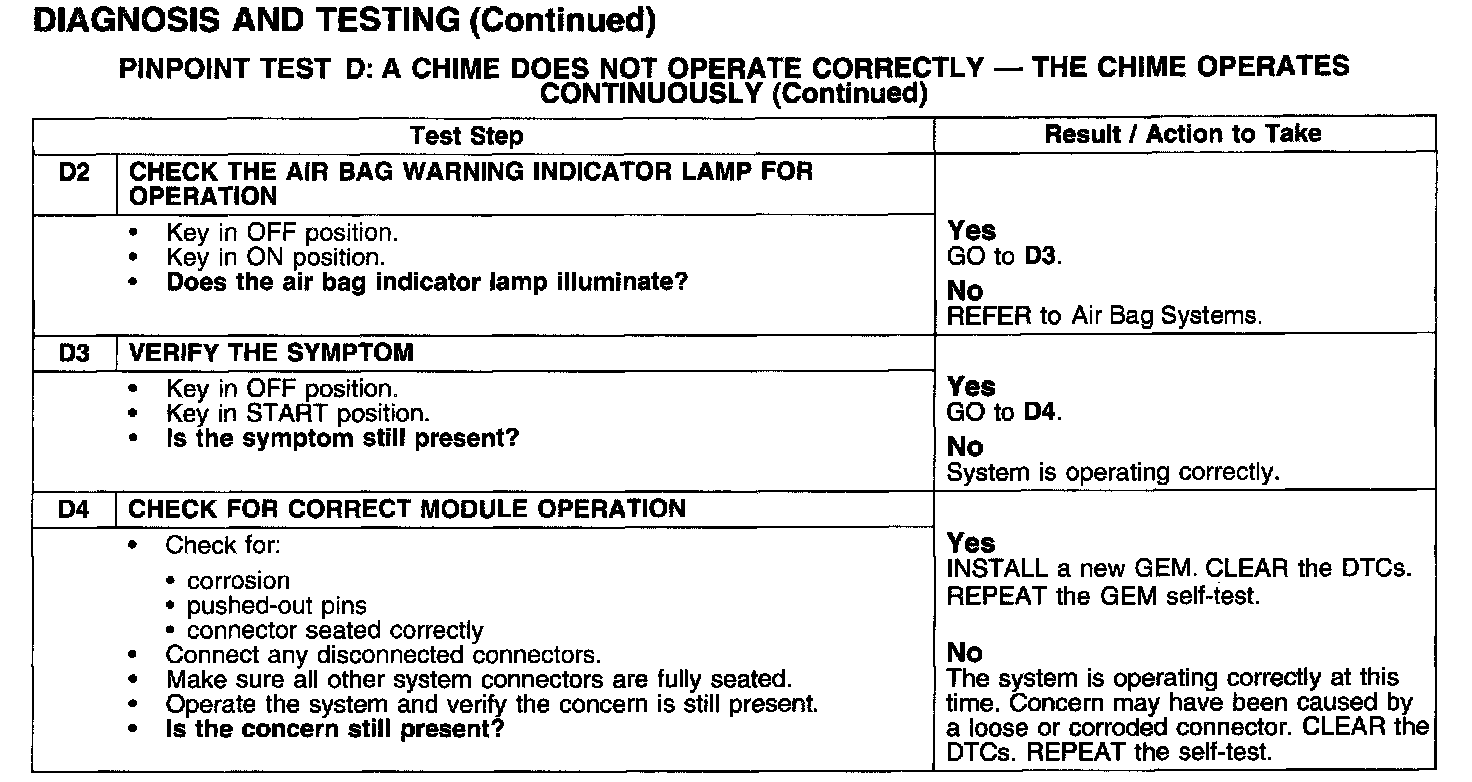

Test D2-D4:
