Test E

PINPOINT TEST E: A SINGLE ILLUMINATION SOURCE IS INOPERATIVE - STEERING WHEEL CONTROL SWITCHES

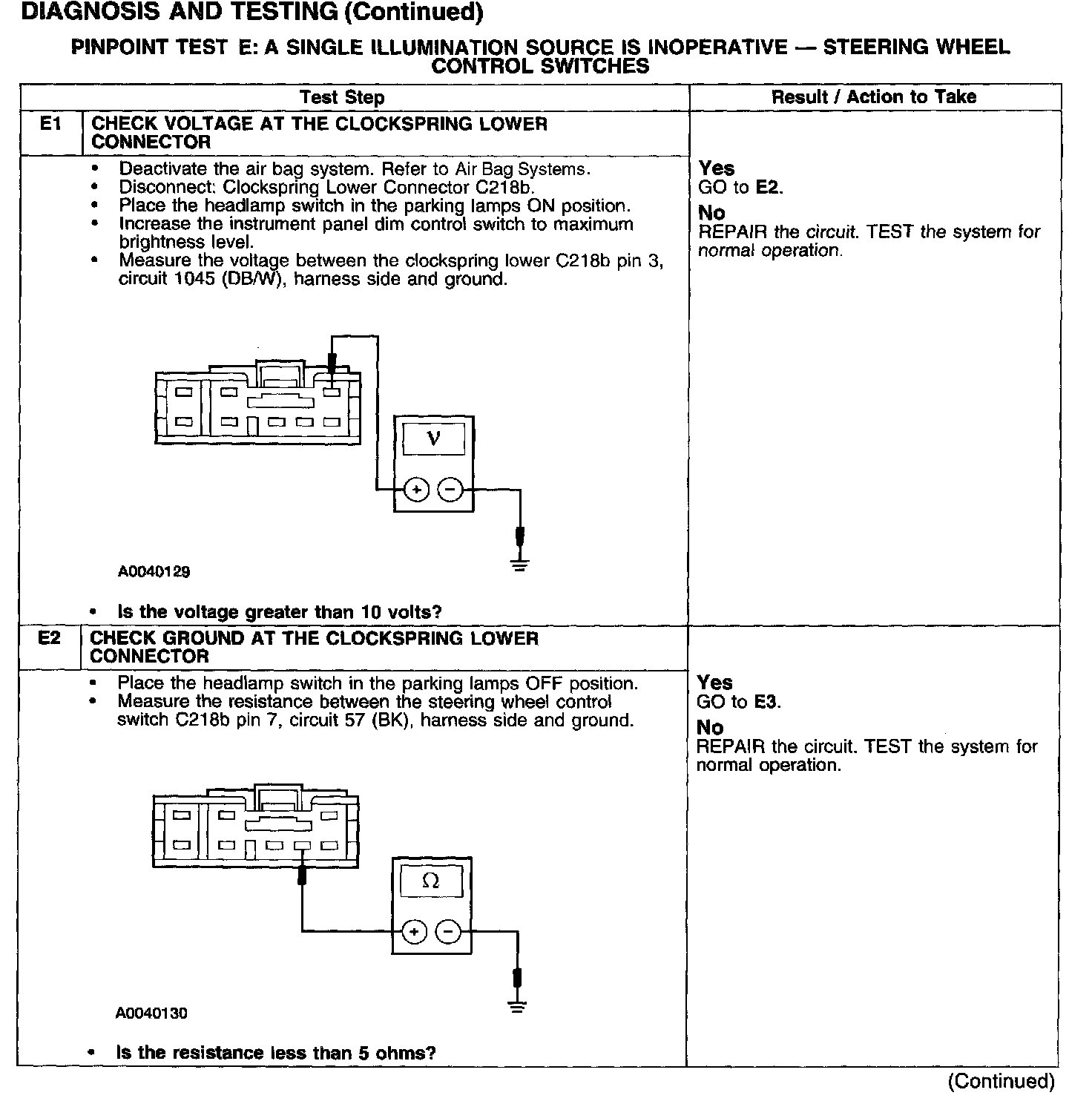

Test E1-E2:

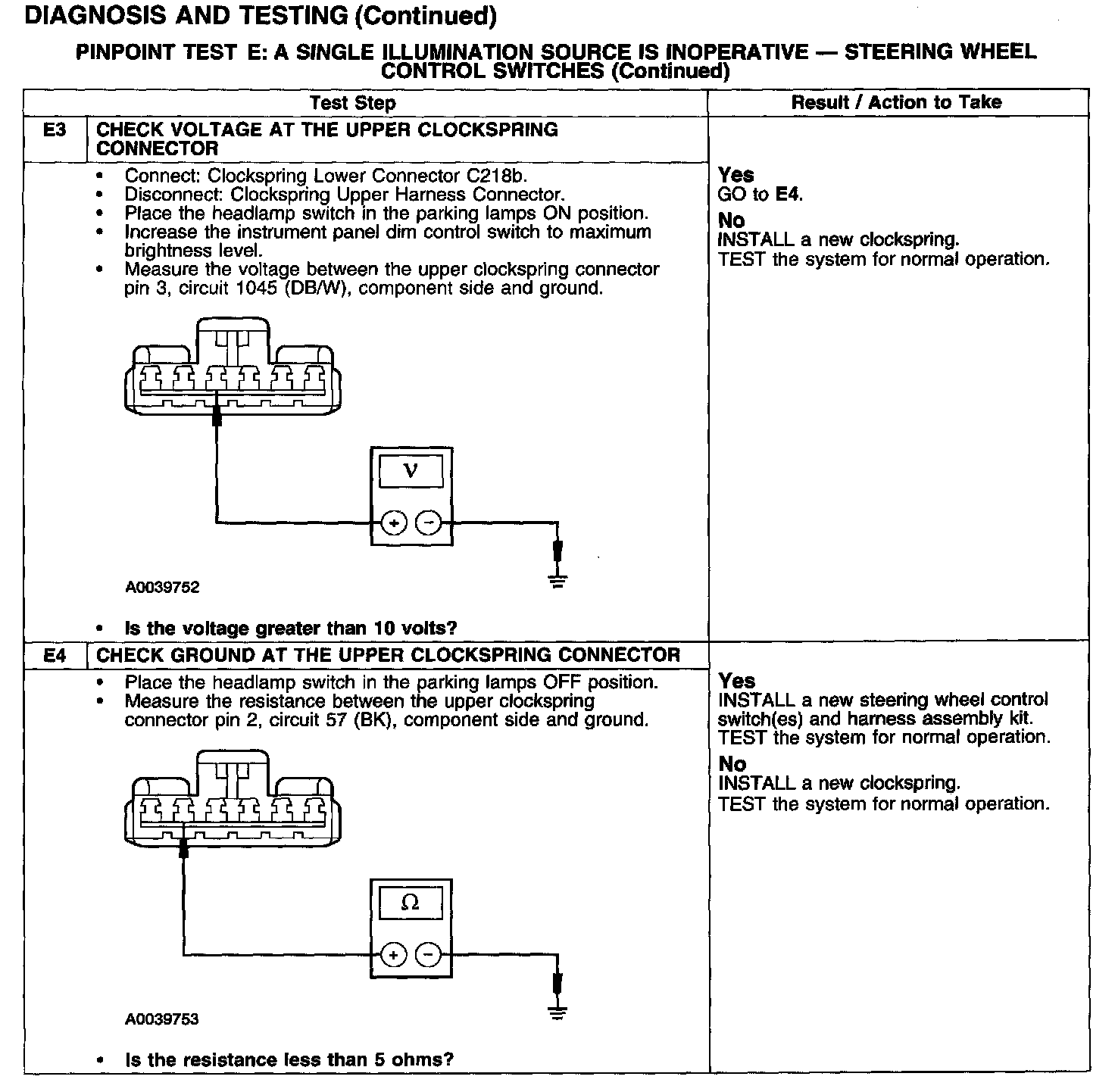

Test E3-E4:
