Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test W

Test W

PINPOINT TEST W: THE CHECK FUEL CAP INDICATOR IS INOPERATIVE

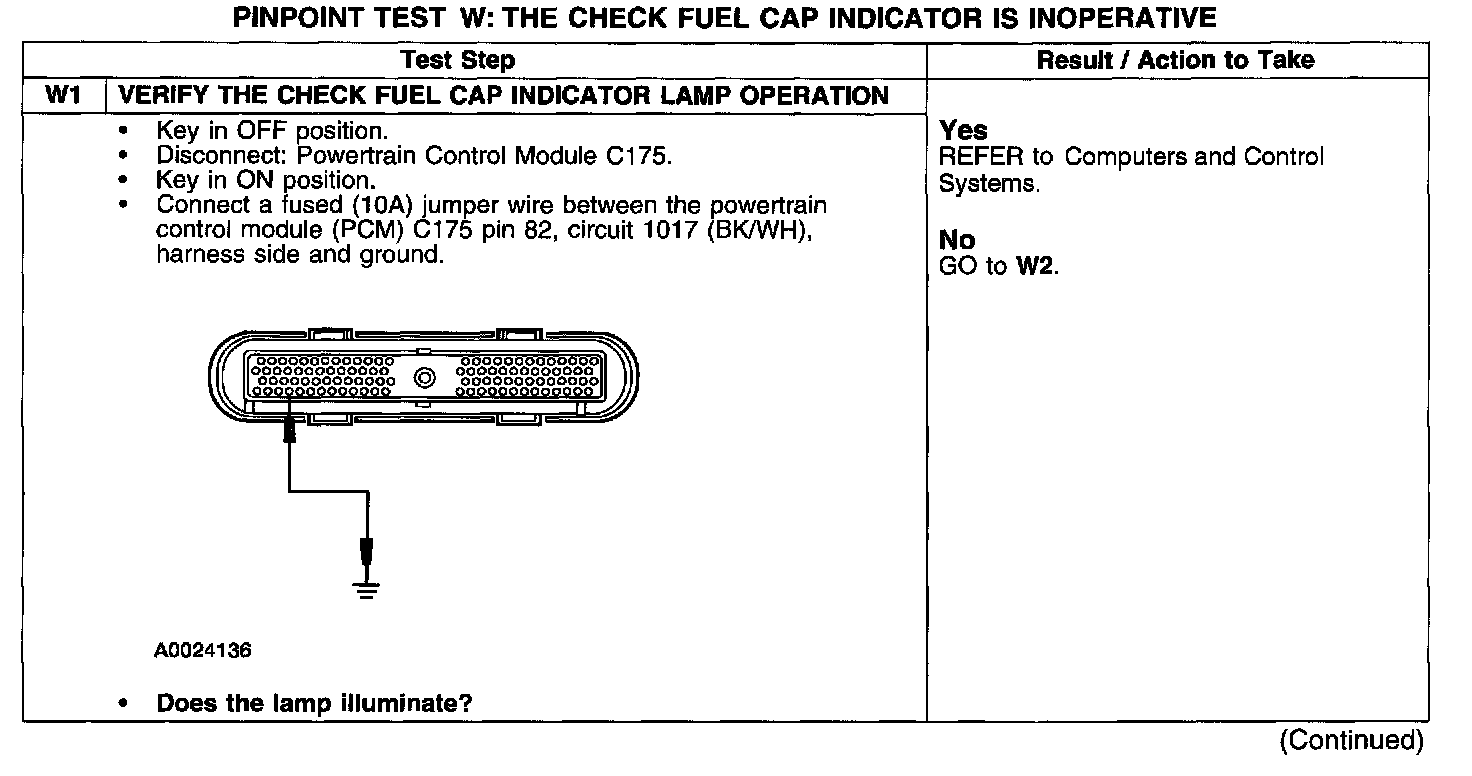

Test W1:

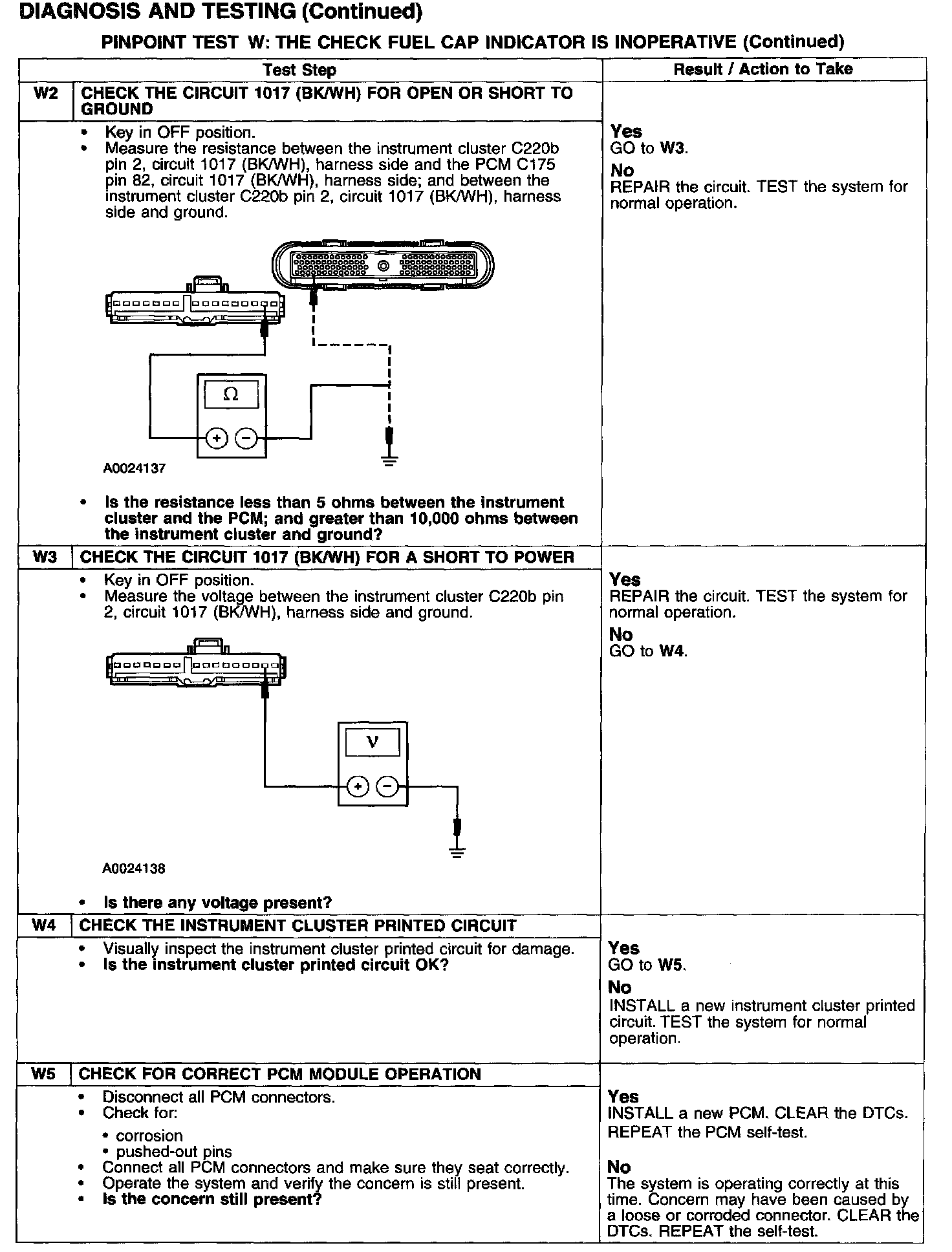

Test W2-W5:
