Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test R

Test R

PINPOINT TEST R: THE TRACTION CONTROL INDICATOR IS INOPERATIVE - IF EQUIPPED

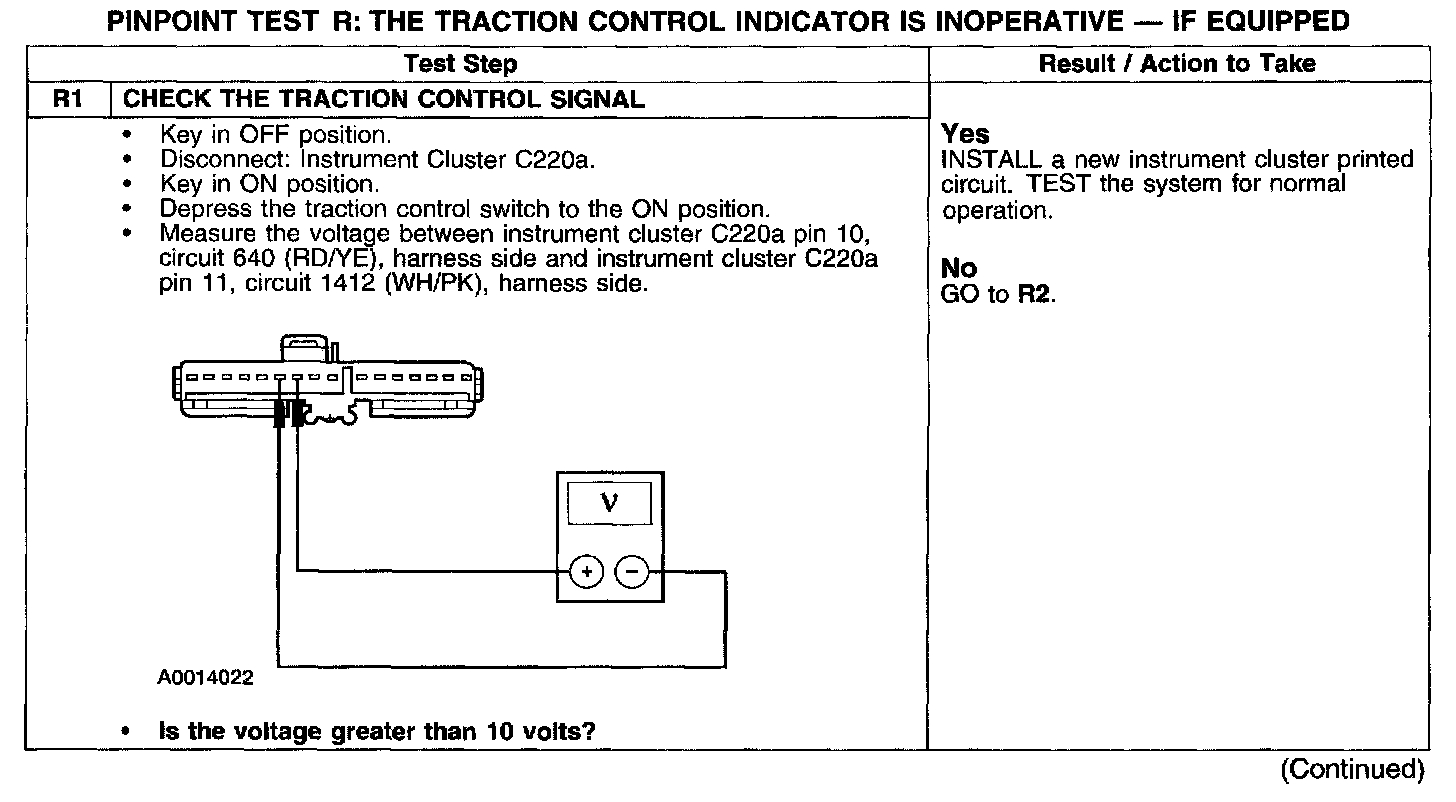

Test R1:

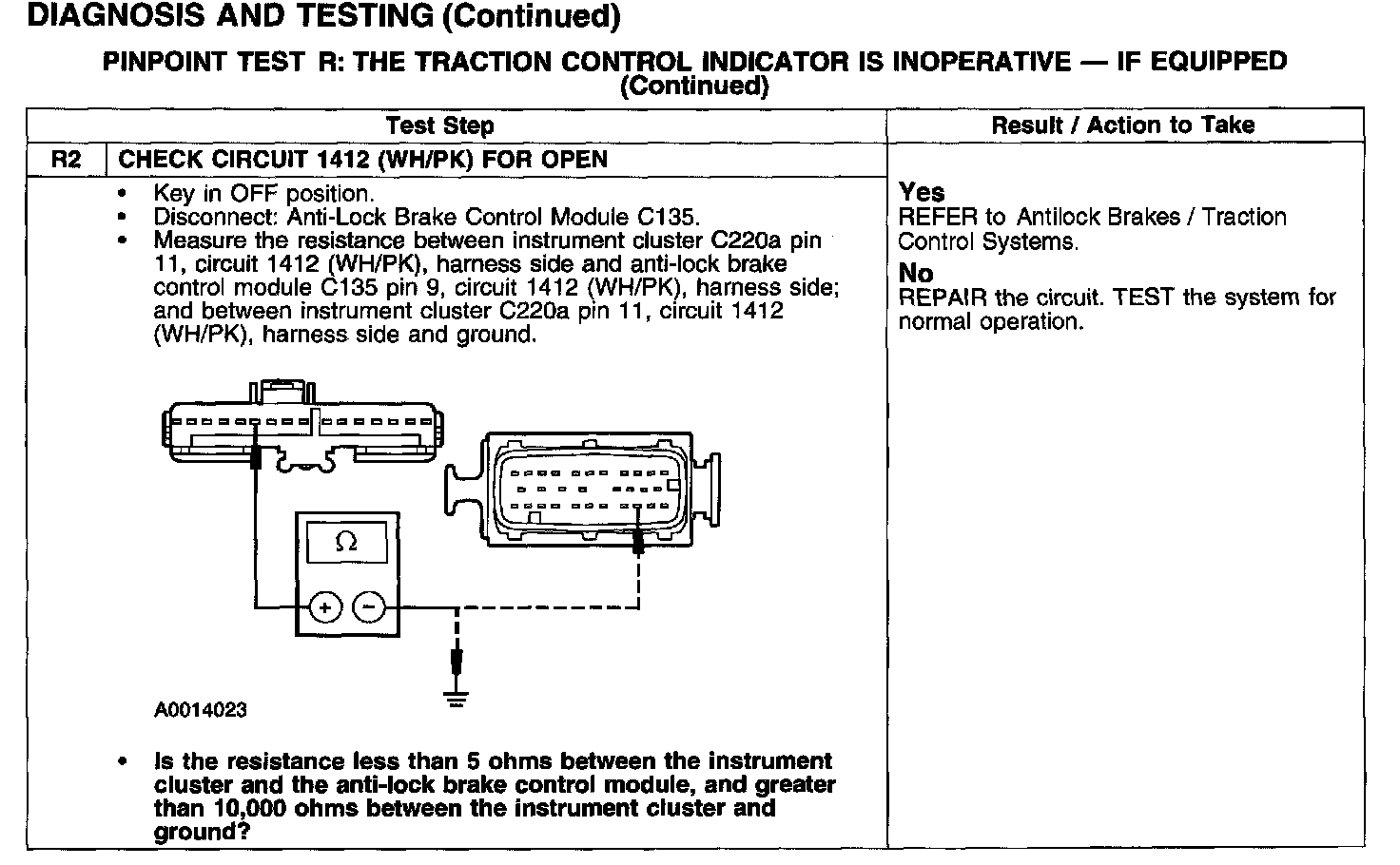

Test R2:
