Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test K

Test K

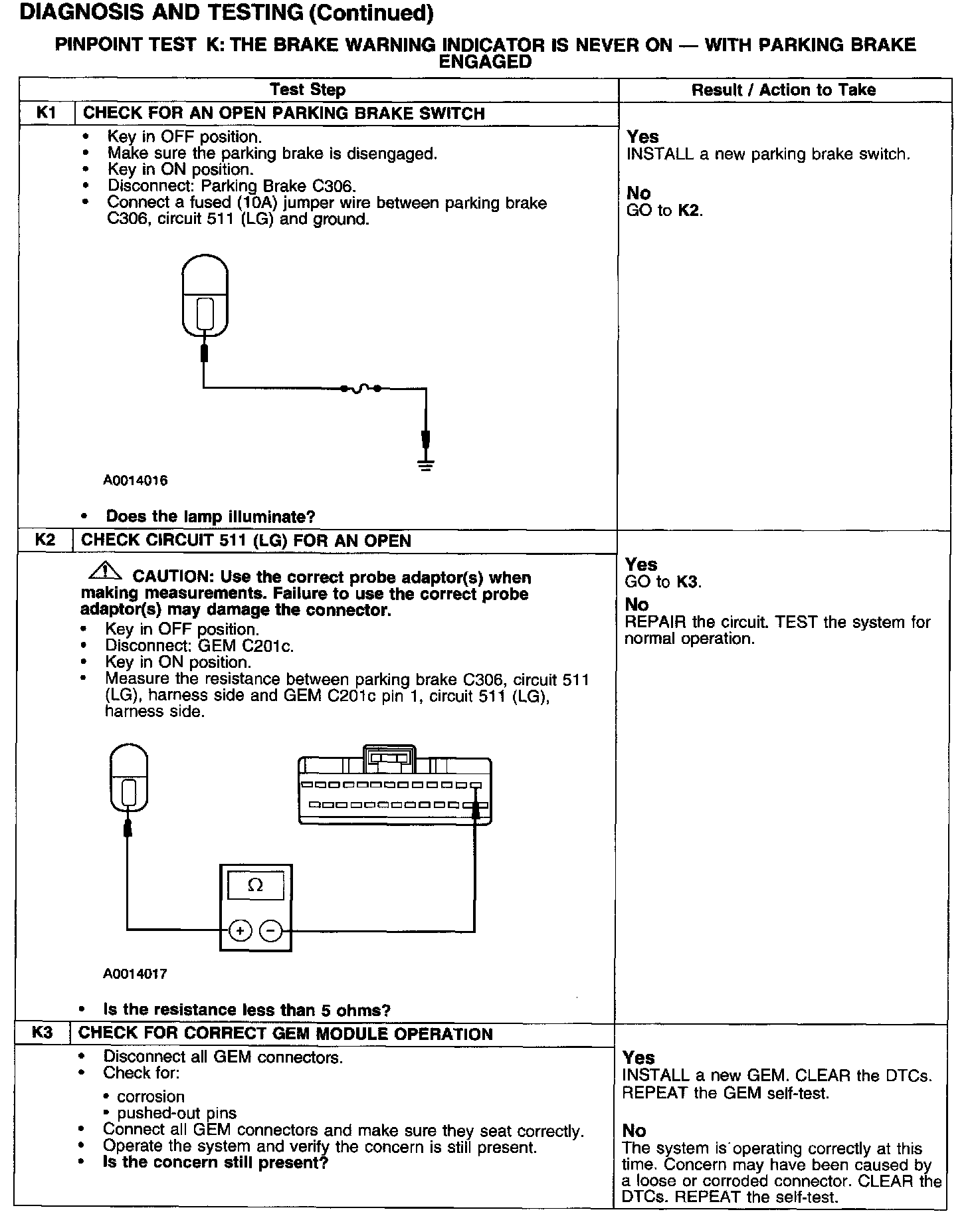

PINPOINT TEST K: THE BRAKE WARNING INDICATOR IS NEVER ON - WITH PARKING BRAKE ENGAGED


Test K1-K3:
