Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test T: No Operation In Lower Speeds - Manual Climate Control

Test T: No Operation In Lower Speeds - Manual Climate Control

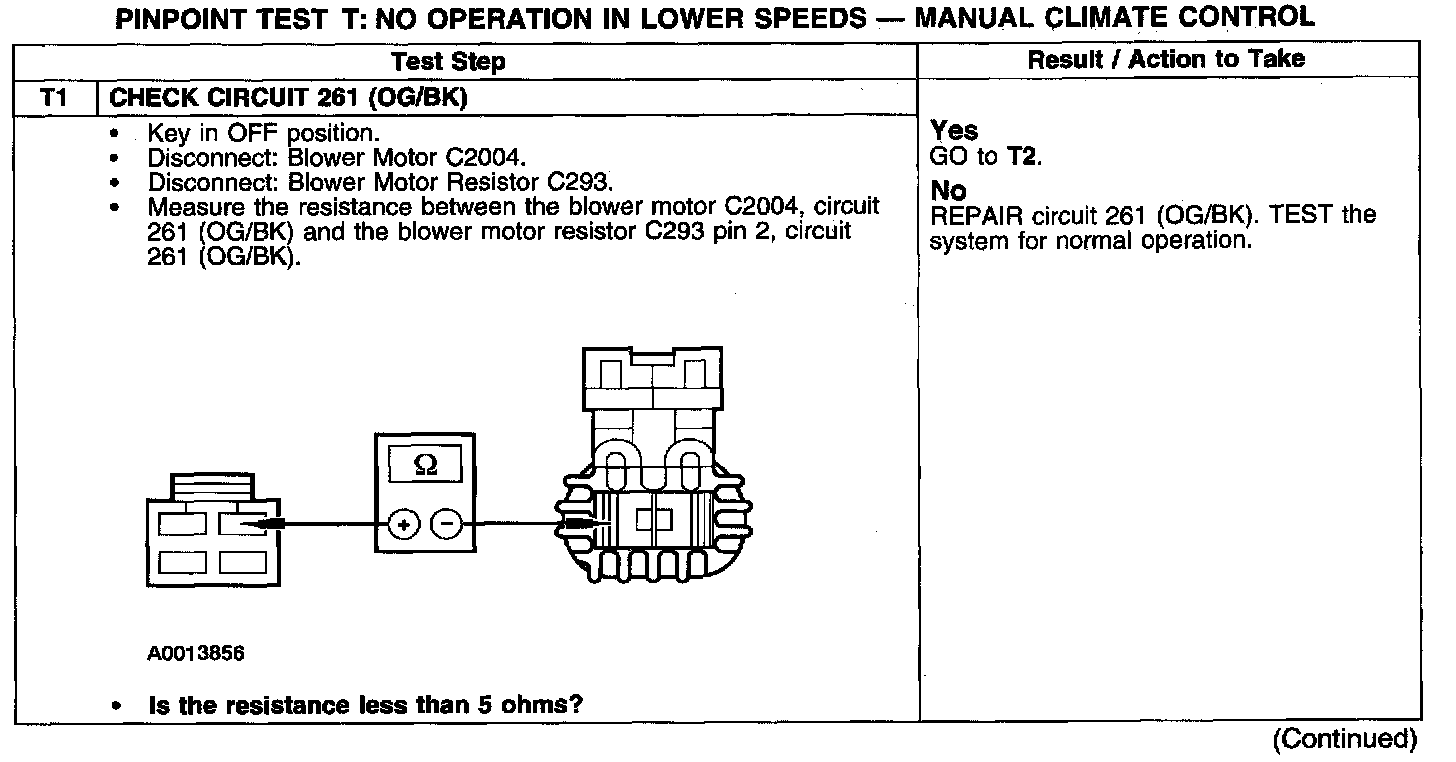

T1:

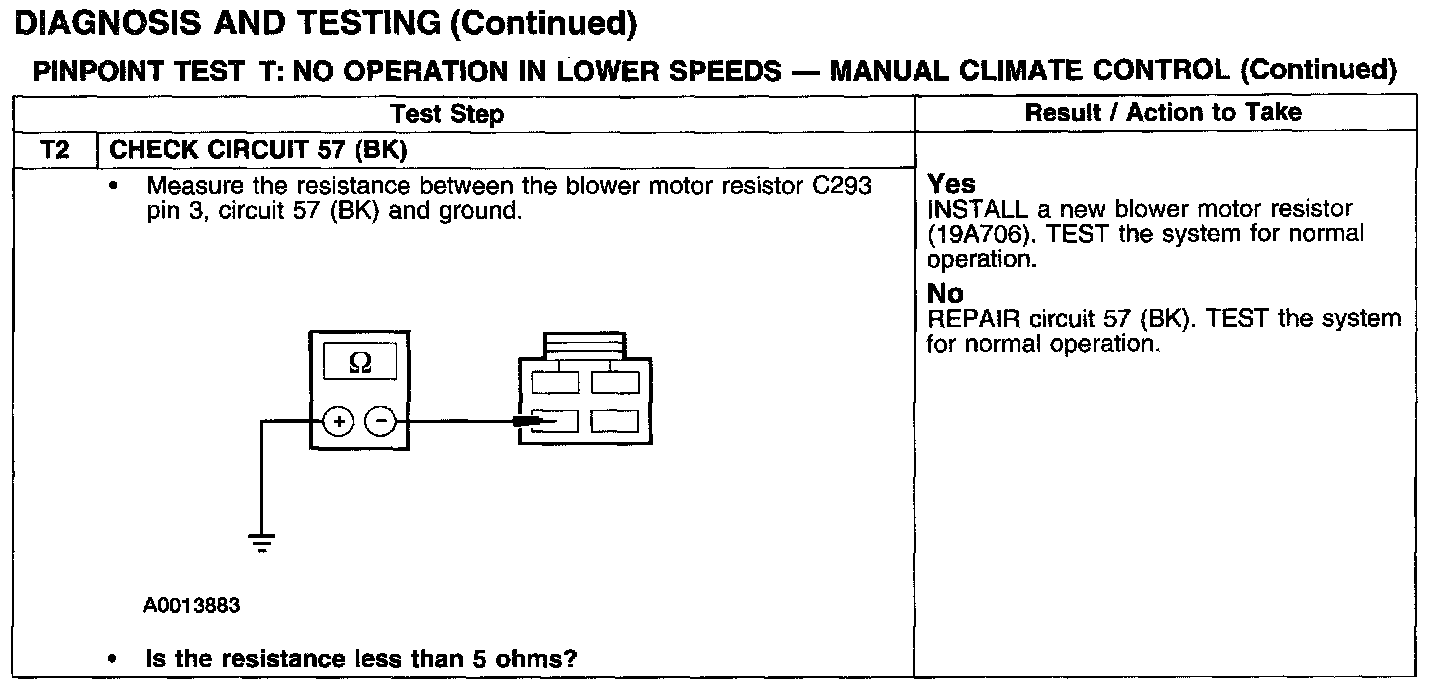

T2:
