Front Crankshaft Seal: Service and Repair

Crankshaft Front Seal

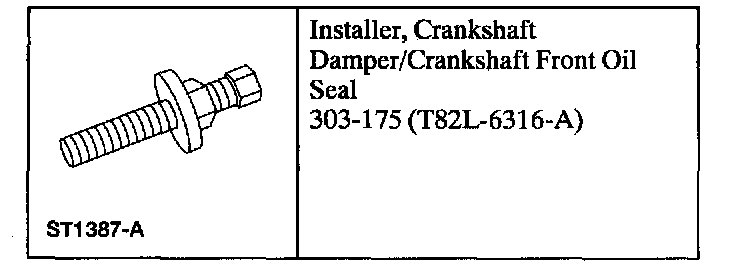

Special Tool(s)

Removal
1. Remove the crankshaft pulley.





2. Remove the crankshaft oil seal.

Installation





1. NOTE: Lubricate the seal lip with clean engine oil.

Using crankshaft vibration damper replacer, install the crankshaft oil seal.
2. Install the crankshaft pulley.
