Idler Pulley: Service and Repair

Accessory Drive Belt Idler Pulley - 3.0L (2V)

Removal and Installation
1. Remove the drive belt.

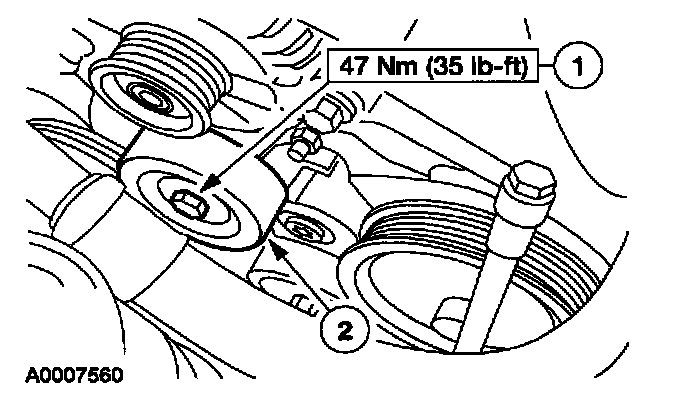

2. Remove belt idler pulley.
1 Remove the bolt.
2 Remove the idler pulley.
3. To install, reverse the removal procedure.
