Engine Mount: Service and Repair

Engine Support Insulator

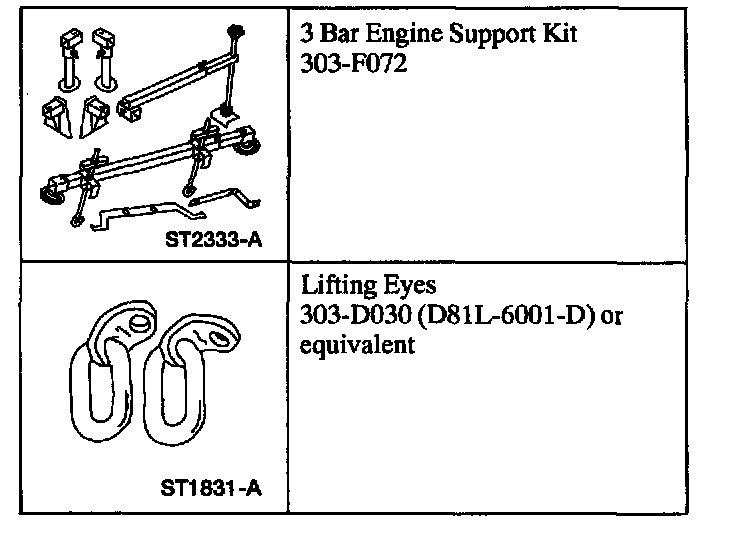

Special Tool(s)

Removal and Installation
1. Remove the air cleaner and the air cleaner outlet tube.
2. Remove the cowl vent screen and cowl extension.





3. Remove the engine anti-roll strut.
- Remove the two bolts.





4. Install the engine lift bracket.
5. Remove the catalytic converters.

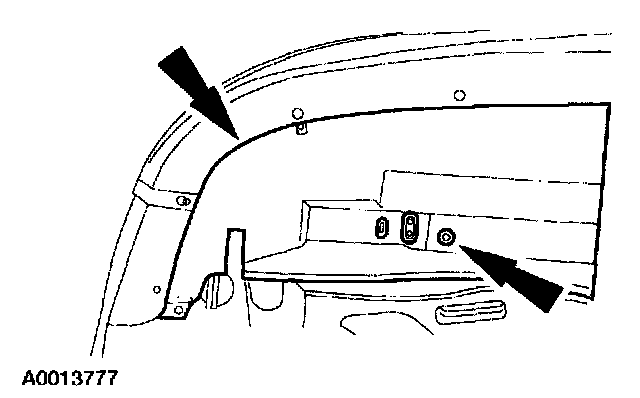

6. Remove the valance panel.
- Remove three screws.
- Remove nine pin-type retainers.





7. Remove the RH catalytic converter heat shield.
- Remove the bolt.
- Remove the two nuts.





8. Remove the RH engine support insulator-to-subframe nut.





9. Remove the LH engine support insulator-to-subframe nut.
10. Remove the LH front wheel assembly.

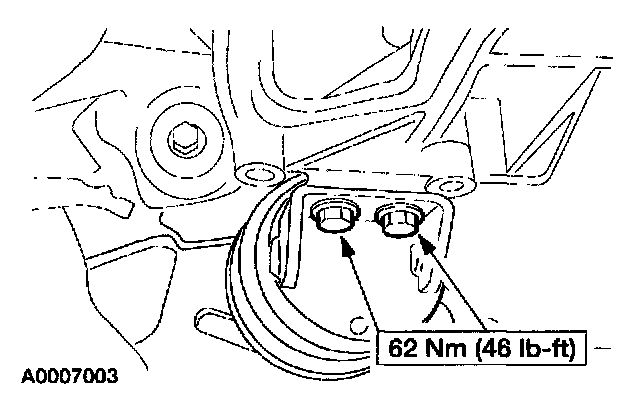

11. Remove the nut and two bolts retaining the rear engine support insulator.
12. Partially lower the vehicle.

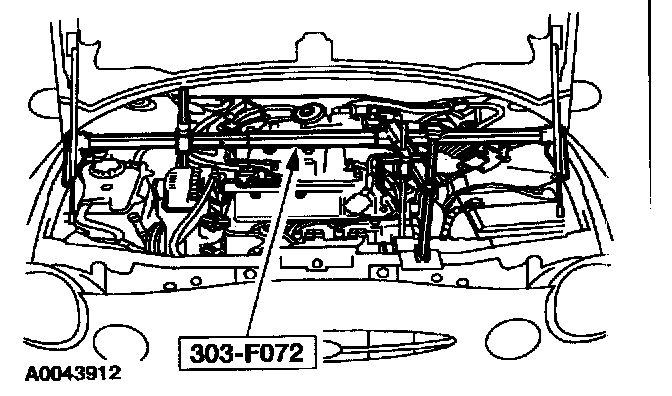

13. Using the special tool, lift the engine 5.08 cm (2.0 in.)





14. Remove the rear engine support insulator.

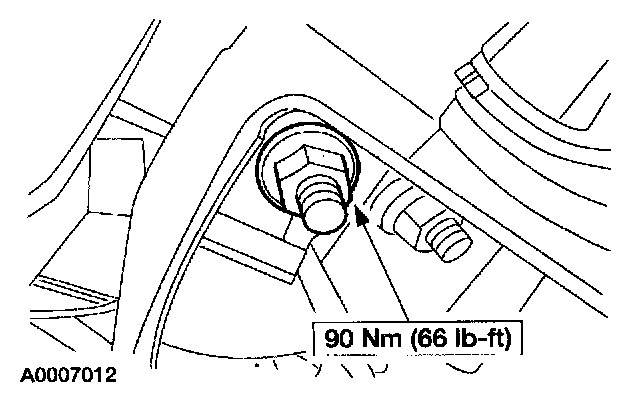

15. Remove the RH engine support insulator.
- Remove the through bolt.

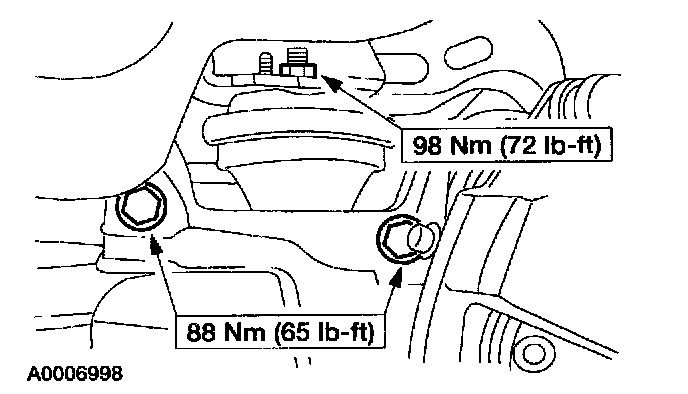

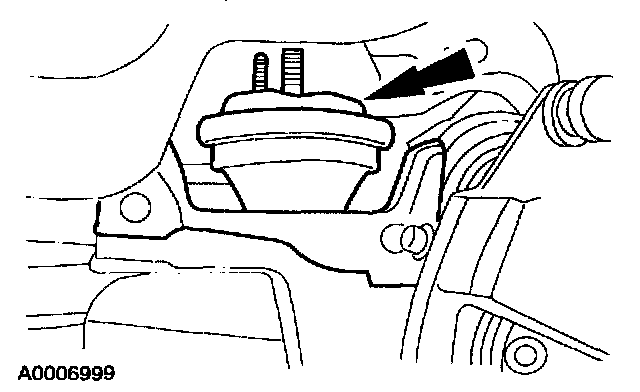

16. Remove the LH engine support insulator.
- Remove the bolts.

17. To install, reverse the removal procedure.
