Drive Belt Tensioner: Service and Repair

Accessory Drive Belt Tensioner - 3.0L (2V)

Removal and Installation
1. Remove the accessory drive belt.

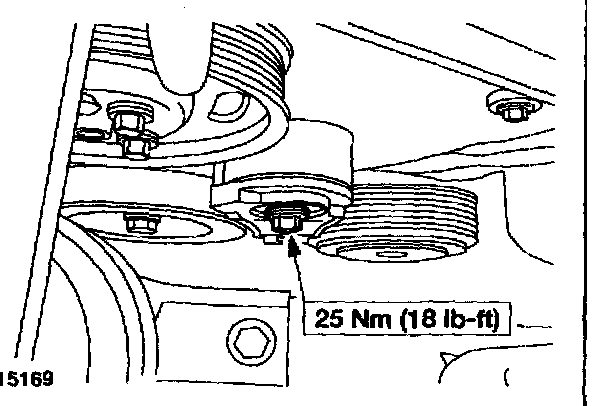

2. Remove the bolt and the accessory drive belt tensioner.
3. To install, reverse the removal procedure.
