FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Splices

Splices

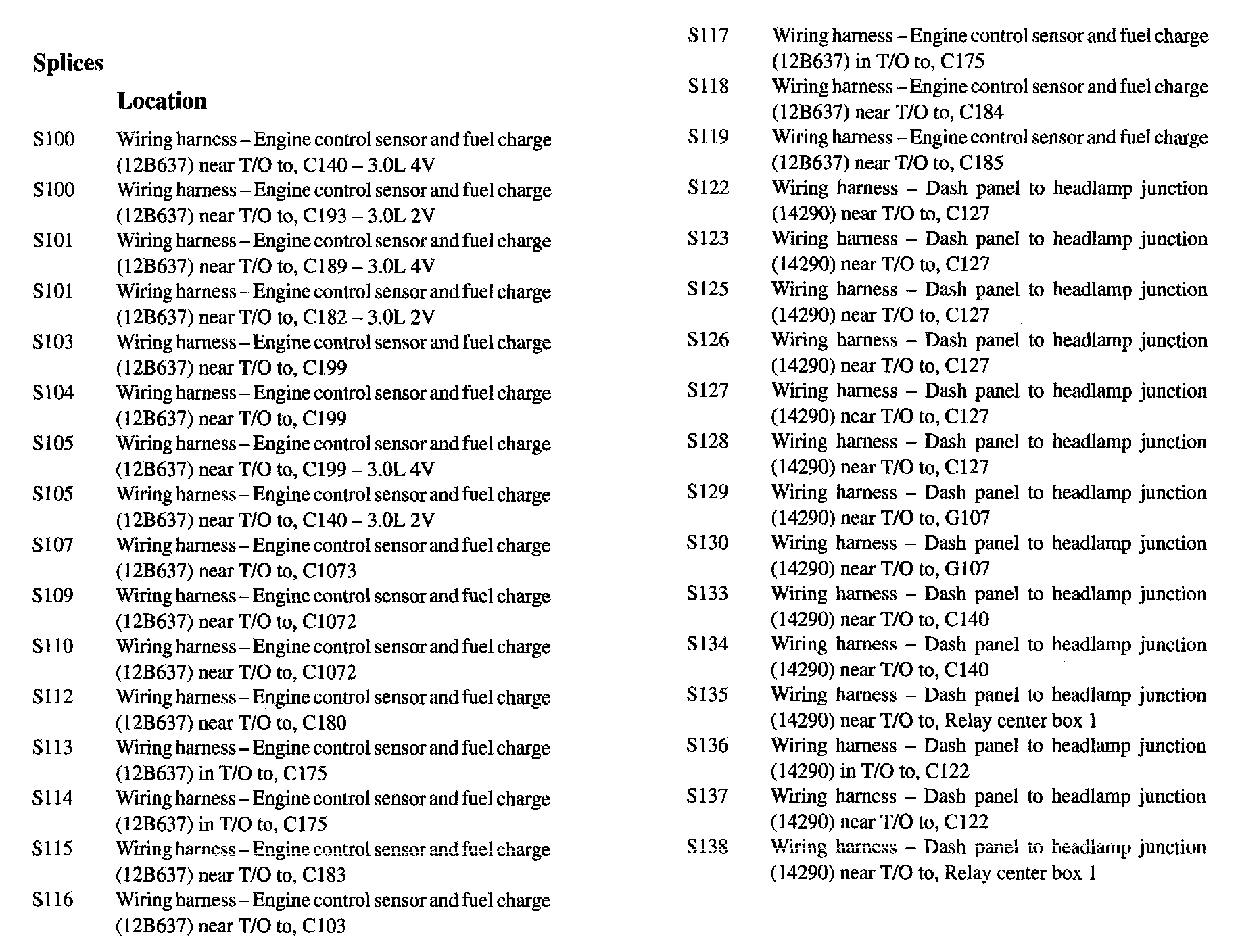

S100 - S138:

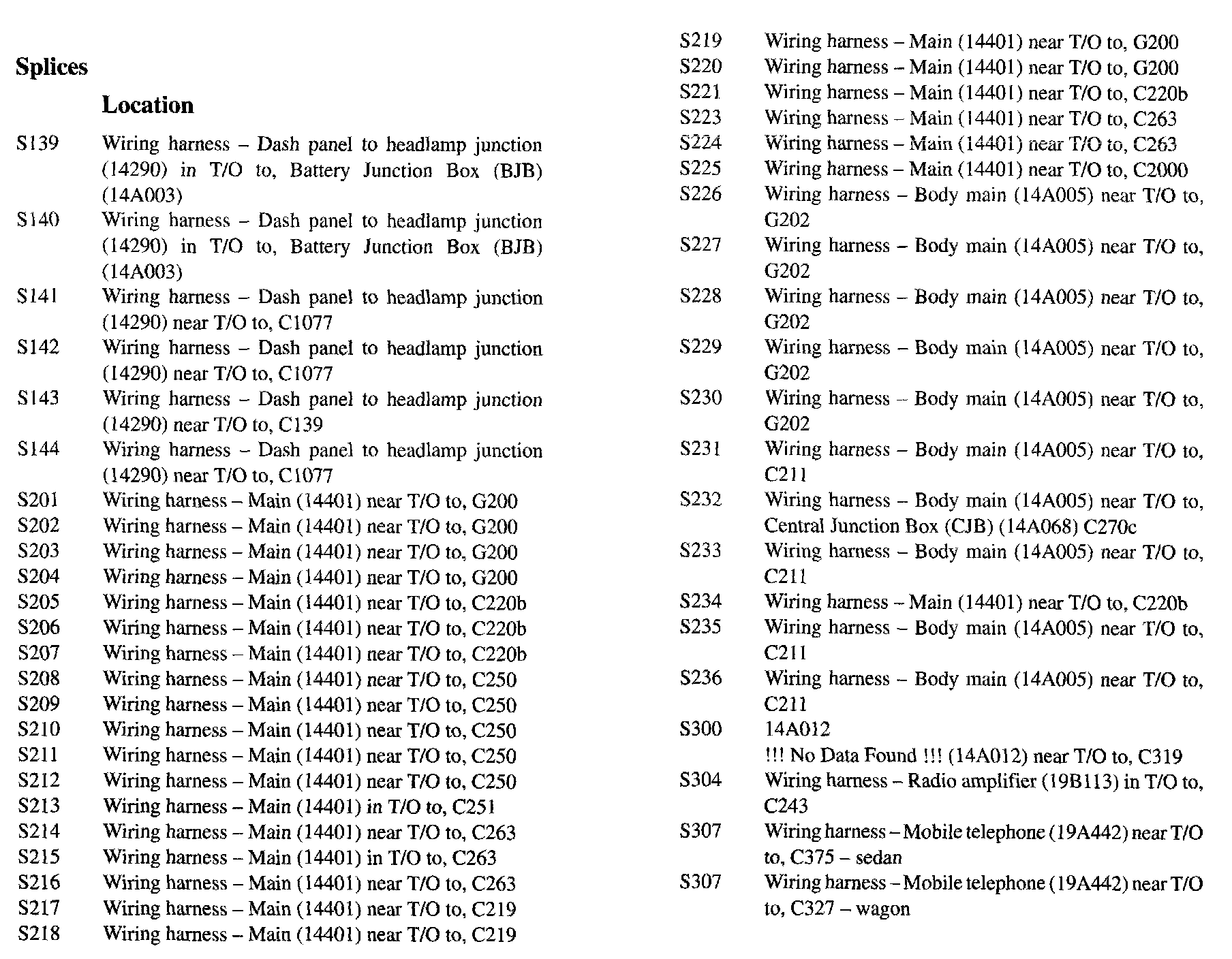

S139 - S307:

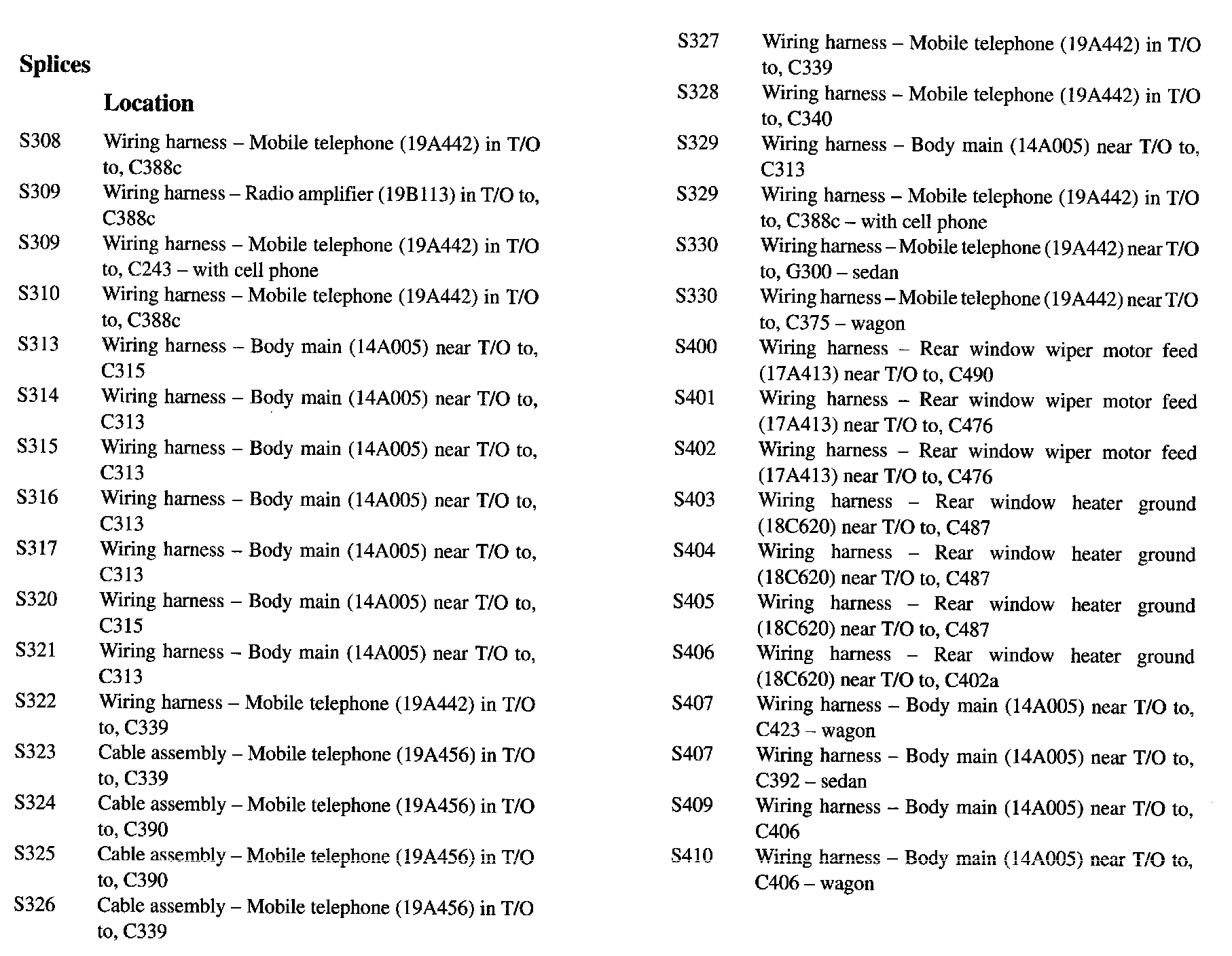

S308 - S410:

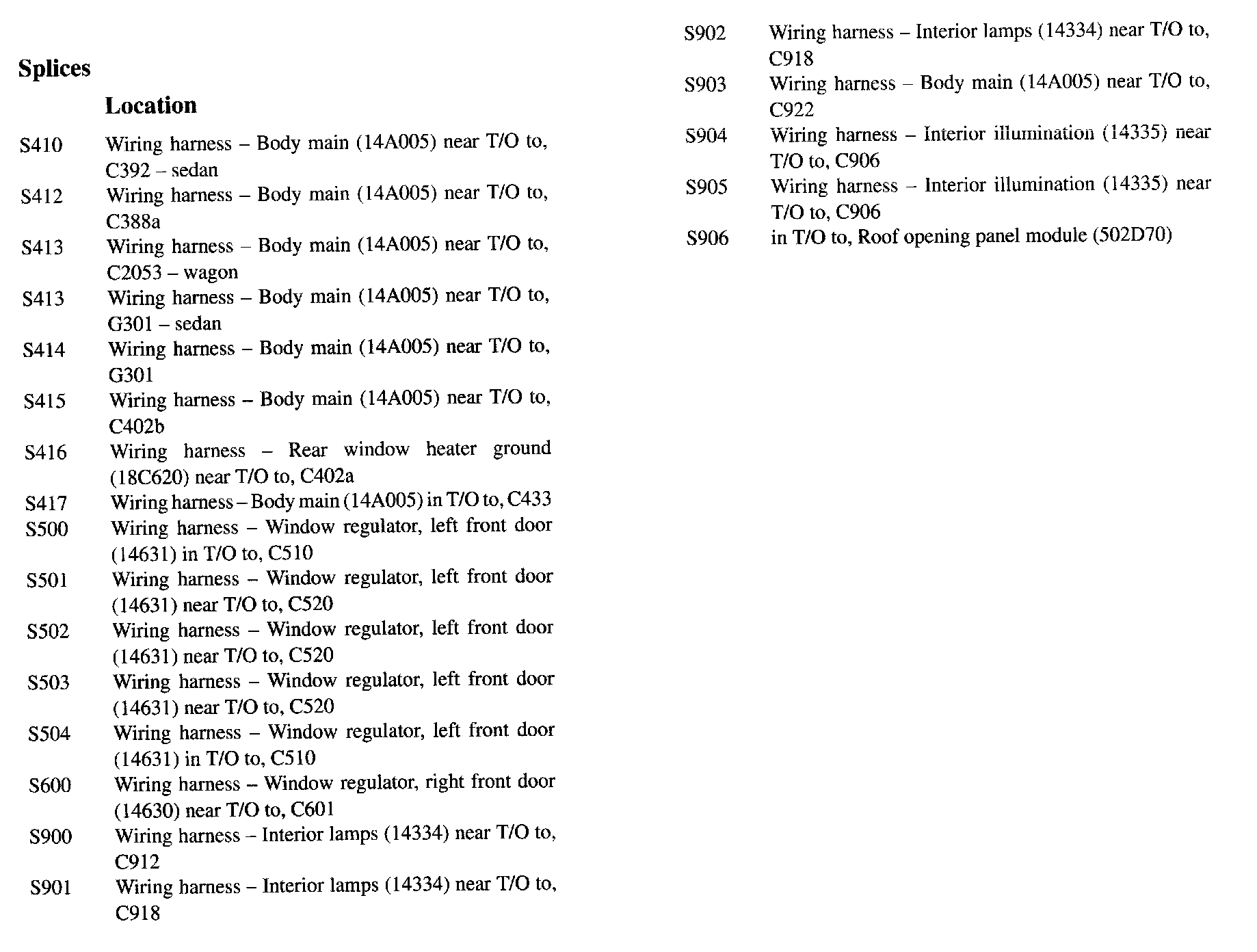

S410 - S906:
