Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension >> Rear

Rear

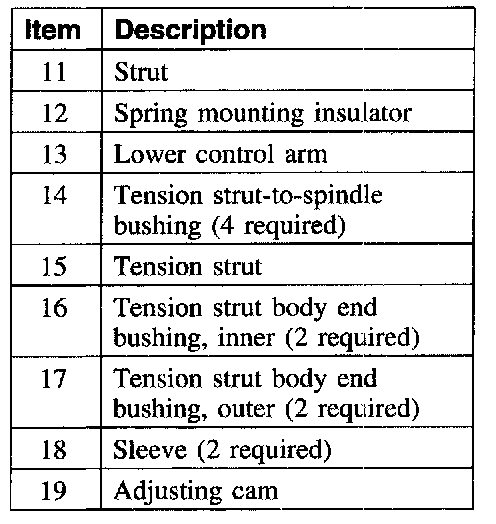

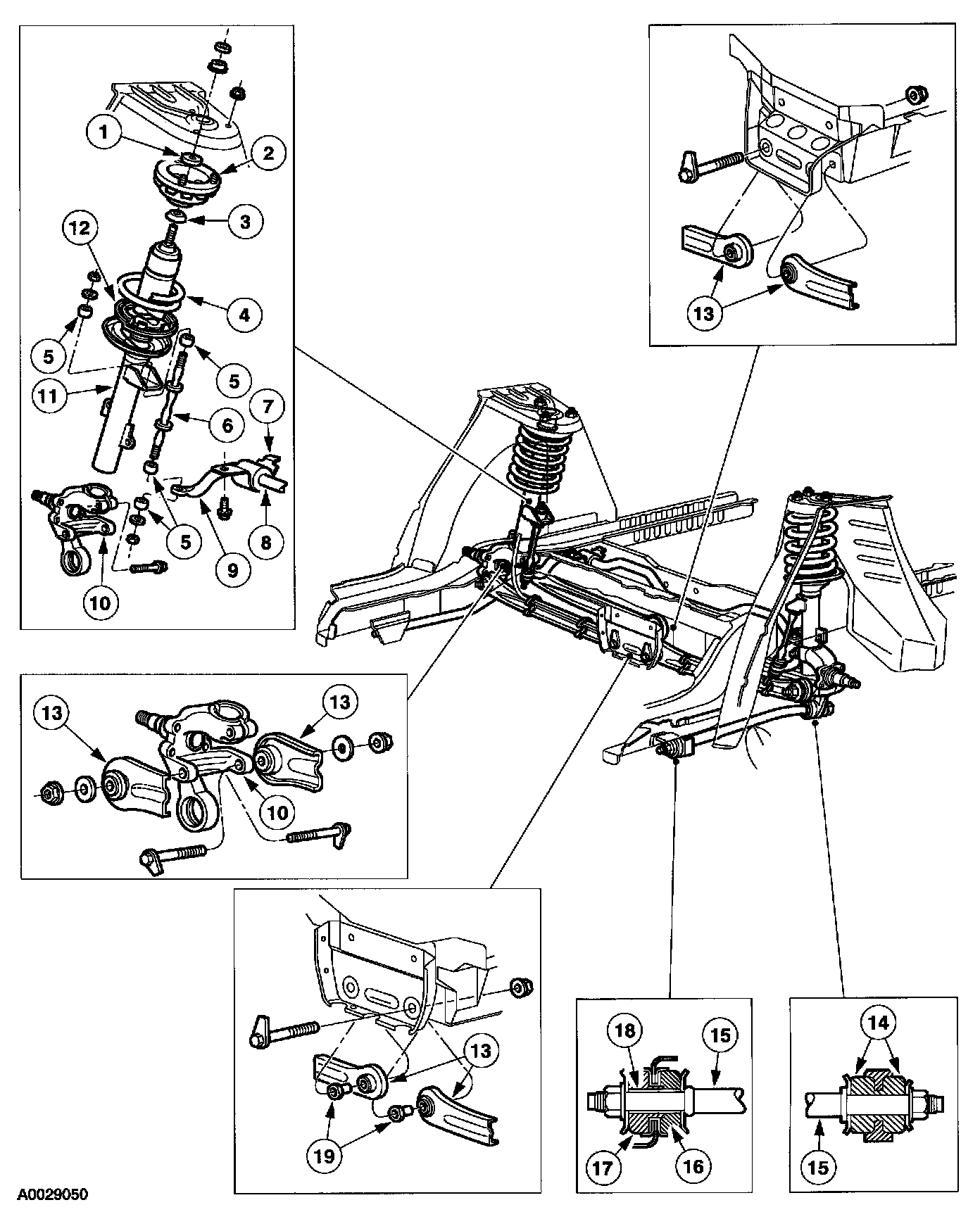

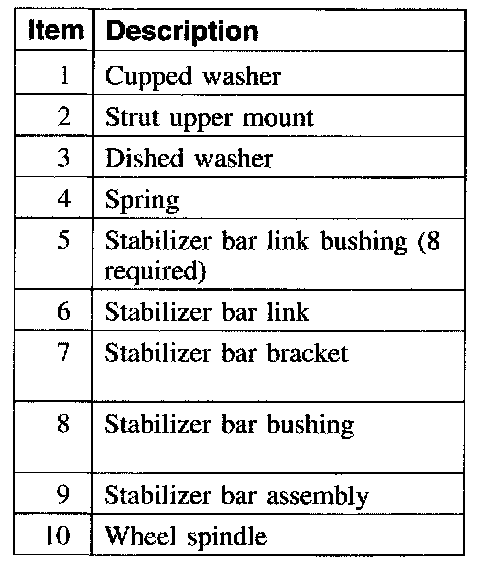

Four Door Rear Suspension Components

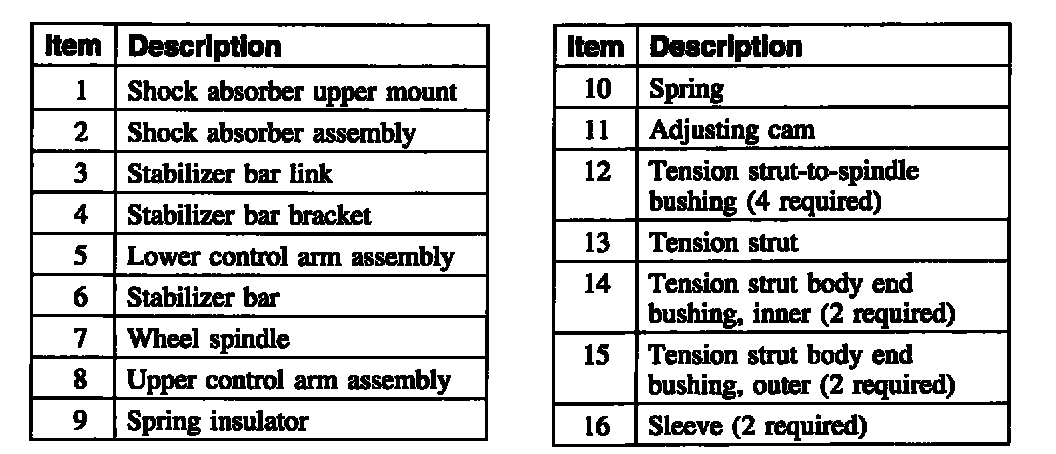

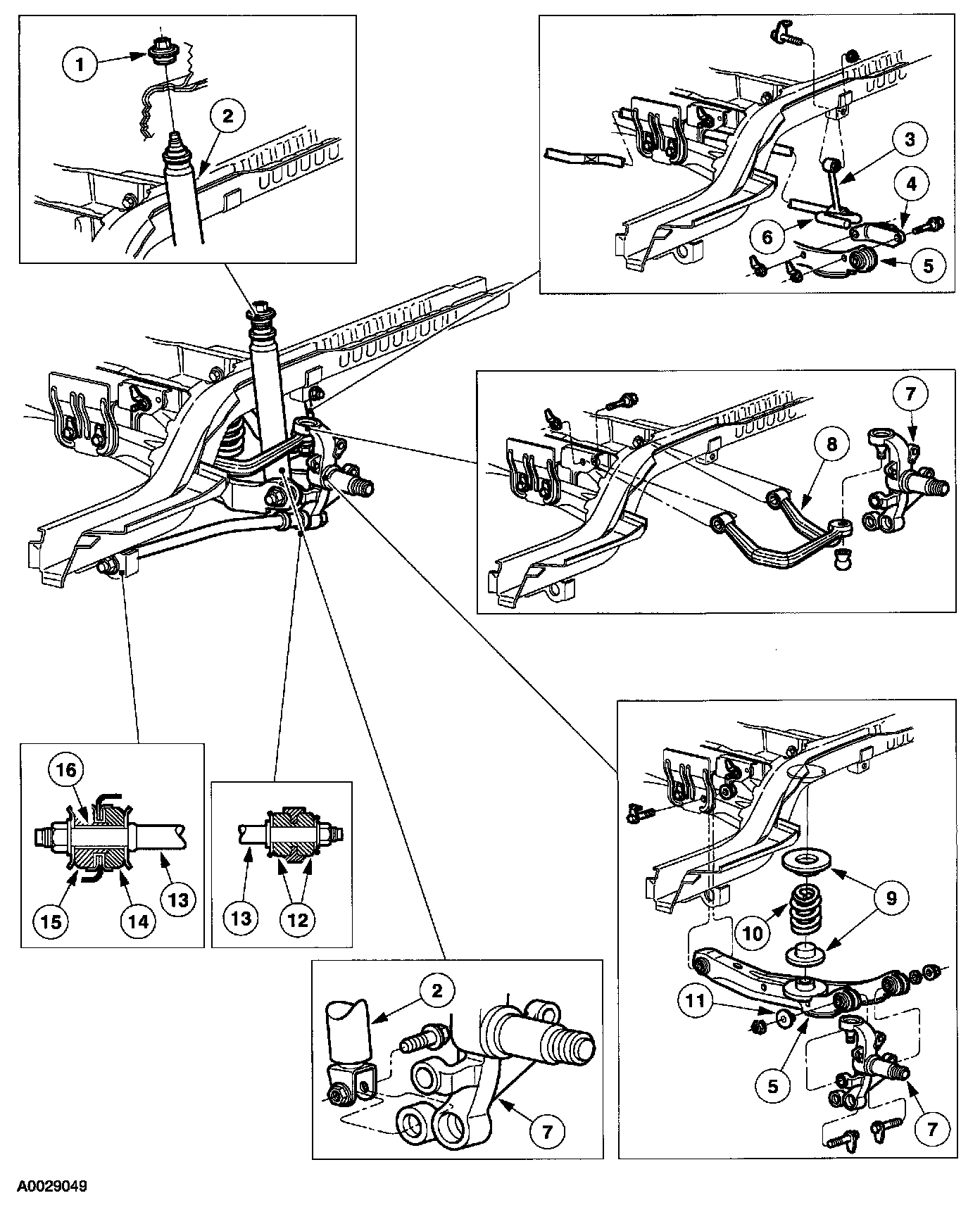

Station Wagon Rear Suspension Components

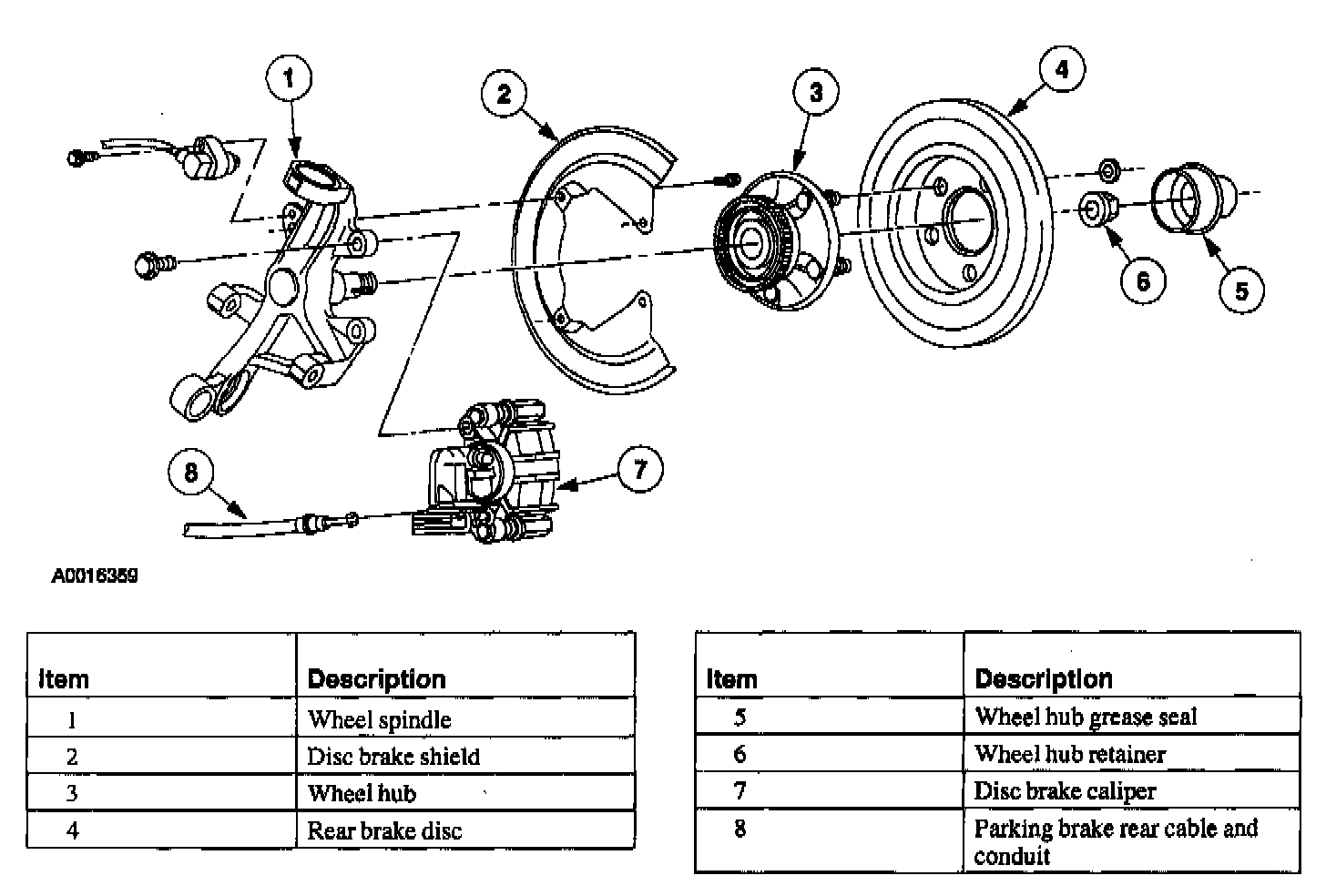

Wheel Assembly





Wheel Assembly-Four Door





Wheel Assembly-Station Wagon
