Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Major Upper Engine Components

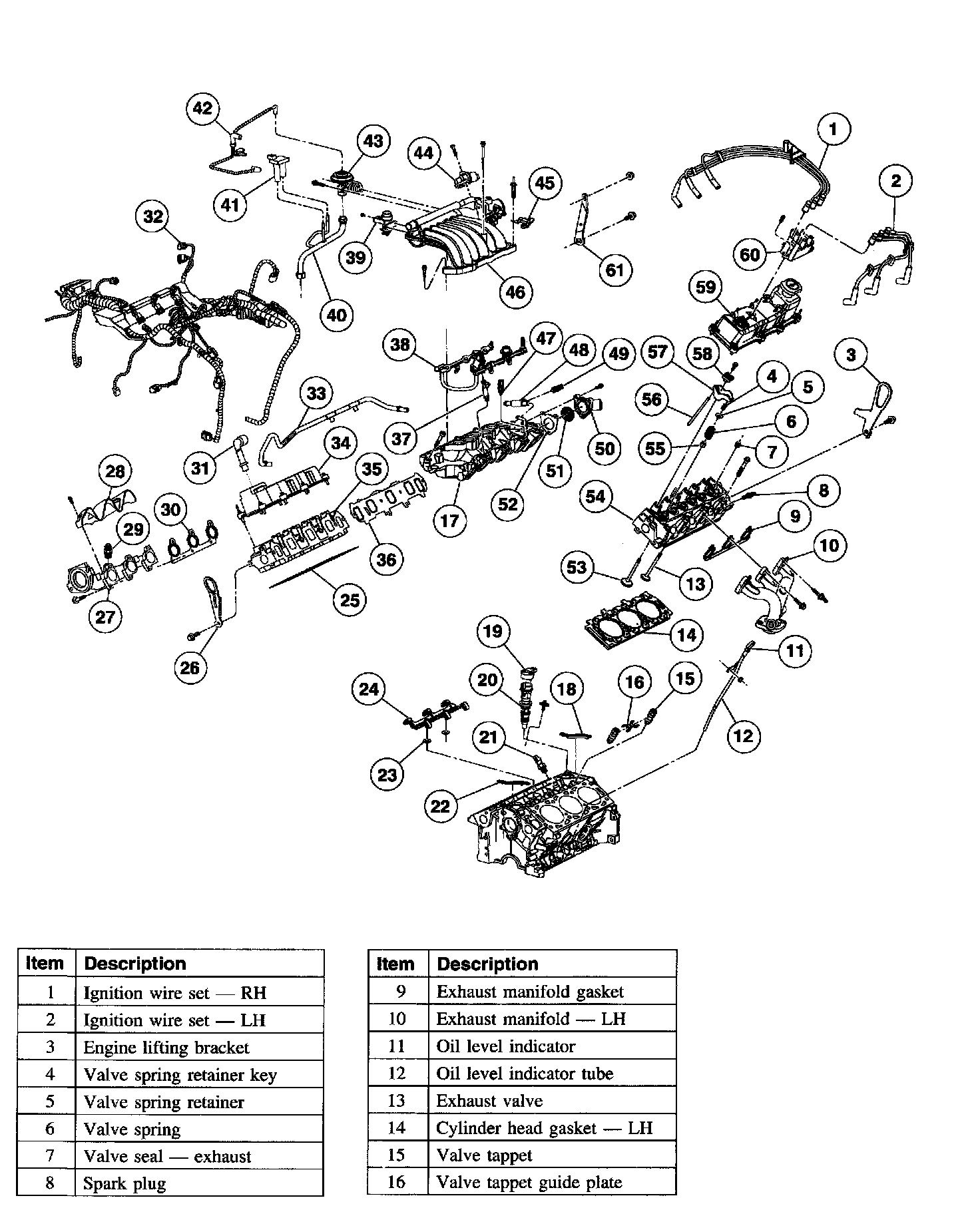

Major Upper Engine Components

Major Upper Engine Components

Part 1 Of 2:




Part 2 Of 2:
