Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> AX4S >> Disassembled Views

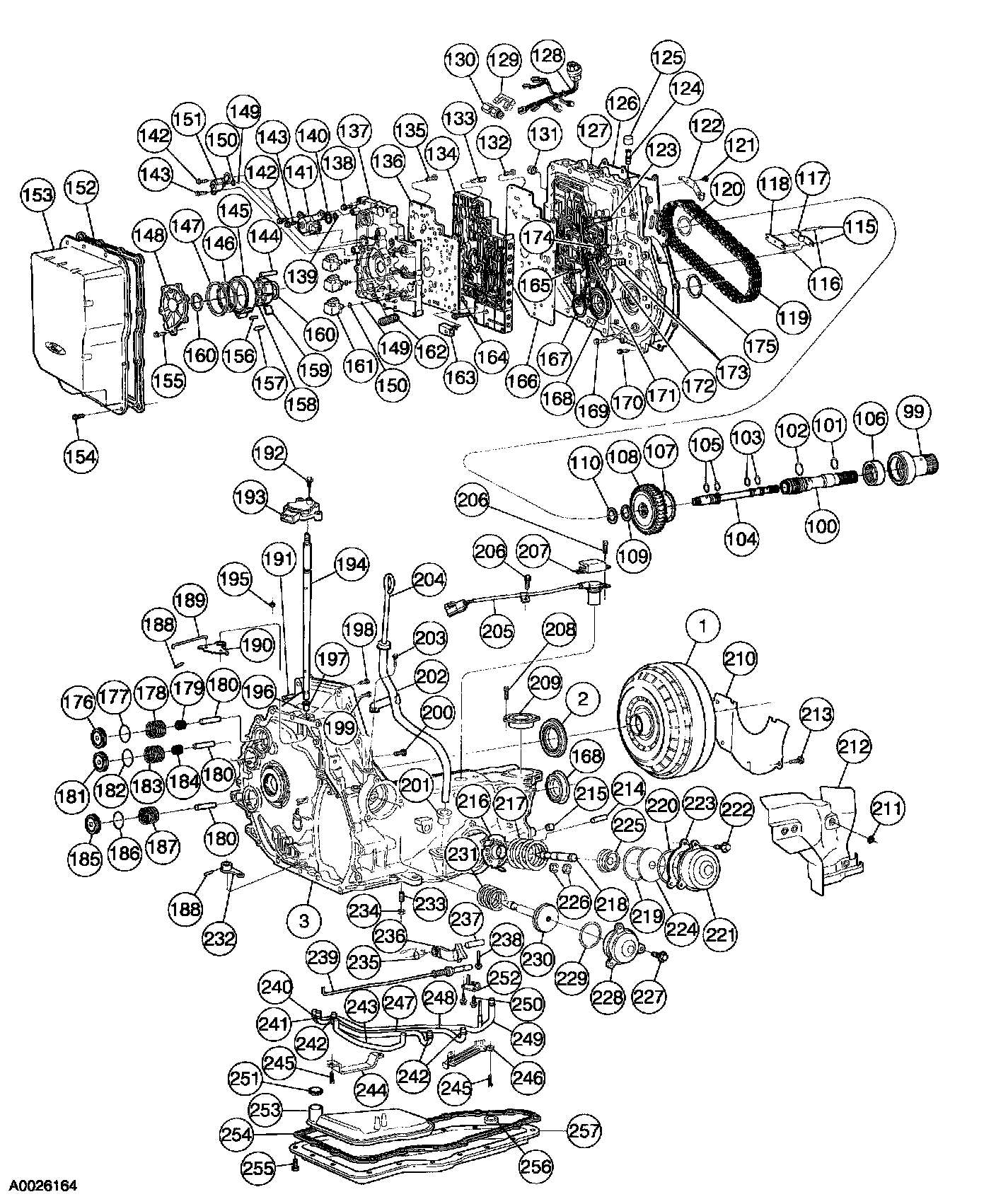

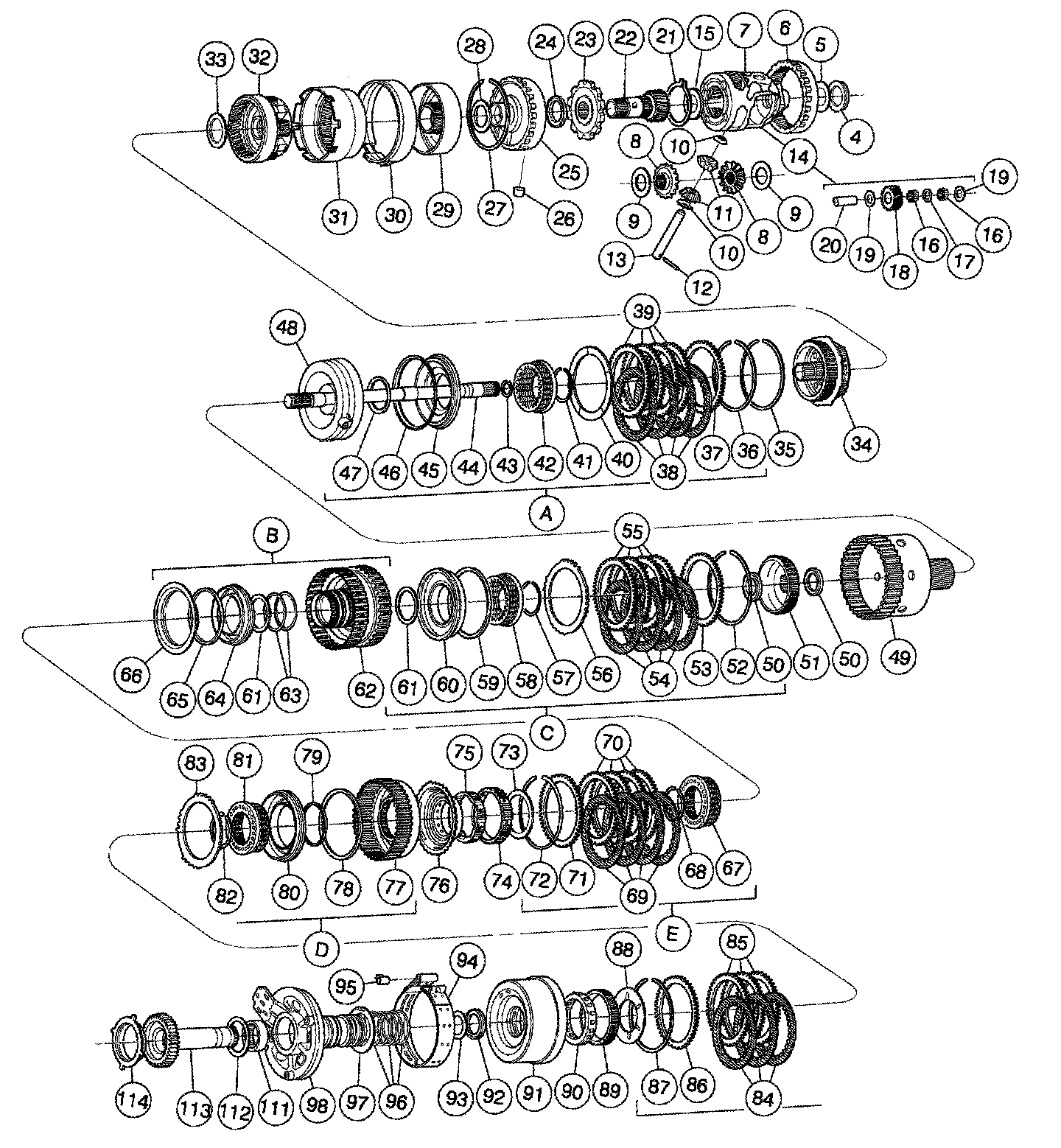

Disassembled Views

Disassembled Views

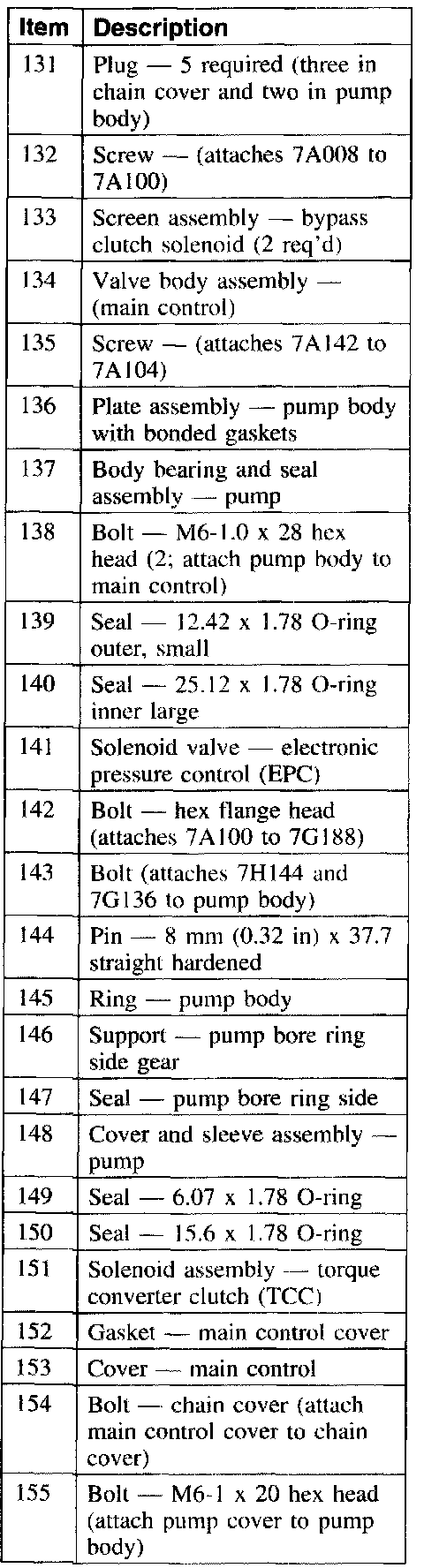

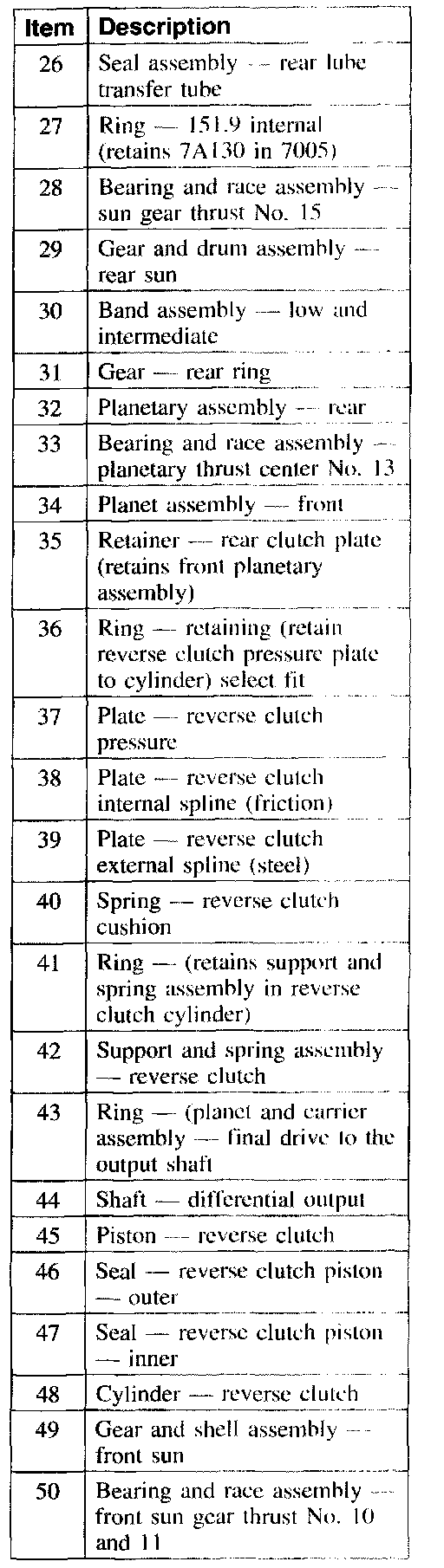

Part 1 Of 12:

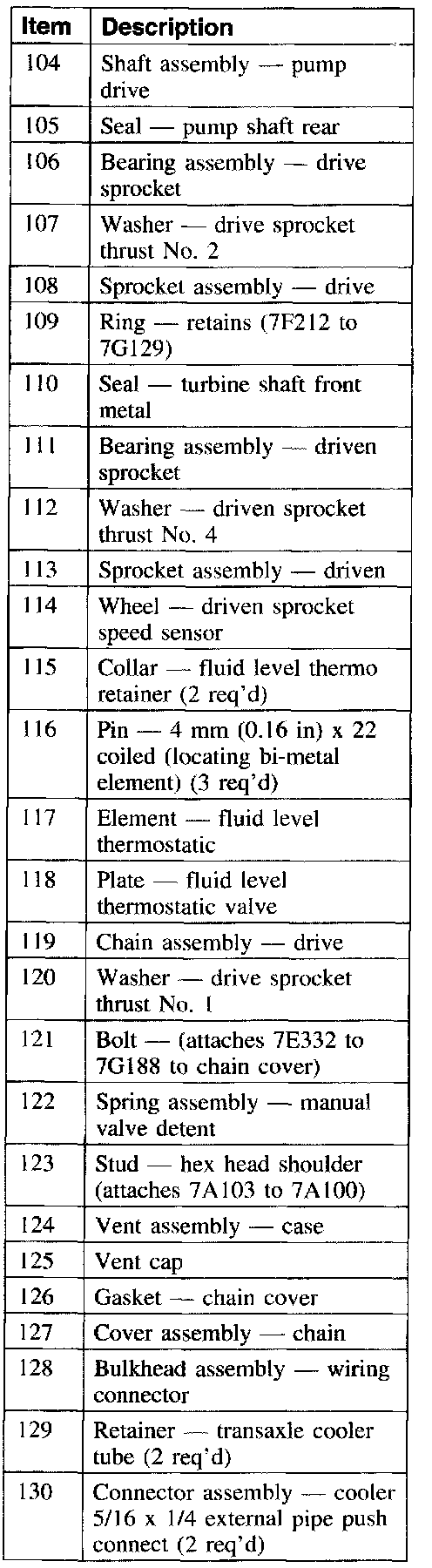

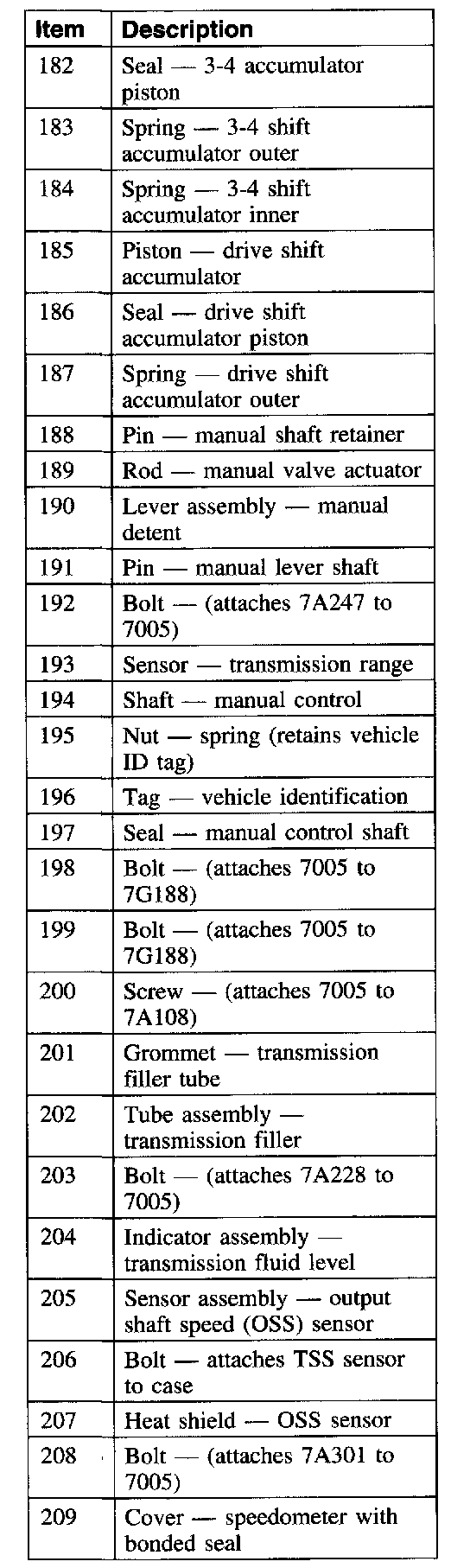

Part 2 Of 12:

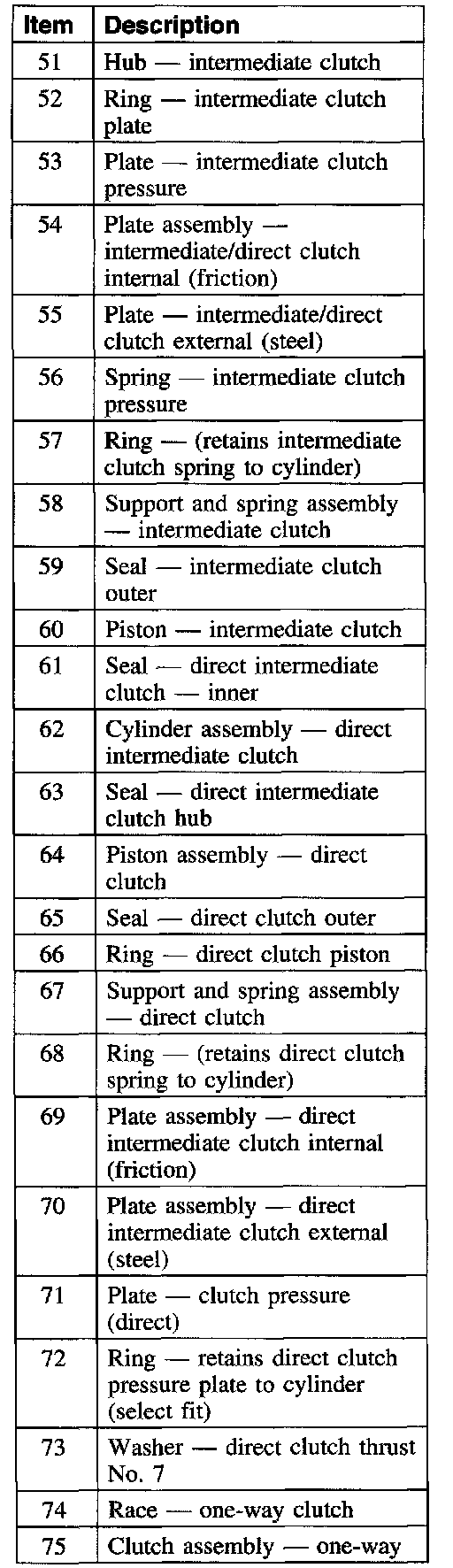

Part 3 Of 12:

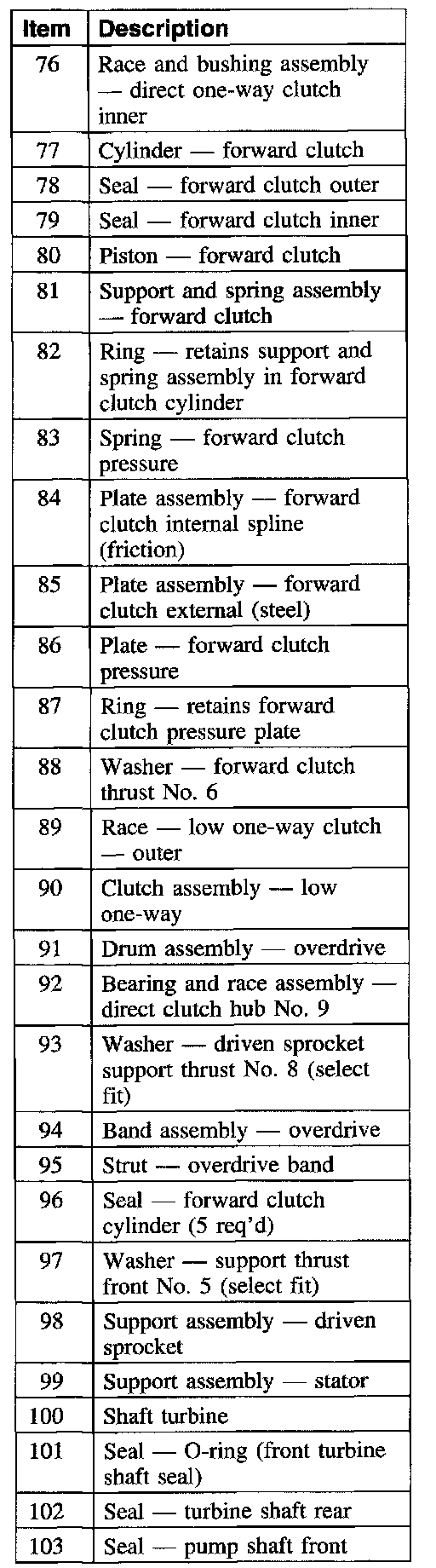

Part 4 Of 12:

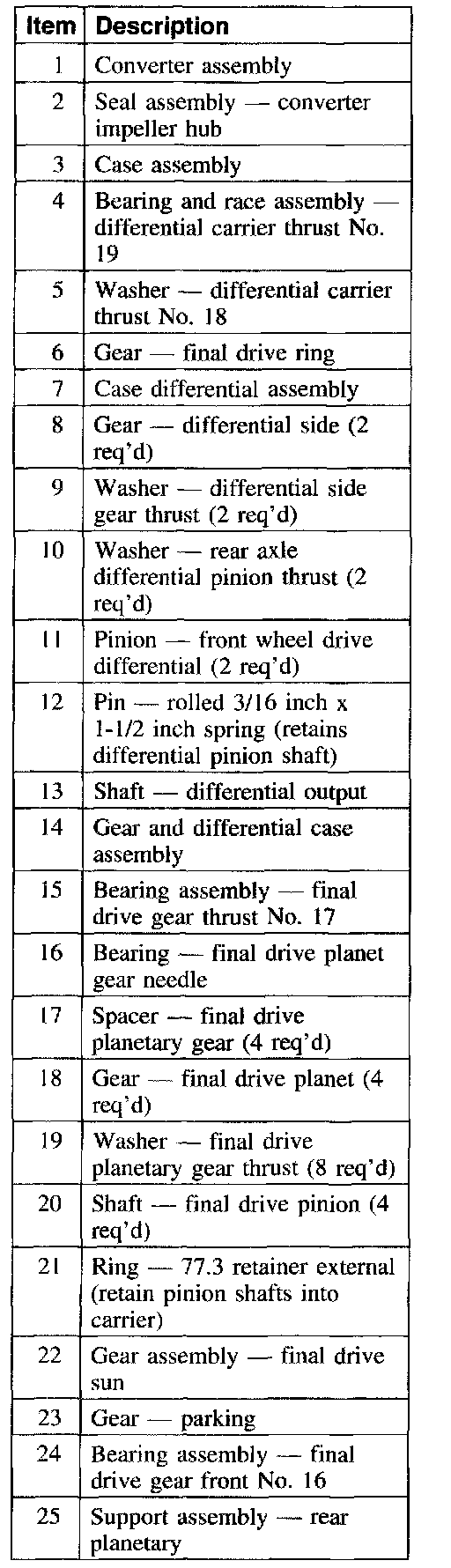

Part 5 Of 12:

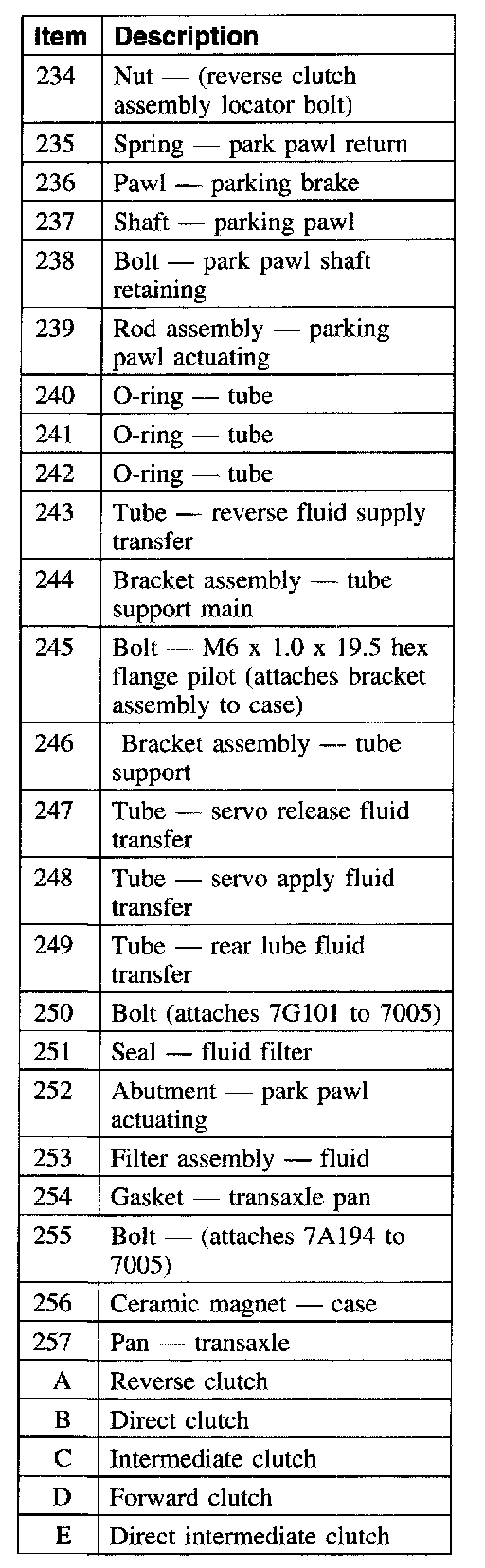

Part 6 Of 12:

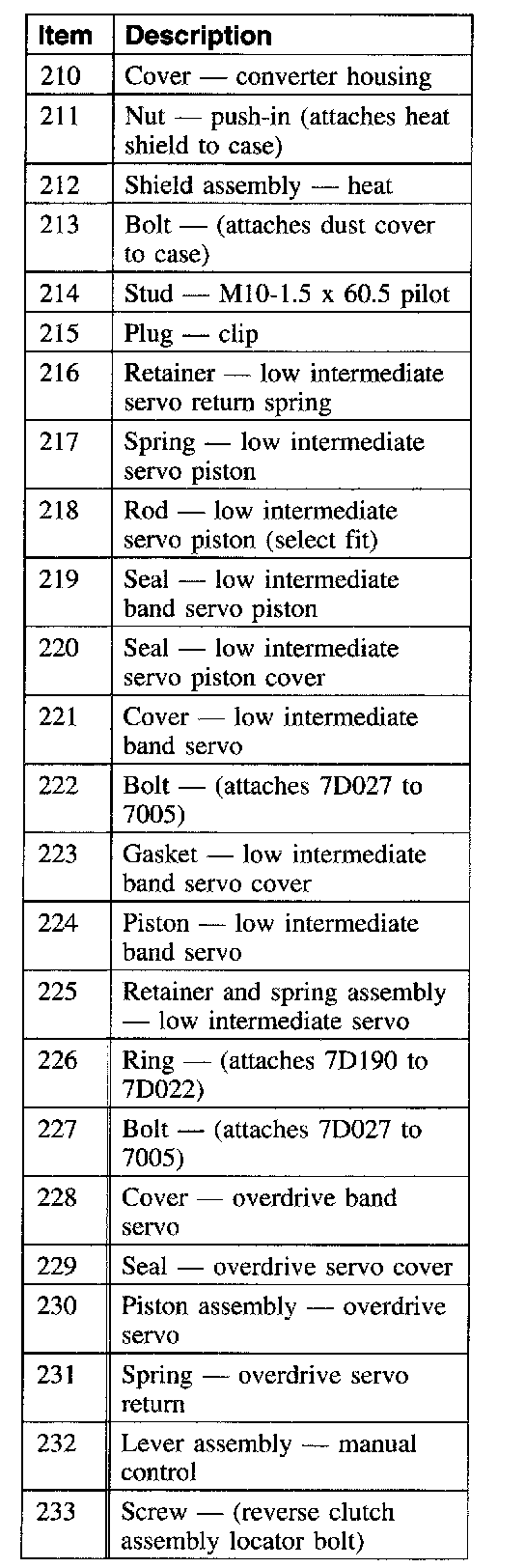

Part 7 Of 12:




Part 8 Of 12:




Part 9 Of 12:




Part 10 Of 12:




Part 11 Of 12:




Part 12 Of 12:
