Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set 60
>>
60-1 to 60-3
60-1 to 60-3

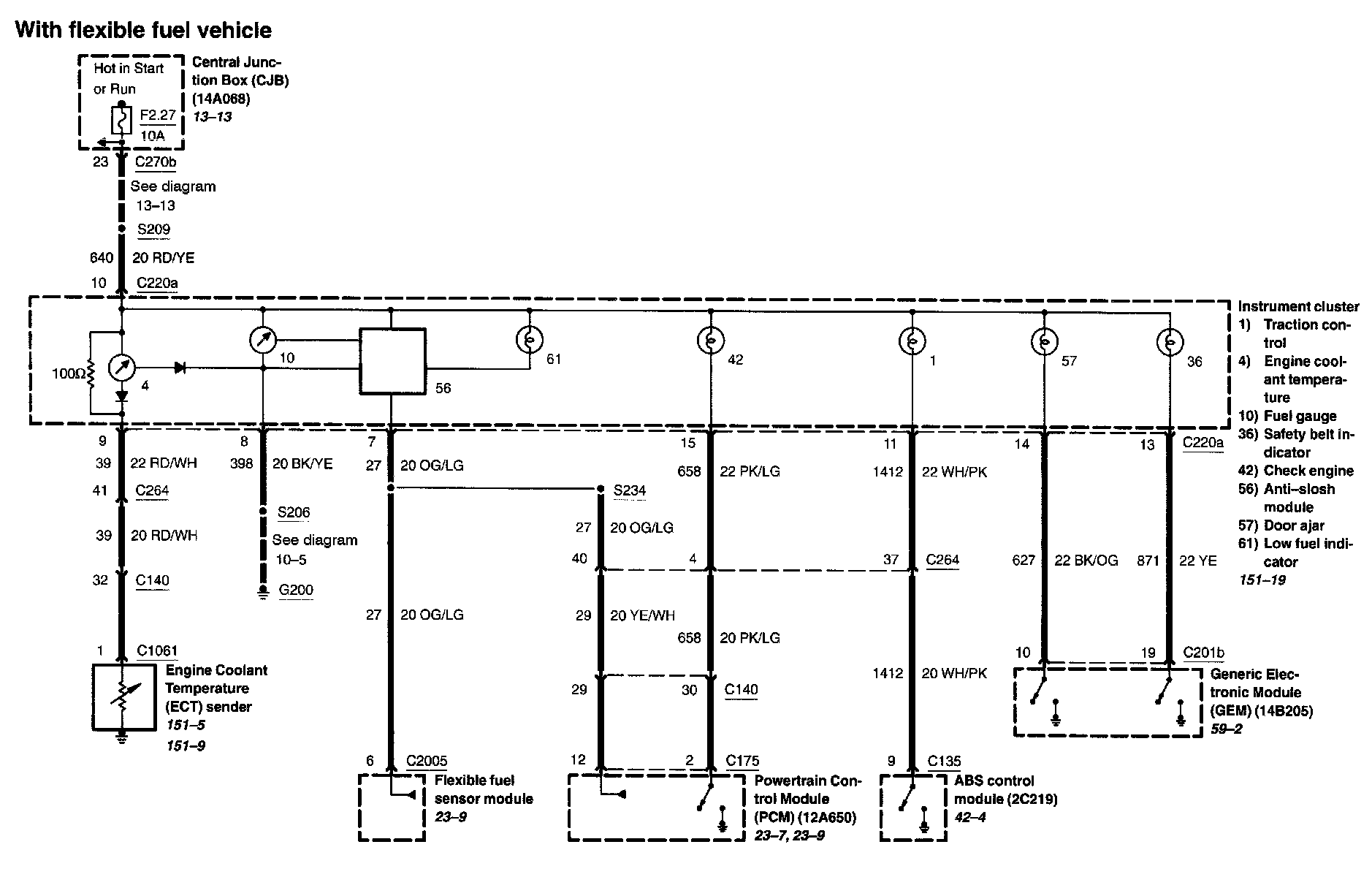

60-1, System Overview:
60-2:
60-3:
