Test A: Flash Code 1 - W/Last Switch Depressed No Pull At Throttle
Test A: Flash Code 1 - W/Last Switch Depressed No Pull At Throttle
PINPOINT TEST A: FLASH CODE 1 - WITH LAST SWITCH PRESSED AND NO DYNAMIC PULL OCCURS AT THROTTLE

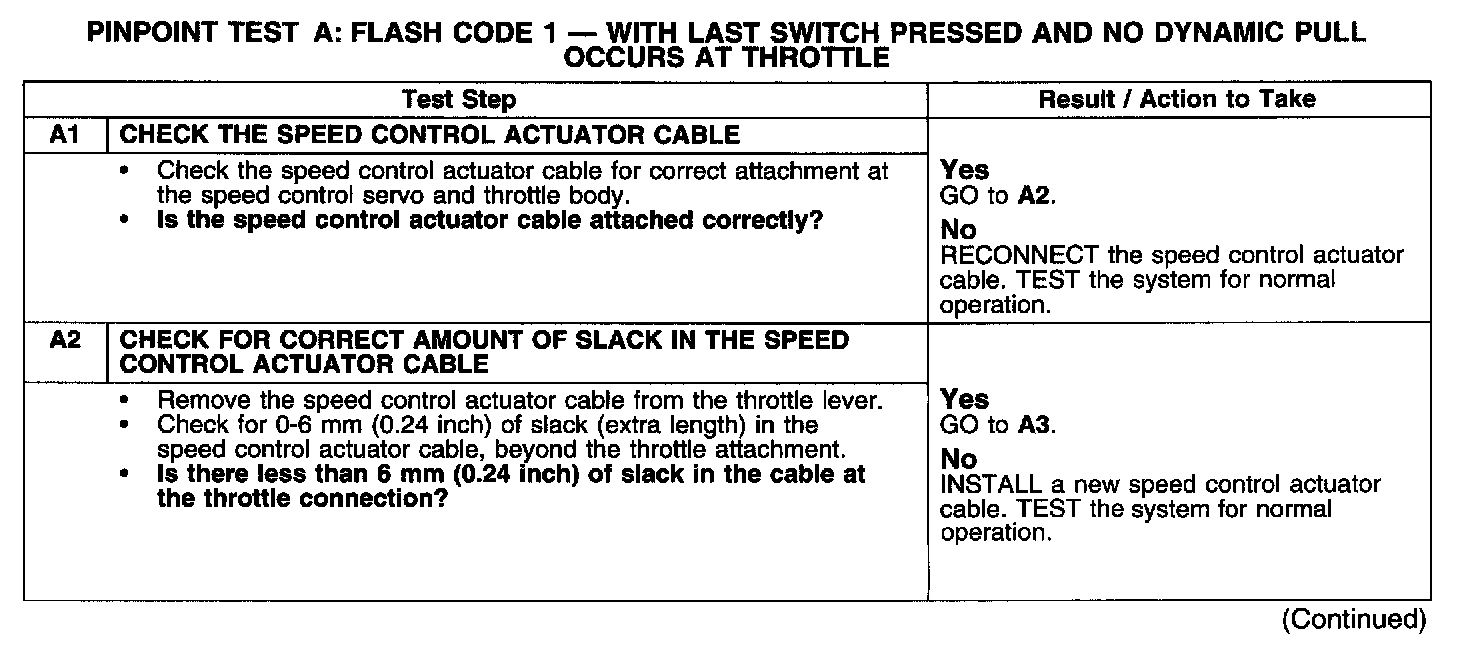

Test A1-A2:

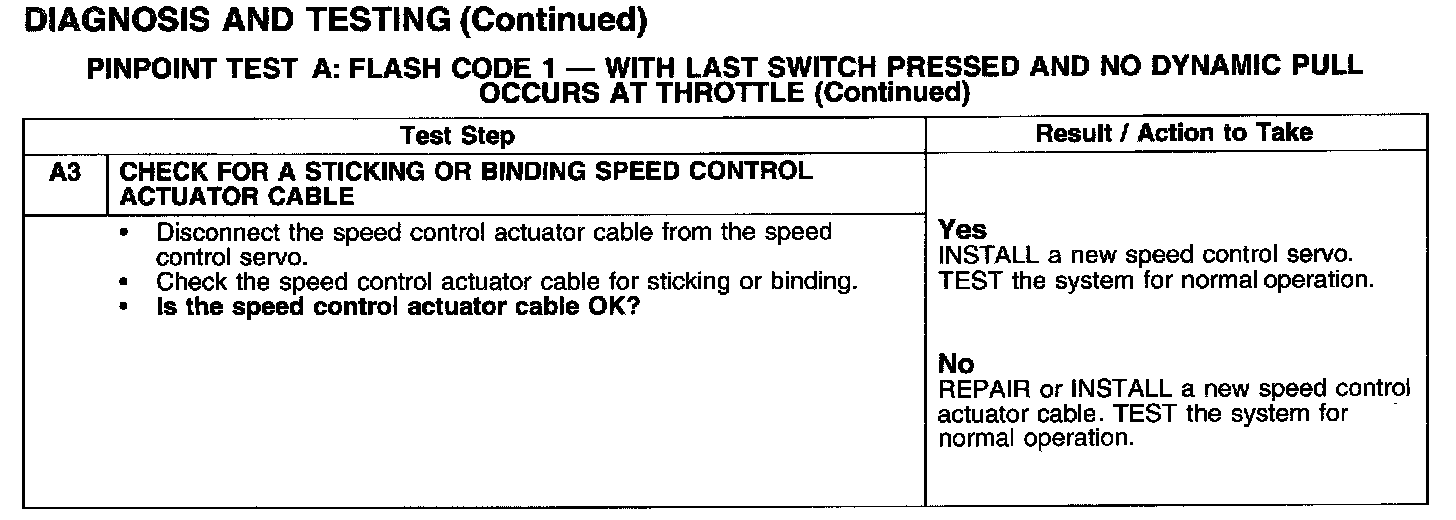

Test A3:
