Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Testing and Inspection >> Pinpoint Tests >> Test D

Test D

PINPOINT TEST D: THE HEATED EXTERIOR MIRROR DOES NOT DEFROST

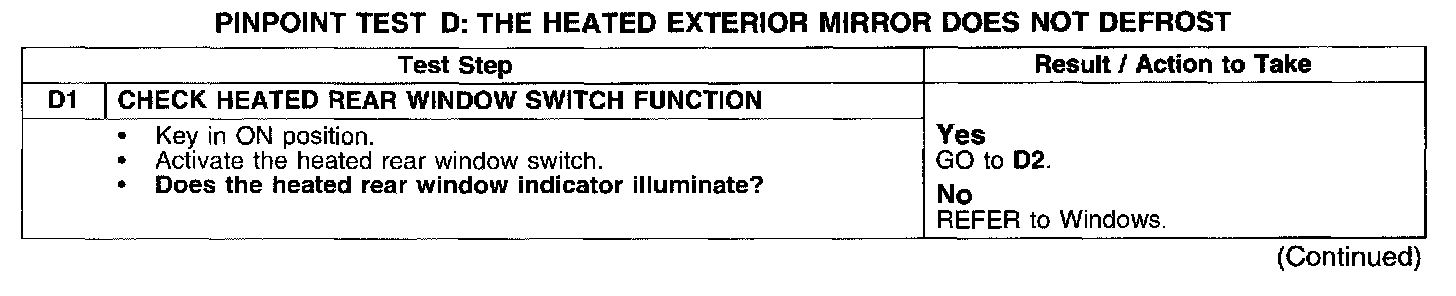

Test D1:

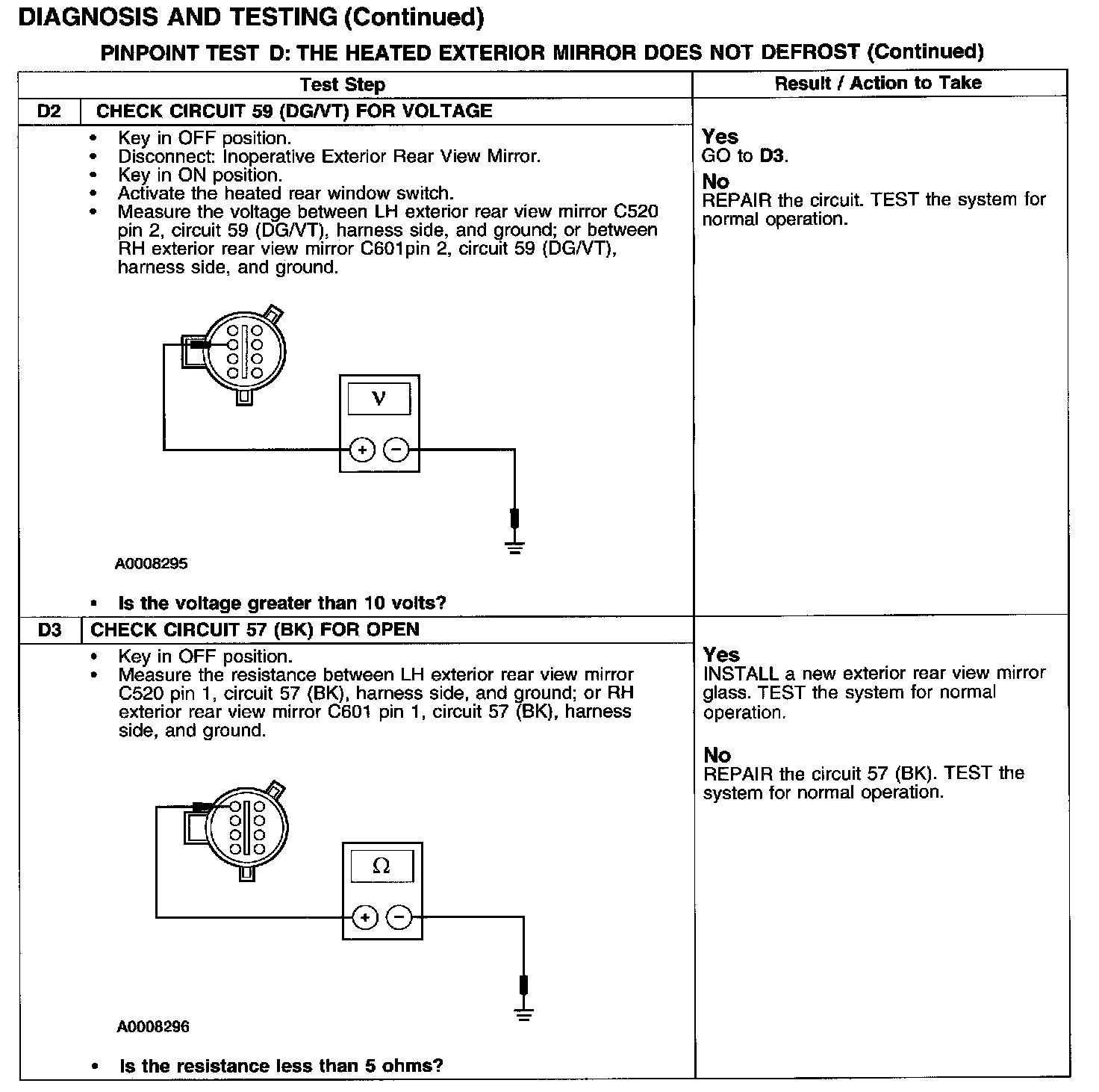

Test D2-D3:
