PINPOINT TEST C: A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC

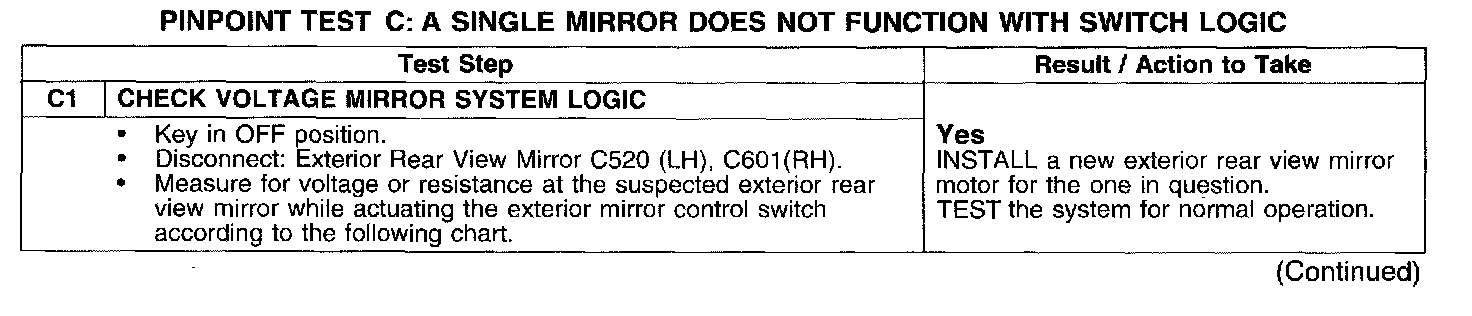

Test C1:

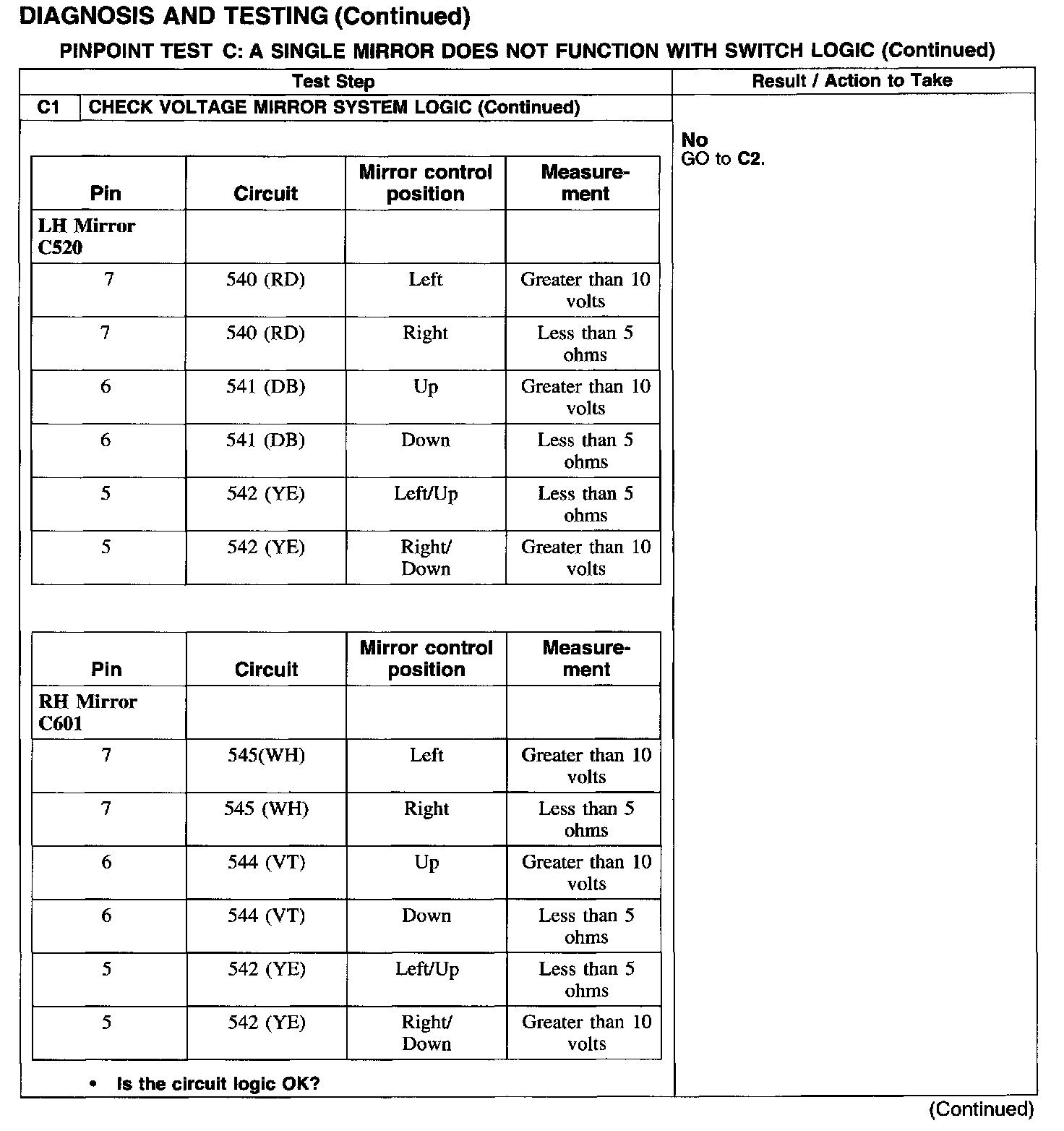

Test C1 Continued:

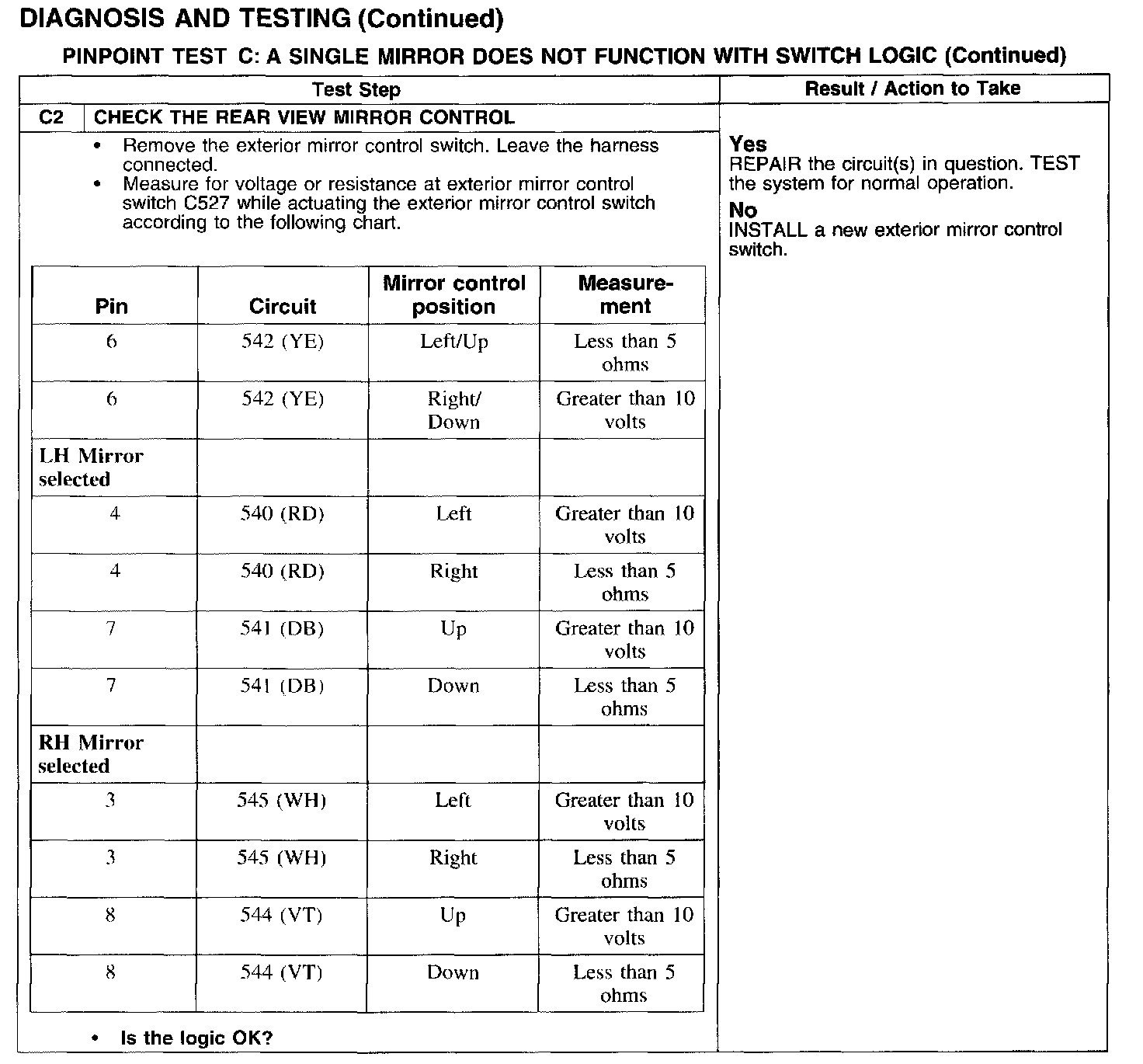

Test C2:
