License Plate Bracket: Service and Repair

License Plate Housing - Wagon

REMOVAL
1. Remove the liftgate trim panel.
2. Remove the reversing lamp assembly.

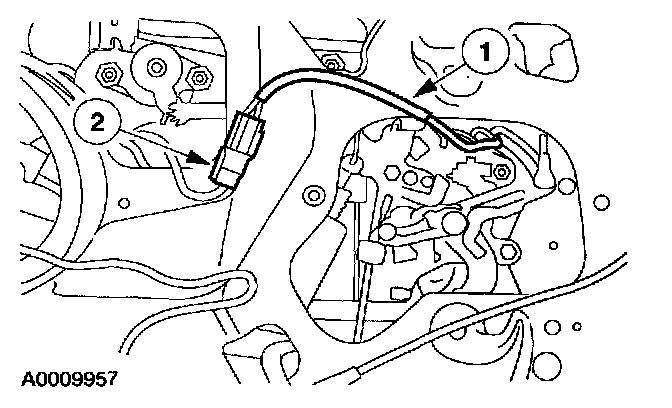

3. Disconnect the liftgate actuator electrical connector.
1 Release the wiring harness locator.
2 Disconnect the electrical connector.







4. Disconnect the liftgate latch actuating rod.







5. Remove the nuts and the license plate housing.

INSTALLATION
1. To install, reverse the removal procedure.
