Liftgate

NOTE: The liftgate should be adjusted for even and parallel fit with the liftgate opening and surrounding panels.

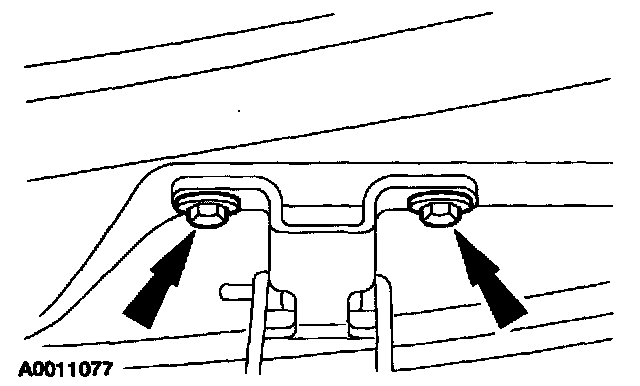

1. Loosen the hinge to liftgate bolts just enough to permit movement of the liftgate.

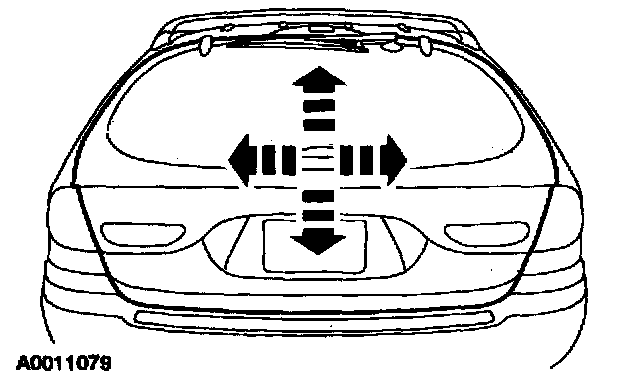

2. To adjust the liftgate alignment shift or shim the hinge as necessary.

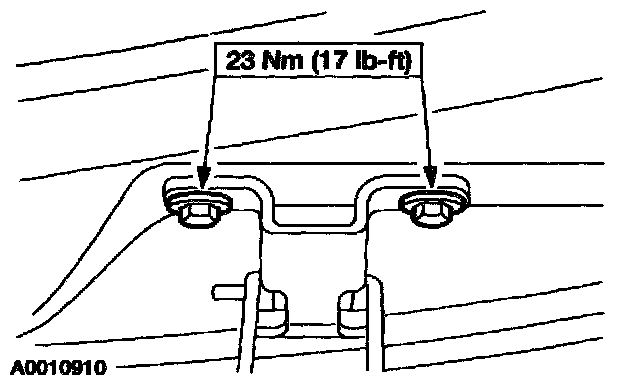

3. Tighten the hinge to liftgate bolts.
