Front Door Panel: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

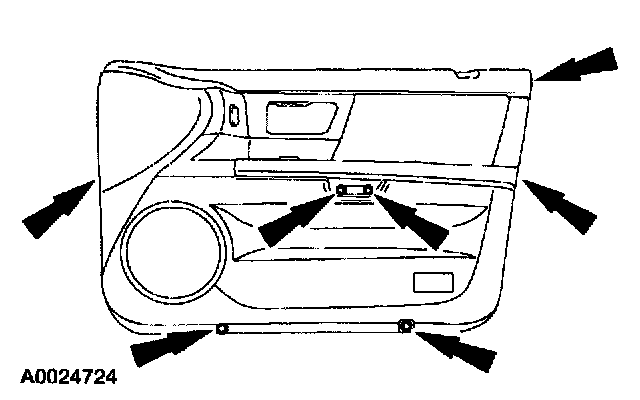

2. Remove the front door trim panel screws.
3. Remove the front door trim panel.
^ Disconnect the electrical connectors.

NOTE: To release the door trim panel two part pin-type retainers, first pull outward on the bottom of the door trim panel.

INSTALLATION
1. To install, reverse the removal procedure.
