Test A

PINPOINT TEST A: THE AUDIO UNIT IS INOPERATIVE

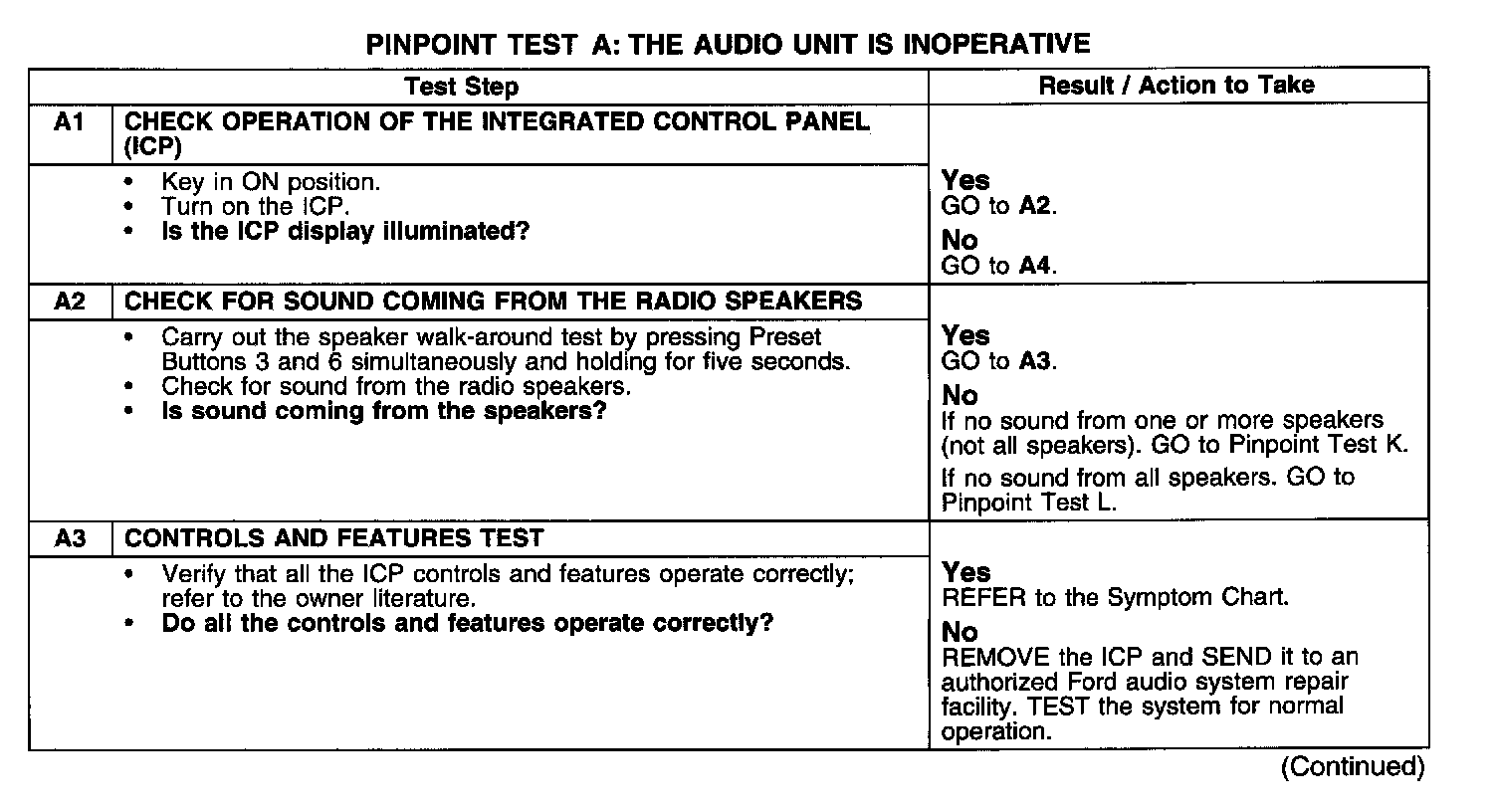

Test A1-A3:

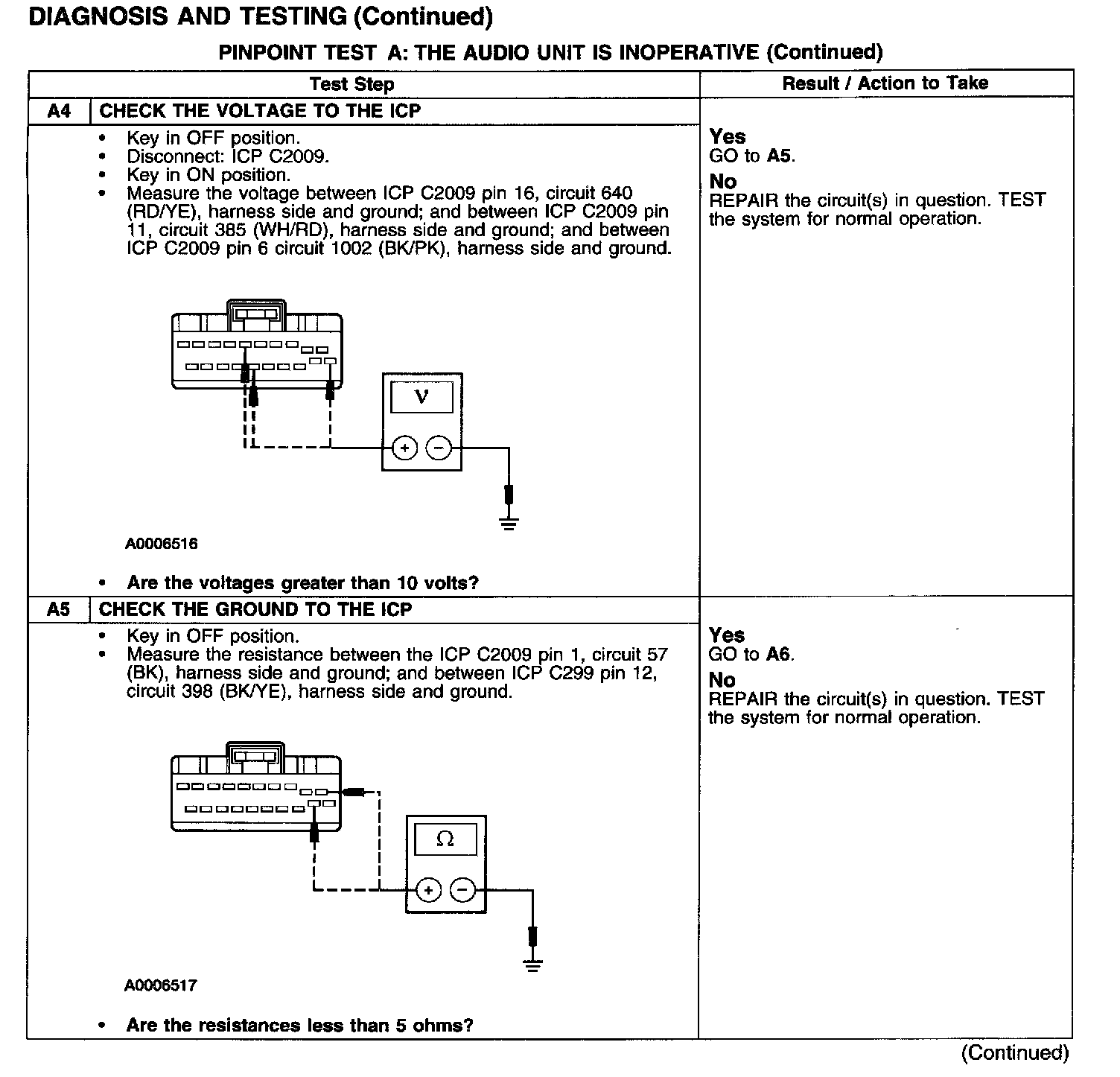

Test A4-A5:

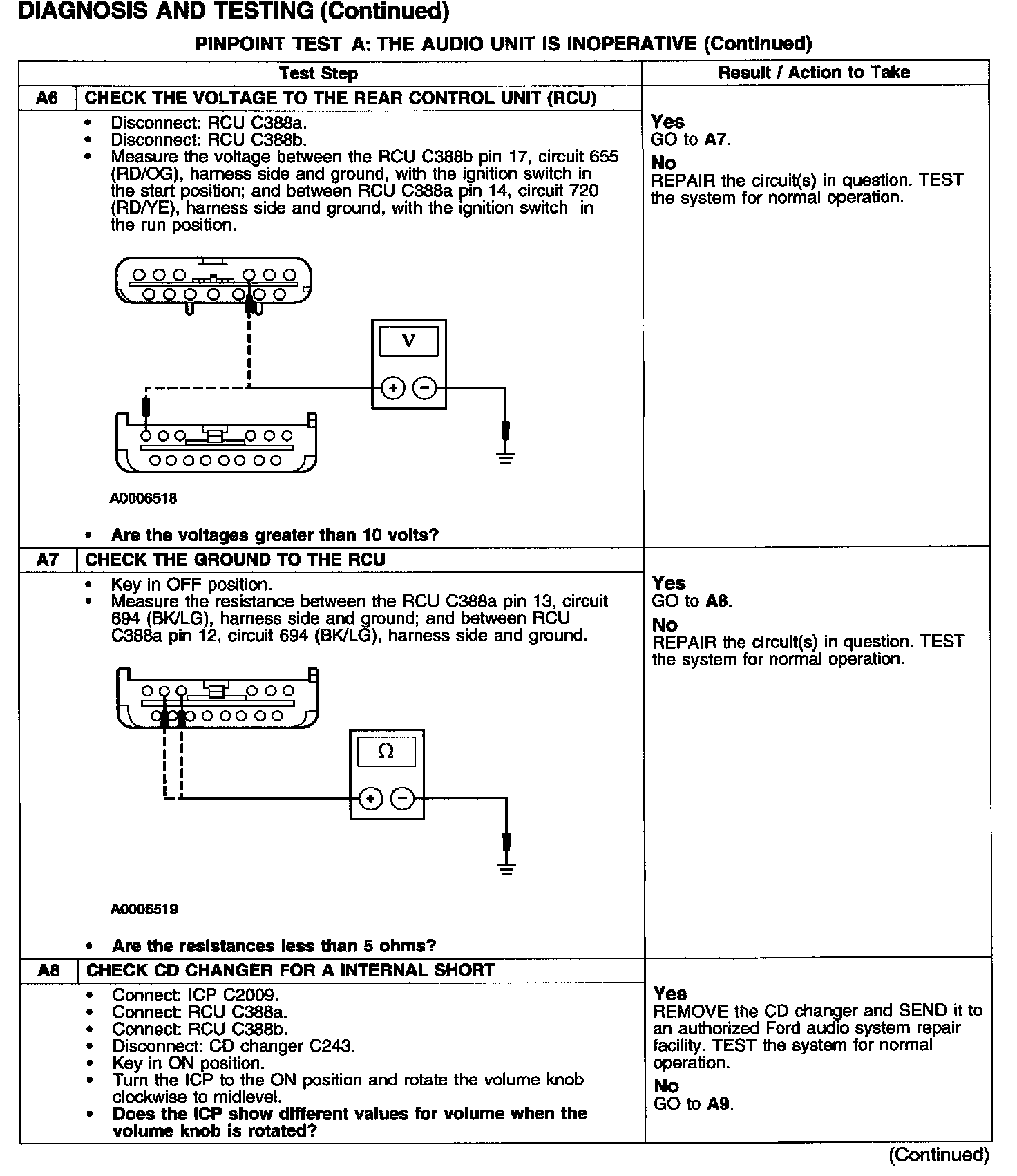

Test A6-A8:

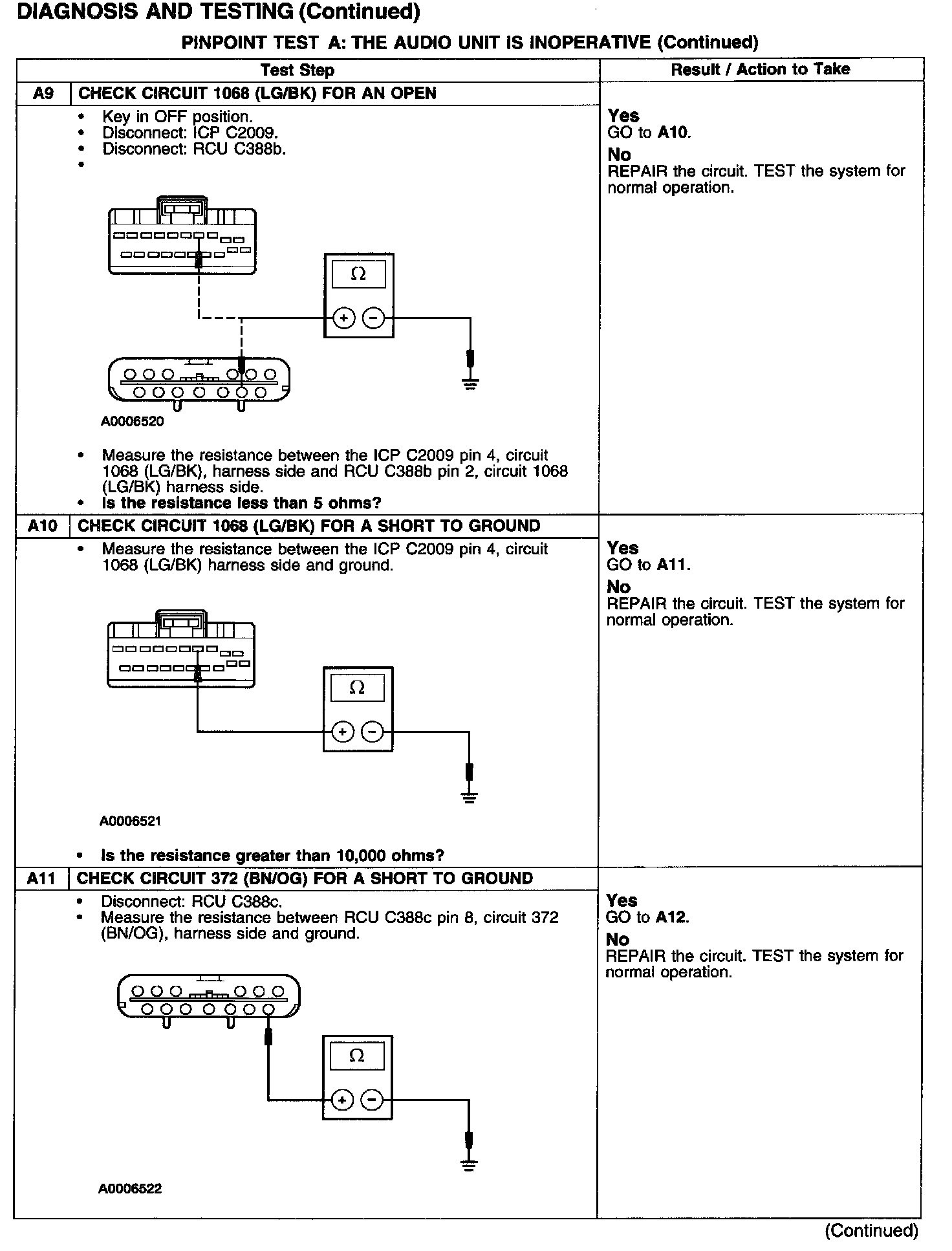

Test A9-A11:

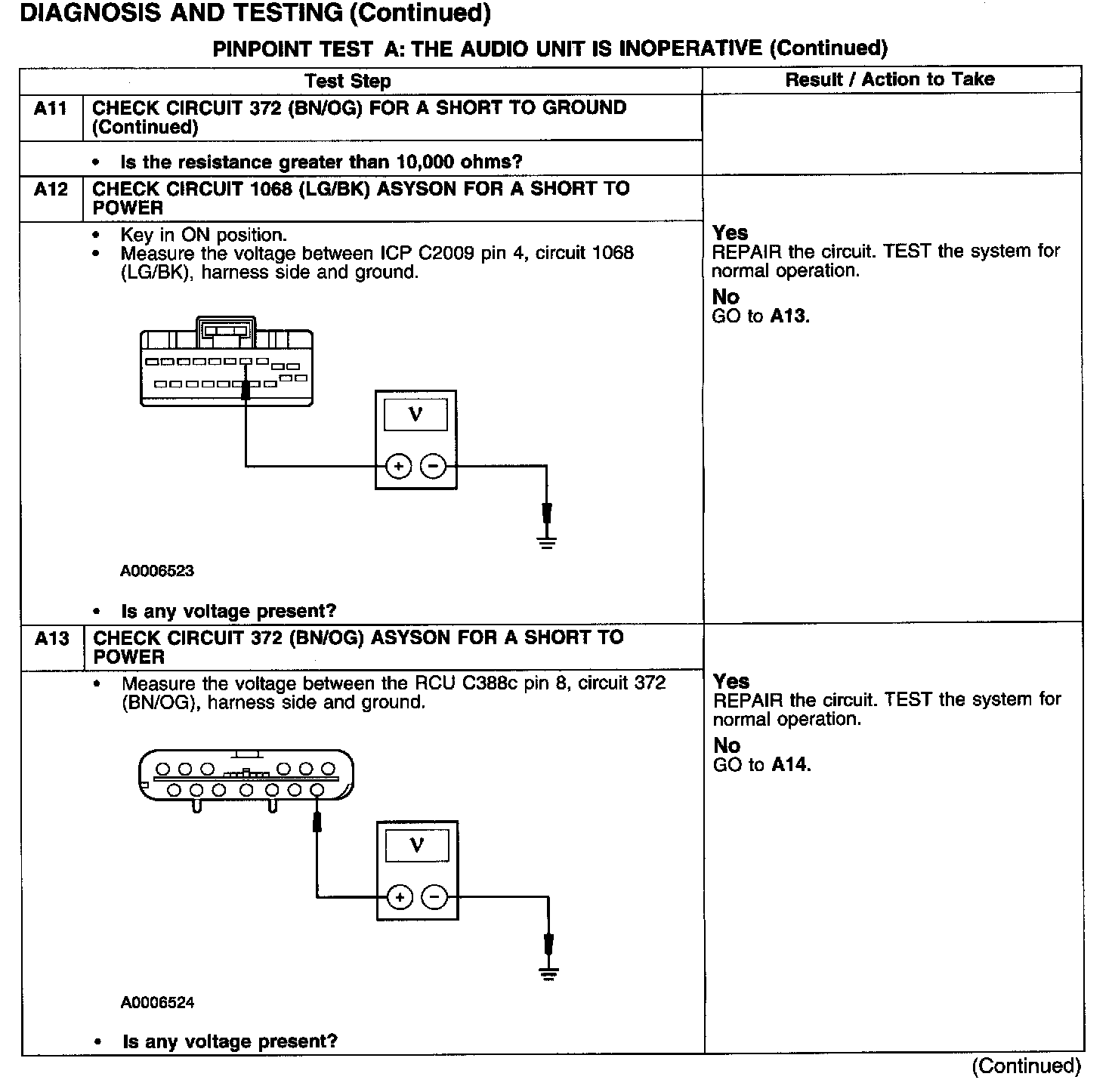

Test A11-A13:

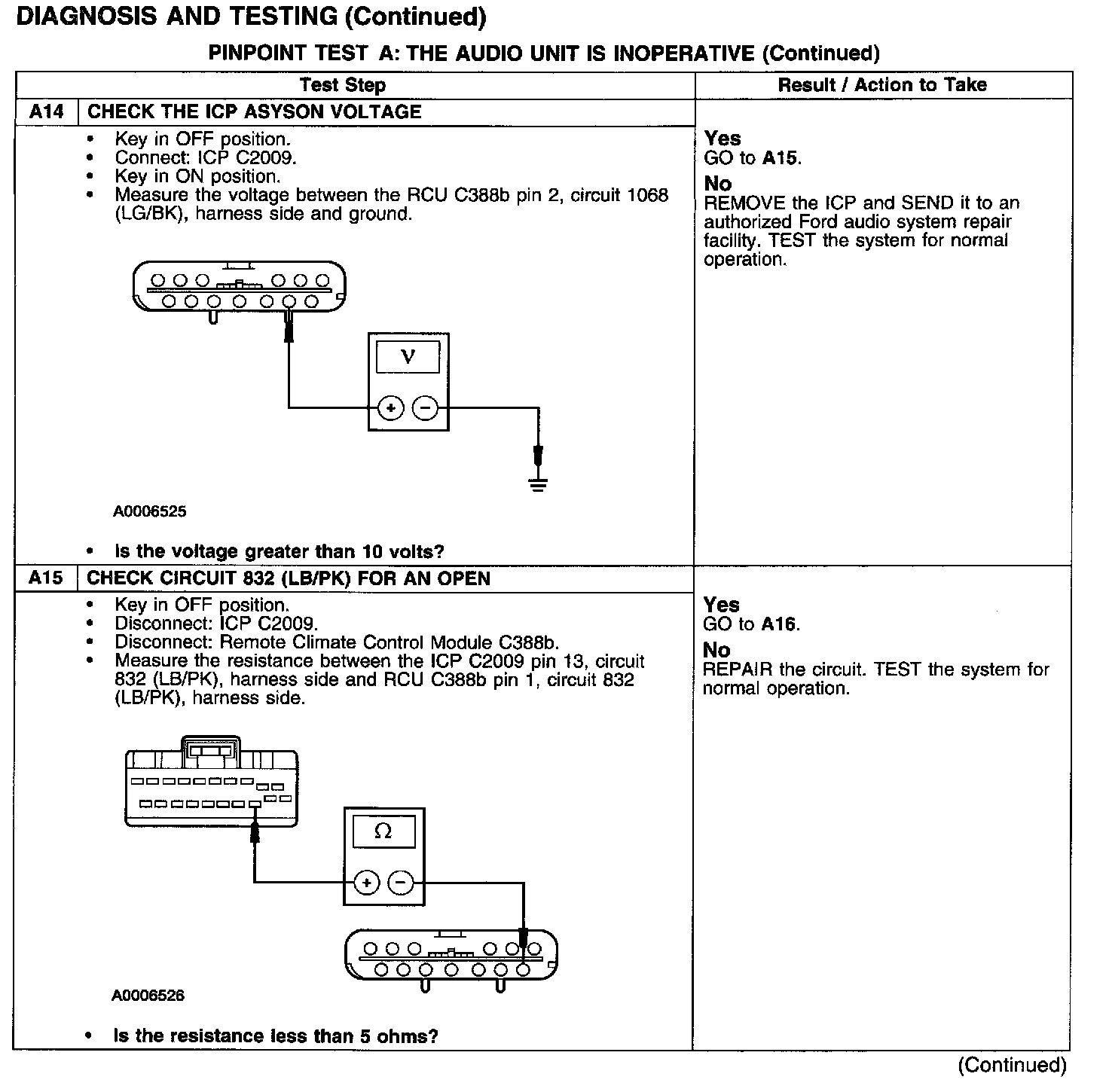

Test A14-A15:






Test A16-A17:

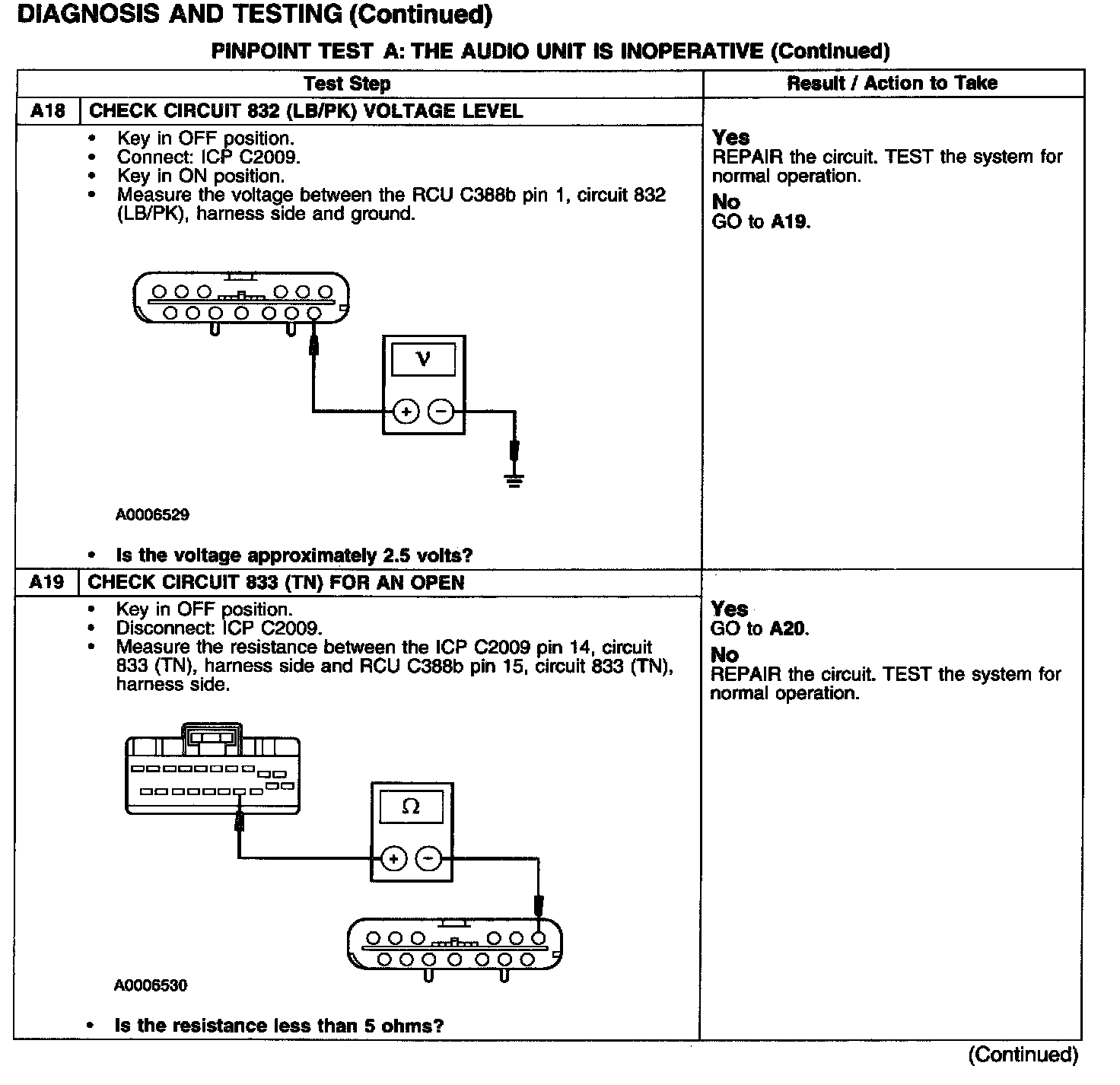

Test A18-A19:






Test A20-A22:

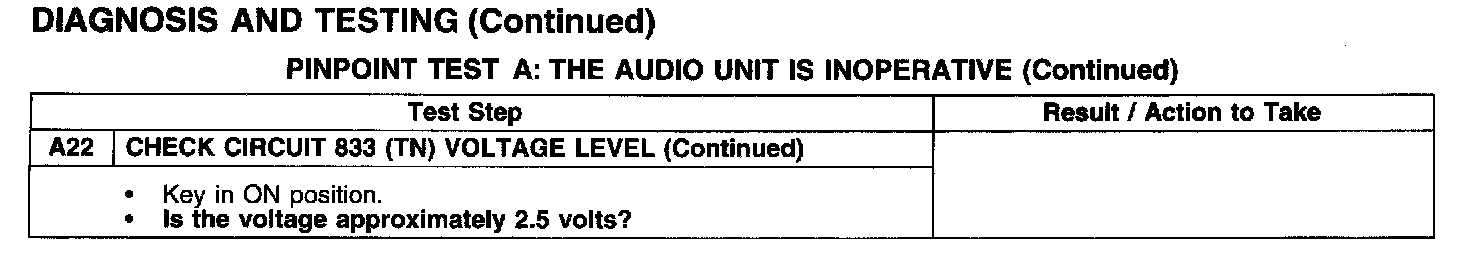

Test A22 Continued:
