Remote Control: Service and Repair

Radio Removal Tool:

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.

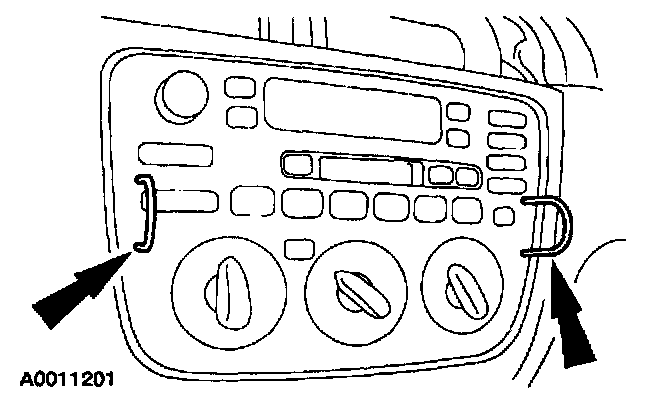

2. Using the radio removing tool, pull the Integrated Control Panel (ICP) out of the instrument panel.

NOTE: Manual A/C integrated control panel shown, electronic automatic control panel (EATC) similar.







3. Remove the ICP.

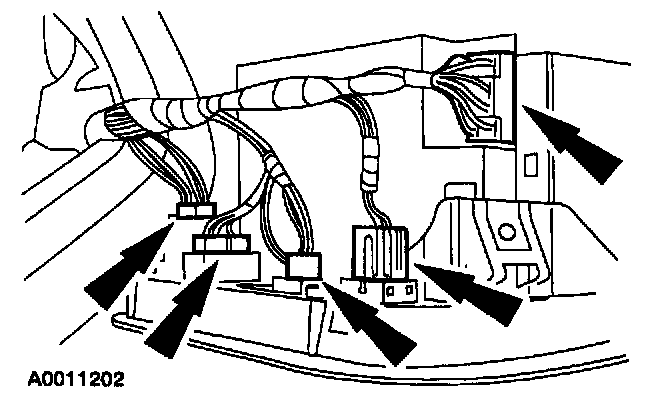

^ Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
