Test E
Test E
PINPOINT TEST E: PATS TRANSCEIVER MODULE SIGNAL IS NOT RECEIVED

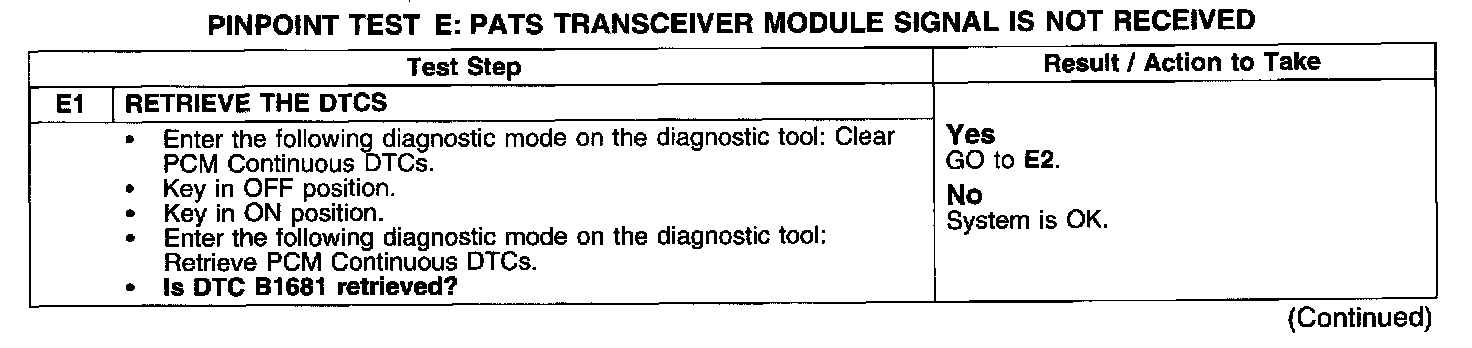

Test E1:

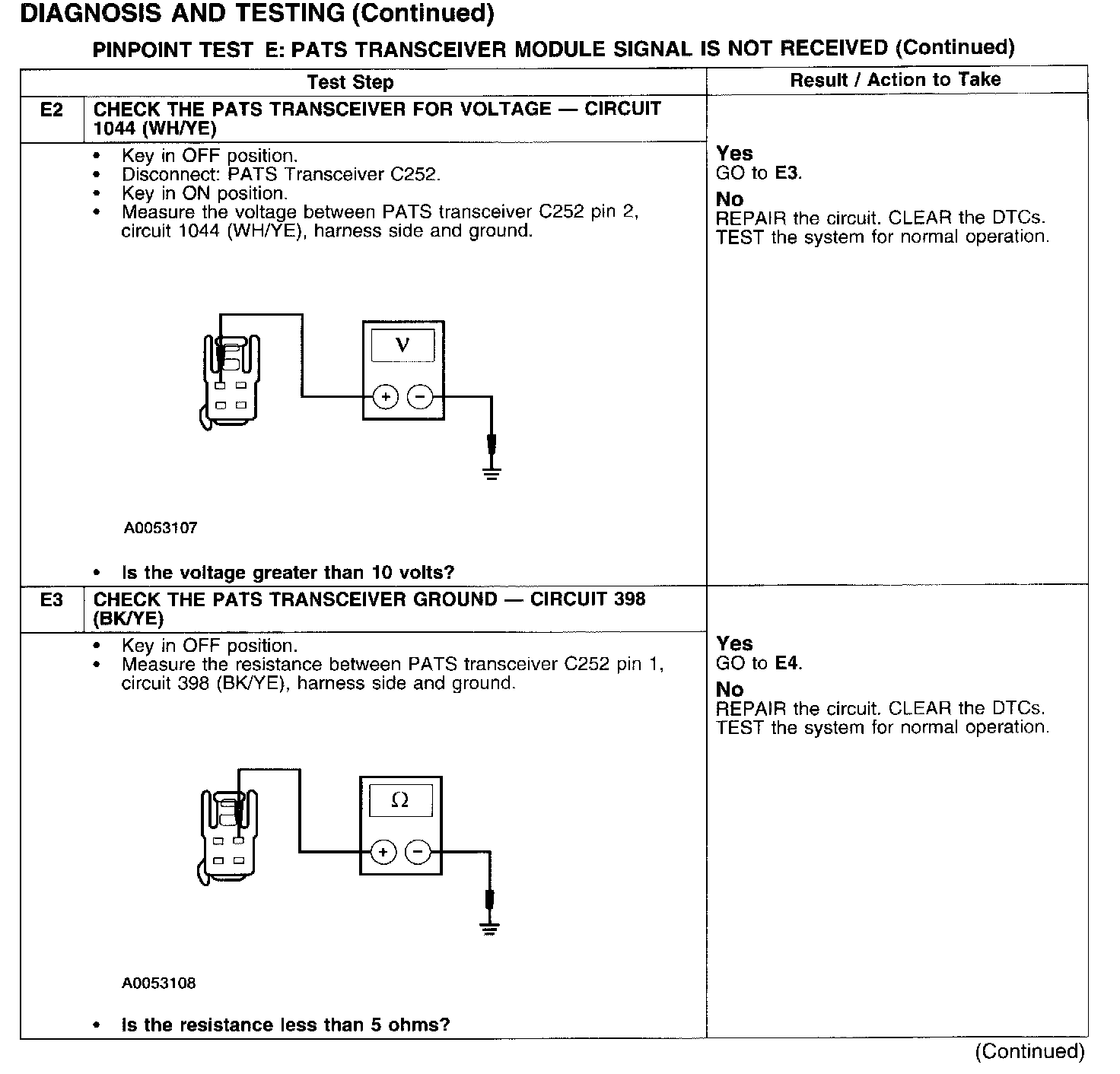

Test E2-E3:

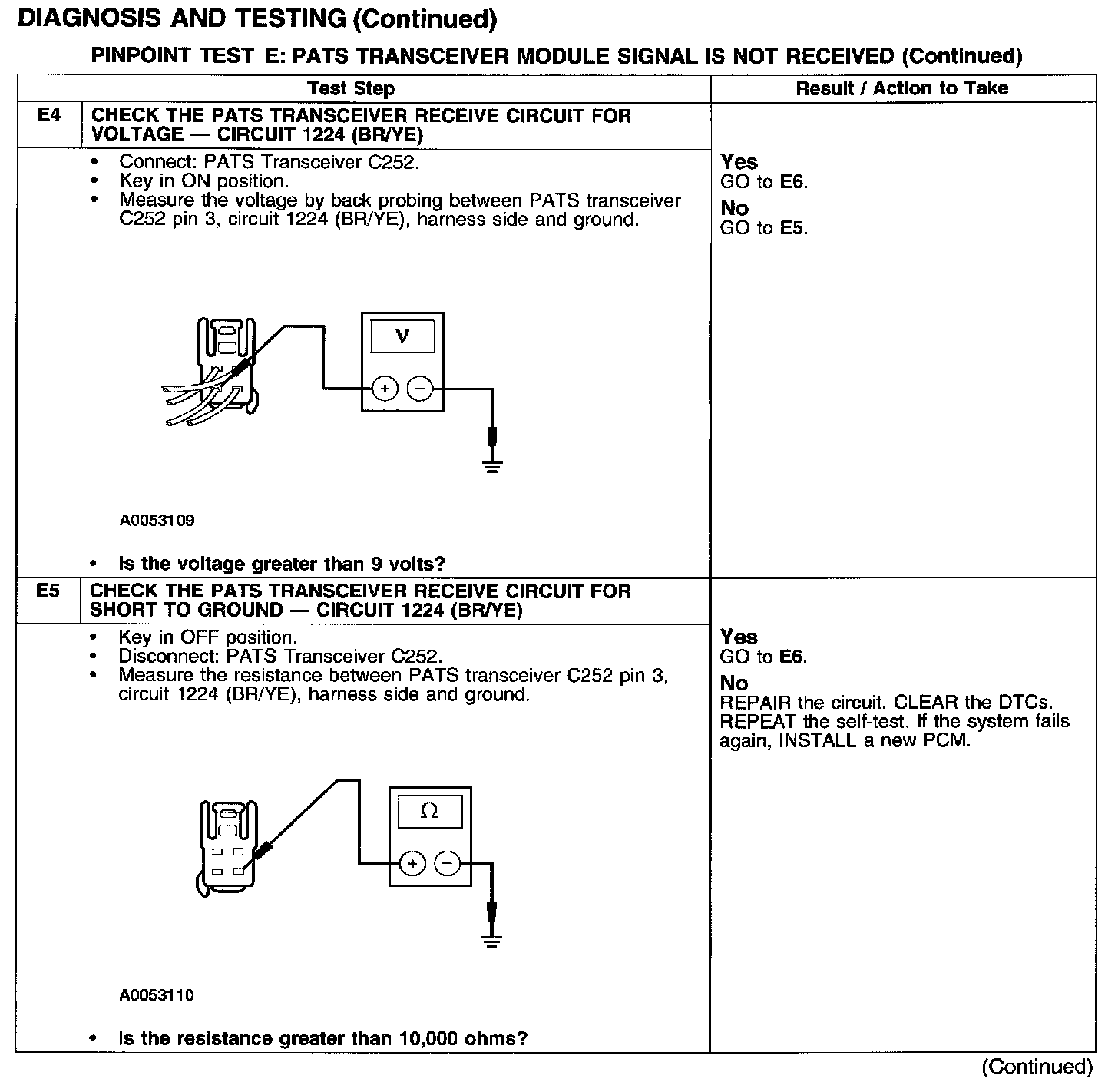

Test E4-E5:

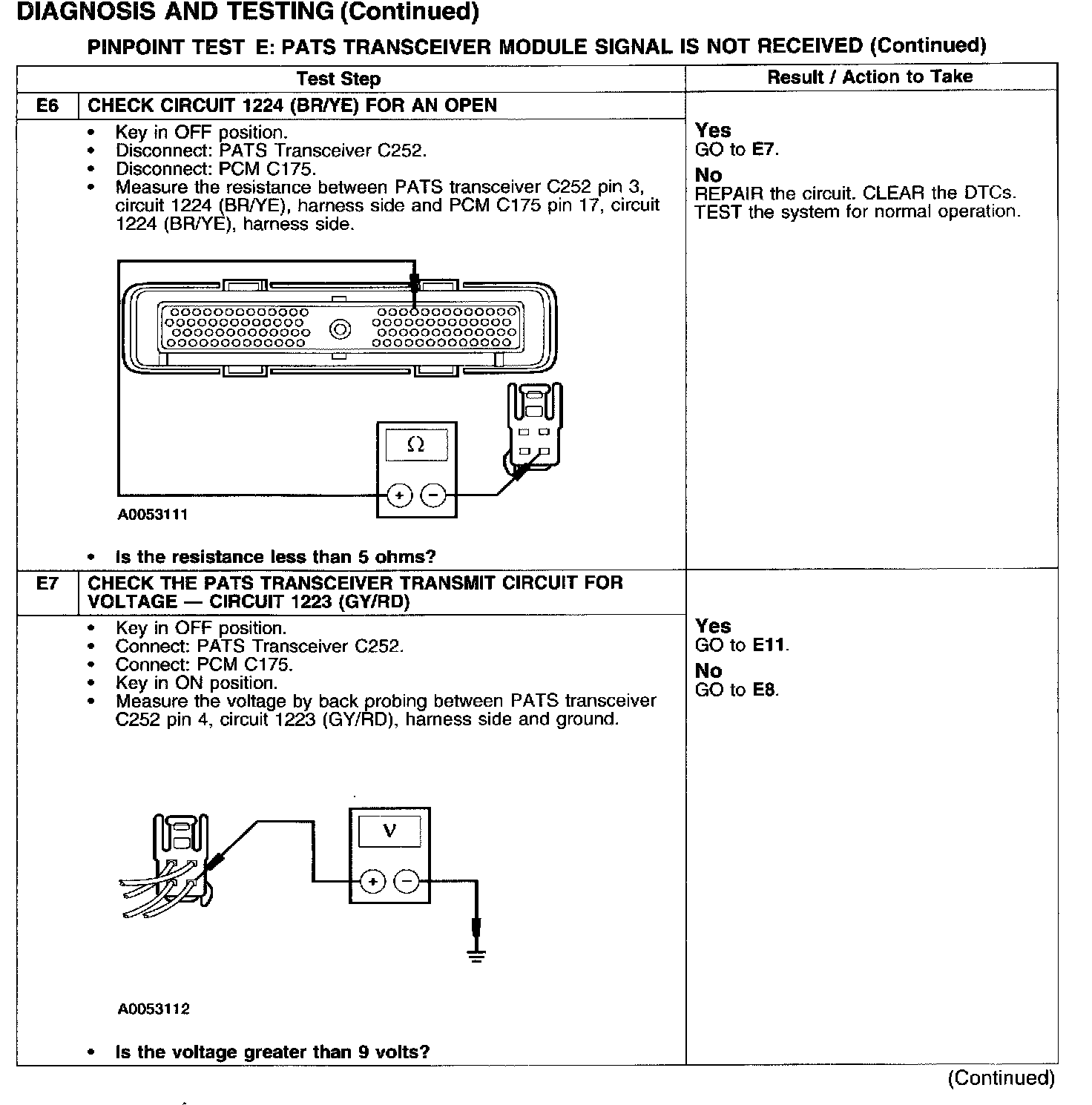

Test E6-E7:

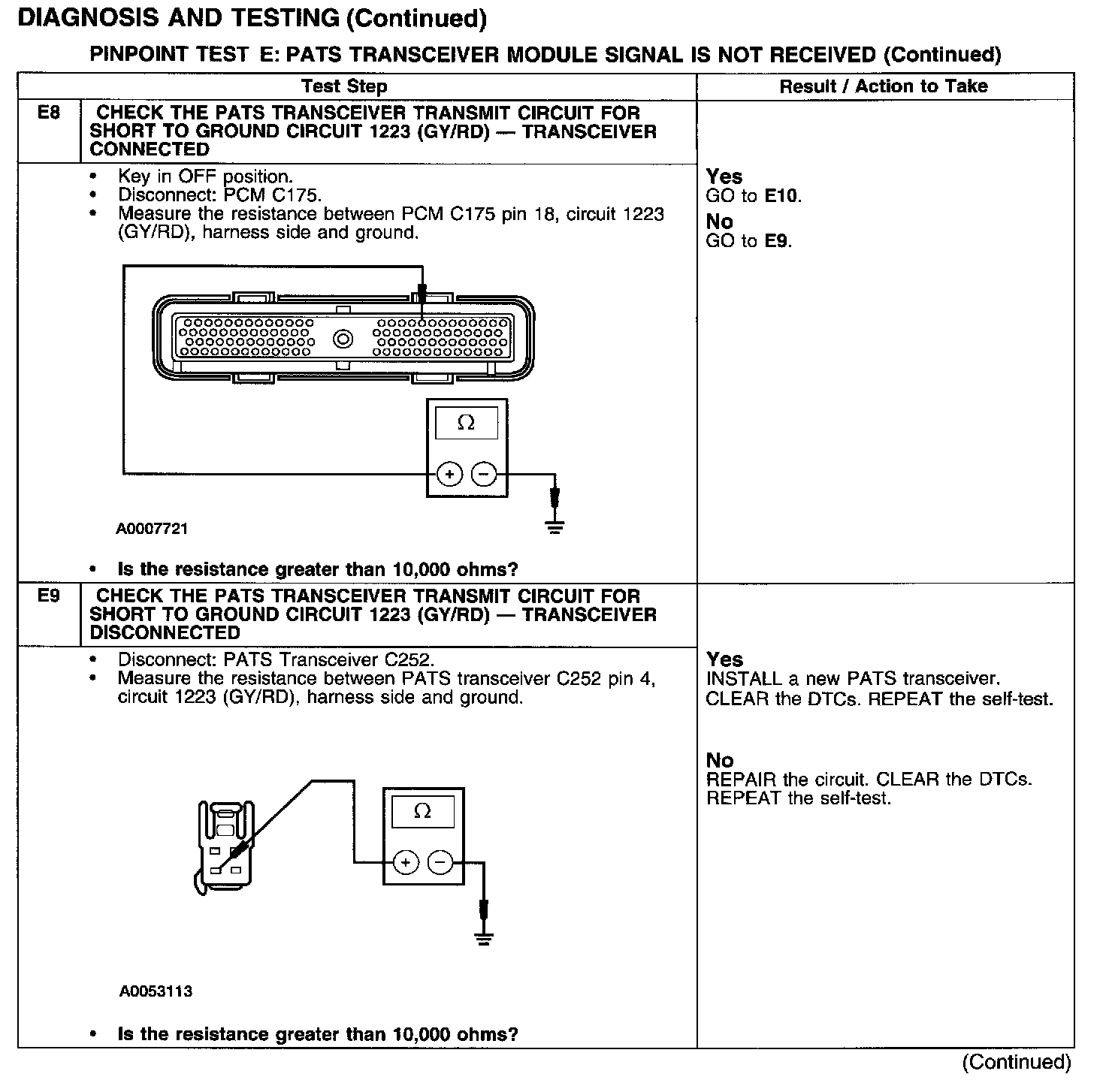

Test E8-E9:

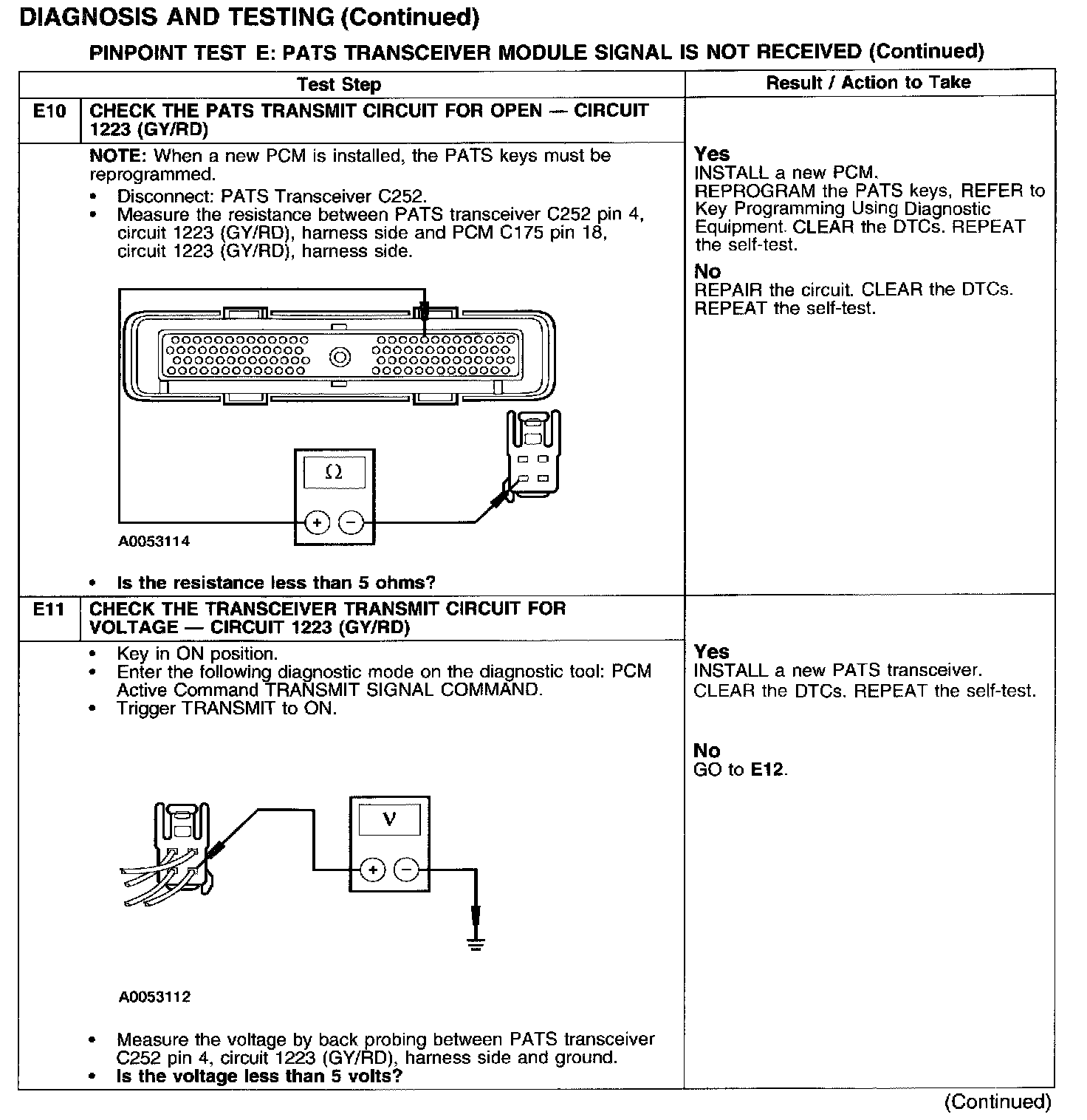

Test E10-E11:

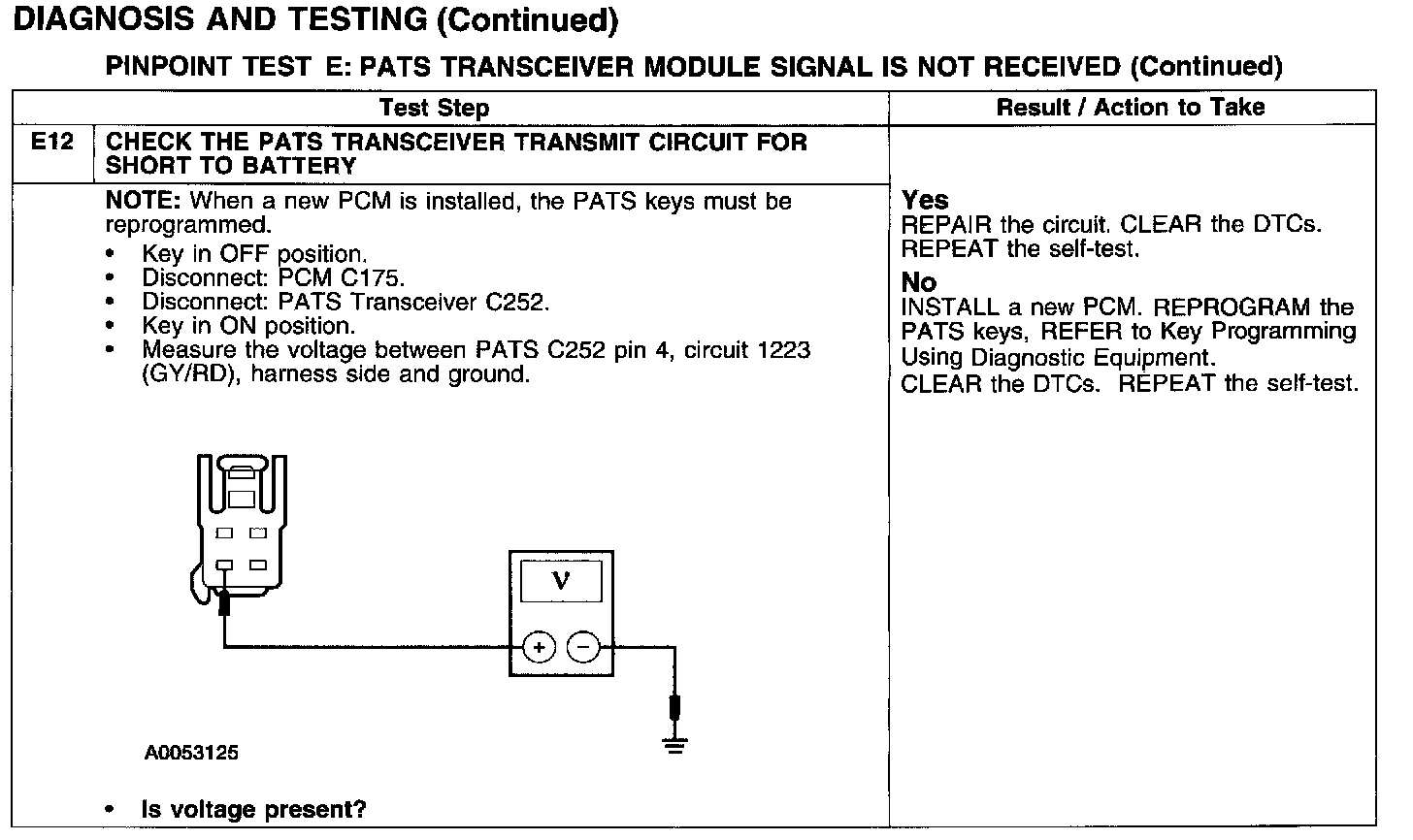

Test E12:
