Home >> Mercury >> 2003 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Anti-Theft - Perimeter >> Test A

Test A

PINPOINT TEST A: THE ALARM SYSTEM DOES NOT ARM/DISARM - FROM DRIVER OR PASSENGER DOOR LOCK CYLINDER

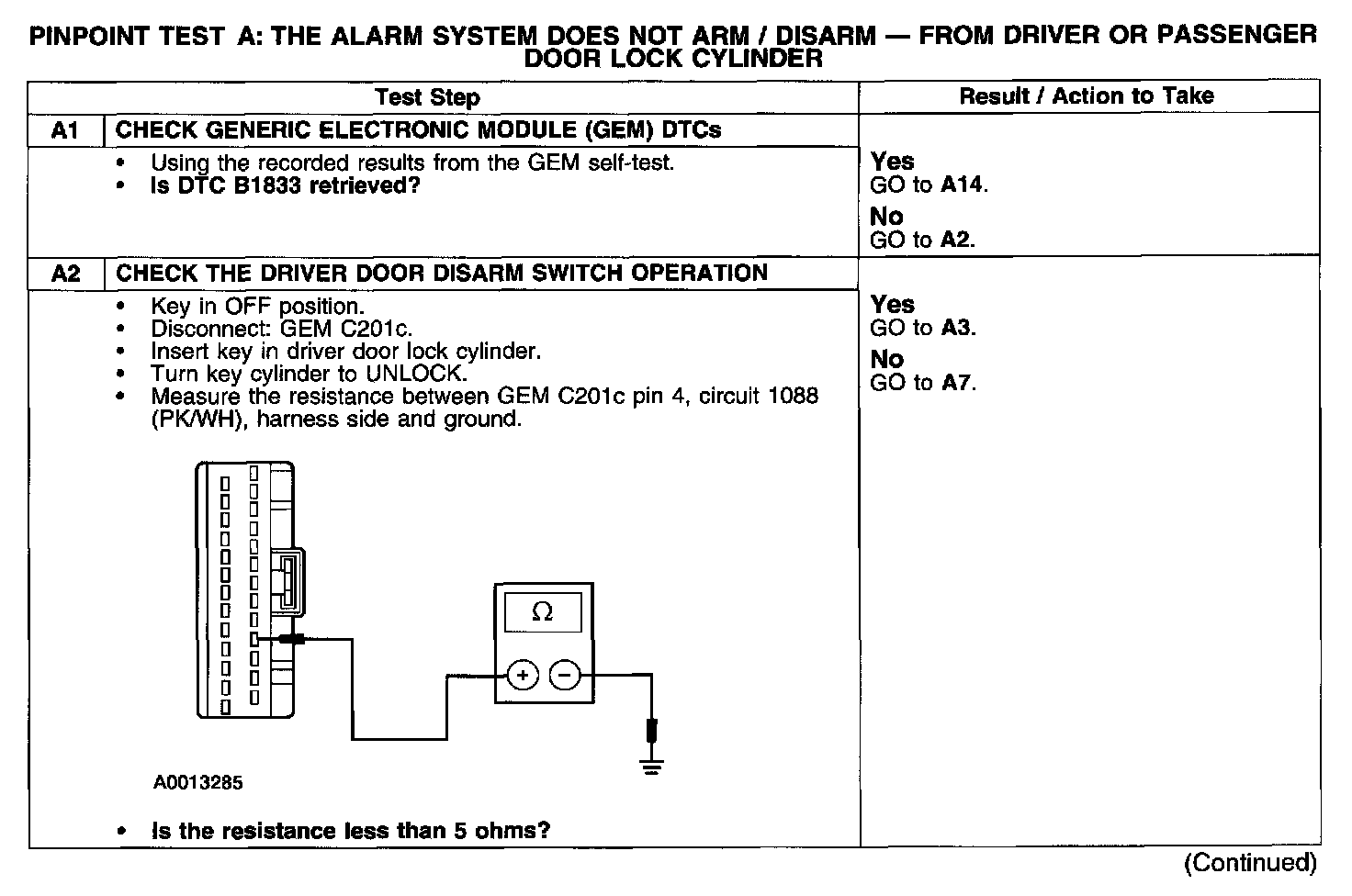

Test A1-A2:

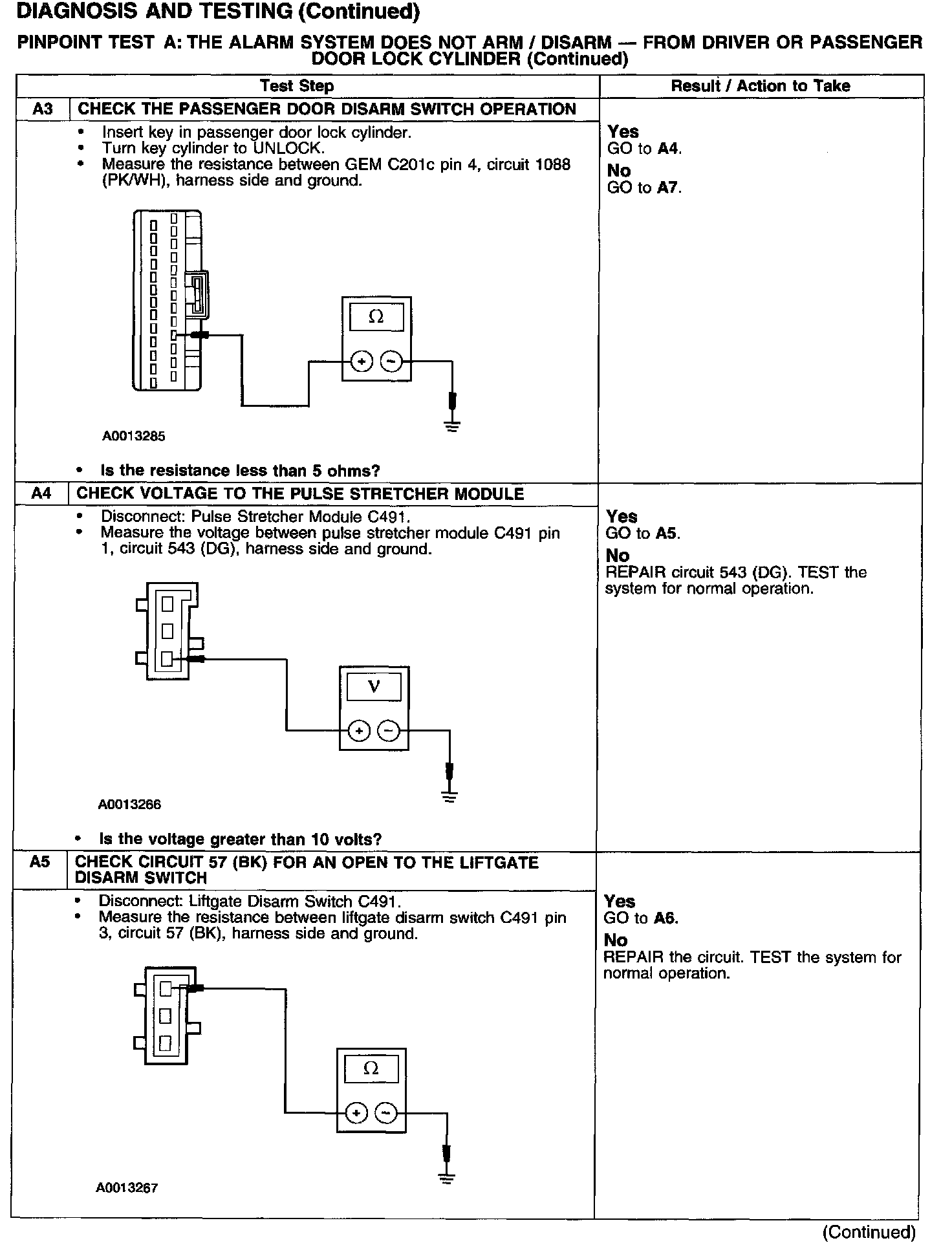

Test A3-A5:

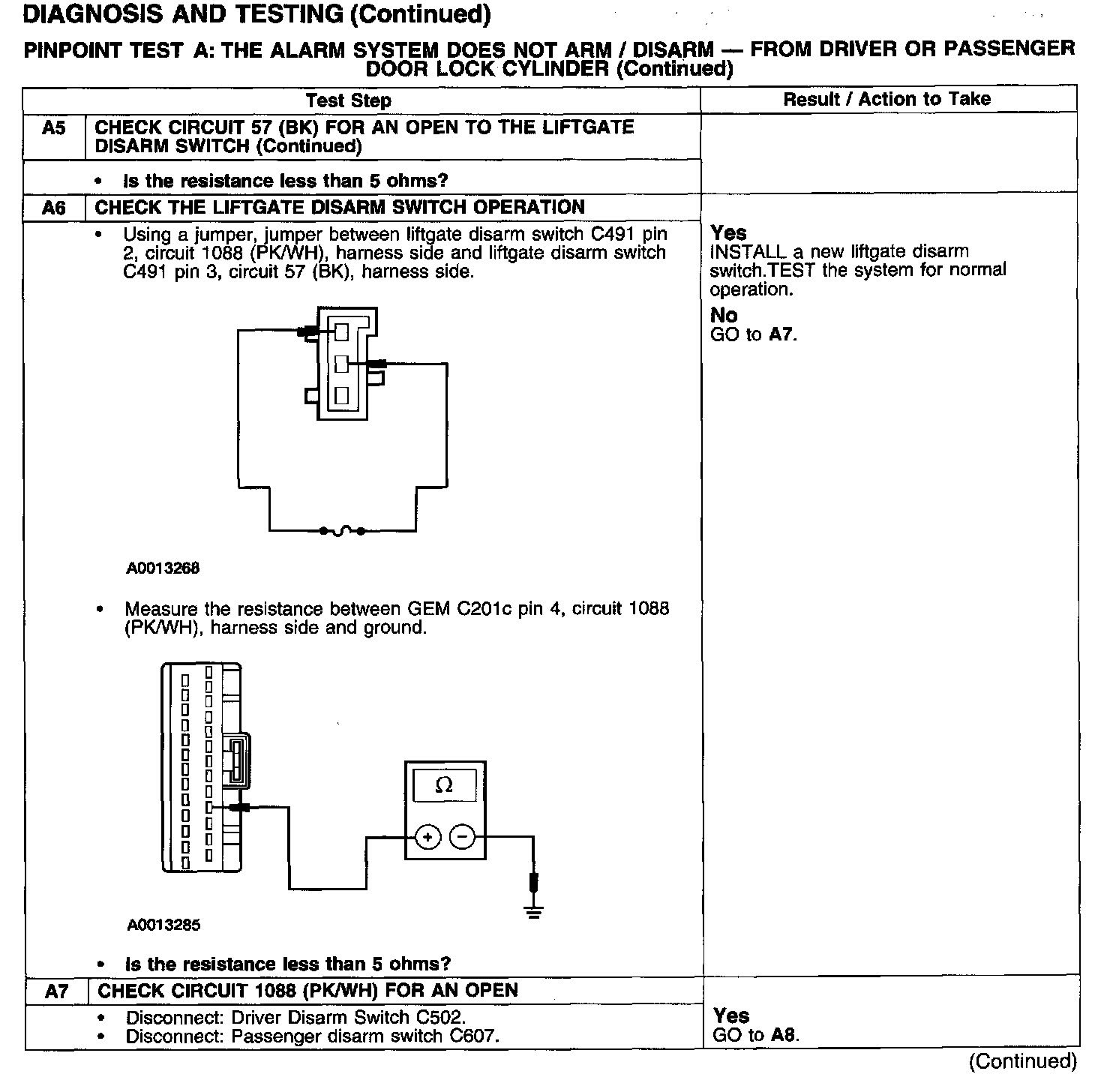

Test A5-A7:

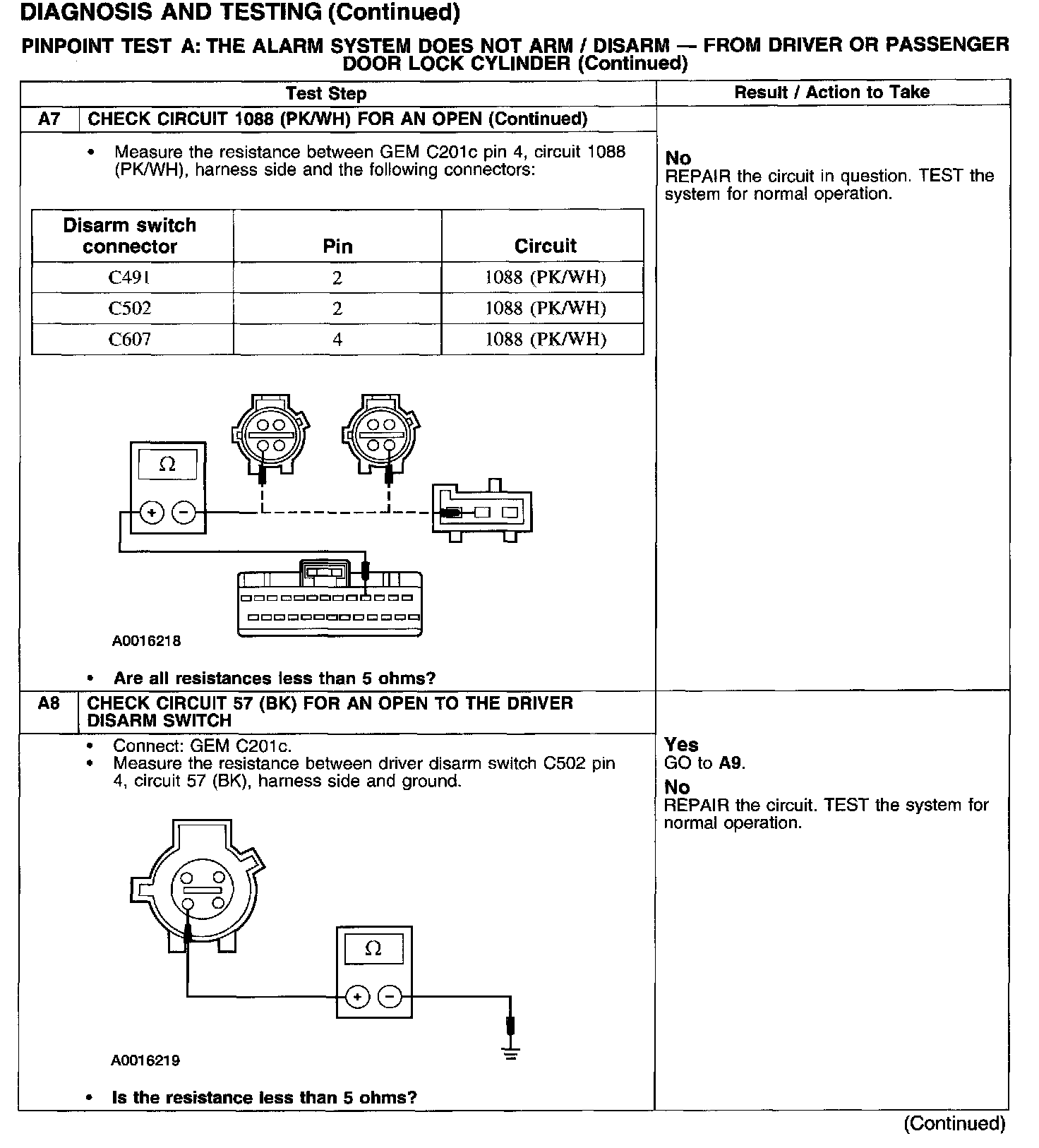

Test A7-A8:

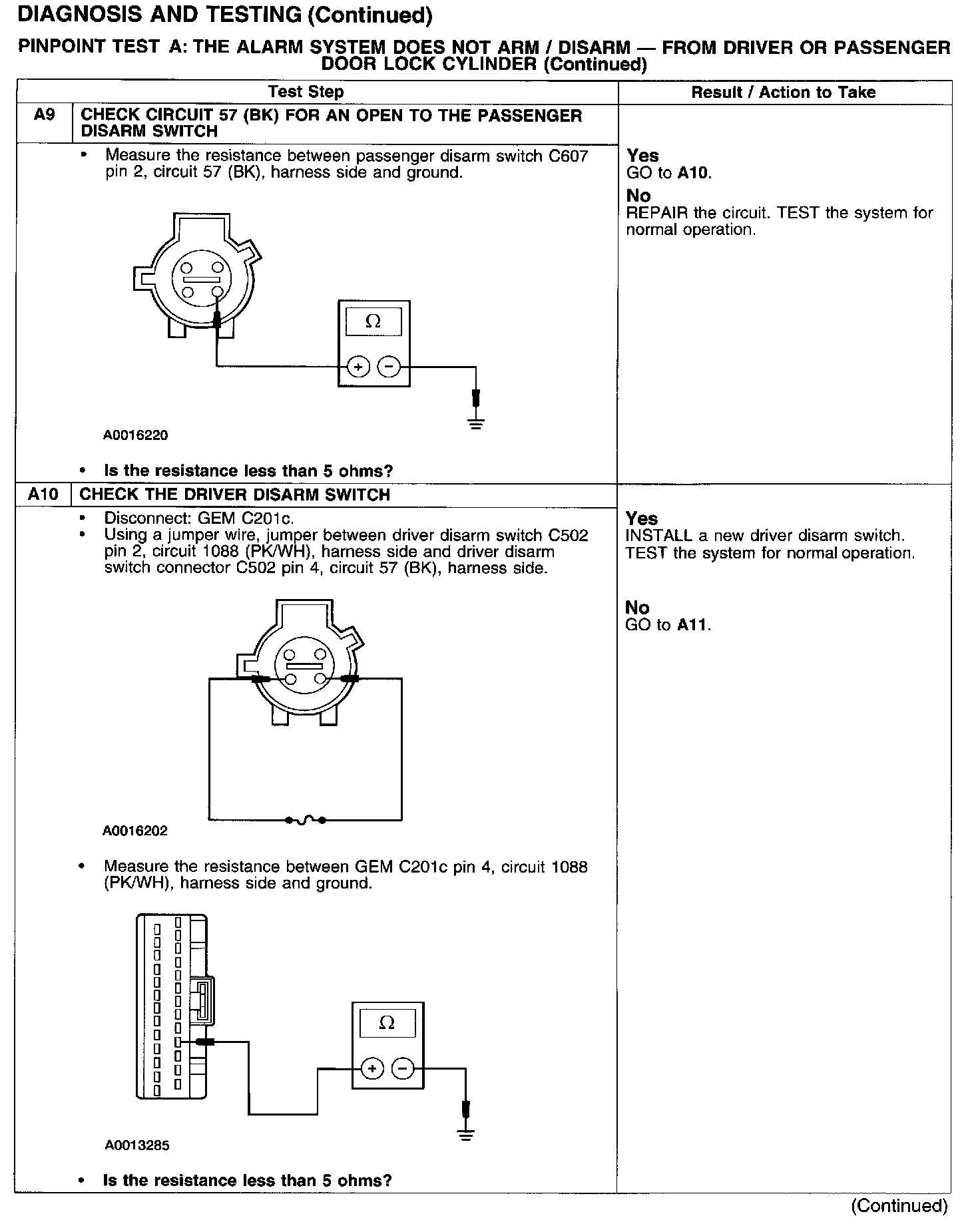

Test A9-A10:

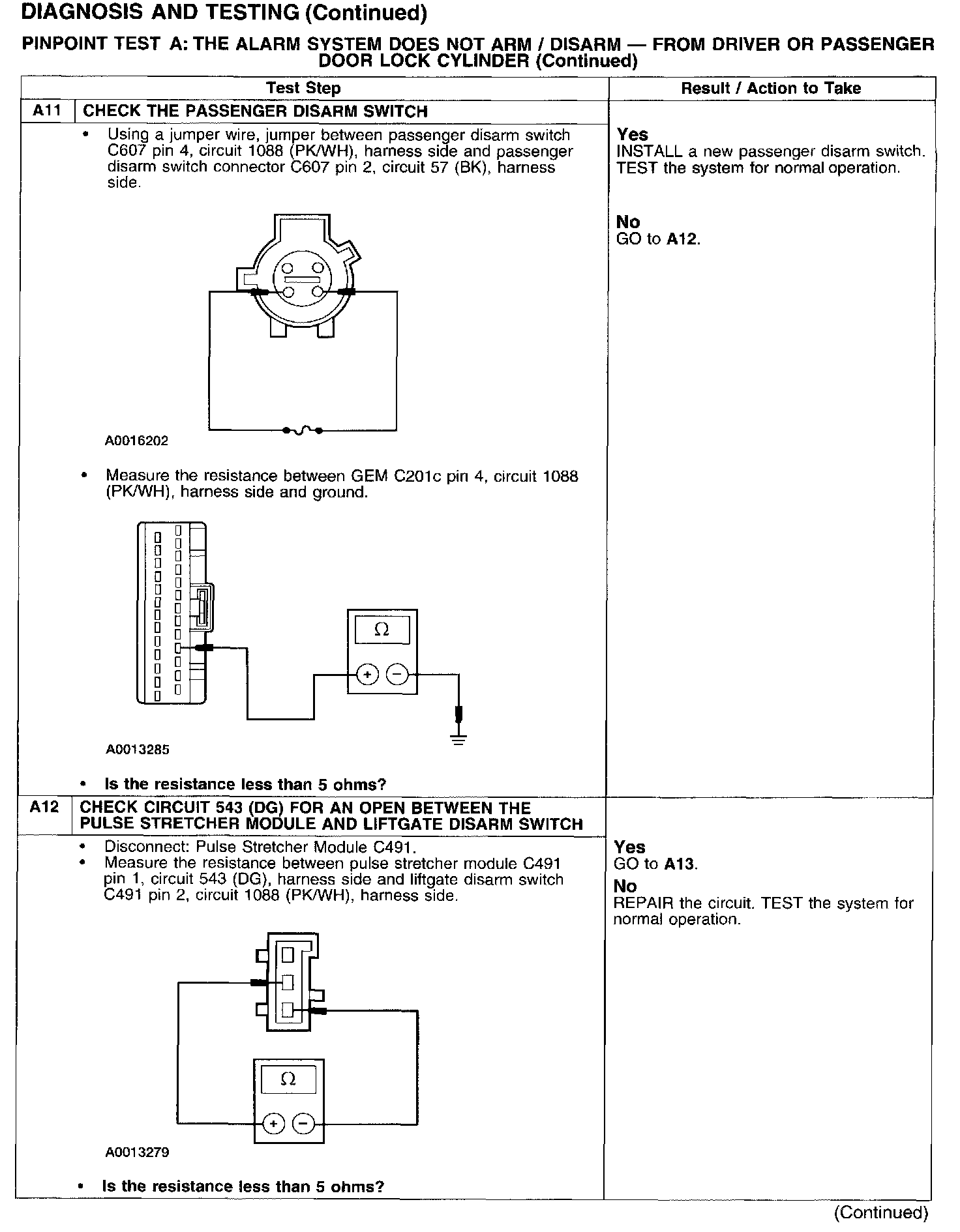

Test A11-A12:

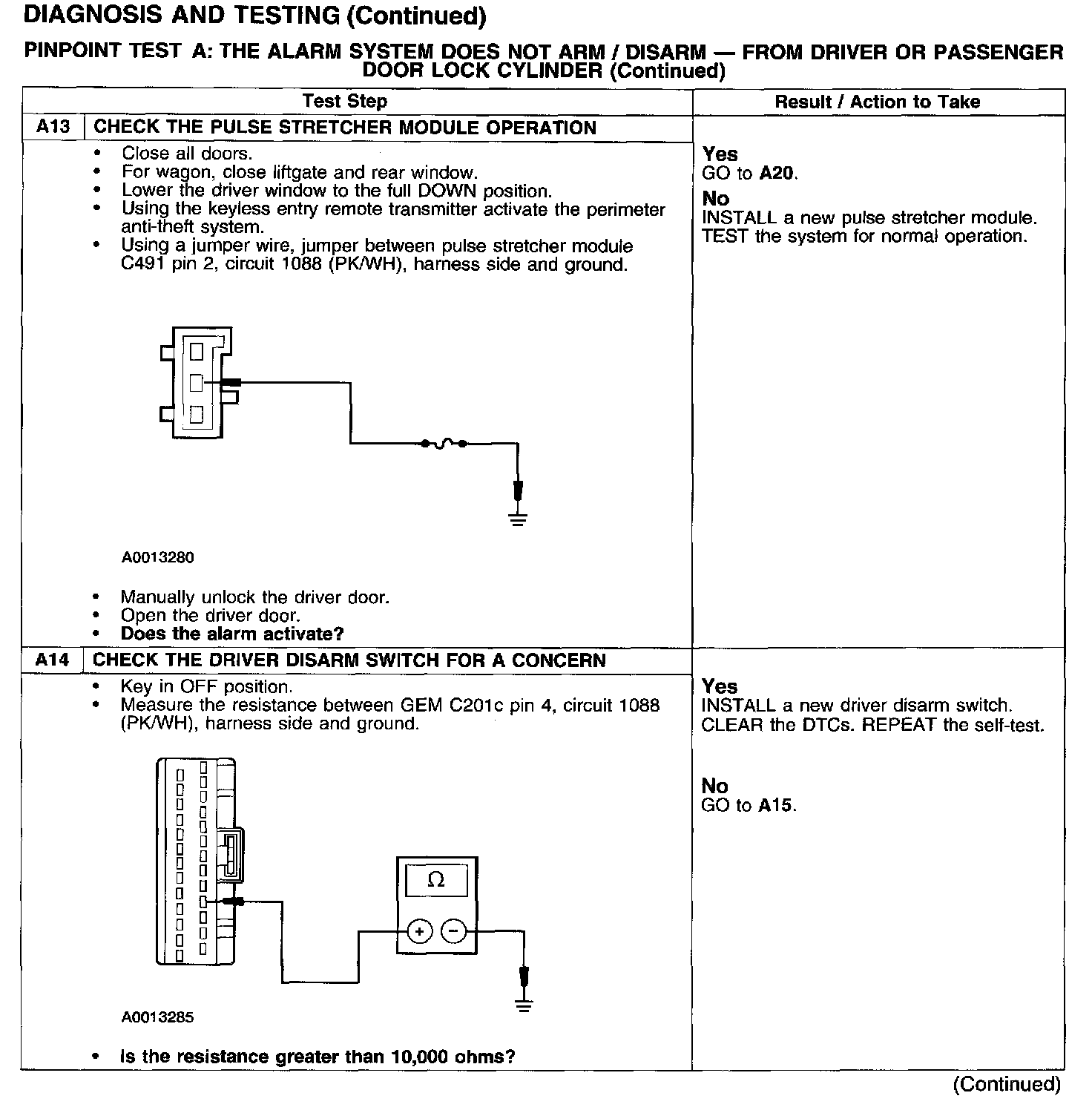

Test A13-A14:

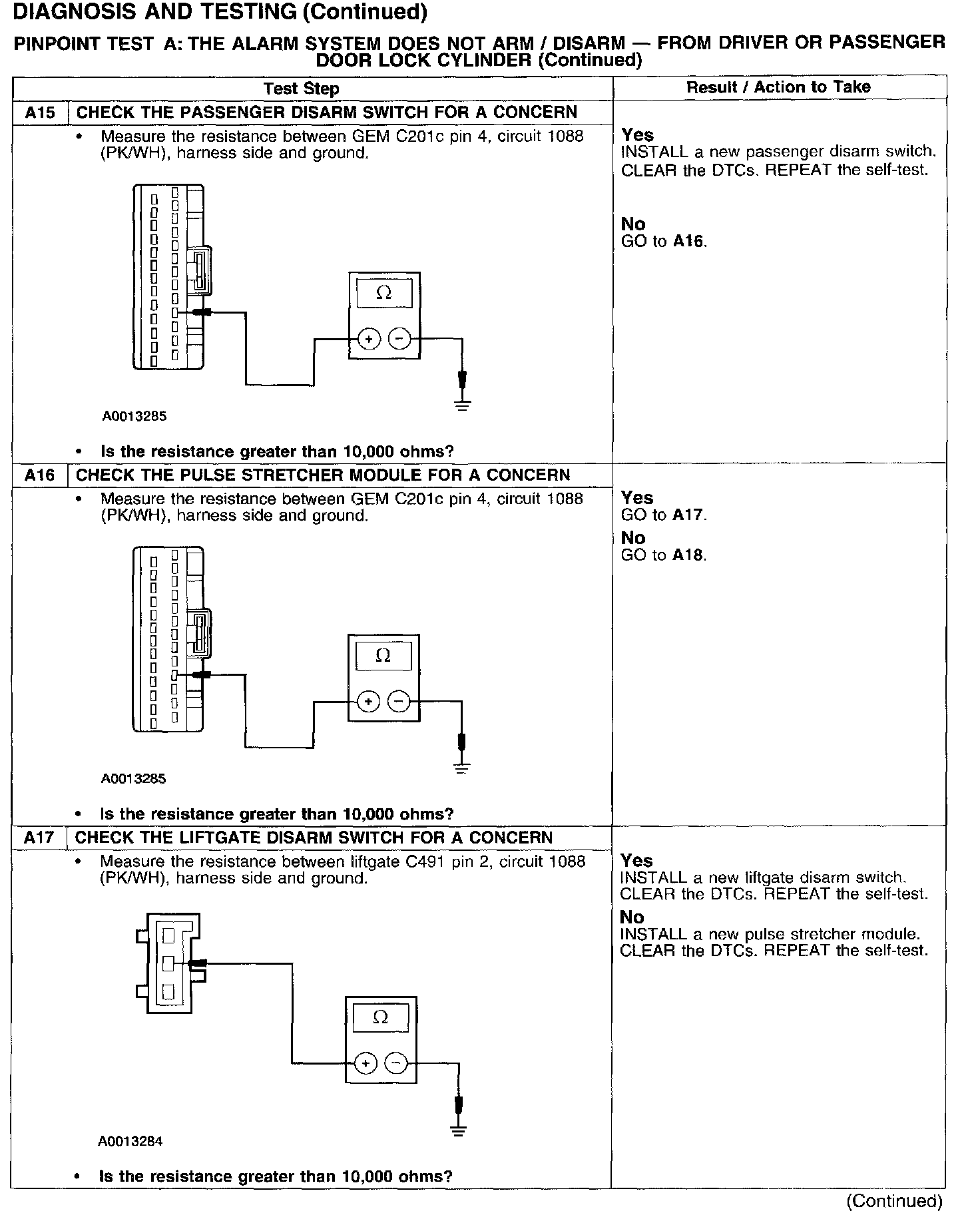

Test A15-A17:

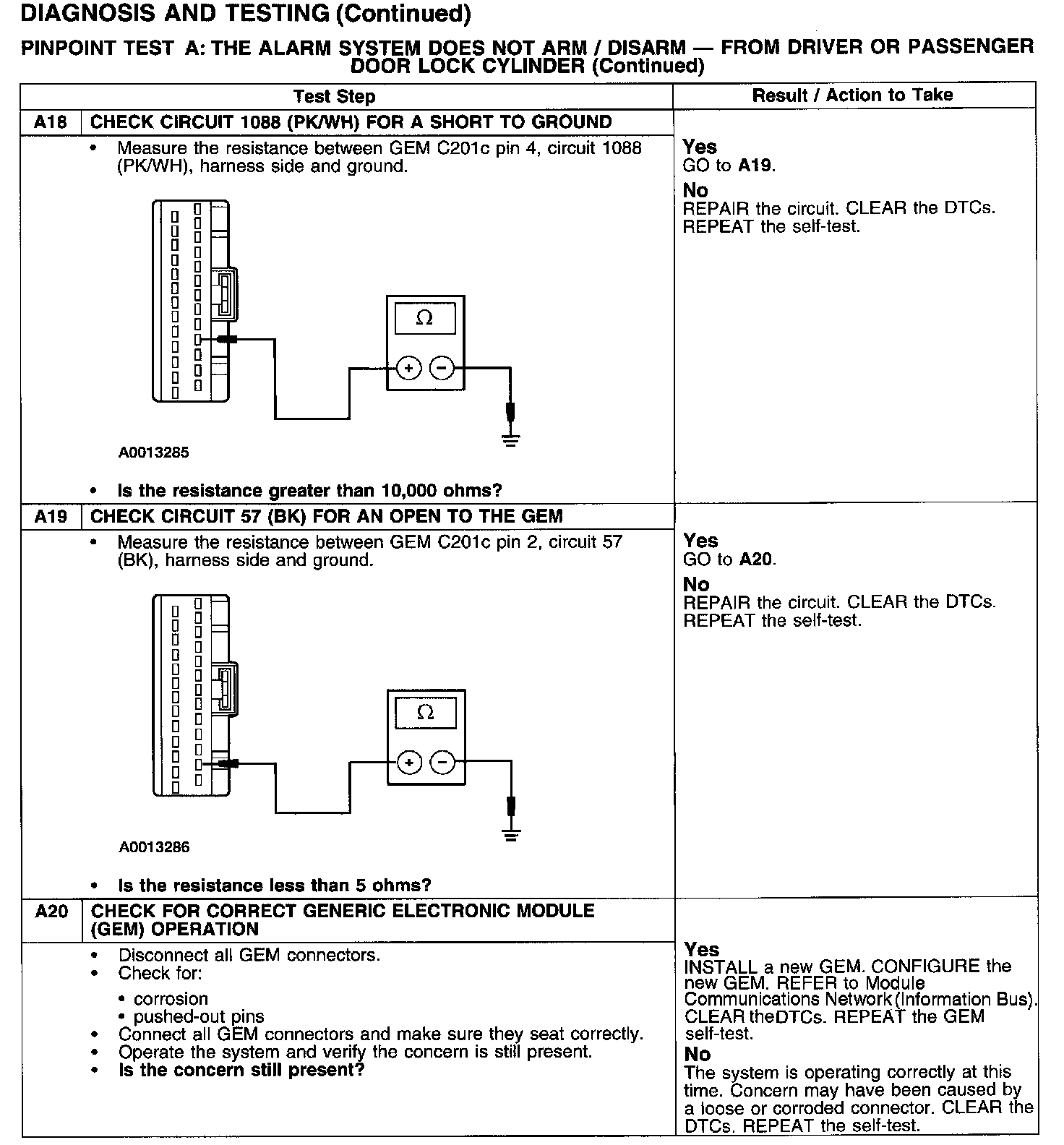

Test A18-A20:
