Windshield Washer Pump

REMOVAL
1. Remove the RH front wheel.







2. Remove the four screws, the pin-type retainer and remove the RH front inner fender well.

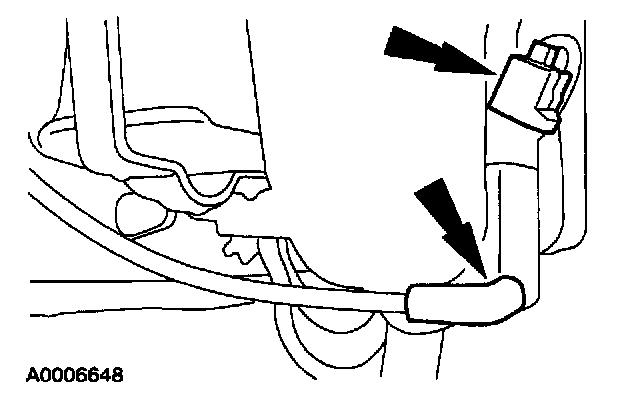

3. Disconnect the washer hose and the electrical connector from the washer pump.

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL WHICH IS POISONOUS. OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

NOTE: The windshield washer reservoir will drain when the washer hose is disconnected.

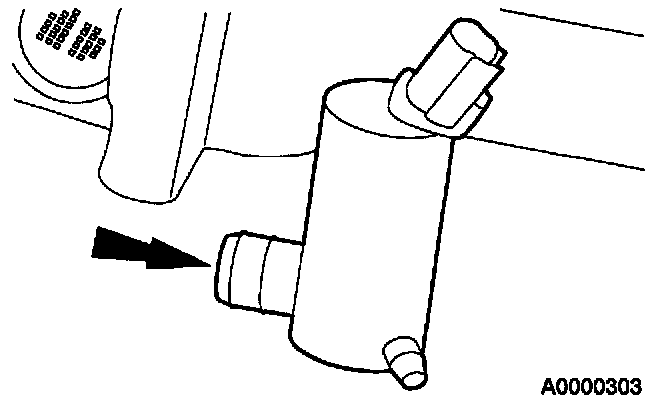

4. Remove the washer pump assembly by prying the pump out of the reservoir cavity with a small flat blade screwdriver.

INSTALLATION
1. To install, reverse the removal procedure.
