Rear Door Glass Top Run

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the rear door window glass.

CAUTION: Due to the fragile make-up of the rear door glass top run, removal is recommended only if the top run is damaged. Necessary removal may damage the light-gauge steel carrier insert within the rubber seal of the rear door glass top run.

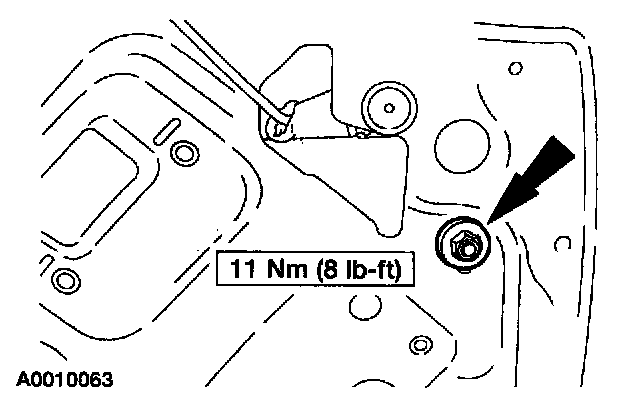

2. Remove the rear door window glass top run bolt.

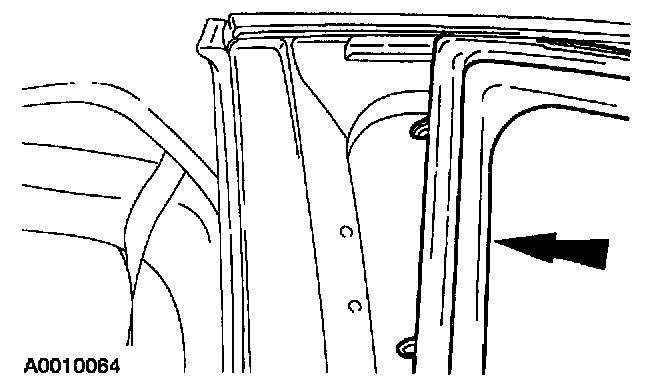

3. Remove the rear door glass top run.

NOTE: When installing be sure to correctly align locator pins.

INSTALLATION
1. To install, reverse the removal procedure.
