Test E: Warning Indicator Off W/Ign Switch In RUN/Engine OFF

PINPOINT TEST E: THE CHARGING SYSTEM WARNING INDICATOR IS OFF WITH THE IGNITION SWITCH IN THE RUN POSITION AND THE ENGINE OFF

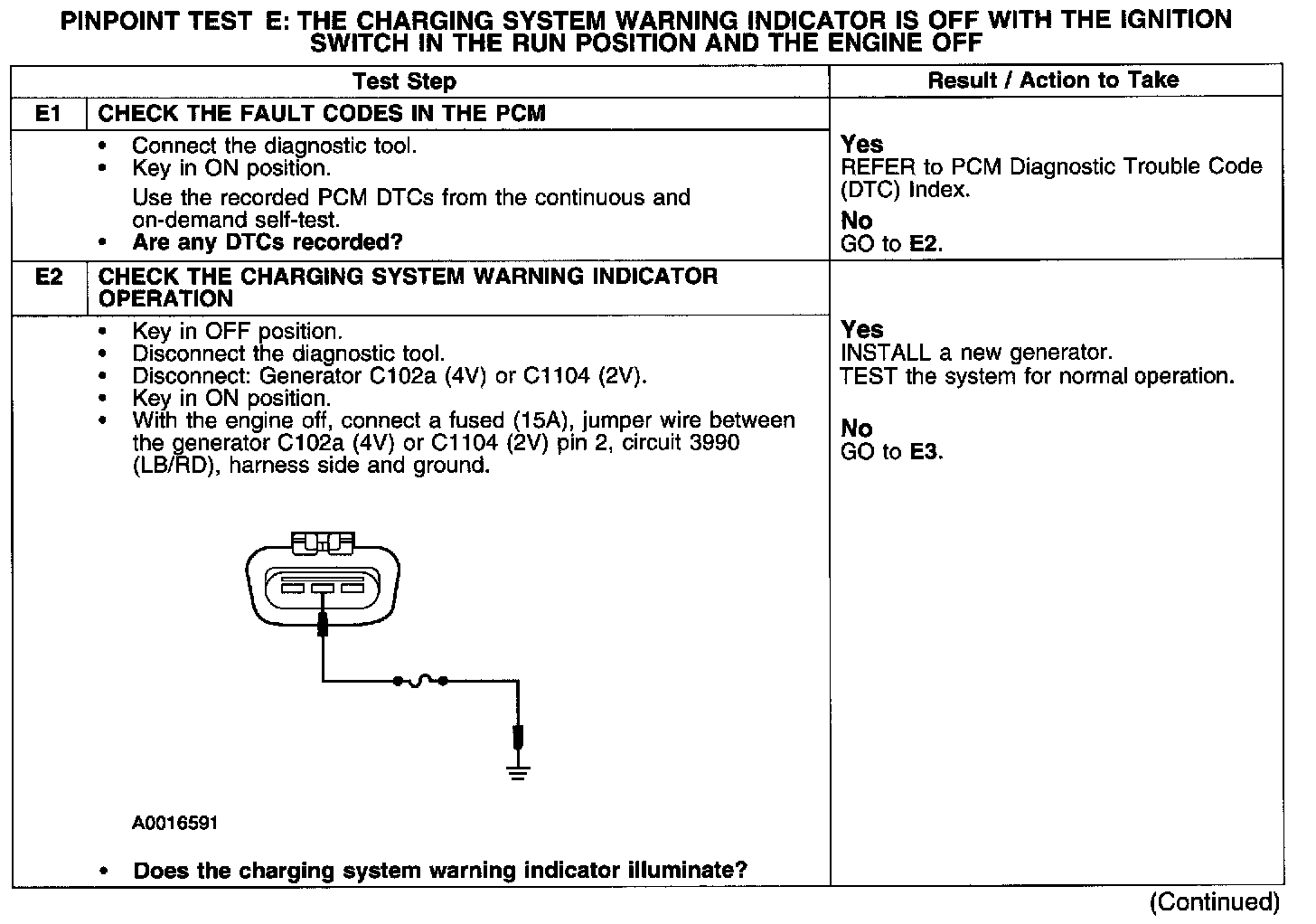

Test E1-E2:

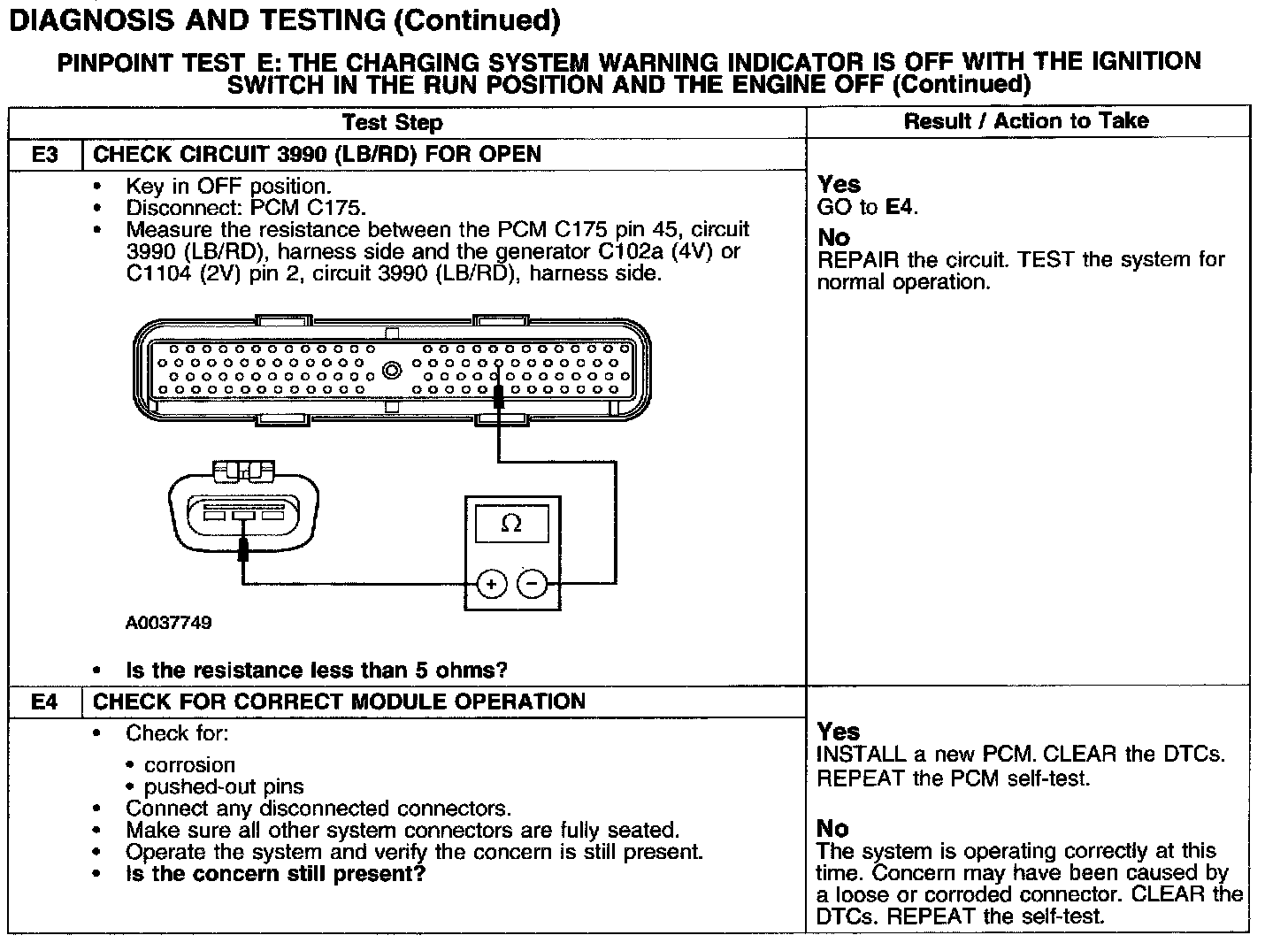

Test E3-E4:
