Alternator: Service and Repair

Flywheel Holding Tool:

SPECIAL TOOL(S)

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.
3. Raise the vehicle.

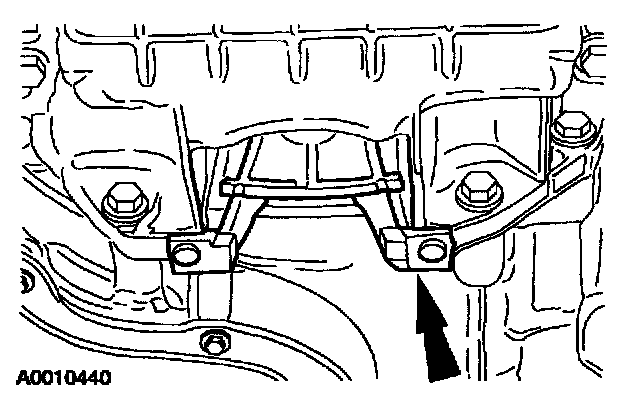

4. Remove the torque converter inspection cover.

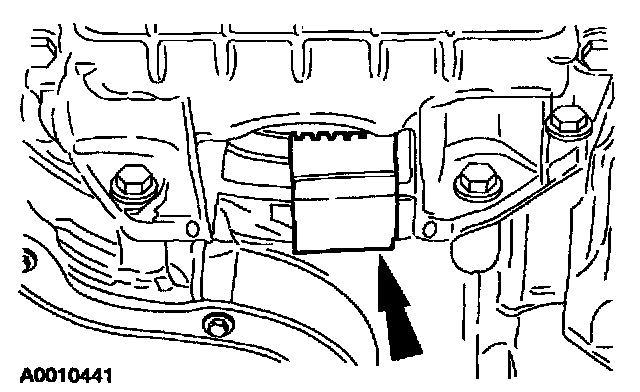

5. Install the flywheel holding tool.

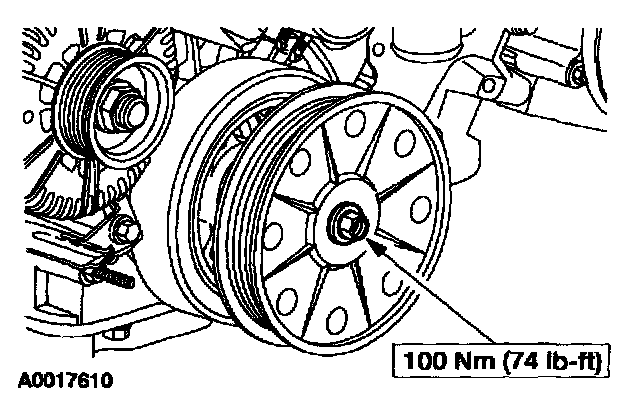

6. Remove the bolt and the crankshaft pulley.

NOTE: The crankshaft pulley bolt has a reverse thread.







7. Remove the screws and the generator splash shield.

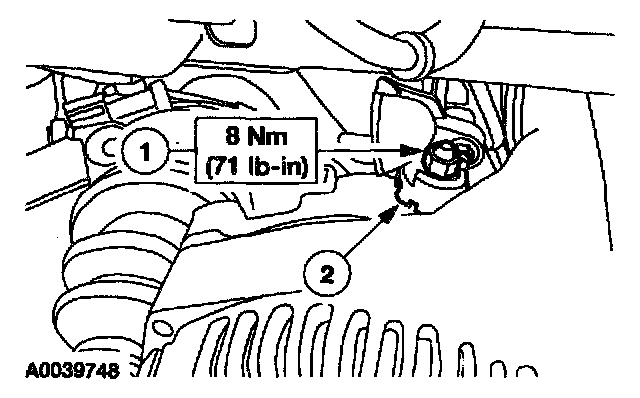

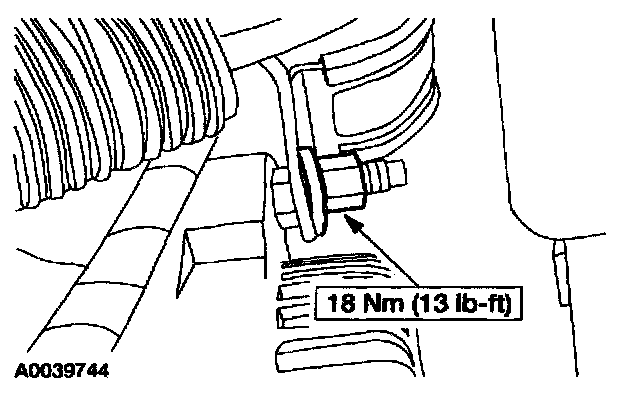

8. Remove the power steering hose bracket nut from the generator mounting bolt.

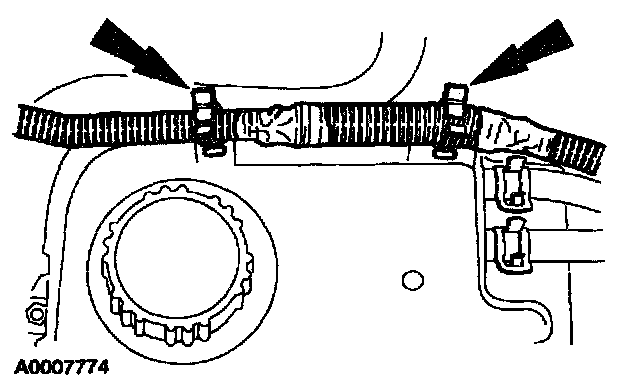

9. Detach the wiring harness.







10. Remove the nut and disconnect the wiring harness locator.

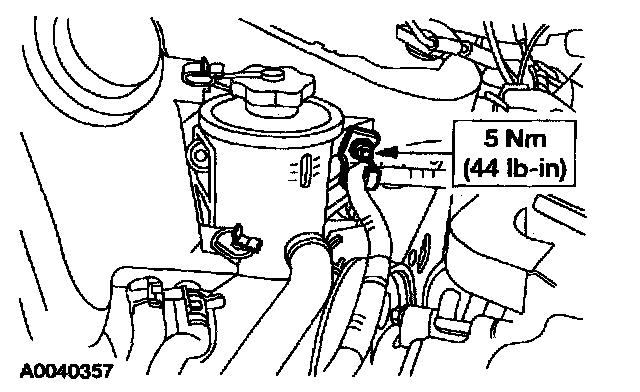

11. Remove the nuts and the bolt. Position the power steering reservoir aside.

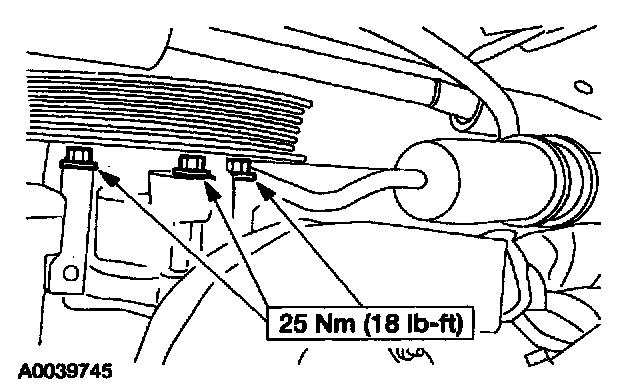

12. Remove the power steering pump bolts.
^ Position the power steering pump and line aside.

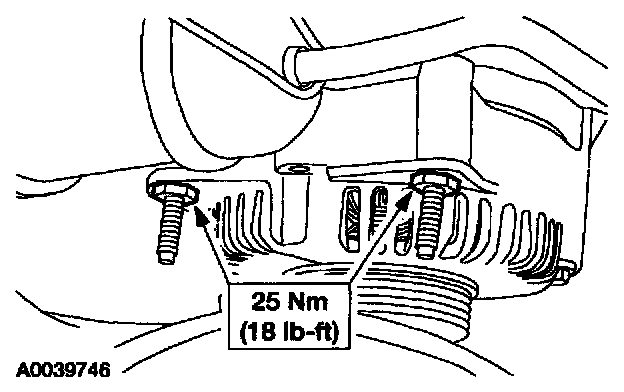

13. Remove the upper generator bolts.

NOTE: The left side bolt will come out with the generator.

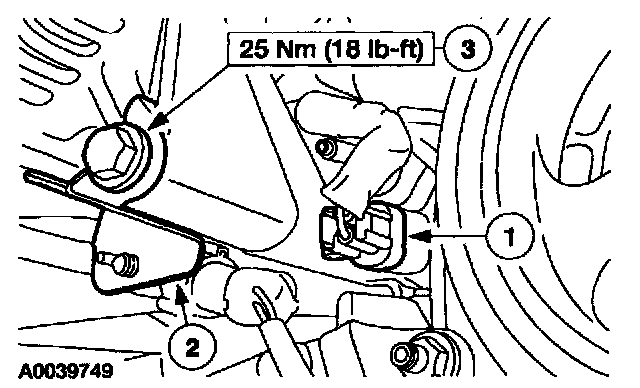

14. Lower the generator to allow access to the electrical connectors.
1 Disconnect the crankshaft sensor.
2 Release the oxygen sensor connector locator from the bracket.
3 Remove the lower generator bolt.

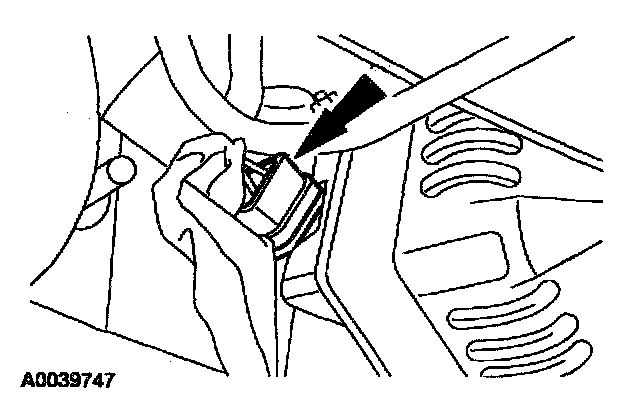

15. Disconnect the regulator electrical connector.







16. Remove the generator from the vehicle.
1 Remove the B+ connector nut.
2 Disconnect the B+ connector and remove the generator.

INSTALLATION
1. To install, reverse the removal procedure.
