Coil Pack

REMOVAL

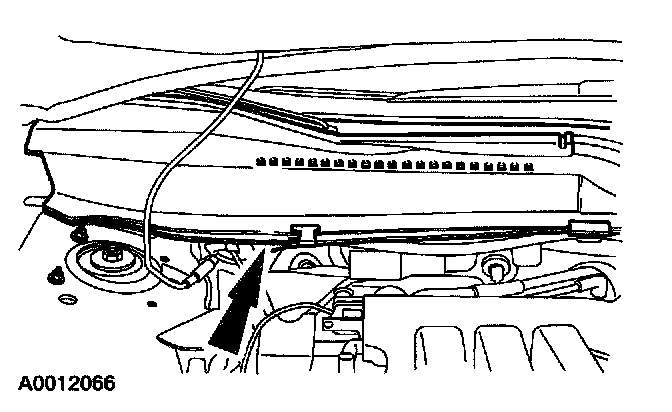

1. Remove the RH cowl panel grille.







2. Remove the screws and the water shield.







3. Disconnect the spark plug wires from the ignition coil.

CAUTION: When removing the spark plug wires a slight twisting motion will break the seal and ease removal.







4. Disconnect the ignition coil electrical connector.







5. Remove the mounting screws and remove the ignition coil.

INSTALLATION
1. To install, reverse the removal procedure.
