Home >> Mercury >> 2003 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test S

Test S

PINPOINT TEST S: THE CHECK TRANSMISSION INDICATOR IS INOPERATIVE

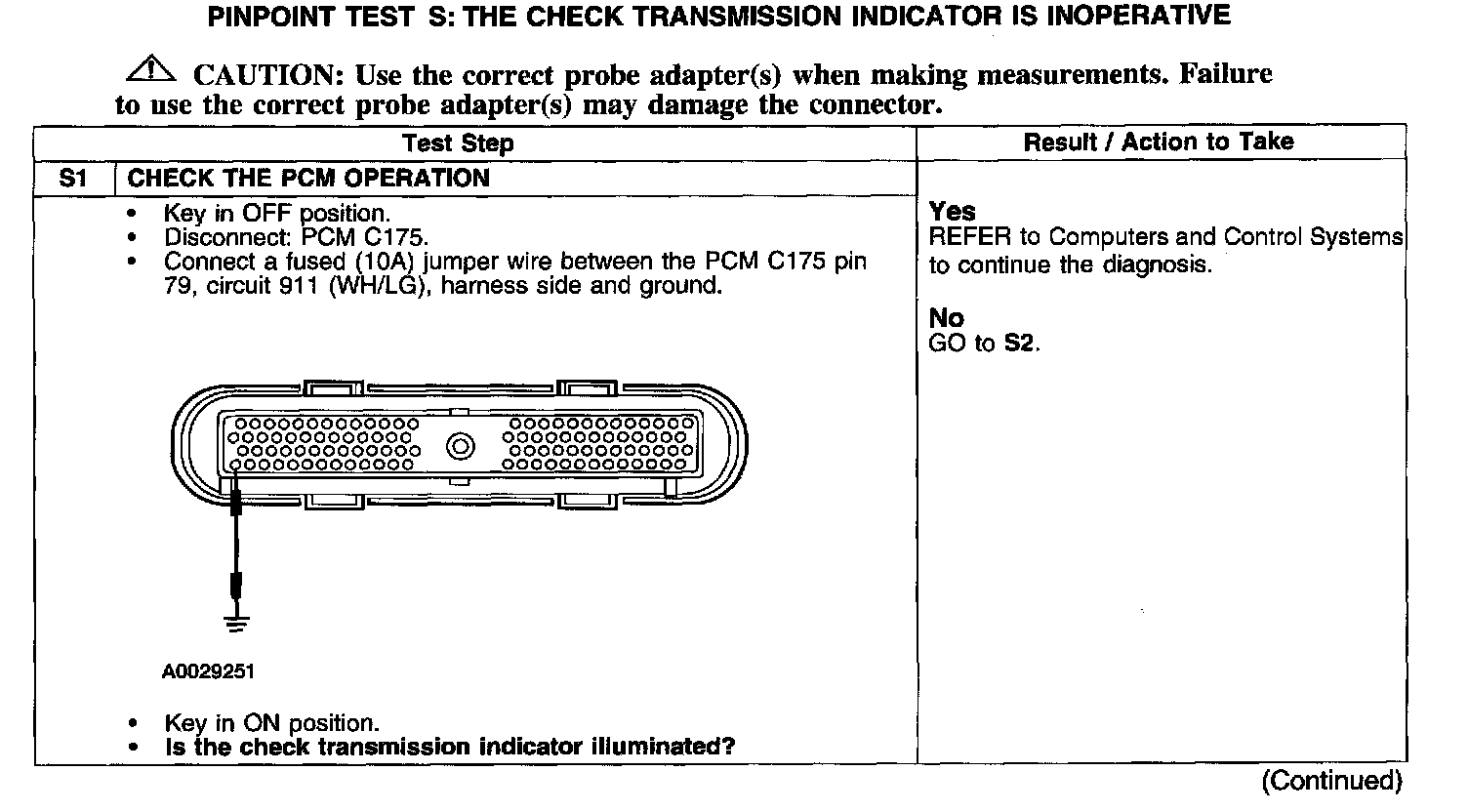

Test S1:

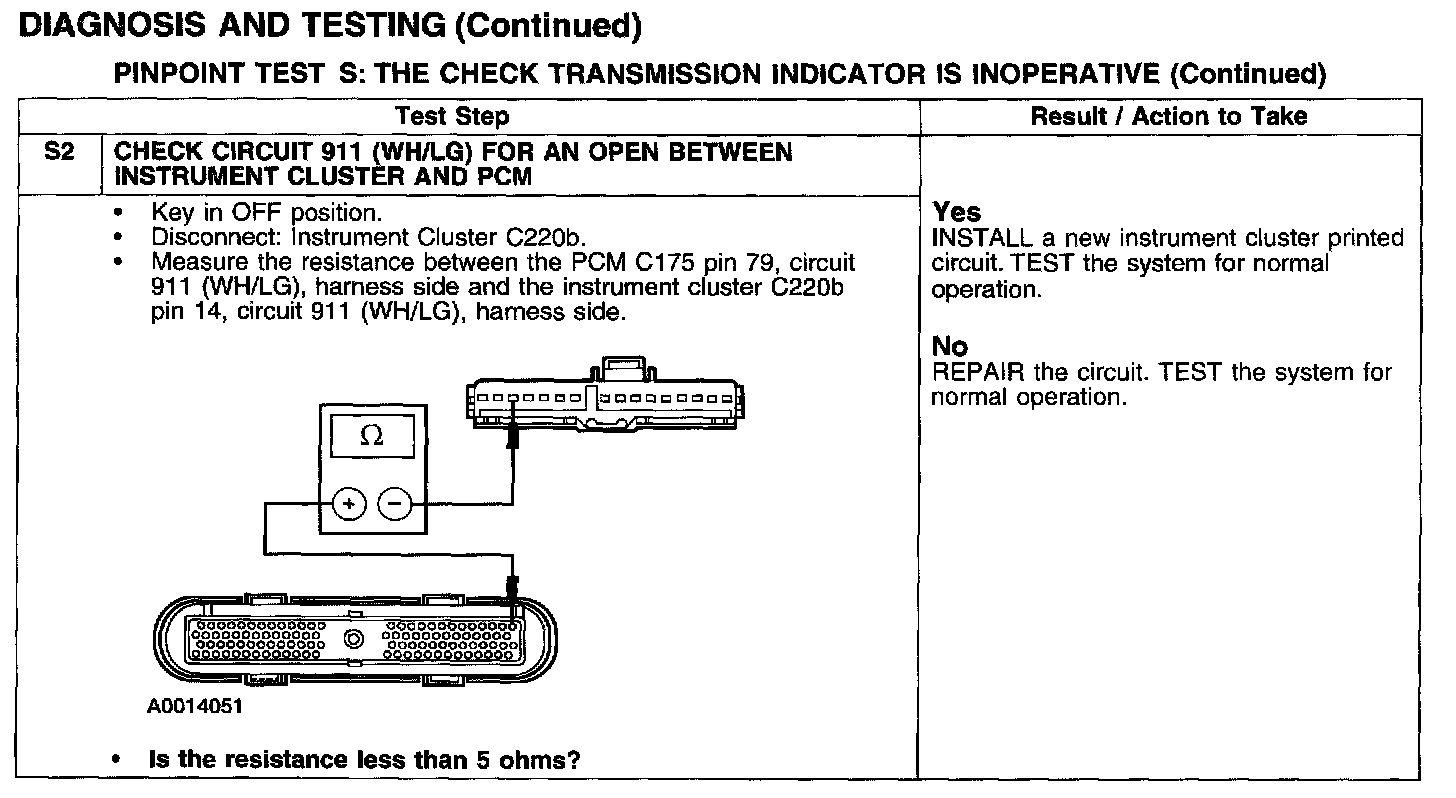

Test S2:
